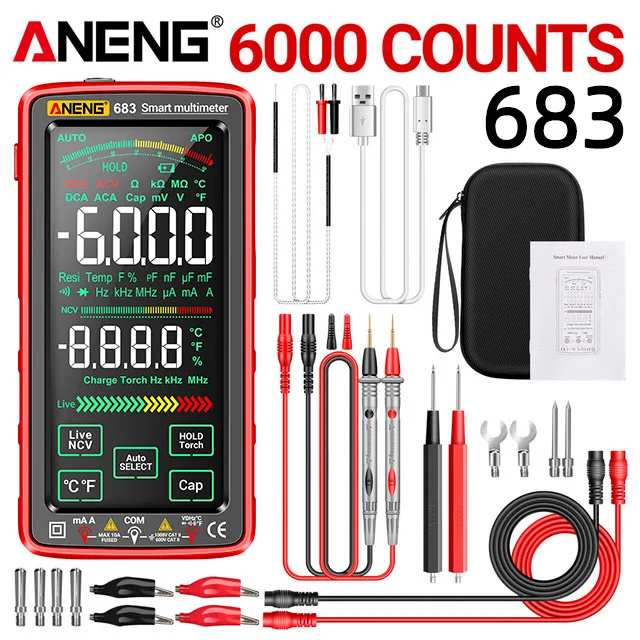

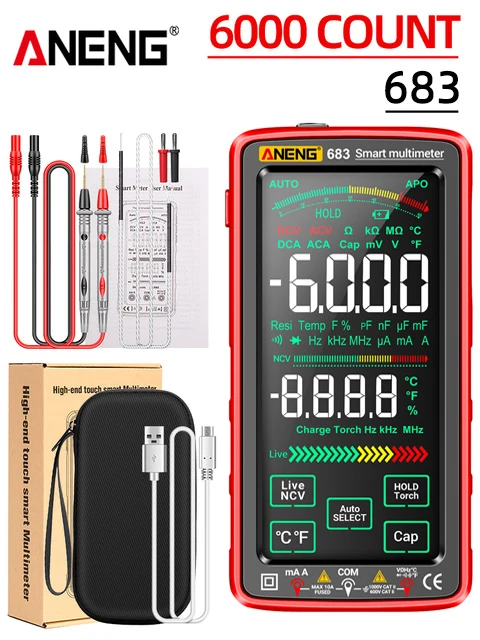

ANENG 683 Digital Multimeter Rechargeable Smart 6000 Counts Multimeter High-end Touch AC/DC Voltage Current Tester electrician Tools
Introduce
This device is a 3 5/6 digital multimeter with stable performance and realiable quality.The meter adopts LCD display screen with analog bar display.Users in the process of use,truly achieve continuous power operation,do not need to turn the dial to select functions.According to the input ac/DC voltage/resistance will be automatically identified and measured.
It can be used to measure DC voltage,AC voltage sine RMS,DC Current,AC current sine RMS,resistance,capacitance,live-line indication,duty ratio,diode on/off test,symbol unit,data hold and automatic power off.
Summary
Manual Range and Auto Range
Full range overloaded protectection
The maximum voltage allowed between the measuring terminal and ground:1000V DC or 750V AC
Fuse Protection:uA/mA
Display:6000 Counts LCD monitor with analog bar
Battery Type:3.7V/2800mA rechargeable battery
Specification
DC Voltage
Measuring Range
Resolution
Accuracy
6V/60V
0.001V/0.01V
+-(0.5% readings+3digits)
600V/1000V
0.1V/1.0V
+-(0.8% readings+10digits)
AC Voltage
+-(0.8% readings+3digits)
600V/750V
+-(1.0% readings+10digits)
AC and AC Current
6000mA
1mA
+-(1.0% readings+5digits )
10A
0.01A
+-(2.5% readings+10digits )
Resistance
600Ω/6kΩ/60kΩ/600kΩ
0.1Ω/0.001kΩ/0.01kΩ/0.1kΩ
6MΩ
0.001MΩ
+-(1.2% readings+3digits)
60MΩ
0.01MΩ
+-(2.5% readings+5digits)
Capacity
60nF/60nF/6uF/60uF/600uF/6mF
0.01nF/0.1nF/0.001uF/0.01uF/0.1uF
+-(4.0%Readings+20 digits)
60mF
0.01mF
+-(5.0%Readings+5 digits)
100mF
0.1mF
for reference
Frequency
9.999Hz/99.99Hz/999.9Hz
0.001Hz/0.01Hz/0.1Hz
9.999kHz/99.99kHz/999.9kHz
0.001kHz/0.01kHz/0.1kHz
Temperature
40℃-300℃
+-(1.0%+4d)
1℃
301℃-1000℃
+-(1.9%+5d)
40 °F -600 °F
+-(1.2%+6d)
1°F
601 °F -1832 °F
+-(1.9%+6d)
Diode Test
Yes
Circuit on/off Test
Data Hold
Automatic power off
Torch
NCV Test
Buzzer
Firing line Test
Package Included
As the picture showed
