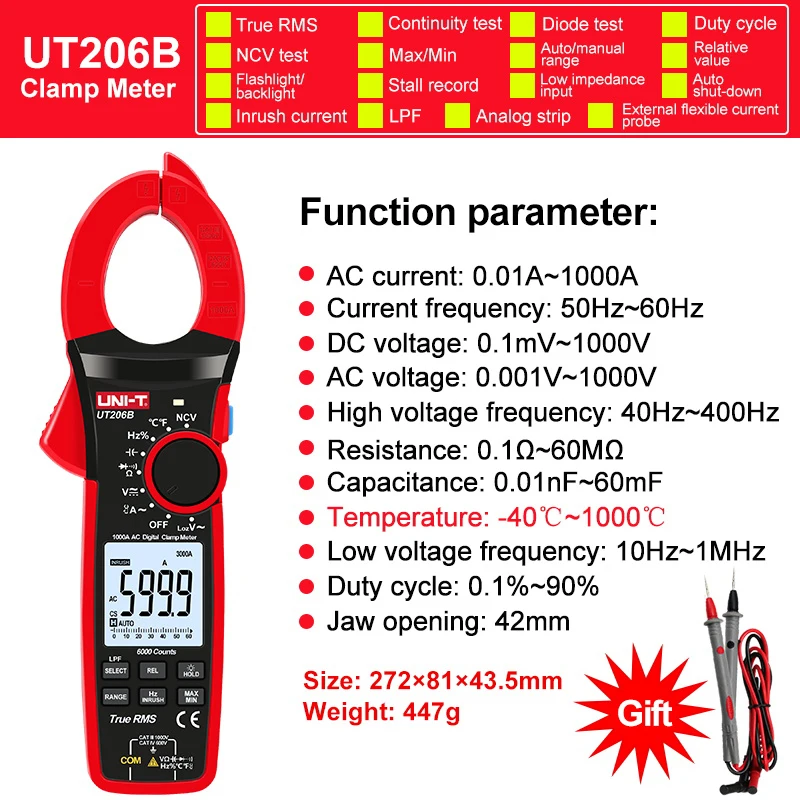

UT206B UT207B UT208B 1000A True RMS Digital Clamp Meter
UT200 series are 6000 count digital clamp meter.With Auto Range,large LCD,true RMS, auto scale memory, and NCV functions.They conform to CAT III 1000V/CAT IV 600V safety rating and certified by CE/ETL.UT206B,UT207B and UT208B come with LOZ mode for eliminating ghost voltage, LPF ACV function for measuring INV and VFD voltage, inrush current and mode for capturing transient current.UT206B and UT208B also feature high-precision temperature measurement with 0.1 centigrade resolution, and can be equipped with a flexible current probe to extend the AC current measurement range up to 3000A.
Features of UT200 Series 1000A True RMS Digital Clamp Meters
1.True RMS
2.1000A AC/DC Current Measure
3.Flashlight
4.NCV(audible/visual alarm)
5.Backlight
6.Data Hold
7.MAX/MIN/relative mode
8.Diode/Continuity Test
9.Inrush Current(UT206B/UT207B/UT208B)
10.LPF ACV(UT206B/UT207B/UT208B)
11.LOZ ACV(UT206B/UT207B/UT208B)
Optional flex clamp (UT-CS09D) up to 3000A (UT206B/UT208B)
Note please ：the flex clamp need to be ordered, not included in standard accessories.
Battery is not included.
Specifications
Range

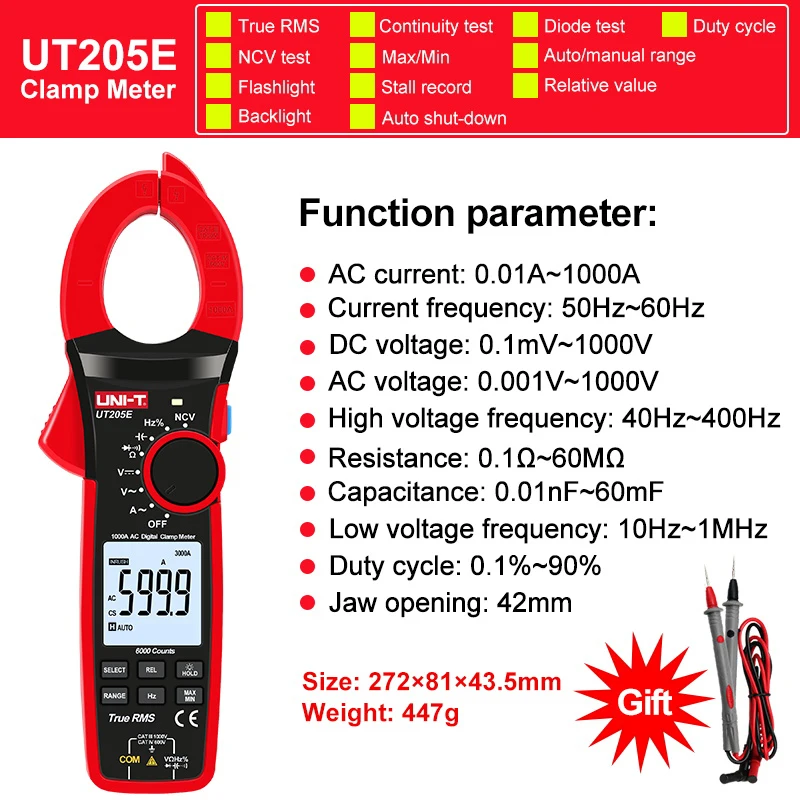

UT205E
UT206B
UT207B
UT208B
AC current (A)
1000A
±(2%+5)
DC current (A)
AC current frequency response
50Hz~60Hz
40Hz~400Hz
Inrush current (A)
±(10%+10)
AC voltage (V)
6V
±(1.2%+3)
60V/600V/1000V
±(1%+8)
DC voltage (V)
600mV
±(0.8%+3)
6V/60V
±(0.5%+5)
600V
1000V
Low pas filter (LPF ACV)
600V/1000V
AC voltage frequency response
LoZ ACV
Resistance (Ω)
600Ω
±(1%+3)
6KΩ/60KΩ/600KΩ
±(1%+2)
6MΩ/60MΩ
±(2%+8)
Capacitance (F)
60nF
±(4%+25)
600nF/6μF/60μF/600μF
±(4%+5)
6mF/60mF
±(10%+9)
Temperature (℃)
40℃~300℃
±(1%+20)
300℃~1000℃
Low voltage frequency (Hz)
10Hz~1MHz
±(0.1%+3)
Duty cycle (%)
10%~90%
±(2.6%+7)
Features
Display count
6000
Jaw opening
42mm
Current frequency
High voltage frequency
Analog bar
