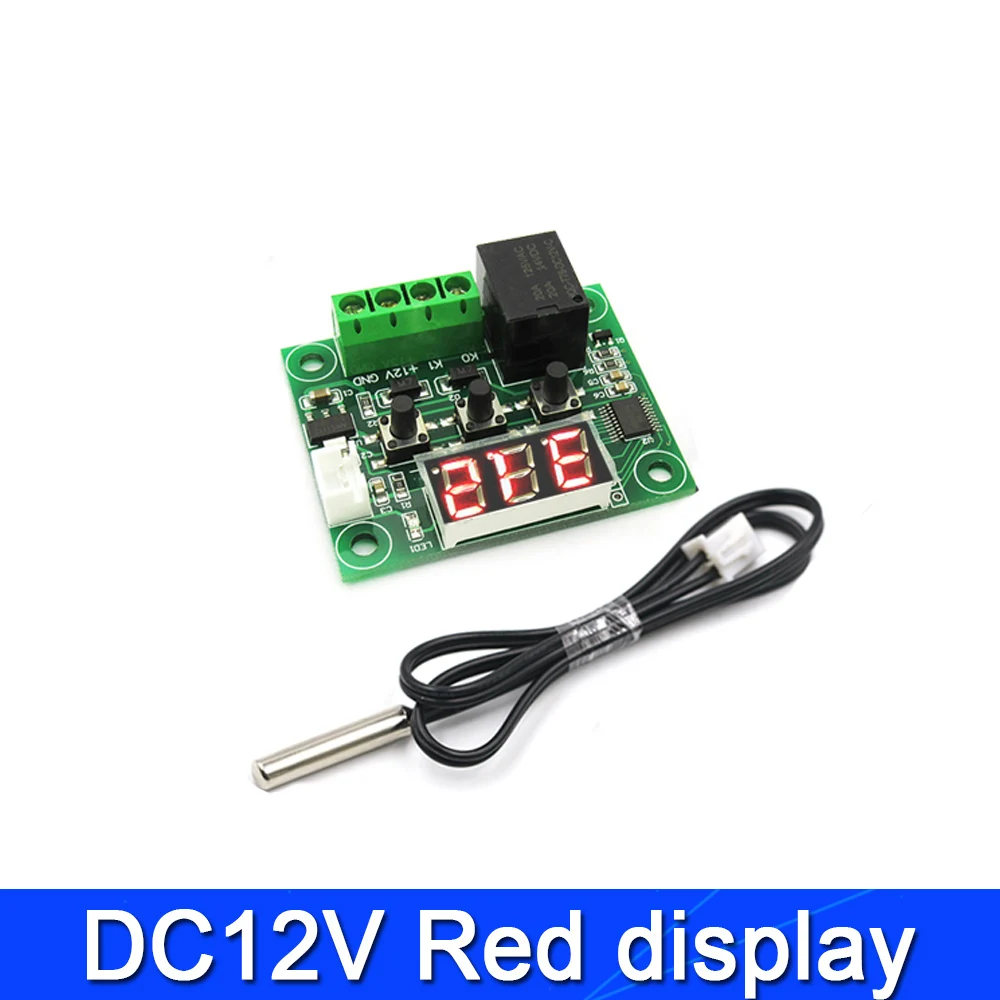

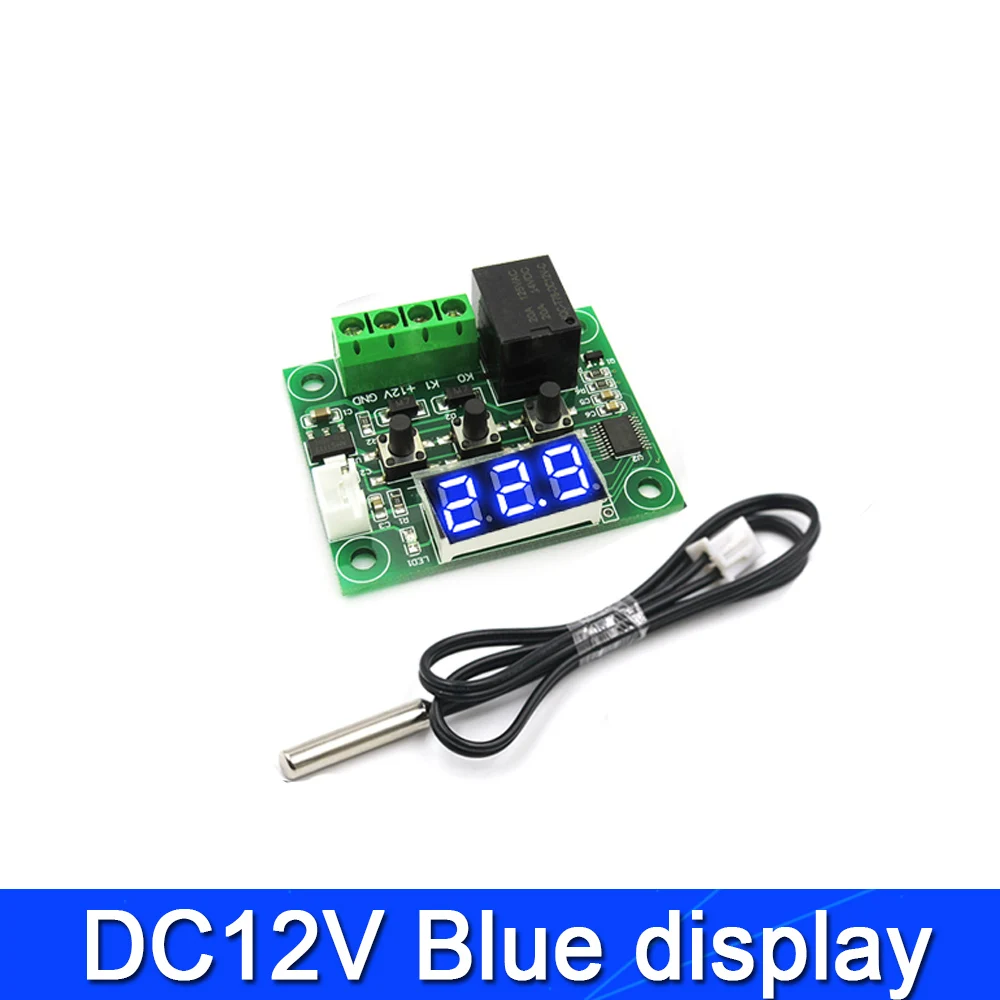

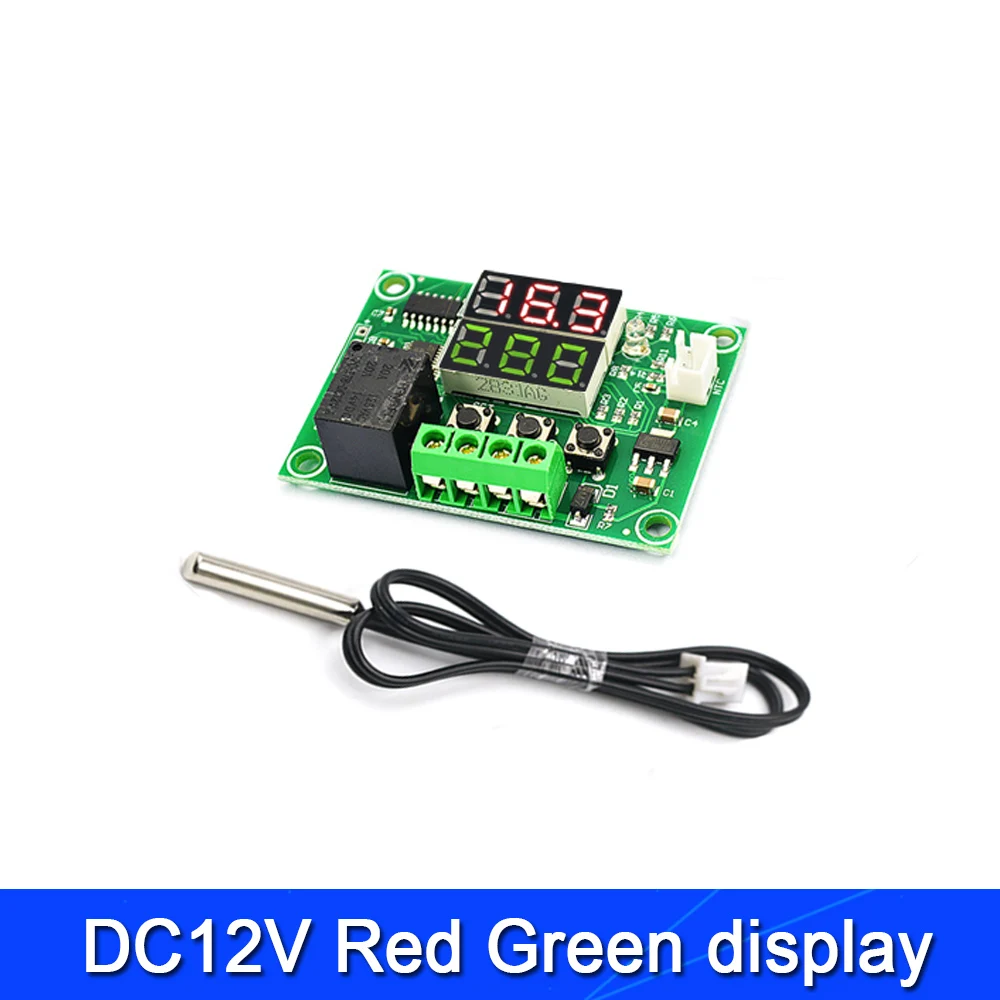

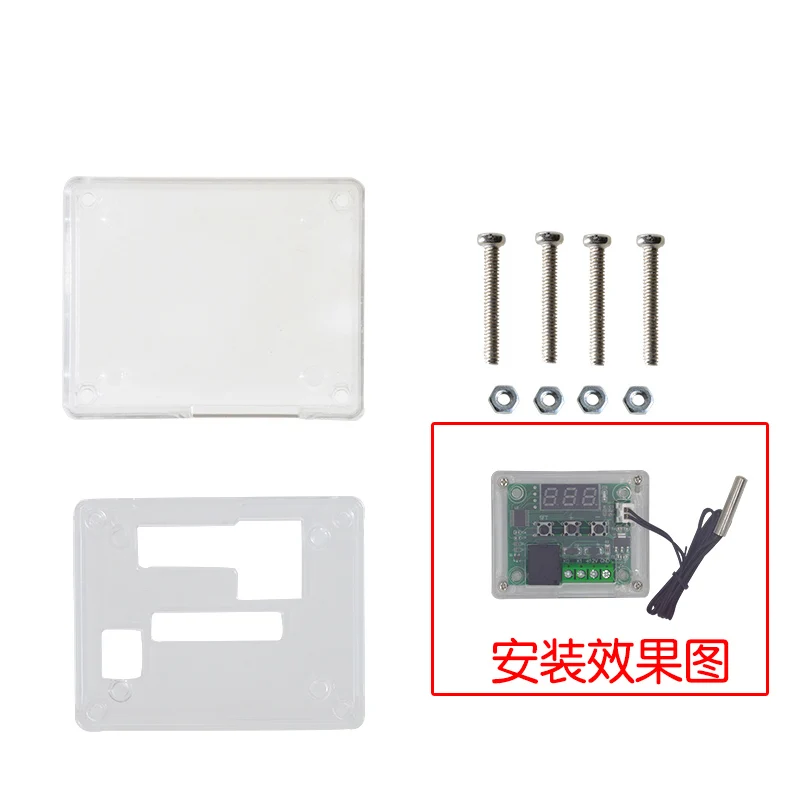

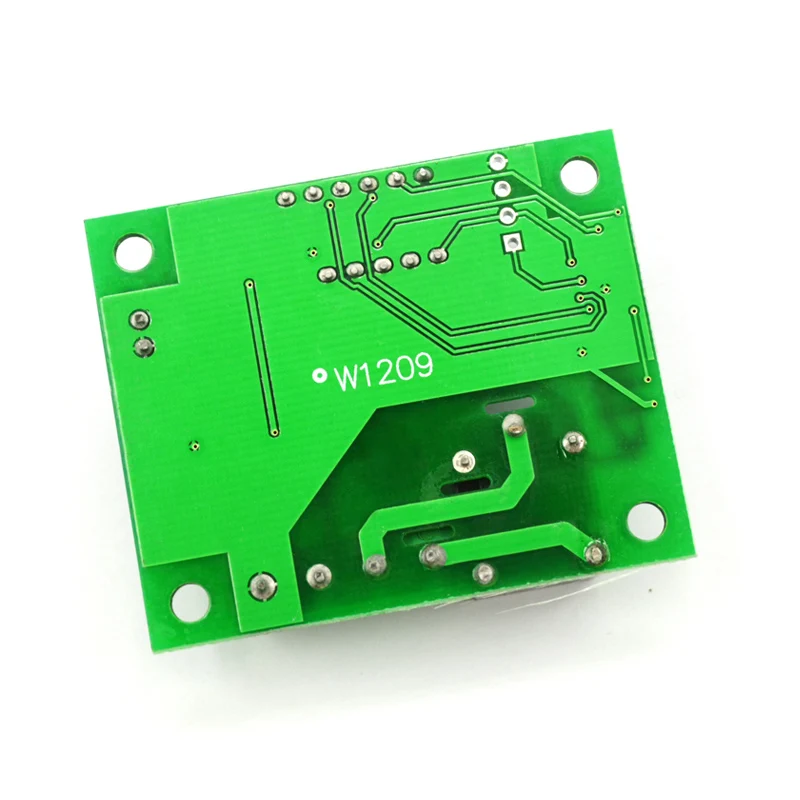

W1209 DC 5V 12V heat cool temp thermostat temperature control switch temperature controller thermometer thermo controller

1. Use

Connect the power supply and equipment,to the controller power supply,as measured temperature is displayed,press the SET button,the display temperature flashes,press "+" "-" to set the desired temperature (hold down the button 5 seconds more quickly lift). After setting press SET to confirm return,then the controller according to the set temperature automatically execute the relay off!

nbsp

2. Indicator,LED Status Description

Indicator: indicates relay is closed,Off means the relay has been disconnected

Digital: Displays the sensor 888 is open,follow the instructions to connect the sensor

Show HHH for the excess of the maximum temperature of the measuring range,the thermostat will be forced off the relay

Display L L L of the measuring range of the lowest temperature,the thermostat will be forced off the relay

Display - - - high temperature alarm,thermostat will forcibly disconnect relay

3. Parameter Function

Press SET button for 5 seconds to enter the main menu settings,press the "+" "-" Switching P0-P8,long press SET to confirm or automatically 10 seconds after no key operation of the controller to return.

P0 refrigeration,heating mode

In the main menu interface P0,press the SET key to enter setup,press "+" "-" to switch to heating mode [H] [C] for the cooling mode,press SET to return,long press SET or 10 seconds without button operation control automatically confirm completion.

[C] under cooling mode: Measured value ge set point + hysteresis,relay; measured value le set point,the relay off

[H] Under heating mode: Measured value le set point - hysteresis,relay; measured value ge set point,the relay off

P1 hysteresis setting

In the main menu interface P1,press the SET button to enter the hysteresis settings,press the "+" "-" to set hysteresis of 0.1 to 30,press SET to return after the completion of a long press SET or 10 seconds without button operation controller automatically confirm completion.

Cooling mode: When the measured temperature ge set value + return difference,relay,refrigeration starts; when the temperature measured value le set value,the relay off,refrigerator off.

For example: the environment 30degC,25nbspnbspnbspdegCnbspnbspnbspnbspis set,hysteresis is set to 2nbspnbspnbspdegCnbspnbspnbsp,after power relay closed refrigeration starts,when the cooling to 25nbspnbspnbspdegCnbspnbspnbsp,the relay off cooling off,this time due to cooler have disconnected the temperature began to rise,when the set value rose to 27nbspnbspnbspdegCnbspnbspnbspnbsp(set point + return difference) relay closes when the chiller is started again,and so forth loop between the control temperature 25-27nbspnbspnbspdegCnbspnbspnbsp.

Heating mode: when the temperature measured value le set value - the difference back,relay,heater start; when the temperature measured value ge set value,the relay is switched off,the heater is turned off.

For example: 10nbspnbspnbspdegCnbspnbspnbspnbspenvironment for the setting is 25nbspnbspnbspdegCnbspnbspnbsp,hysteresis is set to 2nbspnbspnbspdegCnbspnbspnbsp,after power relay closed the heaters,when heated to 25nbspnbspnbspdegCnbspnbspnbsp,the relay off the heater turned off,this time because the heater has been disconnect the temperature began to fall,down to the current set point 23nbspnbspnbspdegCnbspnbspnbspnbsp(set-point - return difference),the relay is closed heater starts again,and so forth cycle to control the temperature between 23-25nbspnbspnbspdegCnbspnbspnbsp.

P2 highest temperature setting limit

To avoid misuse of others led to the set temperature is too high risk,the highest setting of the thermostat capping defining the control thermostat setting range maximum temperature set point.

In the main menu interface P2,press the SET key to enter setup,press "+" "-" to set up the set temperature (maximum 110),press SET to return after the completion of a long press SET or 10 seconds without button motion controller automatically confirm completion.

For example: P2 is set to 60nbspnbspnbspdegCnbspnbspnbsp,the highest temperature measured only 60nbspnbspnbspdegCnbspnbspnbsp,when the temperature rises to 60nbspnbspnbspdegCnbspnbspnbsp,the digital tube displays "H H H",the relay forcibly disconnected. If you want a higher temperature set point temperature to expand the scope,you need to adjust the upper limit set value.

P3 set minimum temperature limit

To avoid misuse of others lead to the occurrence of ice blocking temperature is too low,the lowest of the thermostat set lower limit function,defining the scope of the thermostat setting controls the minimum temperature set point.

In the main menu interface P3,press the SET key to enter setup,press "+" "-" set the minimum temperature can be set (minimum -50),press SET to return after the completion of a long press SET or 10 seconds without keystroke controller automatically confirm completion.

For example: P3 is set to -20nbspnbspnbspdegCnbspnbspnbsp,the lowest temperature of -20nbspnbspnbspdegCnbspnbspnbspnbspcan be measured,when the temperature was lowered to -20nbspnbspnbspdegCnbspnbspnbspnbspafter,LED displays "L L L",the relay forcibly disconnected. If you want to lower the temperature set point temperature to expand the scope,you need to adjust the setting value lower limit.

P4 temperature correction

When the measured temperature and the standard deviation of temperature or because the user hardware has special needs,you can use this function to correct temperature corrected before correction + = temperature correction effective range of -7.0 to 7.0 (unitnbspnbspnbspdegCnbspnbspnbsp).

In the main menu interface P4,press the SET key to enter setup,press "+" "-" to set the correction value,press SET to return once completed,long press SET or 10 seconds without button operation controller automatically confirm completion.

For example: Normal display 25 degrees; temperature correction is 0:00 Show 25 degrees; temperature correction display 26.5 1.5 degrees; temperature correction -1.5 23.5 degrees when displayed.

P5 delay start time (unit: seconds)

When refrigeration or heater work required delay can be turned on delay function to protect the life of the equipment.

In the main menu interface P5,press SET key to enter setup,press "+" "-" Setting the delayed start time (unit: seconds),the delay time in the range of 0-600 seconds,press SET to return after the completion of a long press SET or 10 seconds without button operation controller automatically confirm completion.

Cooling mode: the first power on,if the current temperature ge set value + return difference when the chiller does not start cooling immediately after the need to run the set delay time to start.

Heating mode: the first power on,if the current temperature le set value - the difference between the time back,the heater does not start heating immediately after the need to run the set delay time to start.

Downtime cooler or heater starts between two adjacent delay start time is greater than the set value,cooling starts immediately. Shutdown cooling or heater adjacent lapse between two starts is less than the delay start time setting,start again after the need to run chillers complete set delayed start time for the device to start. Delay time is counted down instantly. Delay start is set equal to zero off delay function.

For example: cooling mode set the delay to 60 seconds,if the current temperature ge set value + return difference when the thermostat start delay after power,after 60 seconds,turn cooler. When you reach the desired temperature of the refrigerant is stopped,then the start time,the next time the cooling starts,if after a time delay set by the cooler work immediately or to wait for the end of the timer to work.

P6 Buzzer switch (this function is invalid)

P7 temperature alarm function

When the temperature reaches the set value of the high temperature alarm,digital display - - - simultaneously forced off the relay. When setting has been pressing "-" key,the setting value is reduced to 0,then click the "-" key to display "OFF",at which time the function is off,the high temperature alarm function is invalid.

W1209WKnbsp Specifications

Temperature measurement range:-50Celsius-110Celsiusnbsp

Temperature 0.1,other paragraph 1nbspCelsiusnbsp

Accuracy:0.1Celsiusnbsp

Return difference accuracy:0.1Celsiusnbsp

Refresh rate:0.5snbsp

High temperature protection:0-110Celsiusnbsp

The input voltage:DC12Vnbsp

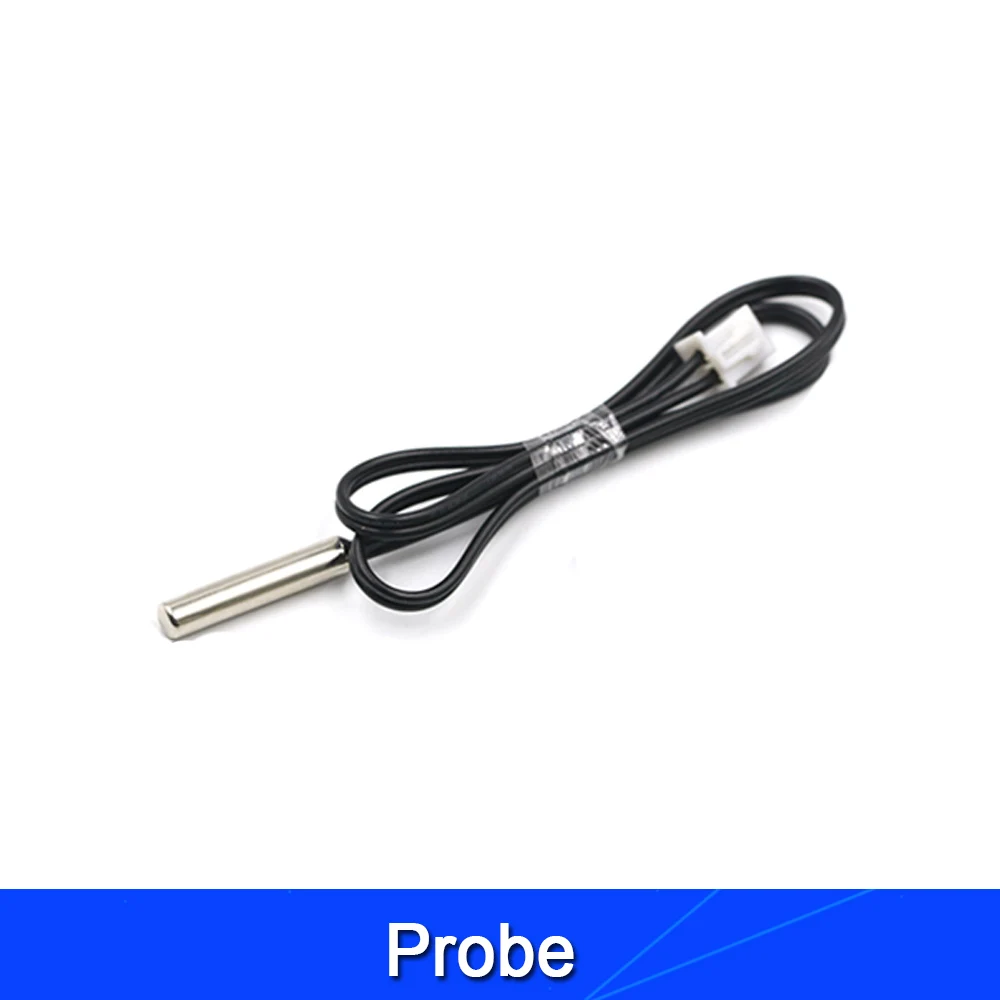

Measurement input:NTC (10K 0.5%) waterproof type sensornbsp

Output:10 a relay all the waynbsp

Environmental requirements:-10Celsius,-60Celsiusnbsphumidity 20%-85%nbsp

Size:48mm(length) x 29mm(width) x 32mmnbsp

Hole size:46 x 26.5mm
