MPPT 2000W 3000W Hybrid Wind Solar Charge Controller Wind Turbine Solar panel Regulator WIFI For 12V 24V 48V Wind Solar system
Return&refund policy
Eligible items are covered by return and refund support. If the item does not arrive or is not as described, the buyer can request help.
Security & Privacy
Safe payments: We do not share your personal details with any third parties without your consent.
Secure personal details: We protect your privacy and keep your personal details safe and secure.
AI offer for your market
A curated pick based on category, shipping route, delivery speed and popularity in your selected market.
Why this product fits your market
- • Estimated delivery: 3.
- • Strong customer signal: 5.0★ from 1 reviews.
- • Recommendations focus on this product category and your market availability.
Product specifications
Detailed product description
This product is shown with available options, market-specific pricing and verified specifications.
- Brand: HXCONTROLLER
- Sales: 5
- Package size: 37 × 26 × 12 cm
- Package weight: 2.5 kg
- Rating: 5.0 / 5
Before adding to cart, choose an available option and check the quantity.
Product Introduction

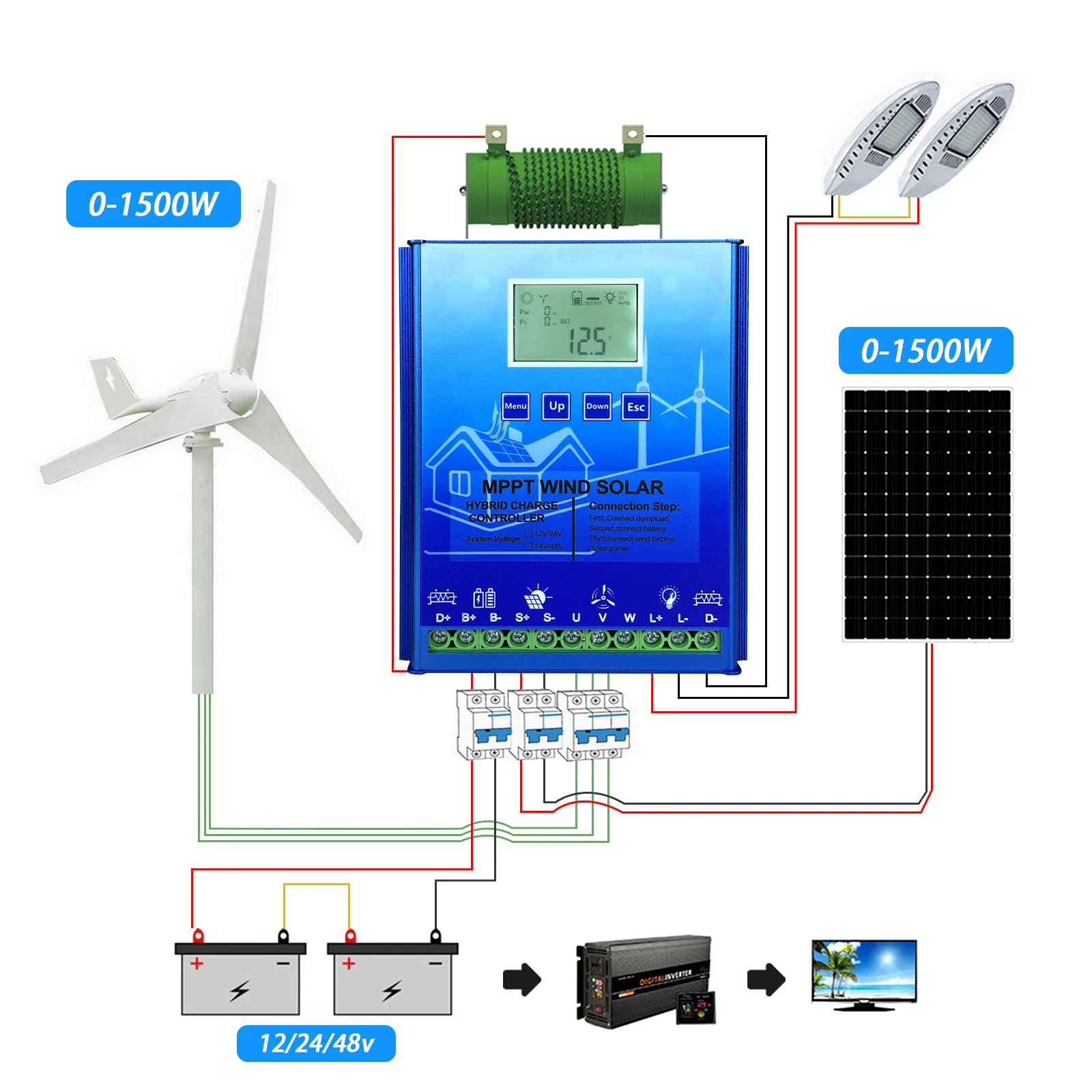

This model is special designed for hybrid wind solar power system charge for low-power street lamp, monitoring etc. system. And it is workable for Lithium, GEL, Lead-acid battery with full charge and discharge protection. Large size LCD screen is convenient for parameter(from solar, wind and battery) query and adjustment but low power consumption. It can be flexibly installed in cruise ships, RVs, and land indoors. Powerful functions and light size but very good heat dissipation are its outstanding features.
Controller protection function
Solar Reversed Charging protection，Battery open circuit protection、battery anti-reverse connection protection protection、Over current and over voltage auto brake protection、Over load protection,etc.
Advantage of controller
High performance and stable chip control
Automatically match with 12V/24V 24V/48V sealed battery voltage
Workable for battery: 1. Sealed( Lead-acid, GEL); 2. Lithium(Ternary Lithium, Lithium iron)
LCD displays voltage and current of wind, solar and load parameter; and you can adjust controller full and low voltage parameter, it will help you protect battery not damaged.
Our controller can help your wind turbine low voltage to charge battery, controller has booster voltage function, it's very good for low wind speed place.
The inner circuit board of the controller is sprayed to prevent dust, moisture and static electricity.
Wind adopts MPPT boost charging; external dump-load resistance, intelligent disconnection of Solar charging.

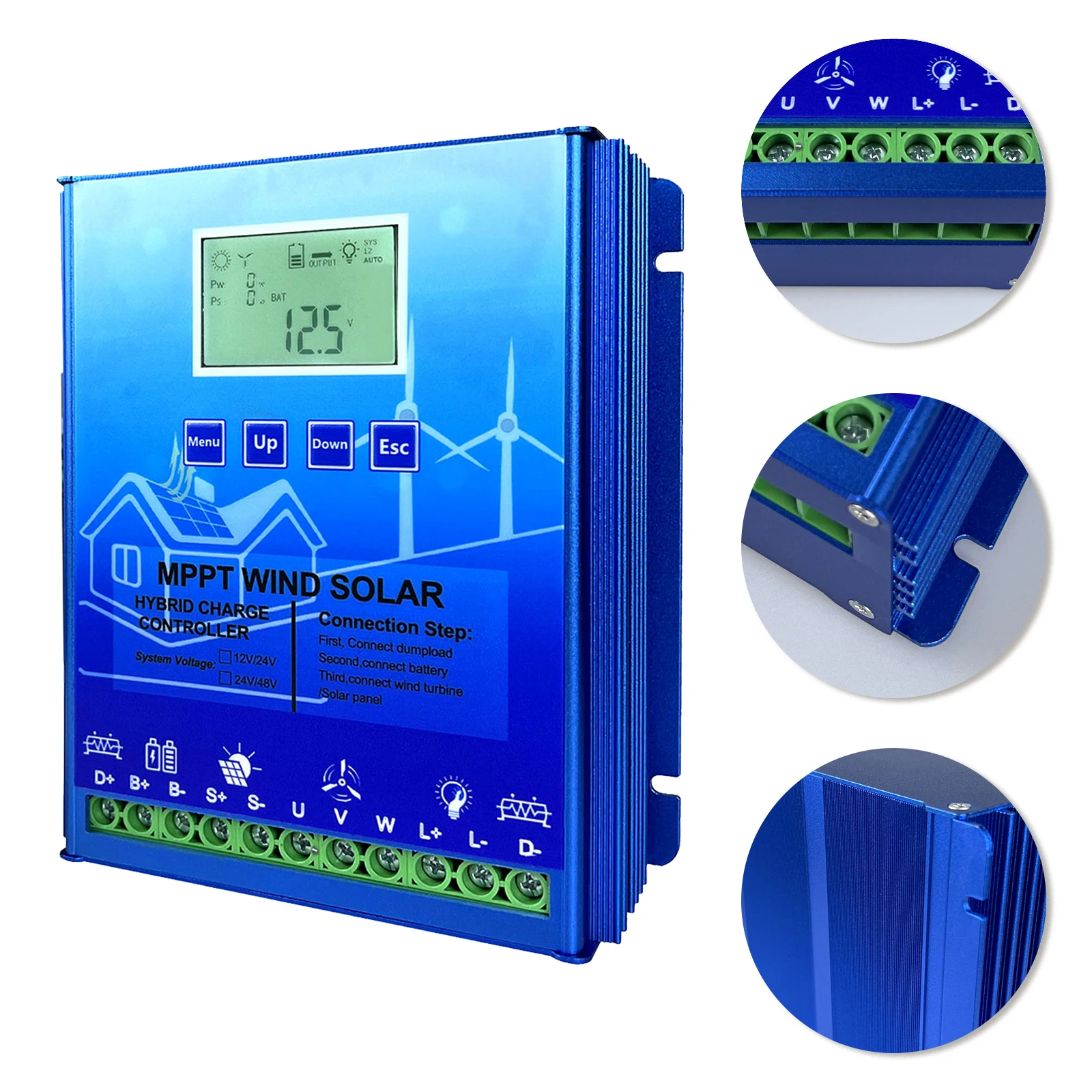

The controller body is made of aluminum alloy material, which has excellent heat dissipation. At the same time, there are a large number of heat dissipation convection grooves at the bottom to solve the heat generation problem caused by the operation of the controller.
Built-in Smart Bluetooth device
(If you want to use bluetooth, please buy bluetooth version, otherwise, controller is not include bluetooth function)
Rated system voltage
12/24 AUTO
Model
TGR-700W
TGR-1200W
TGR-1600W
TGR-2000W
Battery
12V
24V
Rated wind power
200
400
300
600
800
500
1000
Rated PV power
150
Maxinput current
Wind turbine≤40Asolar panel≤30A
Max input voltage
Wind turbine≤80Vsolar panel≤55V
DC Output
20A
Rate system Voltage
24V48V Auto Match
TGR-2400W
TGR-3000W
Battery voltage
48V
400W
800W
600W
1200W
1500W
300W
Wind turbine≤31.25Asolar panel≤30A
Wind turbine≤80Vsolar panel≤95V
No-load Current (DC)
Controller power mode
Battery or solar
Control mode
Wind generator MPPT boost charge、PWM dump load、PWM Over currentLimiting function,solar power is PWM
Supported battery types
1.Lead acid battery 2.Ternary lithium battery 3.Lithium iron phosphate
Outputworking mode(Mode)
Mode 1: Light-control on. Light-control off (3modes adjustable)
Display content
LCD display,Voltage,Percentage of battery power, Current, working mode of load,etc
Protection type
Cooling mode
aluminium profiles Heat dissipation and self-cooling
Working temperature / Relative humidity
25℃~+80℃ /0~90%，non-condensing
Net weight / Gross weight
2.1/2.35kg

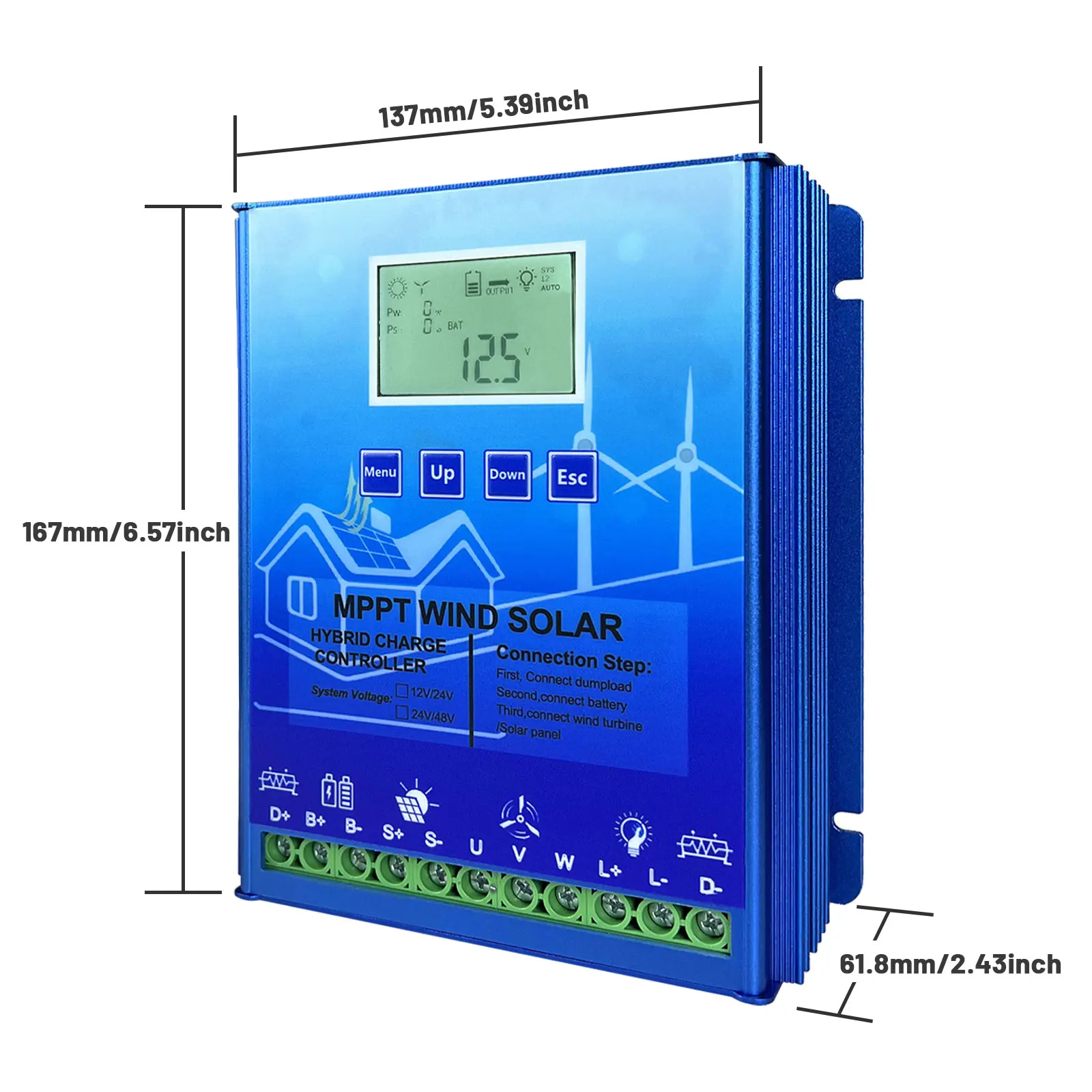

Controller size/Pack size
167mm*145.5mm*61.8mm/360mm*250mm*120mm
2. Battery Parameter
System Voltage
(b0)Customer Type
FULL
