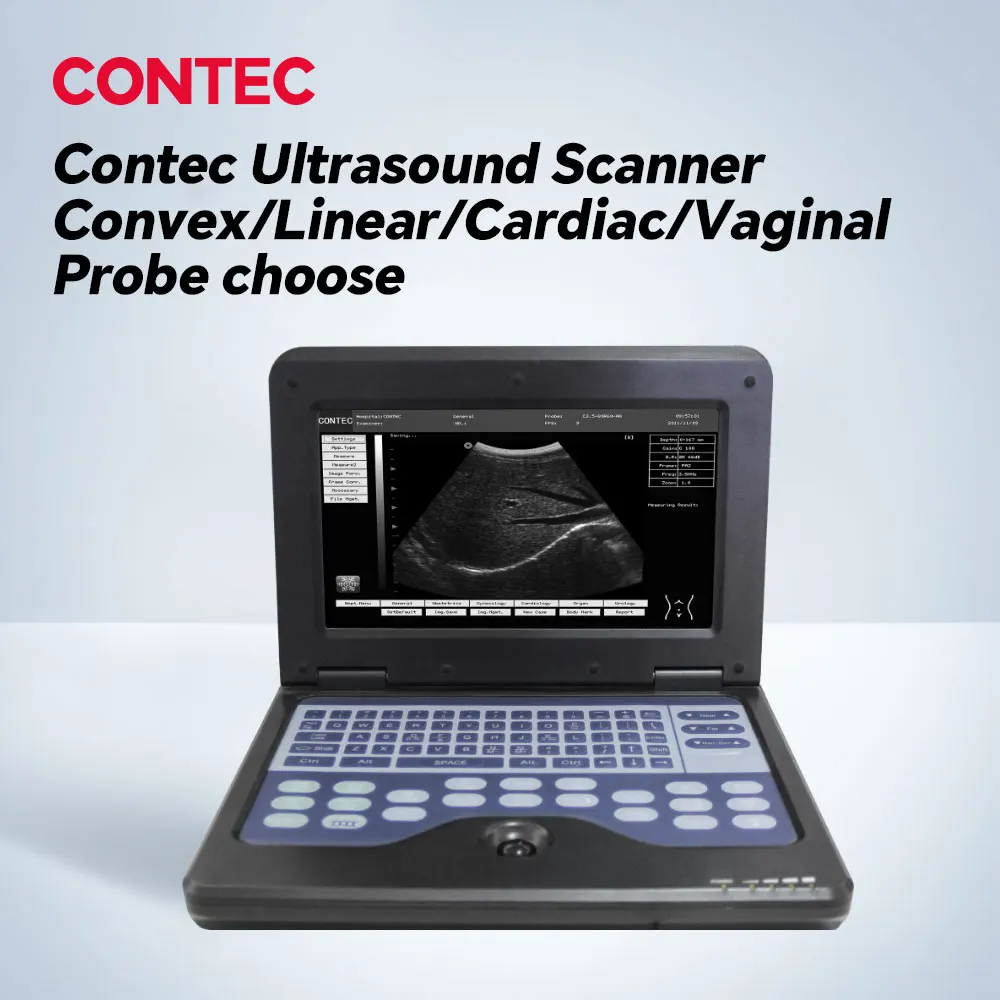

CONTEC Digital Portable Laptop Ultrasound Scanner Machine Convex/linear/cardiac/Transvaginal probe Clinic or Hospital Use
Return&refund policy
Eligible items are covered by return and refund support. If the item does not arrive or is not as described, the buyer can request help.
Security & Privacy
Safe payments: We do not share your personal details with any third parties without your consent.
Secure personal details: We protect your privacy and keep your personal details safe and secure.
AI offer for your market
A curated pick based on category, shipping route, delivery speed and popularity in your selected market.
Why this product fits your market
- • Estimated delivery: 5.
- • Strong customer signal: 5.0★ from 2 reviews.
- • Recommendations focus on this product category and your market availability.
Product specifications
Product detail photos
Detailed product description
This product is shown with available options, market-specific pricing and verified specifications.
- Brand: Contec
- Sales: 18
- Package size: 40 × 30 × 20 cm
- Package weight: 6 kg
- Rating: 5.0 / 5
Before adding to cart, choose an available option and check the quantity.
CONTEC Digital Portable Laptop Ultrasound Scanner Machine Convex/linear/cardiac/Transvaginal probe Clinic or Hospital use
Introductions

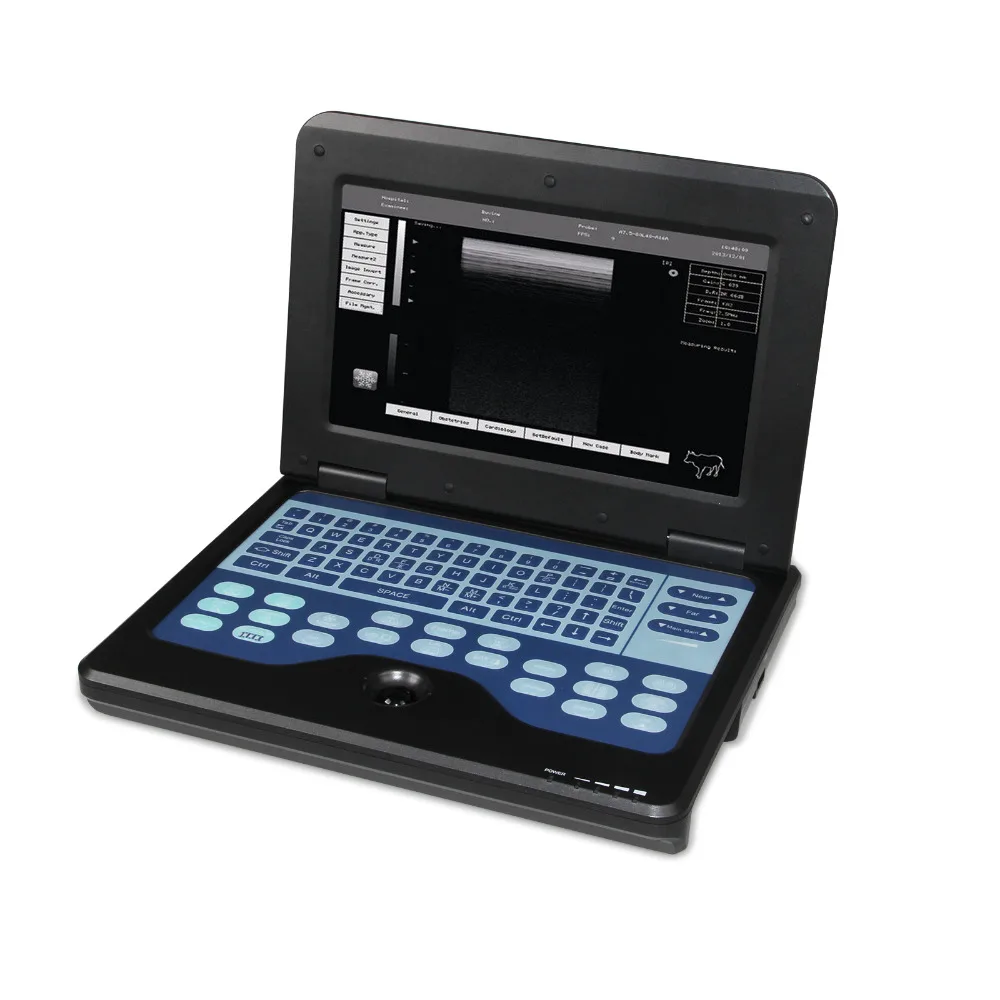

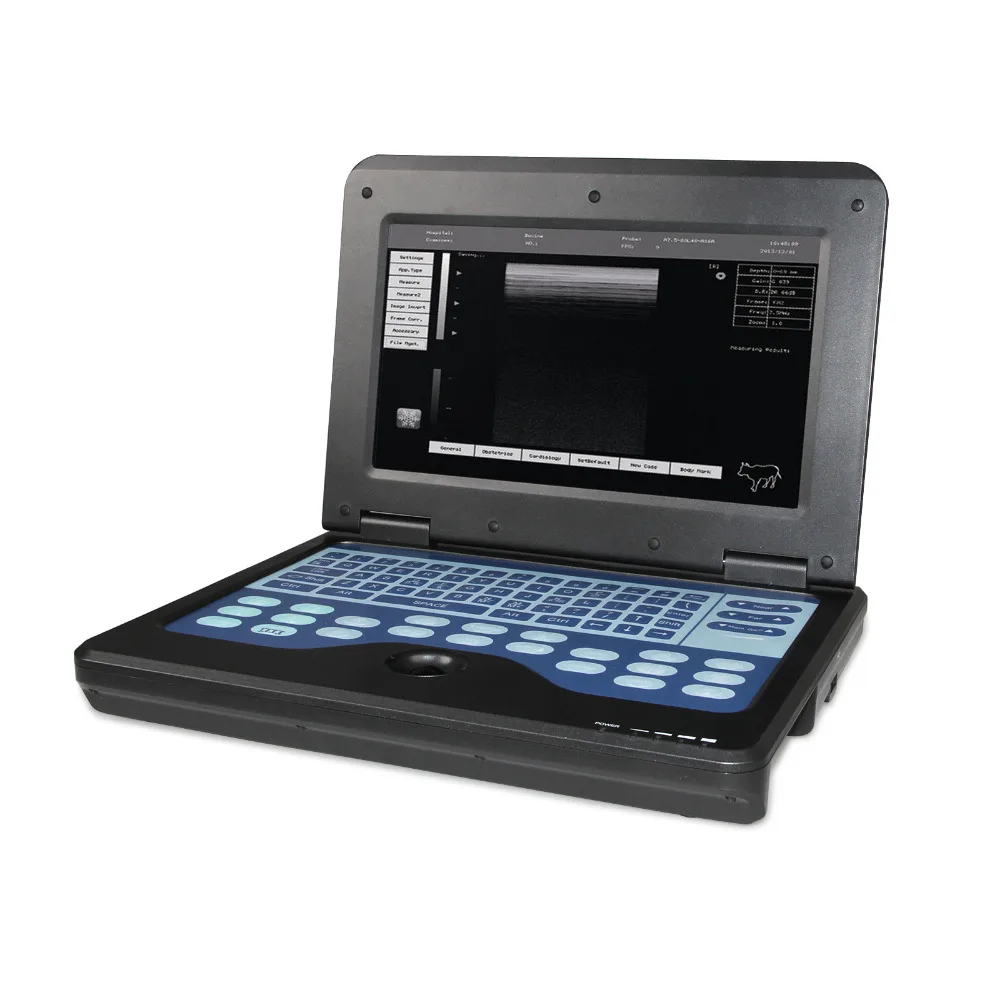

The notebook type CMS600P2 is a full digital B-Ultrasound diagnostic system. It adopts embedded operating system, which greatly optimizes the product performance. The system is taken more conveniently for its high effective data processing ability, pop-up menu and keyboard design. It includes rich measuring software packages that satisfy the clinic diagnostic need fully.
Main Features
Main Performance
Display mode:B,2B,4B,B/M,M
Image gray scale:256
Monitor:10.1 inch TFT LCD
Display resolution:1024*600
Lateral resolution:2 mm (near field) 4 mm (far field)
Axial resolution:2 mm (near field) 2 mm (far field)
Dead zone:≤3 mm
Display depth:≤240 mm
Horizontal geometric position precision:≤5%
Vertical l geometric position precision:≤5%
Zoom:0.9, 1.0, 1.1, 1.2, 1.3, 1.5, 2.0
Cine loop:600 frames
Image storage:2048 frames
Body mark:43
Focus:The number and position can be adjustable.
Assistant tool:Puncture guide and histogram
Obstetrics, gynecology, cardiology, small parts, urology etc. can generate reports automatically.
Measurement:Distance, circumference, area, volume,angle, ratio, slope etc.
Support Chinese, English language interface display and input.
The management interface menu, Chinese and English operating systems, image processing default and a key function of optimization.
Measurement formula can be set up differently according to the different race.
Comment:Date, time, name, hospital,number, frame rate, depth, gain, dynamic range, frame correlation, frequency etc.
Image processing:Controllable frame correlation, gamma correction, histogram
Image conversion:Up and down, left and right, black and white
Tissue harmonic imaging
Screen comments function in both Chinese and English
Support USB storage
Update software though USB
Interface:USB,Video,VGA
Standard Configuration
CMS600P2 with 3.5 MHz convex probe, 2.0 MHz~5.0 MHz

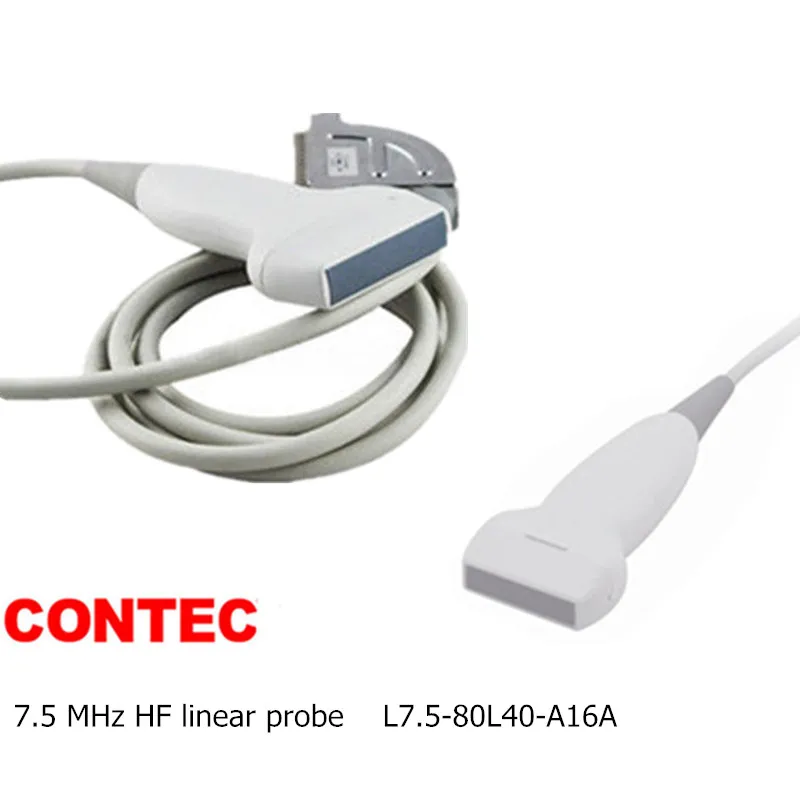

CMS600P2 with 7.5Mhz Linear probe
CMS600P2 With 3.5Mhz Micro-Convex Probe
CMS600P2 With 6.5 MHz endo-vaginal probe, 5.0 MHz~8.5 MHz
