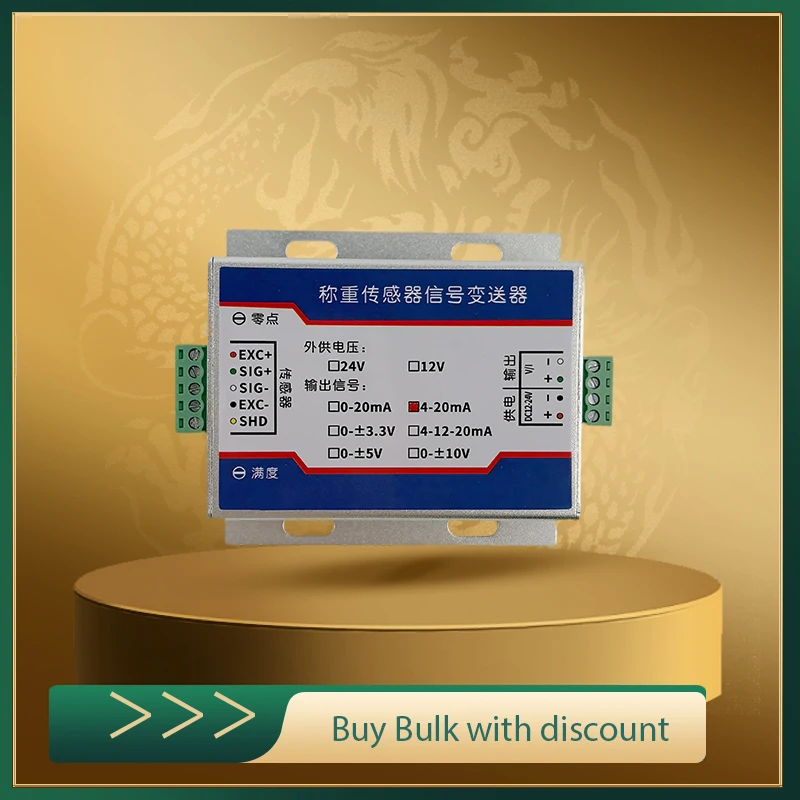

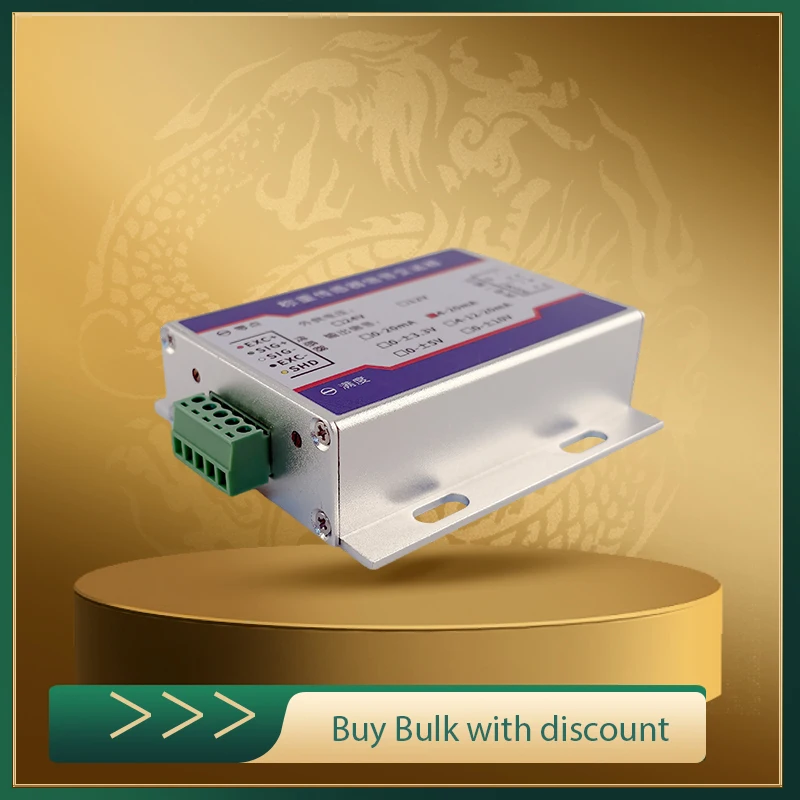

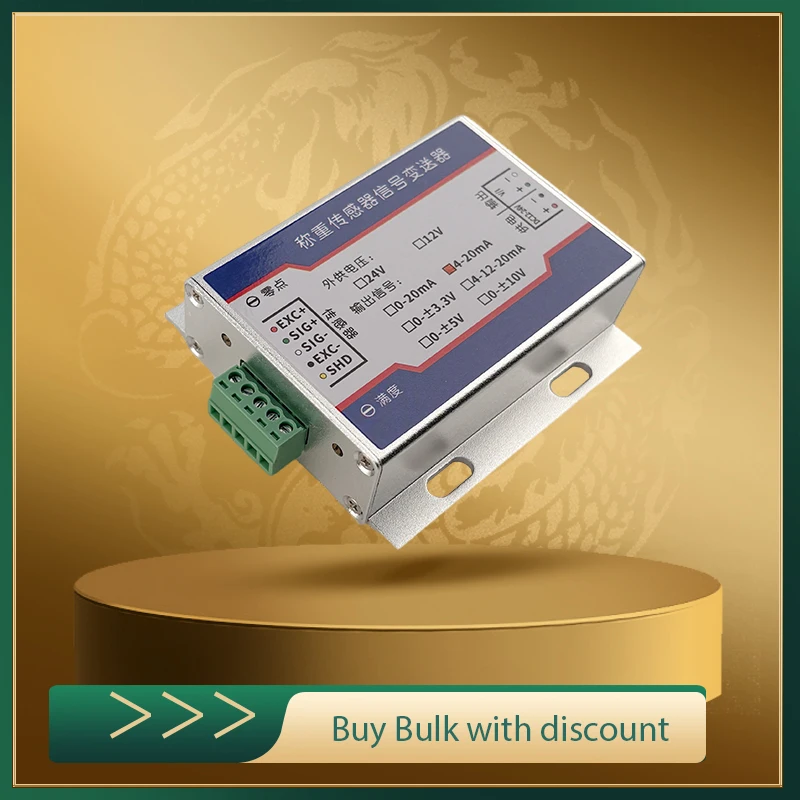

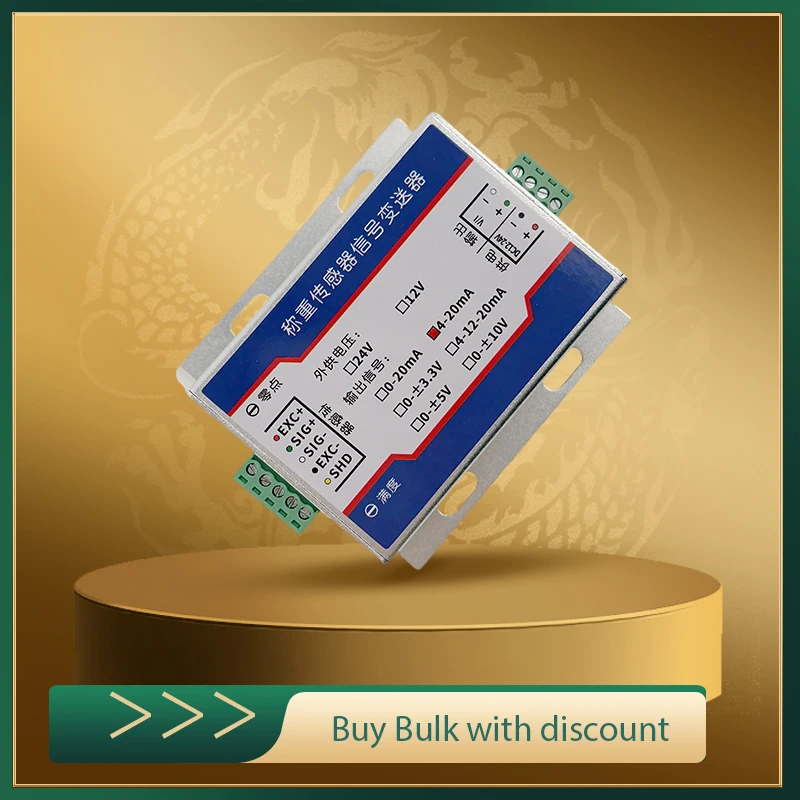

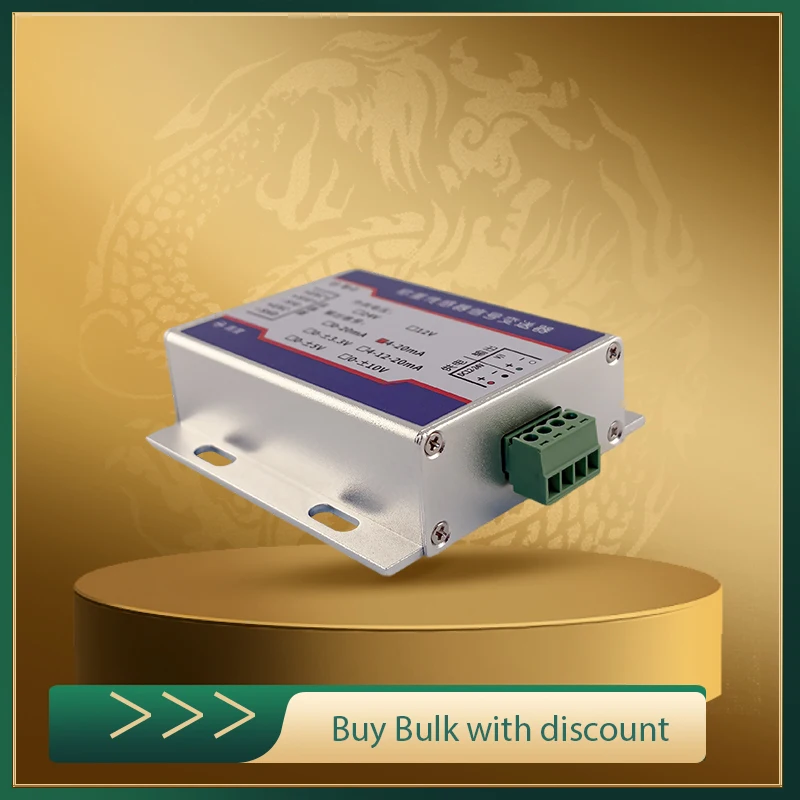

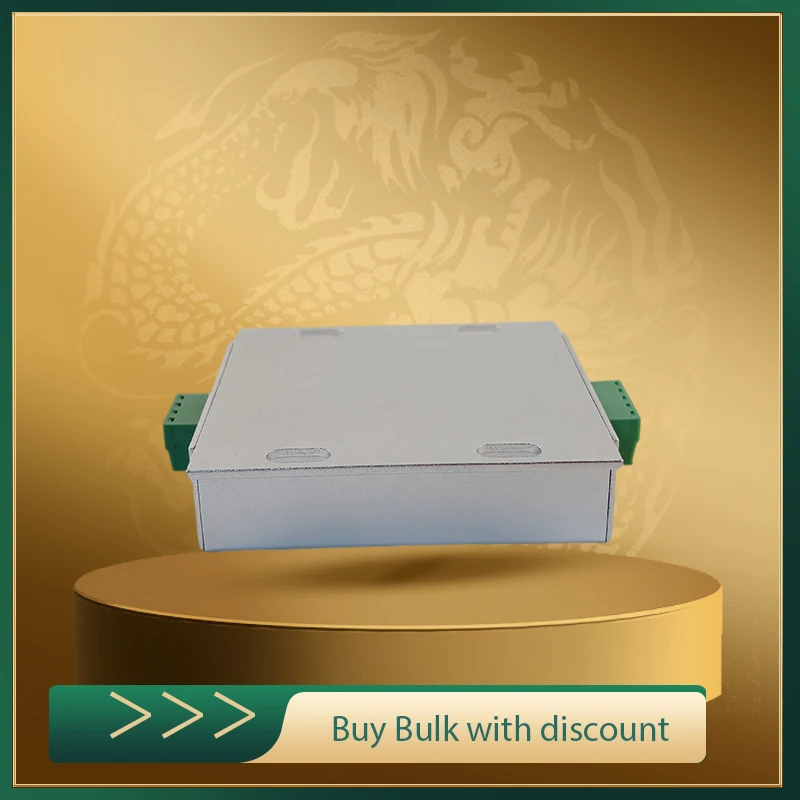

Load Cell Signal Transmitter 0-10V 4-20mA Output Strain Gauge Sensor Amplifier DC12-24V Aluminum Housing Analog Signal Converter
Return&refund policy
Eligible items are covered by return and refund support. If the item does not arrive or is not as described, the buyer can request help.
Security & Privacy
Safe payments: We do not share your personal details with any third parties without your consent.
Secure personal details: We protect your privacy and keep your personal details safe and secure.
AI offer for your market
A curated pick based on category, shipping route, delivery speed and popularity in your selected market.
Why this product fits your market
- • Estimated delivery: 7.
- • Strong customer signal: 5.0★ from 1 reviews.
- • Recommendations focus on this product category and your market availability.
Product specifications
Detailed product description
This product is shown with available options, market-specific pricing and verified specifications.
- Brand: ZHIZHONGYIQI
- Sales: 6
- Package size: 20 × 20 × 10 cm
- Package weight: 0.35 kg
- Rating: 5.0 / 5
Before adding to cart, choose an available option and check the quantity.
Parameter
Specification
Power Supply
DC 12-24V
Excitation Voltage
DC 5V
Input Load
1-8 bridge-type sensors, 350Ω impedance
Compatible Sensitivity
0.8-3.0 mV/V
Output Signal
0-±10V / 0-±5V / 0-±3.3V /
0-20mA / 4-20mA / 4-12-20mA
Operating Temperature
20℃ ~ +80℃
Operating Humidity
10%RH-90%RH (non-condensing)
Accuracy
Housing Material
Aluminum alloy
Main Features
Aluminum alloy housing, durable with strong anti-interference capability.
High-precision operational amplifier circuit with multiple filtering, ensuring excellent accuracy and stability.
Single selectable output mode (voltage or current).
Built-in high-performance DC-DC converter chip, minimizing the influence of power supply fluctuation for stable output.
Suitable for various strain gauge sensors such as load cells, force sensors, and torque sensors.
Technical Parameters
Working Voltage: DC 12–24V
Excitation Voltage: DC 5V
Input Load: 1–8 bridge-type sensors with 350Ω impedance
Supported Sensor Sensitivity: 0.8–3.0 mV/V
Output Signal (select one when ordering)
0–±10V
0–±5V
0–±3.3V
0–20mA
4–20mA
4–12–20mA
Operating Temperature Range: –20 ~ 80℃
Operating Humidity: 10%RH–90%RH (non-condensing)
Accuracy: Better than 0.03% F.S.
