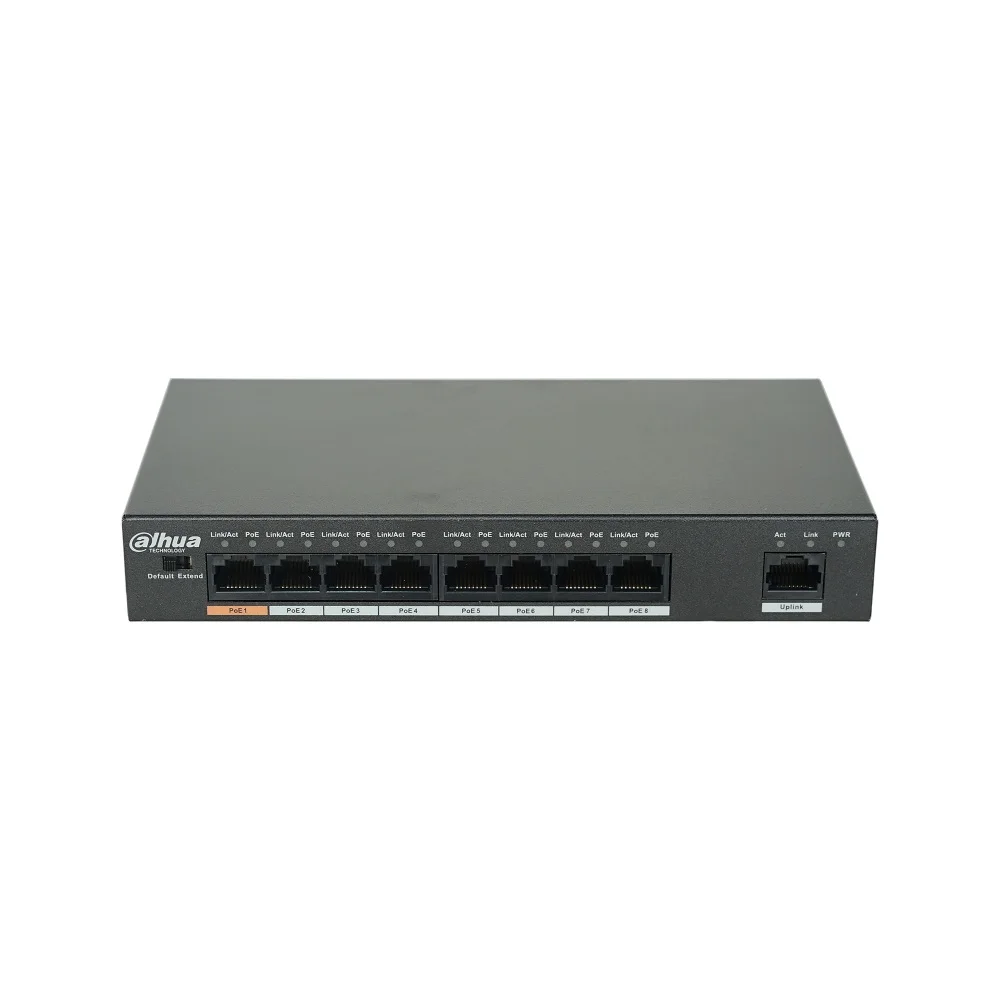

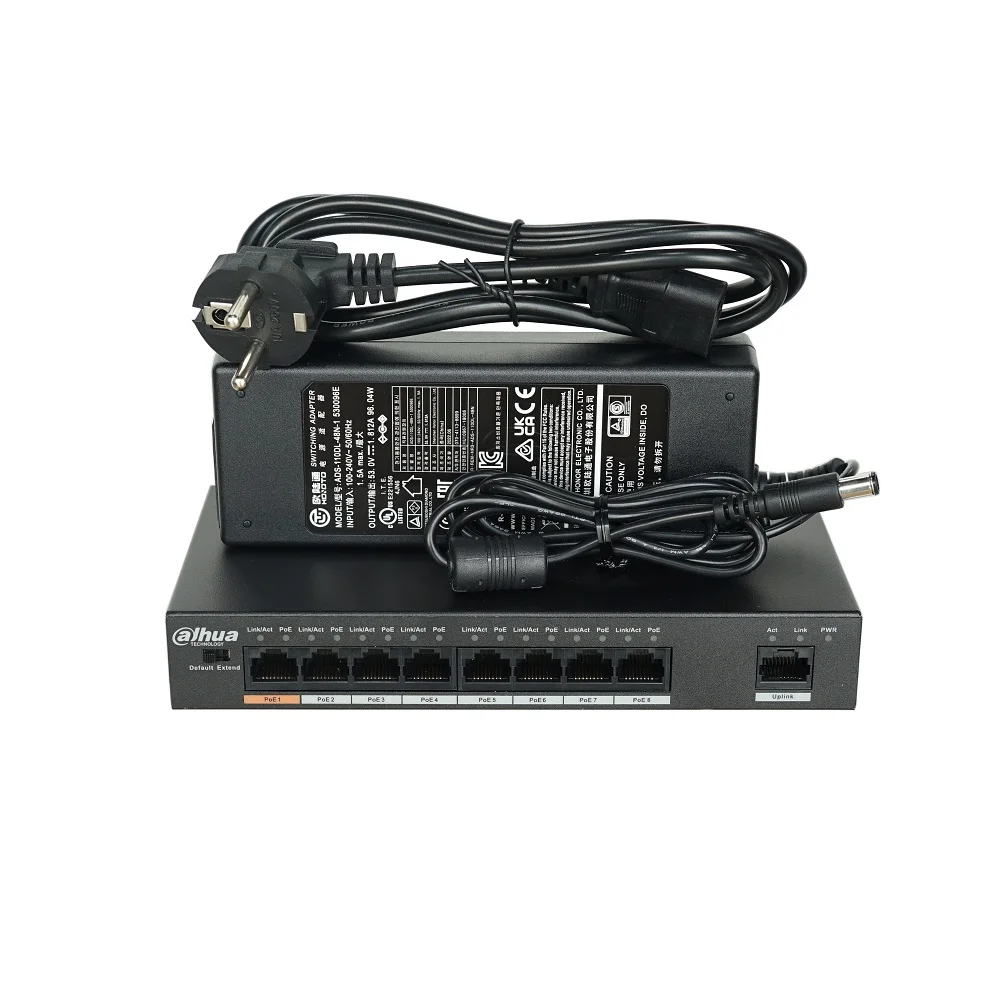

Dahua DH-S4500C-8ET1ET-DPWR 8-Port PoE Switch (Unmanaged), Support IEEE802.3af, IEEE802.3at standard, POE Network Switch
Return&refund policy
Eligible items are covered by return and refund support. If the item does not arrive or is not as described, the buyer can request help.
Security & Privacy
Safe payments: We do not share your personal details with any third parties without your consent.
Secure personal details: We protect your privacy and keep your personal details safe and secure.
AI offer for your market
A curated pick based on category, shipping route, delivery speed and popularity in your selected market.
Why this product fits your market
- • Estimated delivery: 7.
- • Recommendations focus on this product category and your market availability.
Product specifications
Detailed product description
This product is shown with available options, market-specific pricing and verified specifications.
- Brand: Dahua
- Sales: 2
- Package size: 25 × 15 × 7 cm
- Package weight: 1.5 kg
- Rating: 0.0 / 5
Before adding to cart, choose an available option and check the quantity.
Hardware

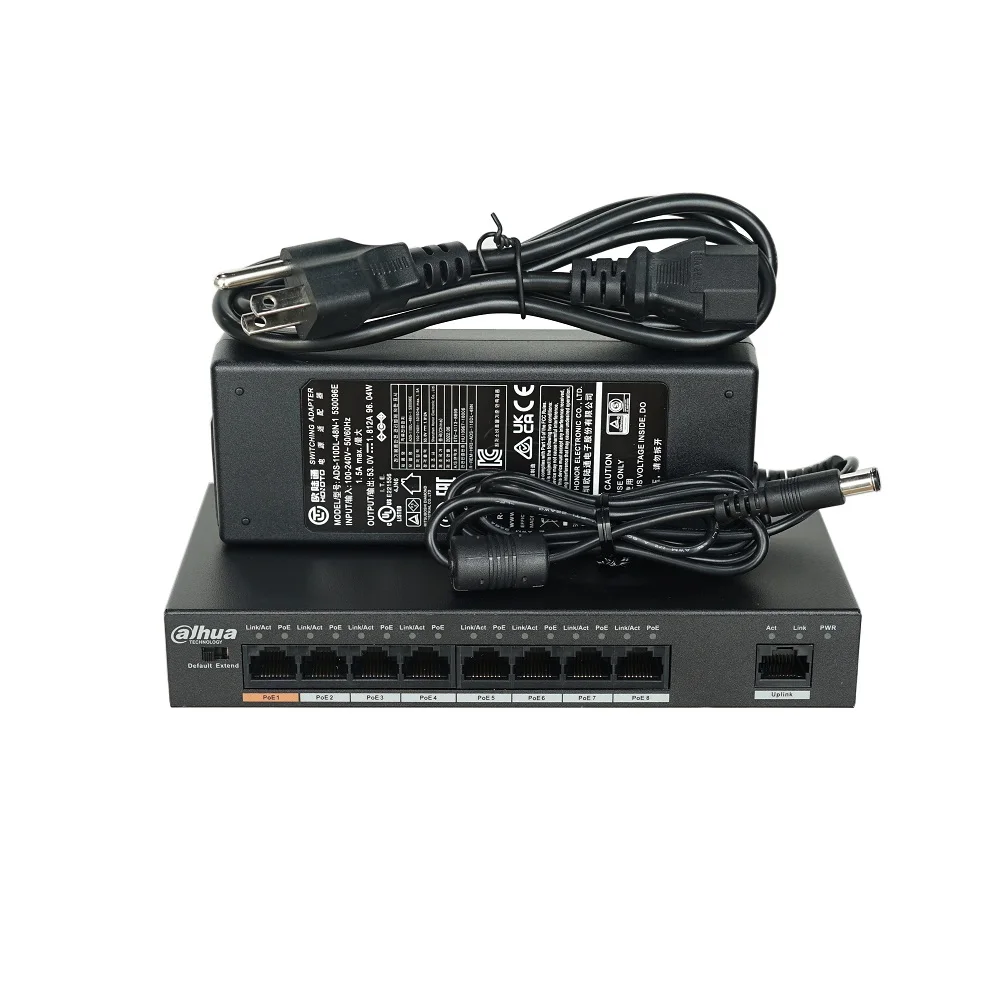

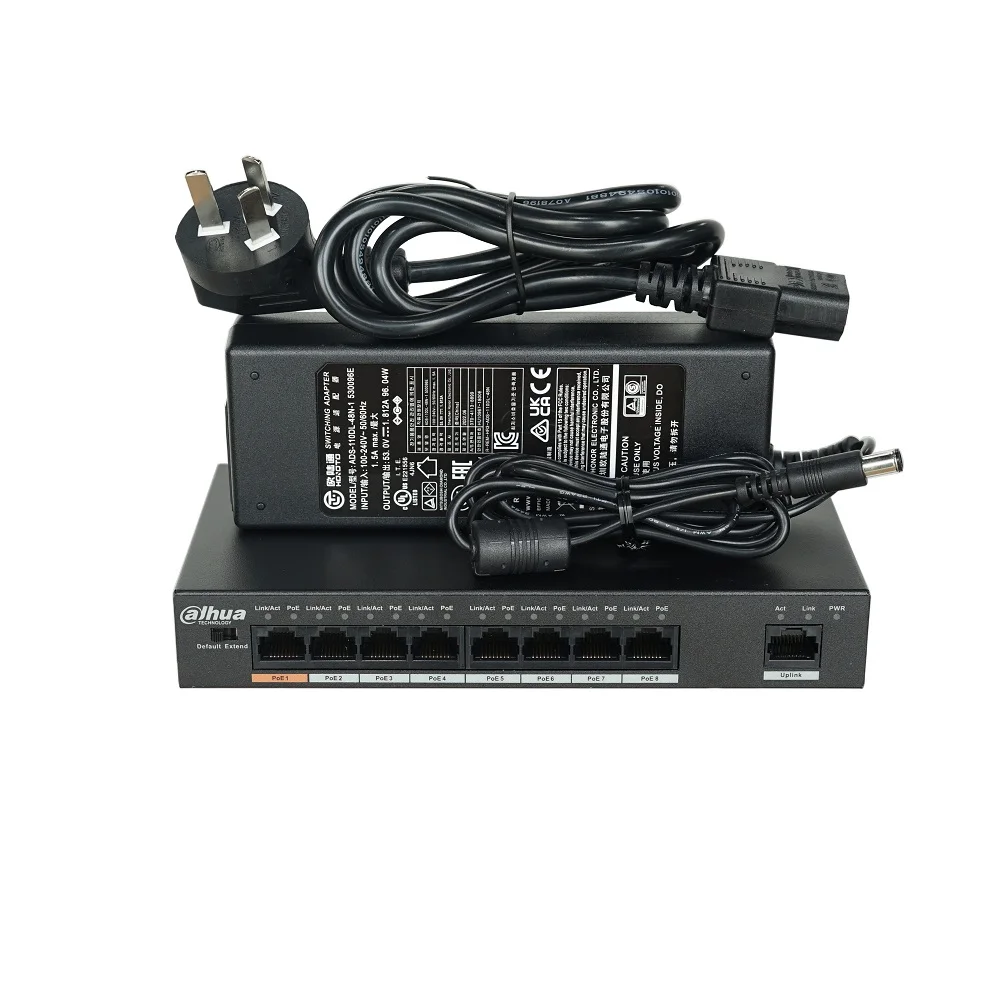

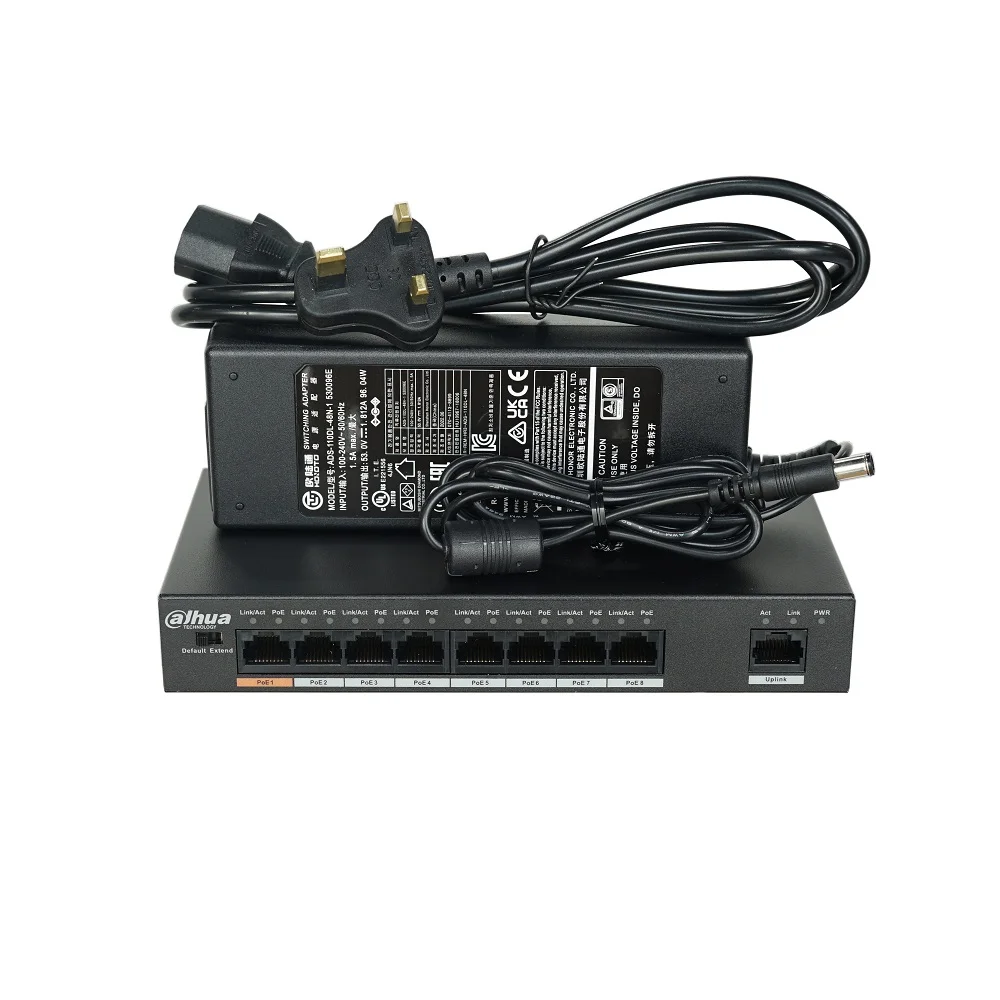

Included Power Adapter
Yes
PoE
Ethernet Port
8
Optical Port
0
Ethernet Port Speed
10/100 Mbps
Ethernet Port Uplink Speed
Description of Function Slots
Port 1–8: 8 × RJ-45 10/100 Mbps (PoE)
Port 9: 1 × RJ-45 10/100 Mbps (Uplink)

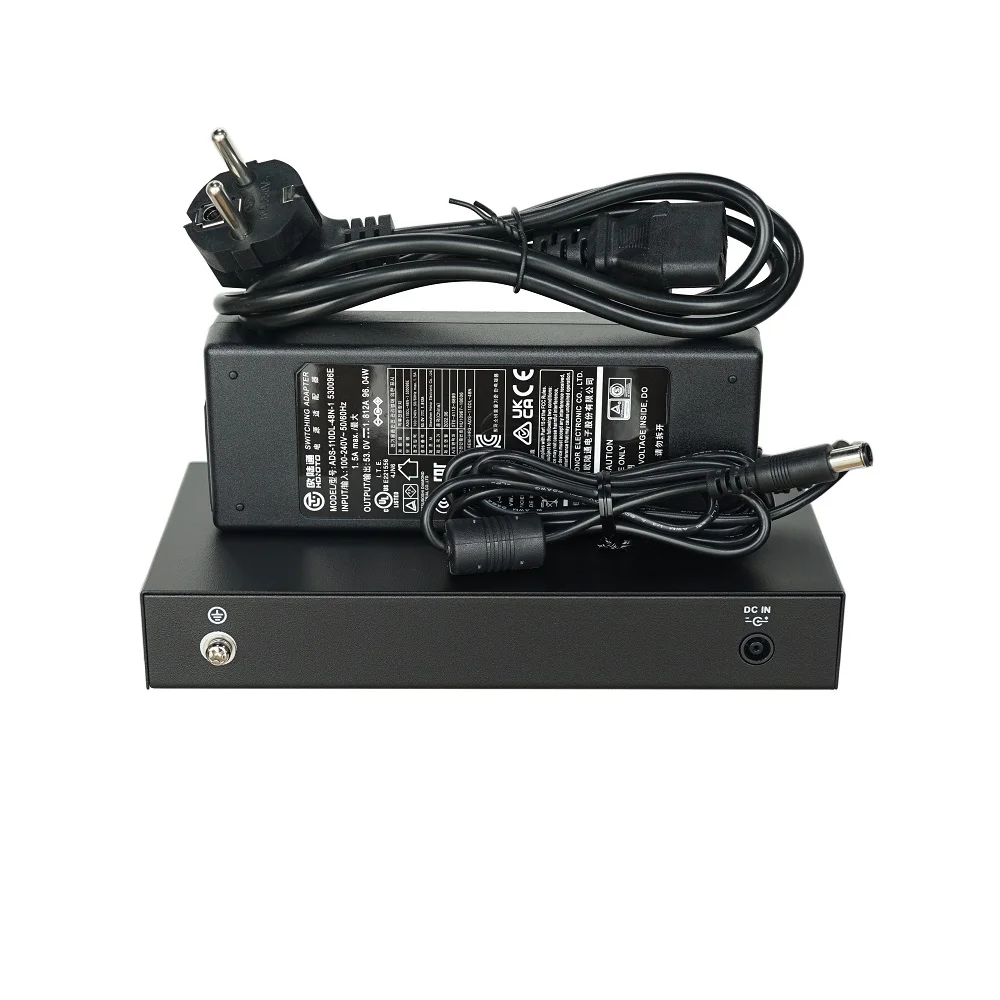

Power Supply
External power supply: 48–57 VDC, 2–1.68 A
Operaing Temperature
10 °C to +55 °C (+14°F to +131°F)
Operatng Humidity
5% – 95% (RH)
Power Consumpton
Idling: 1.5 W
Full load: 96 W
Performance
Layer
Layer 2
Management Type
No
Smart Managed Switch
Switching Capacity
1.8 Gbps
Packet Forwarding Rate
1.34 Mpps
Packet Buffer Size
768 kbit
MAC Table Size
2K
Communication Standard
IEEE 802.3; IEEE 802.3u; IEEE 802.3x
Feature
PoE Protocol
IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt
PoE Power
96 W
Power Consumption Management
PoE Pin Assignment
1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)
ePoE
Long Distance PoE Transmission
PoE Watchdog
General
Statics Protection
Air discharge: 8 kV
Lighting Protection
Common mode: 4 kV
Differental mode: 2 kV
Net Weight
0.49 kg (1.08 lb)
Gross Weight
1.3 kg (2.87 lb)
Product Dimensions
190 mm × 100 mm × 30 mm (7.48" × 3.94" × 1.18") (L × W × H)
Packaging Dimensions
267 mm × 239 mm × 77 mm (10.51" × 9.41" × 3.03") (L × W × H)
Casing Material
Iron
Installation
Desktop mount; wall mount
Certifications
CE; FCC
