Diesel Injector Nozzles Tester 600 Bar 0 to 8000 PSI S60H Applicable Models Diesel Engine Vehical
Return&refund policy
Eligible items are covered by return and refund support. If the item does not arrive or is not as described, the buyer can request help.
Security & Privacy
Safe payments: We do not share your personal details with any third parties without your consent.
Secure personal details: We protect your privacy and keep your personal details safe and secure.
AI offer for your market
A curated pick based on category, shipping route, delivery speed and popularity in your selected market.
Why this product fits your market
- • Estimated delivery: 7.
- • Strong customer signal: 4.8★ from 34 reviews.
- • Recommendations focus on this product category and your market availability.
Product specifications
Detailed product description
This product is shown with available options, market-specific pricing and verified specifications.
- Brand: NONE
- Sales: 32
- Package size: 75 × 27 × 23 cm
- Package weight: 6.051 kg
- Rating: 4.8 / 5
Before adding to cart, choose an available option and check the quantity.
Q: Is it compatible with all vehicles?
A: This product is widely used for the calibration of fuel injectors for automobiles, tractors, and diesel engines.
Q: What scenarios is the product suitable for?
A: It can be used to inspect and measure the opening pressure of injection, atomization quality, injection angle, and needle valve sealing of diesel injector assembly.
Specifications
Color: Blue, Black
Material: Metal, Alloy, Nylon, Plastic
Process: Injection Molding, Machine Processing
Assembly Required: Yes
Power Source: Corded Electric
Plug Type: EU Standard
Voltage: 220V
Measured Value Range: 0-60mpa
Maximum Test Pressure: 40mpa
Oil Cup Capacity: 1L/0.26Gal
Power Cord Length: 1.5m/4.92ft

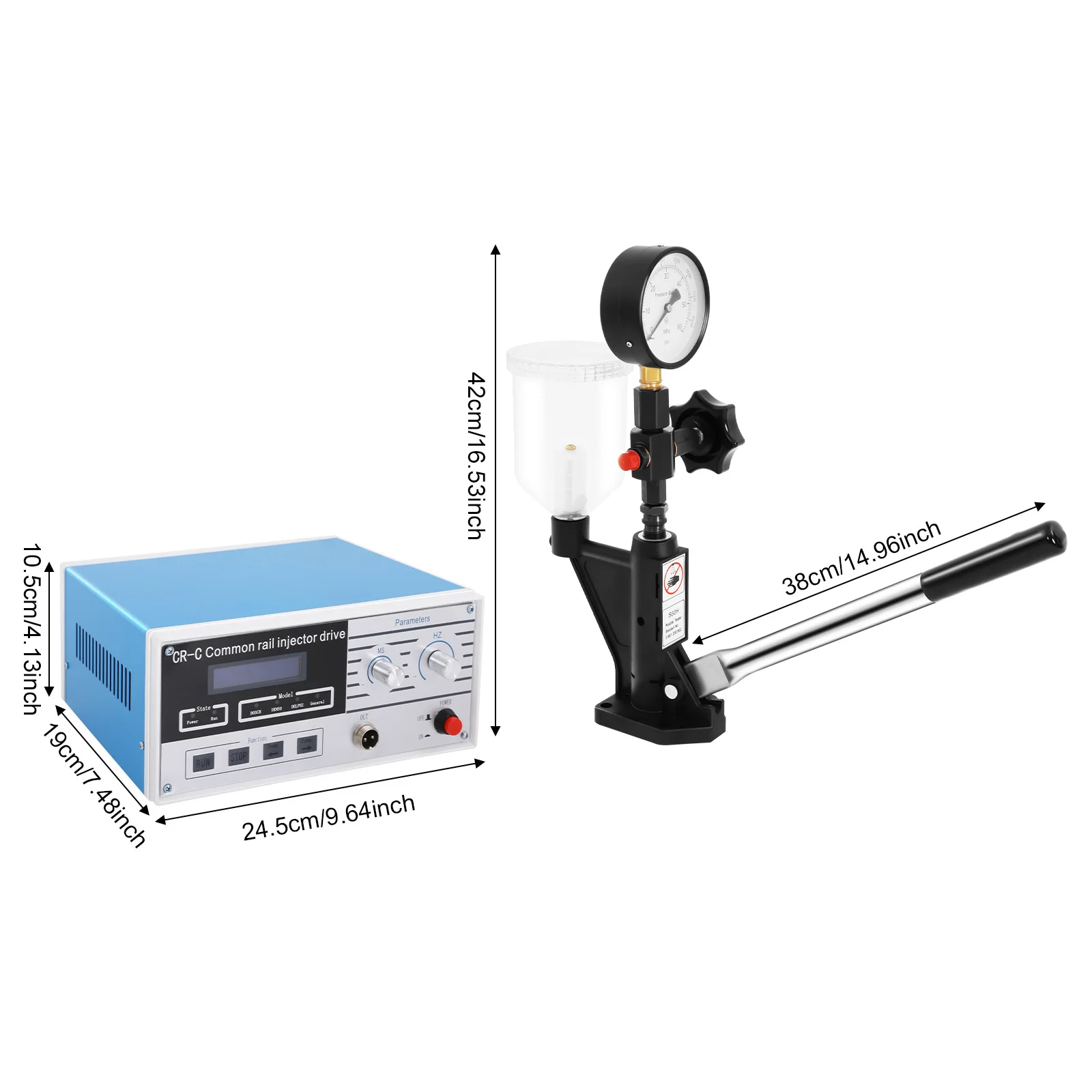

CR-C Common Rail Injector Tester Size: 24.5*19*10.5cm/9.65*7.48*4.13in
S60H Fuel Nozzle Tester Size: 42*38cm/16.54*14.96in
Package Size: 75*27*23cm/29.53*10.63*9.06in
Gross Weight: 6.14kg/13.54lbs
Net Weight: 6kg/13.23lbs

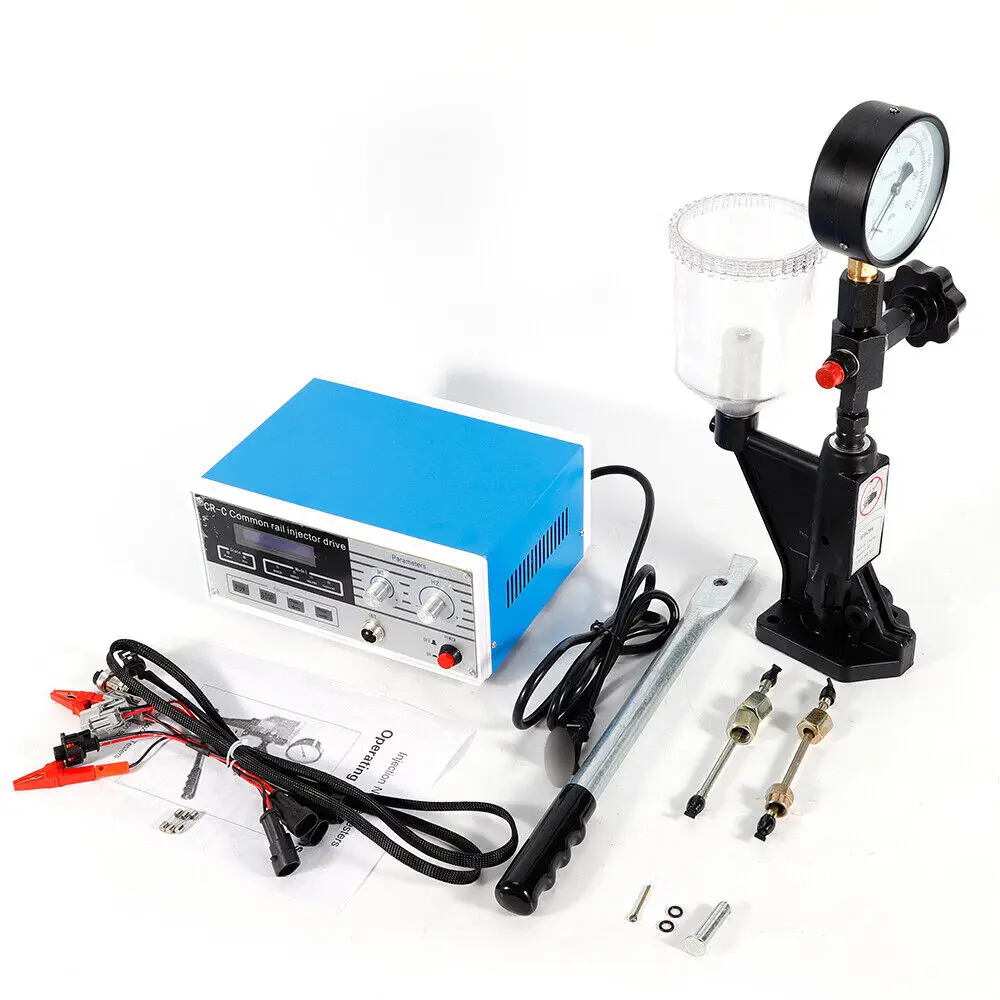

Package Included
1* CR-C Common Rail Injector Tester
1* S60H Fuel Nozzle Tester
1* Pressure Lever
1* Oil Cup
2* Oil Pipes
6* Conversion Harnesses
1* English Manual
Other Accessories for Use
Notes
1. Please check the size carefully before ordering.
2. Before first use, please rinse the tester.
3. Please note that with CRC you can measure common rail injectors and S60H alone can measure common mechanical injectors. Please note that CR-C is not suitable for piezo injectors.
4. Please read the product manual carefully and pay attention to the safety matters in it.
5. Please allow the slight color difference caused by the shooting light and the 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
Description
This injector tester tool kit is made of premium materials for excellent durability. The tool set is capable of completing the correct injector opening pressure test, leakage test, etc. It has the advantages of stable performance, reasonable structure, flexible operation, and easy connection. The complete accessories can effectively save your costs and let you start the inspection work quickly. It is your indispensable multifunctional tool.
Key Features
Made to Last: Premium metal, alloy, nylon, and plastic with injection molding and machine processing processes make this product resistant to abrasion, impact, and corrosion, ensuring excellent durability.
Superior Tests Ability: This product uses a precision dual scale gauge with a measuring range of 0-60mpa and a maximum test pressure of up to 40mpa. The kit is ideal for checking automotive diesel injectors as it is capable of completing correct injector opening pressure tests, leakage tests, chattering tests, spray pattern checks, and atomization.
Thoughtful Oil Cup: The clear cup can hold 0.26Gal of fuel, which is not only convenient for you to observe the change of fuel level in real time but also reduces the trouble of adding fuel frequently. Equipped with a filter to effectively remove impurities, it contributes to the accuracy and stability of the test.

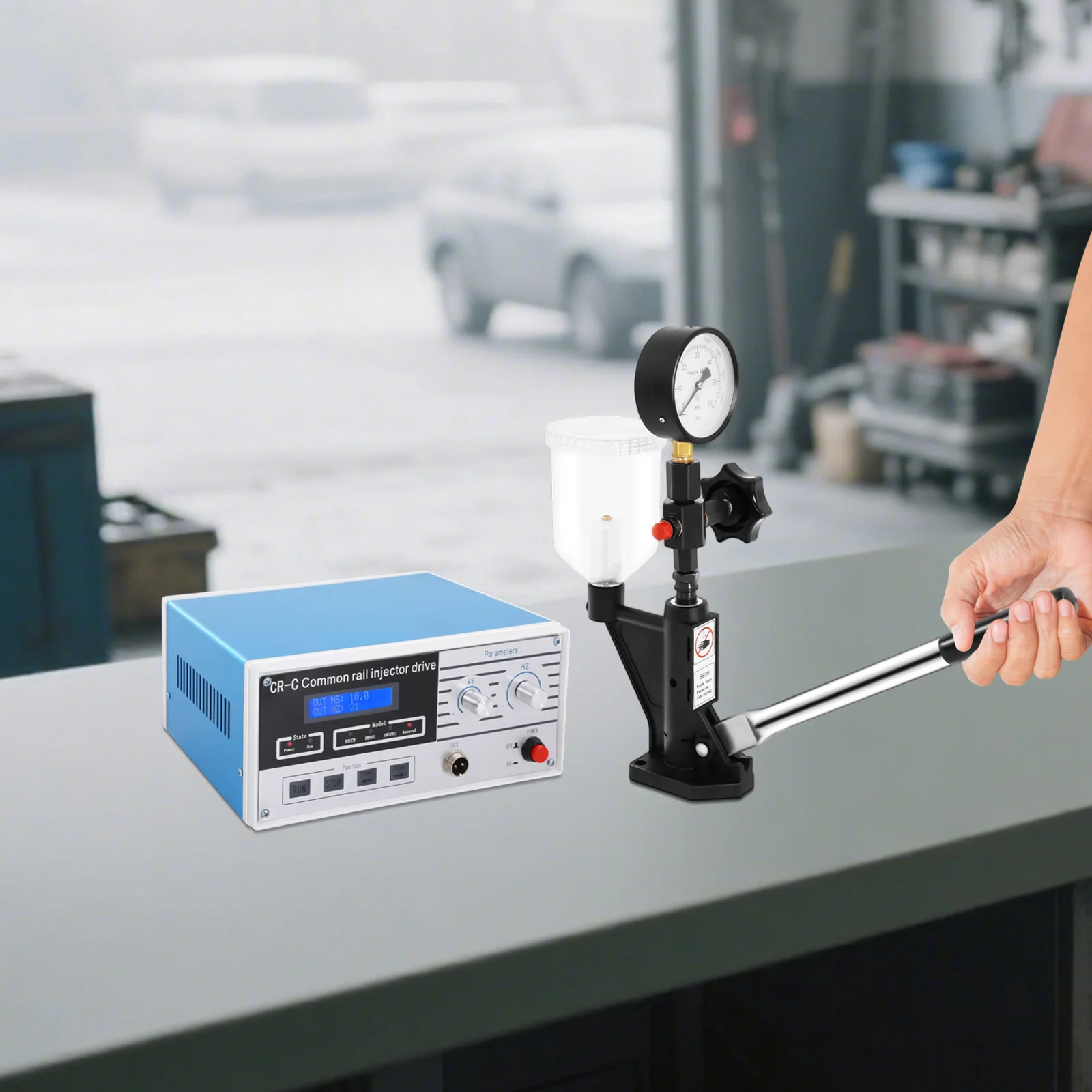

Simple Operation: You need to press the lever after filling the oil to remove the air in the tester, then connect your oil pipe, then press the lever again, connect the injector nozzle to the tube, and start the test.
Good Portability: The compact(9.65*7.48*4.13in, 16.54*14.96in ) design of the testers makes it easy to carry. It can meet the repairman's requirements for simple test devices and improve work efficiency.
Easy to Assemble: Simple construction, complete accessories, and detailed English instructions make it possible for you to assemble and start using it in a short time.
Details
Heat Dissipation Holes: The strip-shaped heat dissipation holes on the machine are conducive to timely heat dissipation and prolong the service life of the product.
Multi-function Panel: The clear display and easy-to-operate knobs and buttons allow you to adjust pulse width, frequency, and select multiple different modes.
Flower-shaped Knob: It prevents the pressure gauge from vibrating violently due to intense pressurization and protects the gauge.
Non-slip Feet: Four non-slip feet at the bottom make the product fit the ground well, so it is stable and safe to use while preventing the countertop from being scratched.
Long Power Cord: The 4.92 ft long and thick power cord reduces usage restrictions and further protects your safety.
Application
This product is widely used for the calibration of fuel injectors for automobiles, tractors, and diesel engines. It can be used to inspect and measure the opening pressure of injection, atomization quality, injection angle, and needle valve sealing of diesel injector assembly.
