HX1 Thermal Imager Camera Professional Handheld 240×240 Resolution -20~550C 15 Color Palette Save Pictures PC analysis software
Return&refund policy
Eligible items are covered by return and refund support. If the item does not arrive or is not as described, the buyer can request help.
Security & Privacy
Safe payments: We do not share your personal details with any third parties without your consent.
Secure personal details: We protect your privacy and keep your personal details safe and secure.
AI offer for your market
A curated pick based on category, shipping route, delivery speed and popularity in your selected market.
Why this product fits your market
- • Estimated delivery: 7.
- • Strong customer signal: 4.9★ from 46 reviews.
- • Recommendations focus on this product category and your market availability.
Product specifications
Detailed product description
This product is shown with available options, market-specific pricing and verified specifications.
- Brand: BSIDE
- Sales: 44
- Package size: 20 × 10 × 5 cm
- Package weight: 0.5 kg
- Rating: 4.9 / 5
Before adding to cart, choose an available option and check the quantity.

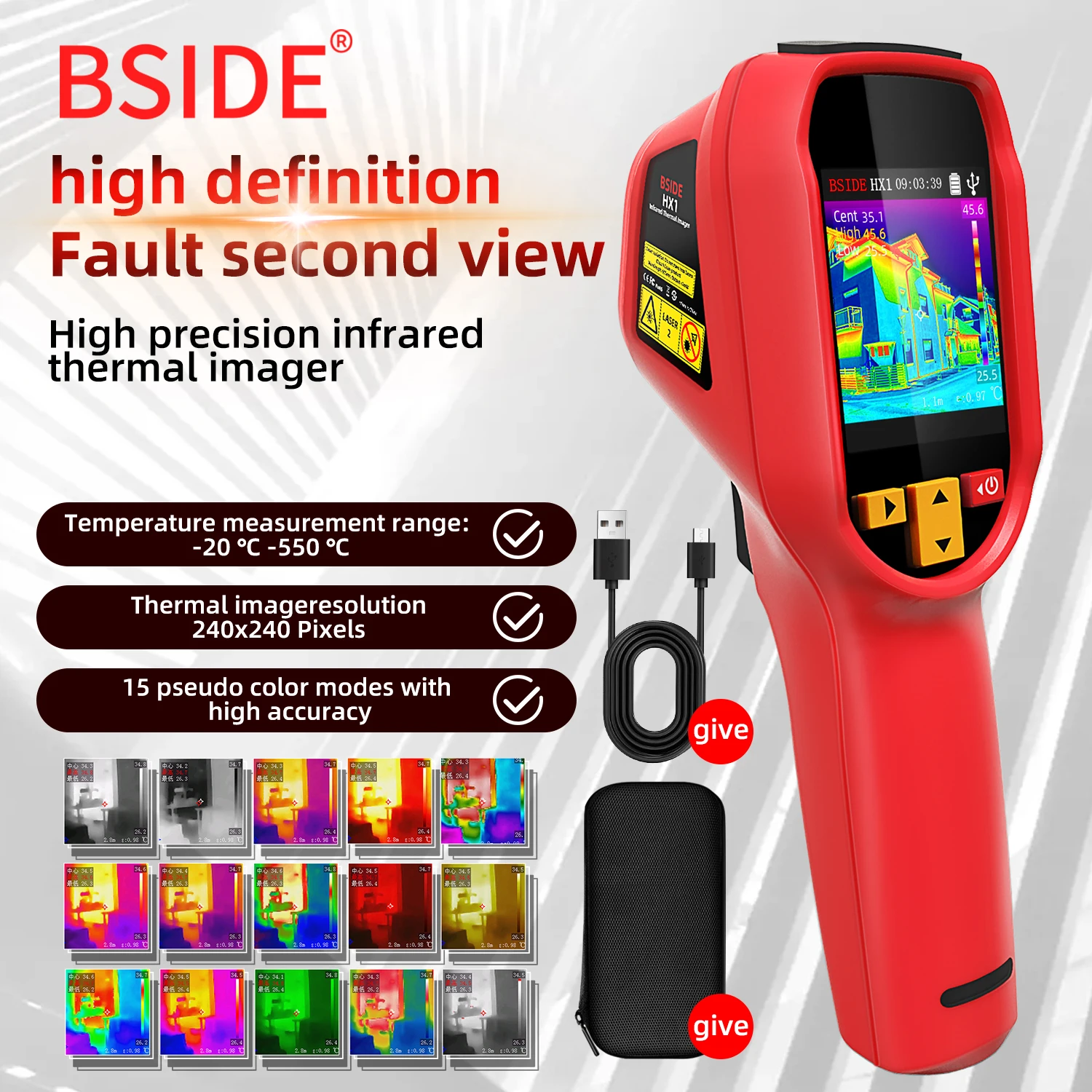

BSIDE Handheld Thermal Imaging Camera-HX1 240×240IR Resolution -20~550C 15 Color Palette PC Analysis Software Industrial Tester
BSIDE HX1 is a brand new handheld thermal imaging camera that combines temperature measurement and imaging.
With IR resolution 240×240，2.4-inch screen，15 pseudo color modes withhigh accuracy High and low temperature alarm Adjustable emissivity Data storage and export Temperature analysis of stored pictures is possible.
The body adopts double injection molding process Durable.

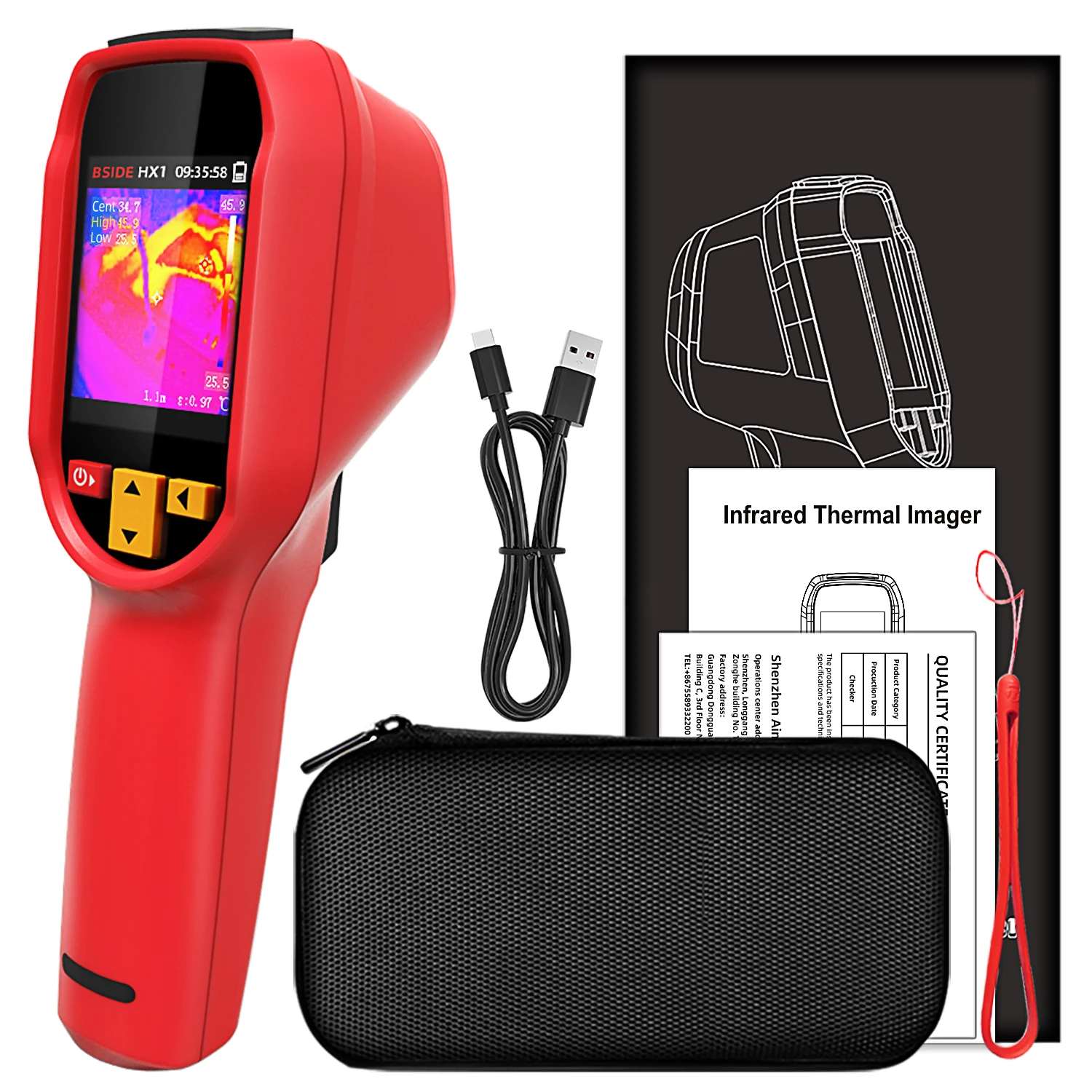

Also comes with a high-quality EVA handbag.
Main features of HX1
IR resolution: 240 × 240
Screen: 2.4 inch LCD screen
Frame rate: 25Hz
15 pseudo color modes with
Temperature measurement range: -20 °C~550 °C

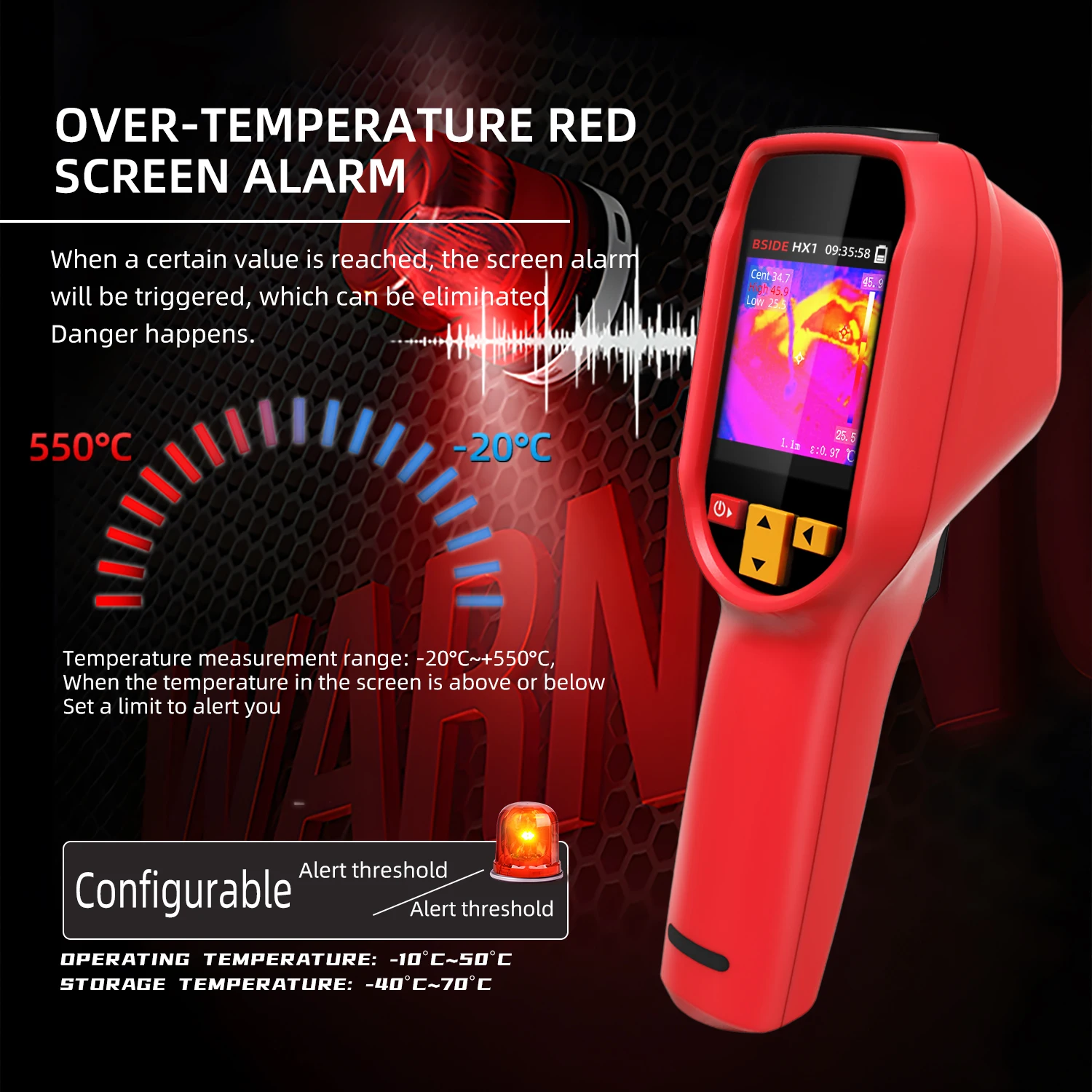

High and low temperature alarms: image, buzz, LED flashing
Laser Indicator/LED Illumination Laser Indicator/LED Illumination
Emissivity: 0.01~1

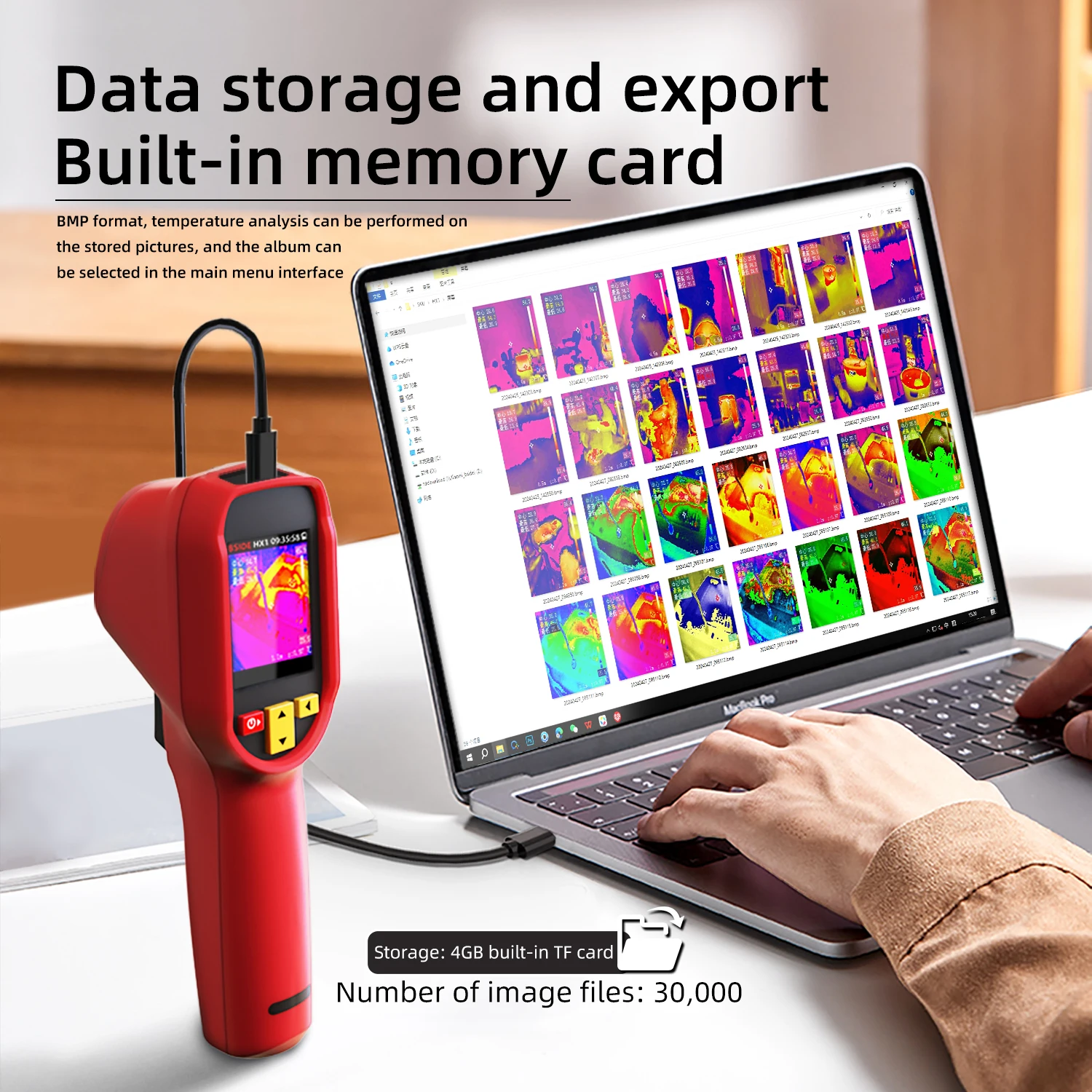

Storage: 4GB built-in TF card
Adjustable emissivity
Power supply: 2500mA lithium battery
Three-proof design: IP54/1.5m anti-drop
The bottom design has screw holes for use with a tripod
Supports multiple languages: Chinese, English, German, Italian, French, Spanish, Japanese
Buy early version HX1 buyers, or need to update the Russian language, can download language pack upgrade system through the following link
Performance Indicators
Sensor type
Vanadium oxide (VOx) microcalorimeter
Response Band
8~14pm
Thermal image resolution
240x240 Pixels
Noise equivalent temperature difference(NETD)

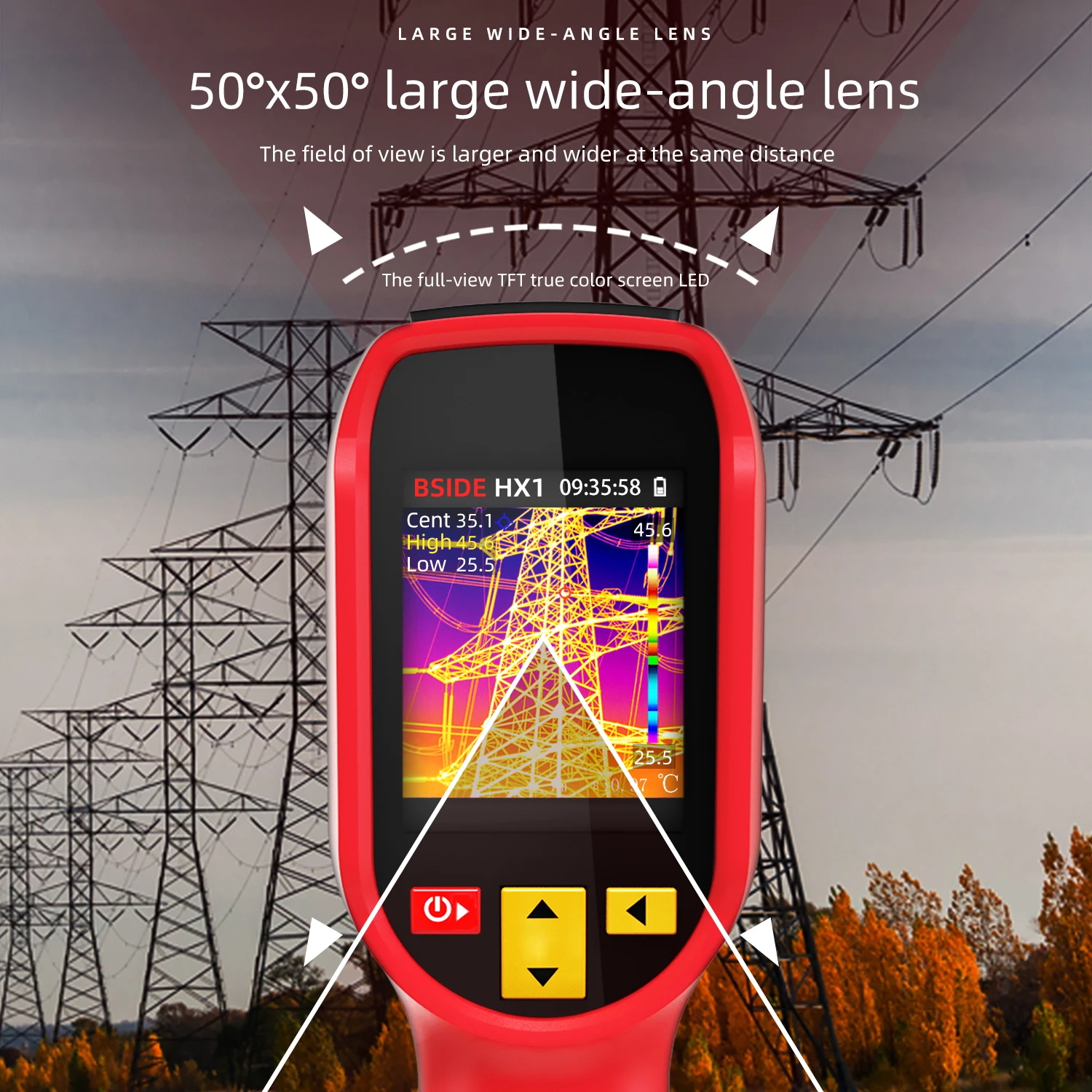

Angle of view(FOV)
50.0°(H)×50°(V)/72.1°(D)
Spatial resolution (IFOV)
8.89 mrad
Frame rate
25Hz
The focal length of the
imaging lens
1.35 mm
Temperature measuring focal length
0.3m~3m Adjustable
Temperature range
20℃~550℃
Accuracy of temperature measurement
±2℃ or±2%of the reading
(take the larger value of the reading)
Unit of temperature measurement
Celsius,Fahrenheit,Kelvin
Temperature resolution
0.1℃
Emissivity
0.01~1.00 Adjustable
Temperature measurement shows
Center point temperature measurement
high and low temperature tracking
Swatches
White Hot,Black hot,Fusion 1,Rainbow
Fusion 2,Iron Red 1,Iron Red 2
Bark brownColor 1,Color 2
lce fire,Rain,Green hot
Red Hot,Dark blue
Display screen
2.4 inches TFT LCD
Display resolution
320×240
Key
Power Key,up key,Down Key
Return key,Trigger key
LaserPointer
Yes
Temperature Alarm
Screen font color alarm
Image storage
Built-in memory card
Number of image files
30000
Image format
BMP
Shock/vibration
GB/T;GB/T2423.10-2008
