KKmoon Multifunctional Self-leveling 3D 12 Lines Laser Level Tool Vertical Horizontal Lines with 1.2M 3 Heights Adjustable Alloy

The 3D laser level meter can emit visible lase horizontal and vertical lines for the automatic leveling separately or simultaneously. Provides accurate horizontal and vertical datum for indoor construction stakeout and calibration, easy to operate, and versatile. Comes with one extension bar, which is made of thicken aluminum alloy material, 3-heights adjustable, suitable to most of laser level with 5/8" interface. Perfect for flooring tile layout, paneling, wallpapering, stenciling, wainscoting, finish carpentry, wall stud layout and partition installation. You can have a try.

Features

Output 12 laser lines for finer positioning, with self-leveling system, flexibility and stability.

360° rotatable base, and equipped with fine adjustment mechanism, can make the machine quickly find the target.

1/4" screw size for easy connection, it can be used with tripod to adjust the working height of the machine.

Comes with wall-mounted bracket, can be easily attached to the floor tiles, wall stickers, and ceilings, all 7mm pitch.

Waterproof and dustproof, suitable for both indoor and outdoor use.

Adopts optical glass, K9 material, fine transmission, with clear laser light.

Equipped with self-test calibration function, ≤3° automatic leveling, but if the angle is over 3°, the laser light will keep blinking reminding you to reset them on a flat ground.

Rotation knob design, clockwise rotate to open it, anticlockwise rotate to close it.

Two touching buttons design, one OUT/H button, one V button, horizontal line and vertical line with a clearly division.

The button is wear resistant, with high sensitive to switch the line mode quickly, and with comfortable hand feeling.

Easy to carry with the case, providing quick and convenient mobility and storage.

Extension Bar

Made of thicken aluminum alloy material, firm with fine load-bearing, not easy to deformed and not easy to break.

Three heights adjustable, you can adjust according to your demands easily.

Equipped with bubble-level to help you to check whether the tripod is horizontal or not.

Equipped with rocking bar to adjust to height of the tripod, smooth and effort saving.

With fixed plectrum to control to extend length to lock it tightly.

Suitable to most of laser level with 5/8" interface.

Note

The laser output maker is located on the output hole.

Do not stare directly at the laser light.

Do not disassemble the instrument and perform internal repairs by yourself.

This instrument meets the laser radiation safety rating standard.

Specifications

Name: Laser Level

Main material: plastics+metal

Battery: 2 * rechargeable battery, 3.7V, 2400mAh (included, you will find there are two lithium battery batteries inside if disassemble one)

Laser ray: 3D, 12 lines

Range: 30m

Laser lines accuracy: ±0.2mm/m

Laser light color: green light

Self-levelling-range: ±3°

Leveling time: ＜4s

Laser class: 2

Working temperature: -10℃ to 40℃

Storage temperature: -20℃ to 70℃

Moisture: 90%

Working time: 3-9 hours

Extension bar interface: 5/8"

Item size

Laser level size: 137 * 110 * 217mm / 5.39 * 4.33 * 8.54in

Wall mounted bracket size: 160 * 86 * 65mm / 6.30 * 3.39 * 2.56in

Extension bar: 560 * 105 * 90mm / 22.05 * 4.13 * 3.54in

Package size: 448 * 267 * 224mm / 17.64 * 10.51 * 8.82in

Package weight: 2520g

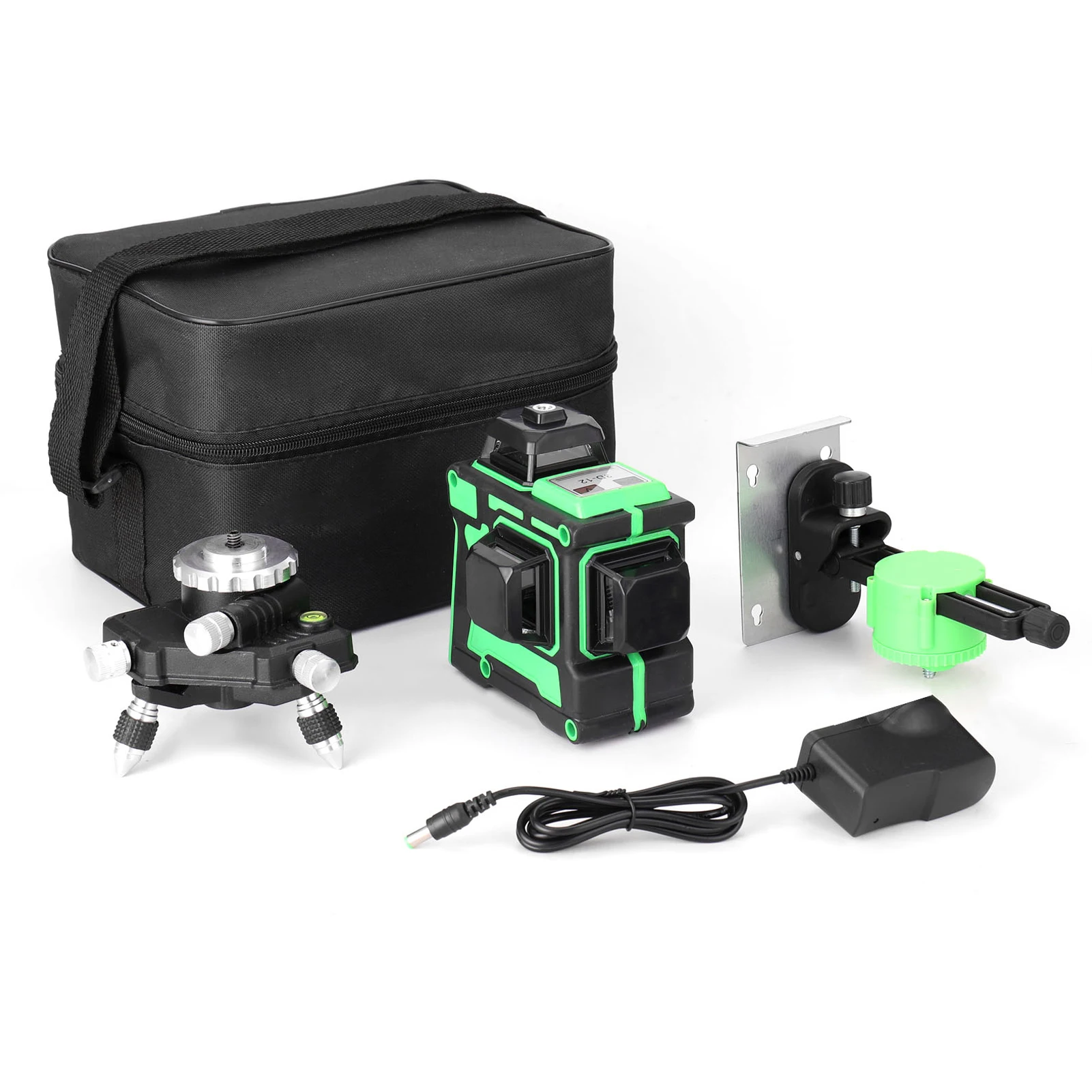

Packing List

1 * Level Machine with Battery

1 * Replacement Battery

1 * Wall Mounted Bracket

1 * Base Stand

1 * Iron Board

1 * Power Adapter

1 * Level Machine Carrying Bag

1 * Guideline

1 * Extension Bar

1 * Extension Bar Carrying Bag
