0.3-20M 24GHz microwave radar sensing module 5v no delay small angle vehicle moving object human sensing head Distance Sensor
1, product introduction.

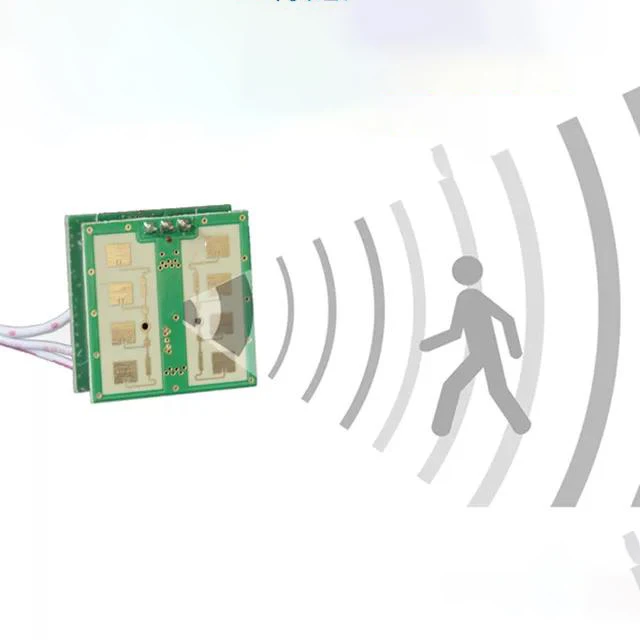

The TD-24G-A-002 microwave sensing module can be used to detect targets with motion speeds in the range of 0.2 km/h to 至 22 km/h, to detect motion targets, to detect distances ranging from 0.1 m to 25 m, and to customize the range of measurements according to customer needs, with an accuracy of up to 0.5 m.
2, feature description.
24GHz (ISM standard band) based on how radar works
The maximum detection distance of the motion detector is up to20 meters (the target is the moving human close to) the nearest detection distance is customized according to the application range (the agreed sensing distance prior to the order, the default no delay, the high-level output).
Module appearance dimensions.:25mm(L)X 25mm(W)X 12mm (H)
3, limit parameters.
The limit operating voltage range.
4.5V~5.5V
Limit operating temperature range.
40°～ +85°
4Recommended working conditions.
The recommended operating voltage range.
4.75V~5.25V
The recommended operating temperature range.
30°～ +60°
5、EMC
Standard.
Pilot project.
Parameters and regulations.
IEC61000-4-2
Electrostatic discharge immunity.
IEC61000-4-3
Radiation immunity.
80-1000MHz,3V/m,80%AM(1KHz)
IEC61000-4-4
Electrical rapid transient pulse group immunity.
2KV(电源端),Tr/Th＝5/50ns,5kHz、100KHz
IEC61000-4-6
Conduction harassment immunity.
0.15-80MHz,3V,80%AM(1KHz)
6、Technical parameters.
Parameters.
Symbol.
The minimum value.
Typical value.
The maximum value.
Unit.
Description.

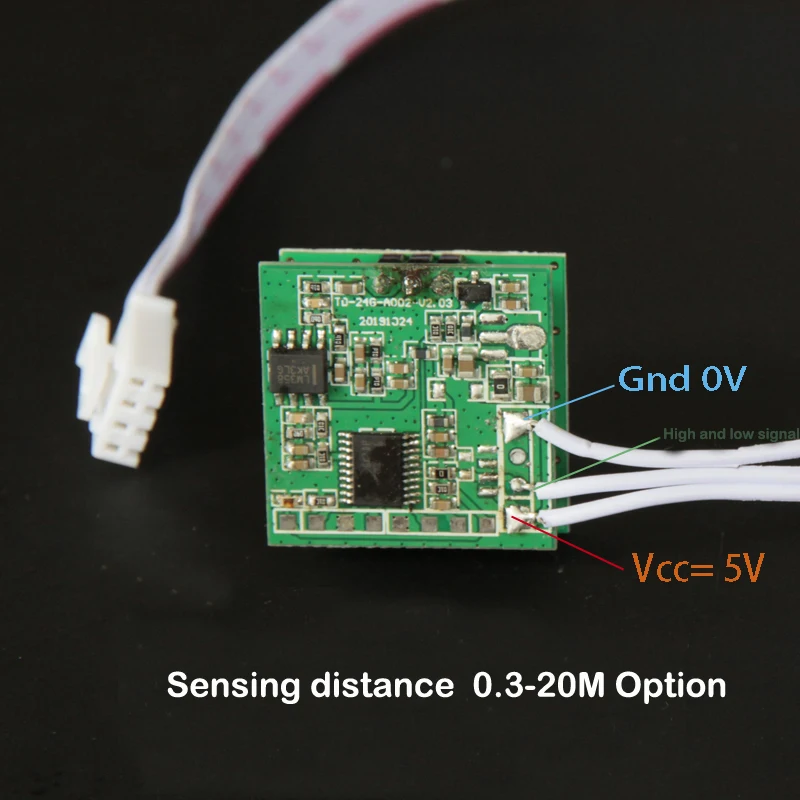

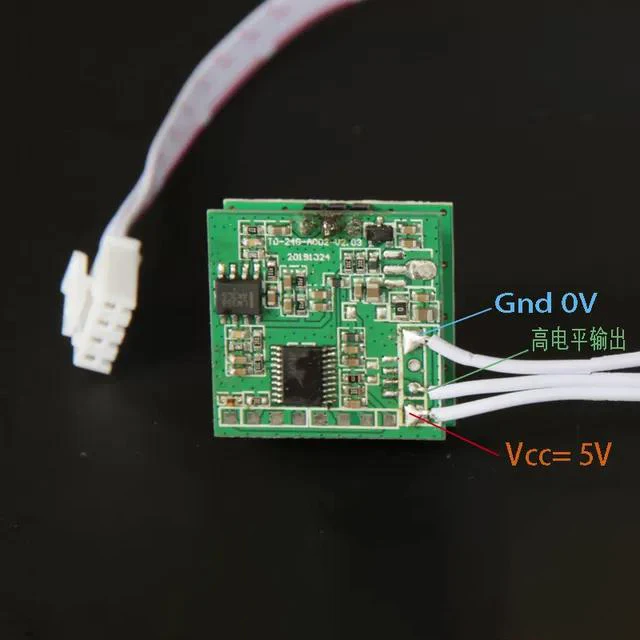

Operating voltage.
VCC
4.75
5
5.25
V
Dc.
Operating current.
Icc
35
45
mA
+5V DC
The emission frequency.
fstandard
24.00
0
24.125
24.250
GHz
Output power.(EIPR)
Pout
dBm
Antenna parameters.
Level.
78
°
Vertical.
36
Antenna gain.
12
dB
13
Operating temperature.
Top
