Frequency Converter For Motor 380V 5.5KW/7.5KW 1 Phase 220V Input to Three Output 380V 50hz/60hz AC Drive VFD Frequency Inverter
Return&refund policy
Eligible items are covered by return and refund support. If the item does not arrive or is not as described, the buyer can request help.
Security & Privacy
Safe payments: We do not share your personal details with any third parties without your consent.
Secure personal details: We protect your privacy and keep your personal details safe and secure.
AI offer for your market
A curated pick based on category, shipping route, delivery speed and popularity in your selected market.
Why this product fits your market
- • Estimated delivery: 7.
- • Strong customer signal: 3.7★ from 3 reviews.
- • Recommendations focus on this product category and your market availability.
Product specifications
Detailed product description
This product is shown with available options, market-specific pricing and verified specifications.
- Brand: NFLIXIN
- Sales: 22
- Package size: 22 × 15 × 13 cm
- Package weight: 1 kg
- Rating: 3.7 / 5
Before adding to cart, choose an available option and check the quantity.
NFLIXIN Variable Frequency Drive Single Phase 220V Input 3-Phase 380V Output 0.75KW/1.5KW/2.2KW/4KW/5.5KW/7.5KW/11KW Frequency Converter Motor Drive VFD
Promotion: This product is changed to a black model
1.Output Power: 0.75kw/1.5kw/2.2kw/4kw/5.5kw/7.5kw/11kw
2.Rated Frequency:50hz/60hz
3.Output Frequency Range:0~400Hz
4.Input Voltage Range:1 phase 220V±15%
5.Output Voltage Range:3 phase 380V±15%
6.Control way: Open loop vector control(SVC) V/F control
7.Main function: Control and adjust the speed of the ac motor
Feature
1. Humanized keyboard design, convenient operation and clear display
2. The motherboard is intelligent and efficient, with full-featured three-proof paint treatment, dust-proof, stable and durable
3. Double-layer board design, reasonable structure and safety, greatly reducing the failure rate
4. Adopt high-quality industrial flame-retardant ABS plastic shell, heat-resistant, flame-retardant, impact-resistant and good safety
5. Good heat dissipation, super large all-aluminum base fan hot plate combined with imported powerful fan, super strong wind and super fast heat dissipation
6.Provide up to 25 kinds of fault protection: over-current, over voltage, under voltage, over temperature, phase loss, overload and other protection.
Specification
IteItem Type: Variable Frequency Drive
Brand: NFLIXIN
Model: 1T3-00075G / 1T3-00150G / 1T3-00220G / 1T3-00400G / 1T3-00550G / 1T3-00750G / 1T3-01100G
Input Voltage: AC 1PH 220V ± 15% 50Hz-60Hz
Output Voltage: AC 3PH 0V-380V 0Hz-650Hz
Matching Motor Power: 0.75KW/1.5KW/2.2KW/4KW/5.5KW/7.5KW/11KW
Rated Current: 2.5A / 3.7A / 5A / 8.5A / 13A / 16A / 25A
Voltage Type: AC220V to AC380V
Output Voltage Adjustment Mode: PWM control
Control Method: Current vector
Filter: Built-in filter
Protection Level: IP20
Product Function
Low frequency and large torsion
Sensorless vector control
Standard V / F control
Multi-speed adjustable
Built-in RS485 communication
Application: Crusher, grinder, water pump, textile machine, wood cutter, exhaust fan and blower
Type
220V TO 380V
0.75KW VFD
1.5KW VFD
2.2KW VFD
4KW VFD
5.5KW VFD
7.5KW VFD
11KW VFD
Input Voltage
220V
Output Voltage
380V
Input Frequency
50/60Hz
Output Frequency
0~400Hz
Rated current
2.5A
3.7A
5A
8.5A
13A
16A
25A
Input Phase
1 phase
Output Phase
3 phase
3phase

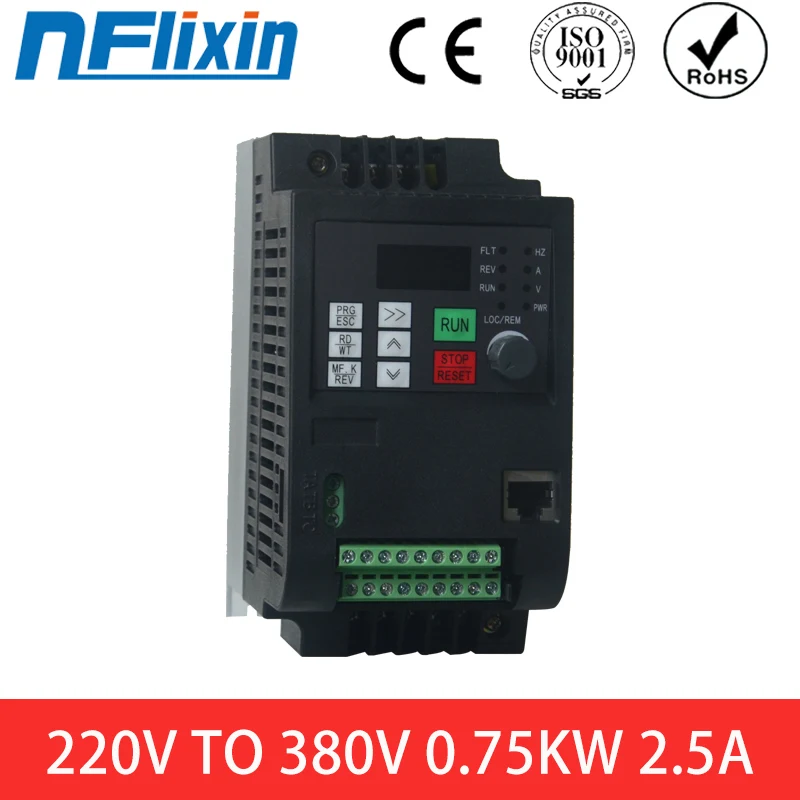

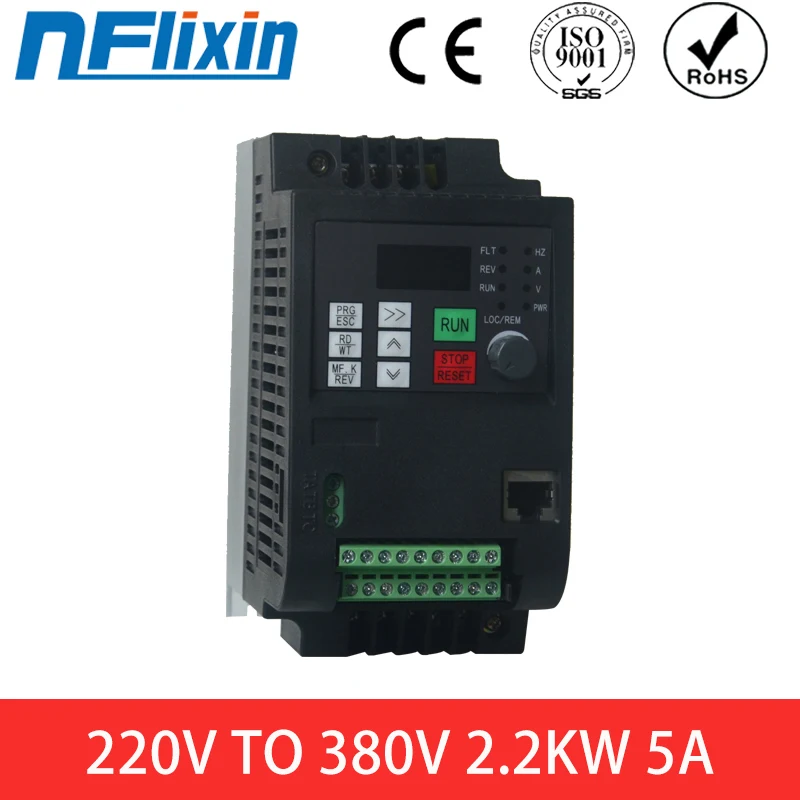

220V to 380V 0.75KW / 1.5KW / 2.2KW Frequency inverter
Size: 85mm*125mm*150mm

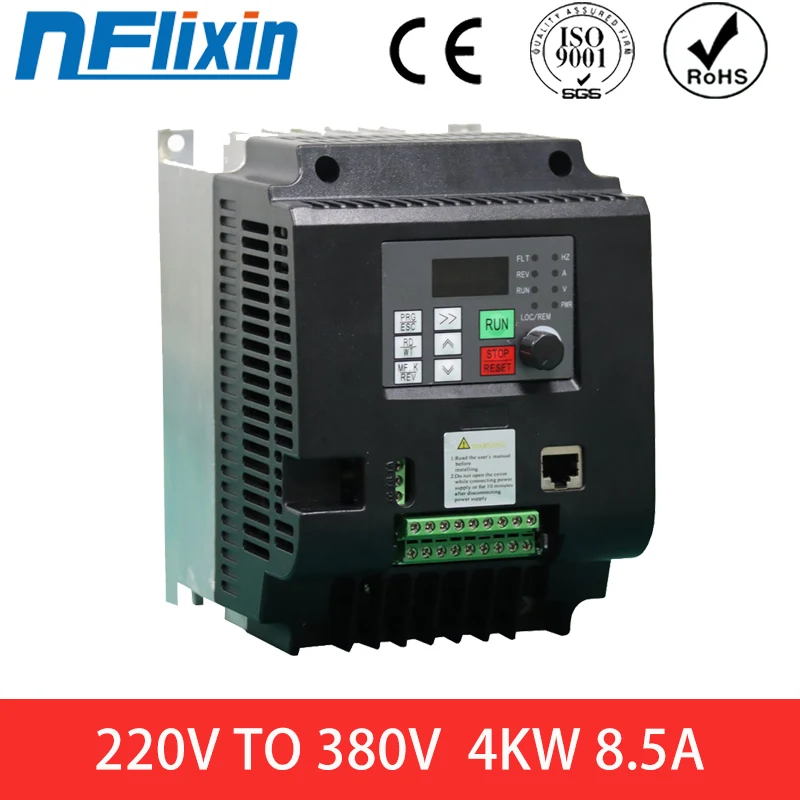

220V to 380V 4KW/5.5KW Frequency inverter
Size: 172mm*125mm*165mm

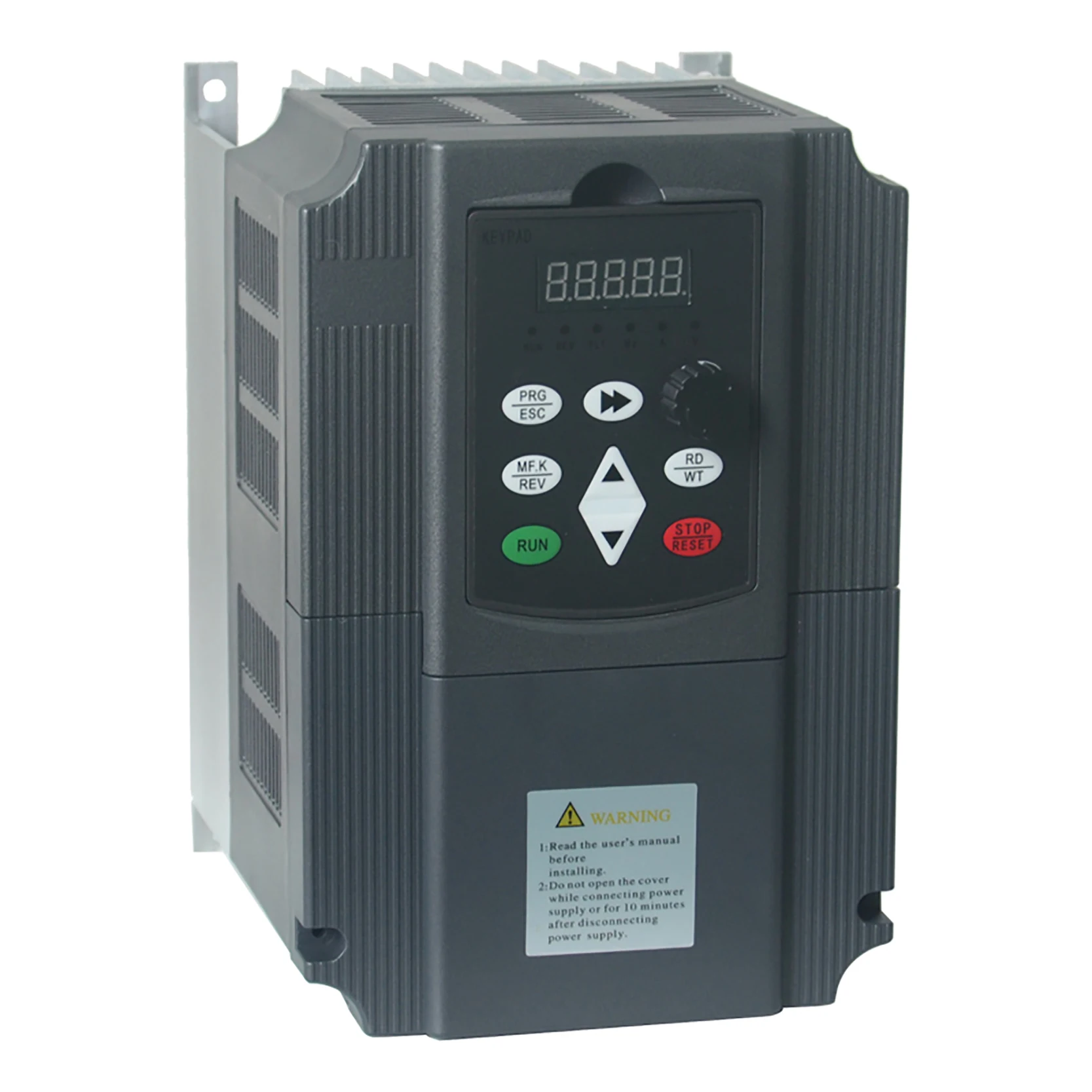

220V to 380V 7.5KW / 11KW Frequency inverter
Size: 220mm*152mm*179mm
