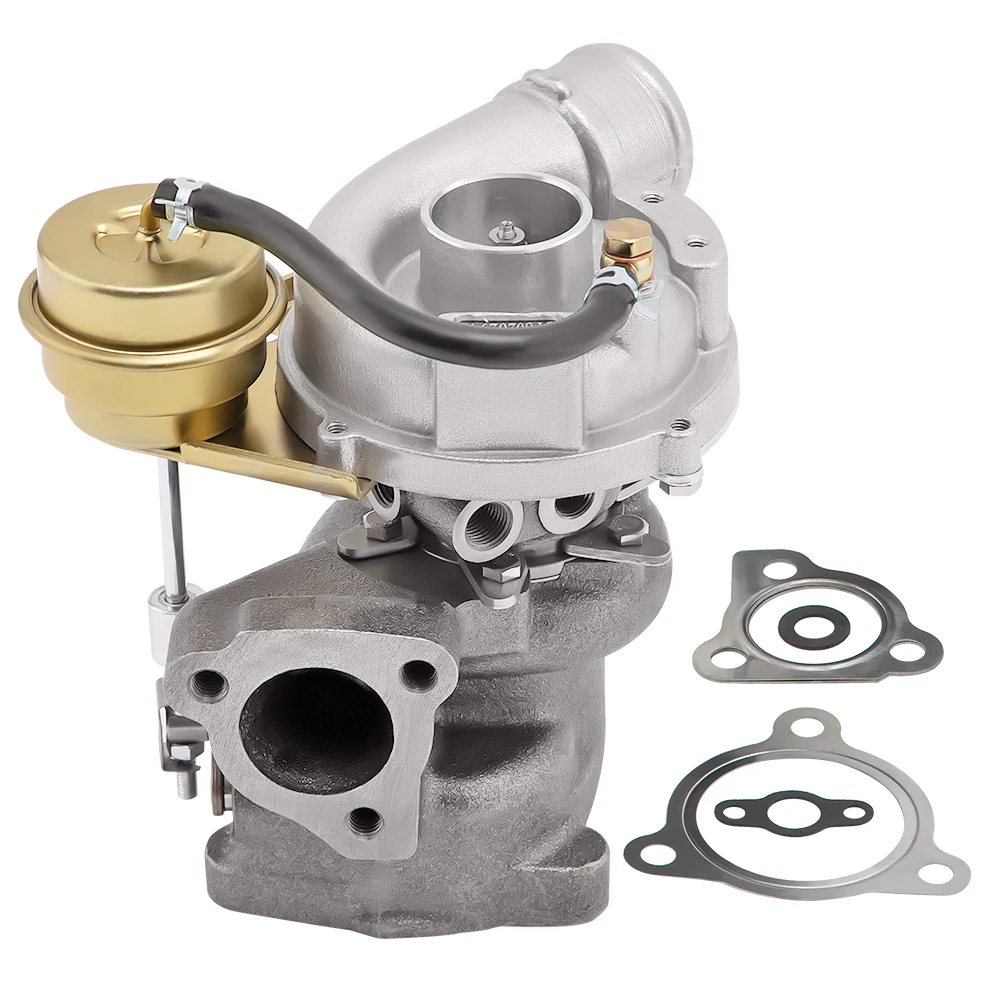

K04 Upgraded Turbo Turbocharger for Audi A4 for VW PASSAT 1.8T Turbolader
Application
for Audi A4 A6 Quattro VW PASSAT 1.8T AEB/ANB/APU/AWT Upgrade
for Audi A4 1.8T AEB/ANB/APU/AWT20v/AVJ
for Audi A4 Quattro 1.8T AEB/ANB/APU/AWT/AVJ/BEX 1999
for Audi A4 Upgrade 1.8T 1995
for Audi A6 1.8T AEB/ANB/APU/AWT
for Audi A6 Quattro 1.8T AEB/ANB/APU/AWT 1999
for VW Passat 1.8T AEB/ANB/APU/AWT 1999
for VW Passat 1.8T upgrade 1999
Part Number
058145703L, 058145703LX, 058145703LV
058145703J, 058145703JX, 058145703JV
058145703K, 058145703KX, 058145703KV
058145703N,058145703NX, 058145703NV
058145703Q，058145703QX,058145703QV
058145703B, 058145703C, 058145703D
058145703E, 058145703H
Specification
Turbo Model: K03 upgraded, K04
Engien Code: AEB/ANB/APU/AWT/AVJ/BEX
Cooling Type: Water & Oil Cooled
Bearing Type: Floating Bearing
Hosepower: Up to 220HP
Thrust Bearings: 270 Degrees
Turbo Type: Individual
Condition: 100% Brand New
Accessories: You will get exactly as shown in the picture above
Package Size: 31*28*24cm
Package Weight: 5300g
Compressor
Wheel Diameter: 50/37.5 mm
Trim: 56
Compressor Inlet: 44.5 mm
Compressor Outlet: 50 mm
Blades: 4 x 4 blades type

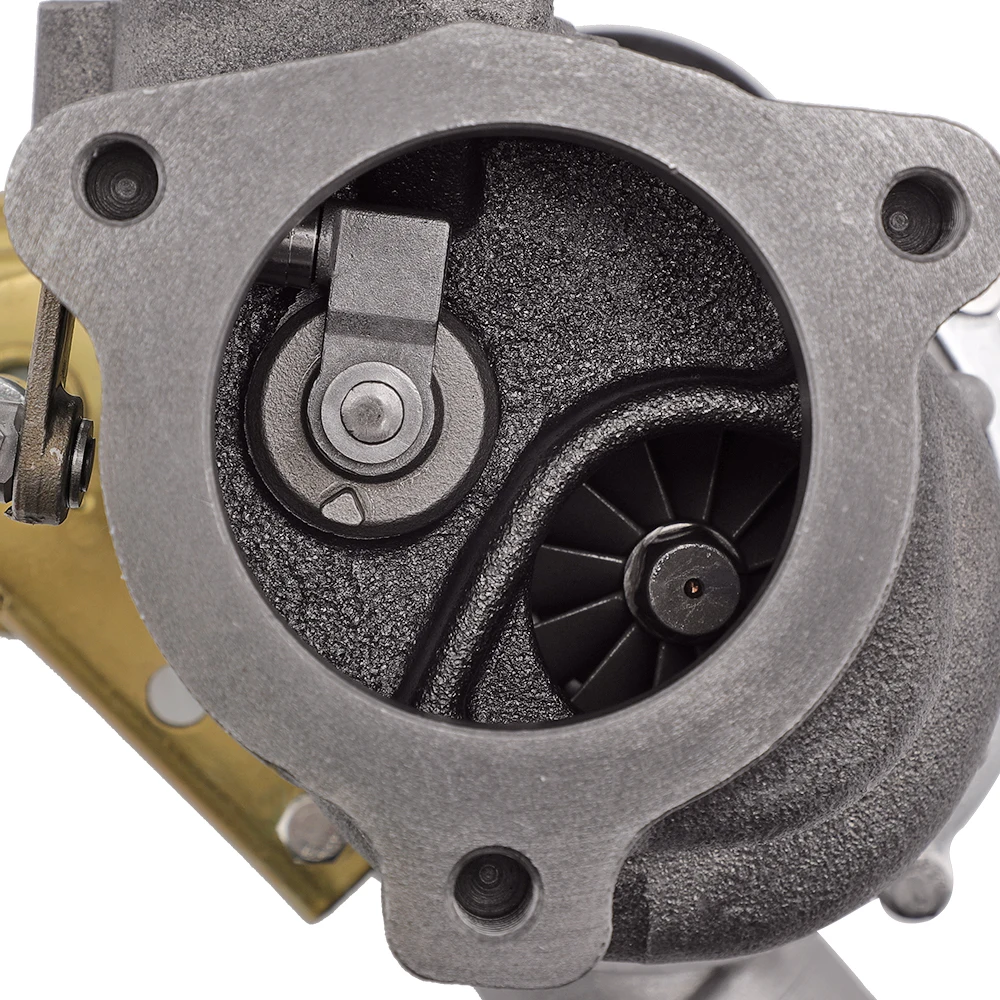

Turbine
Wheel Diameter: 46/42 mm
Trim: 83.7
Blades: 12 blades

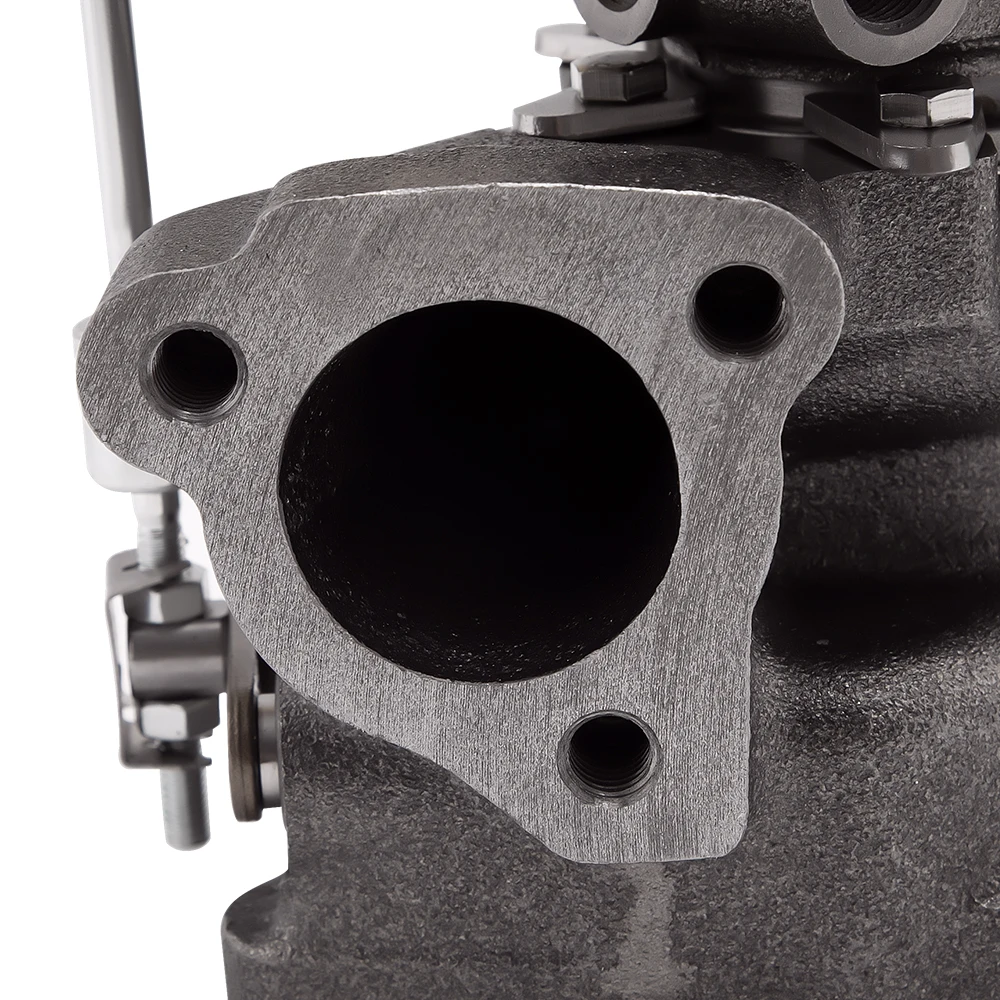

Inlet Flange: 3 Bolt Flange
Outlet Flange: 3 Bolt Flange
Feature
* Product Material
1. Turbine housing: Ductile iron QT450-10- temperature resistant up to 700℃
2. Steel turbine wheel: K418 alloy - high oxidation stability and resistance up to 900℃
3. Compressor housing: ZL104 aluminum with lightweight
4. Compressor wheel/blades: Cast aluminium blades – superior air tightness & corrosion resistance
* Product Performance
1. OEM-quality and size with little modification
3. High-Speed oil seal ring and Precision clearance
* Technology Advantage
1. 100% balancing Test by TURBOTECHNICS VSR3
2. G3-min-Flow VNT Turbo testing
3. Advanced Actuator Tester/Programmer
Note
* Please confirm your original turbo PART NUMBER before Purchasing
* Professional installation is highly recommended
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
