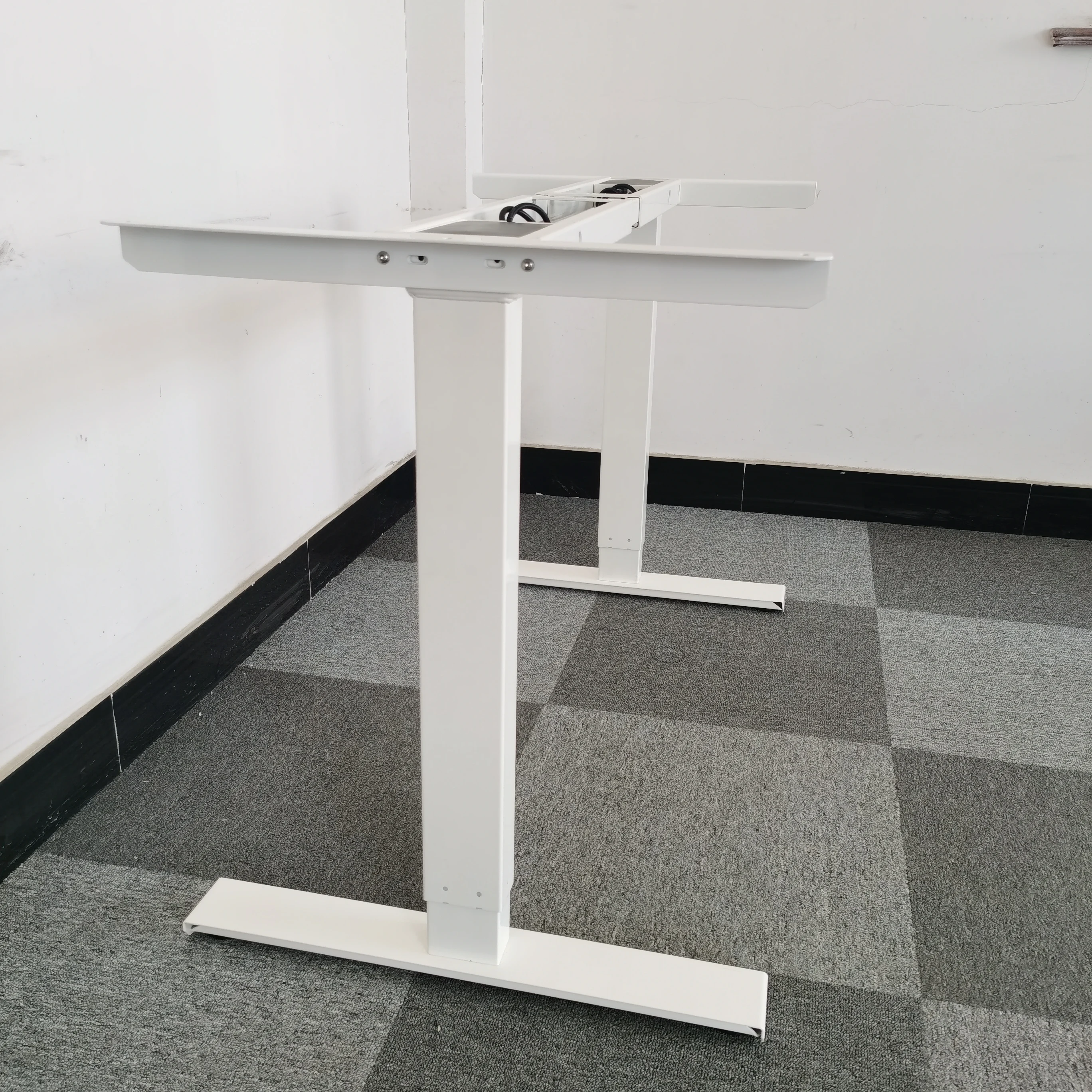

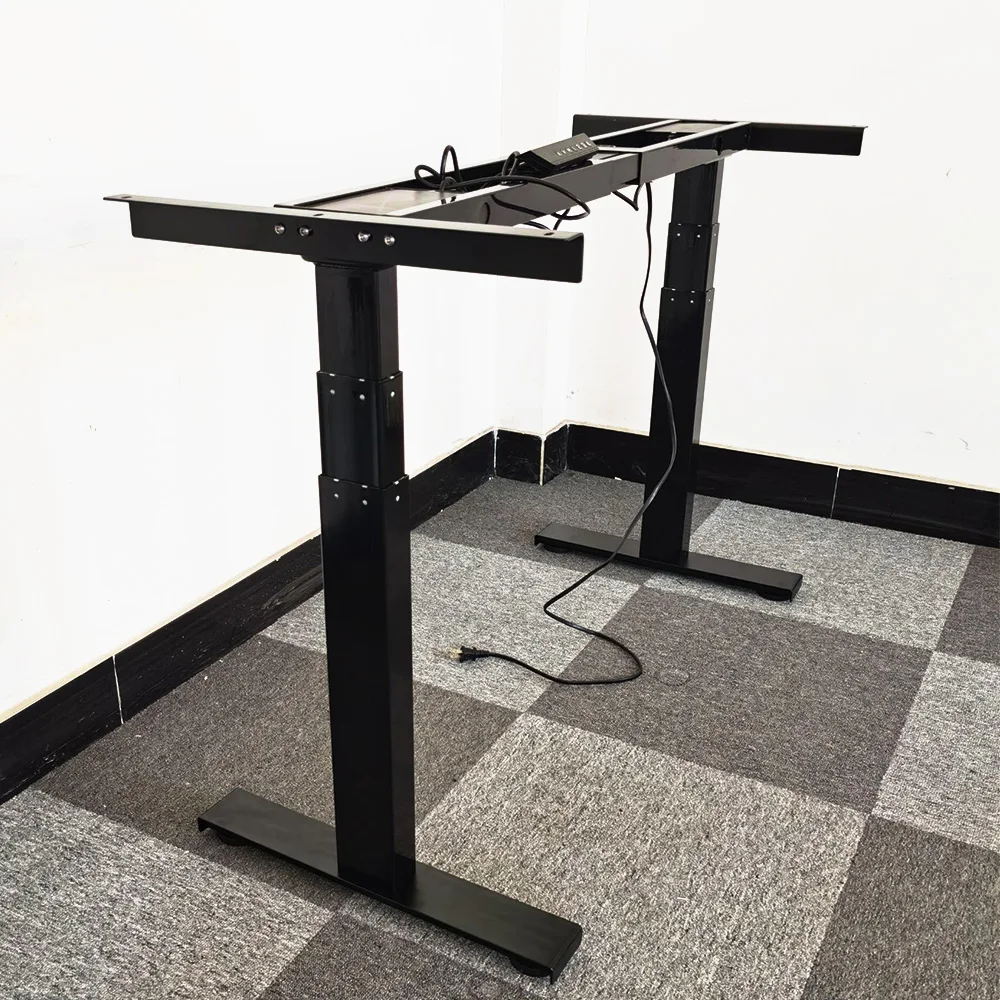

Two/Three Section Electric Lifting Desk Dual Motor Height Adjustable Sit Standing Desk Frame for Stand Up Office Gaming Table

Package include

1 x Two/Three-sections Electric Standing Desk (Without desk top)

Durable Steel Plates

This desk frame is made up of high-strength steel plates, which is thick, sturdy, and lasts for a longer time. It is non-break & stable.

Strong Dual Motors

It is equipped with two powerful motors at each side, which will lift or down the desk legs smoothly and quietly.

Convenient Digital Controller

Offer a smart control center behind the tabletop. Real-time desk height can be displayed with a LED screen. The four preset heights and memory function are provided.

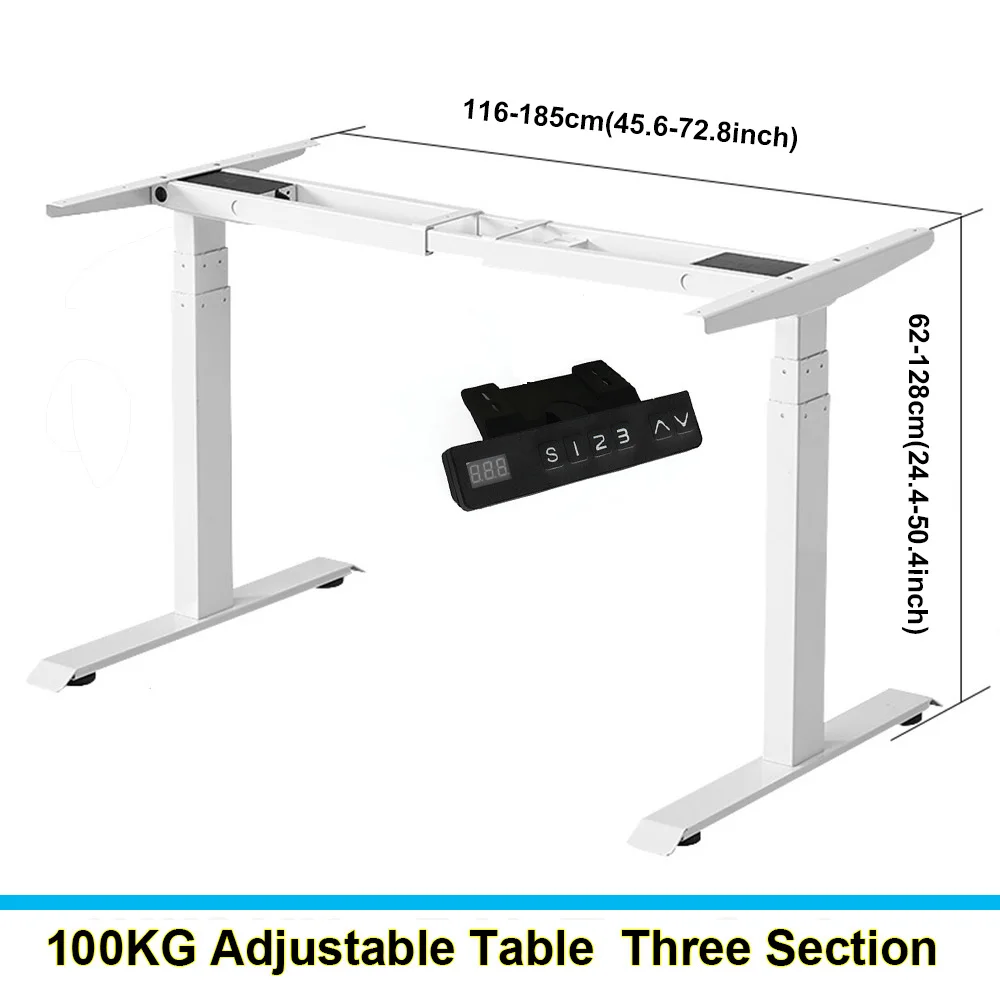

Specifications(Three Section)

Color: Black / White

Material: Cold-Rolled Steel

Frame Height: 62-128 cm(24.4"-50.4")

Frame Width: 116-185 cm(45.6"-72.8")

Lifting Speed: 25 mm/s

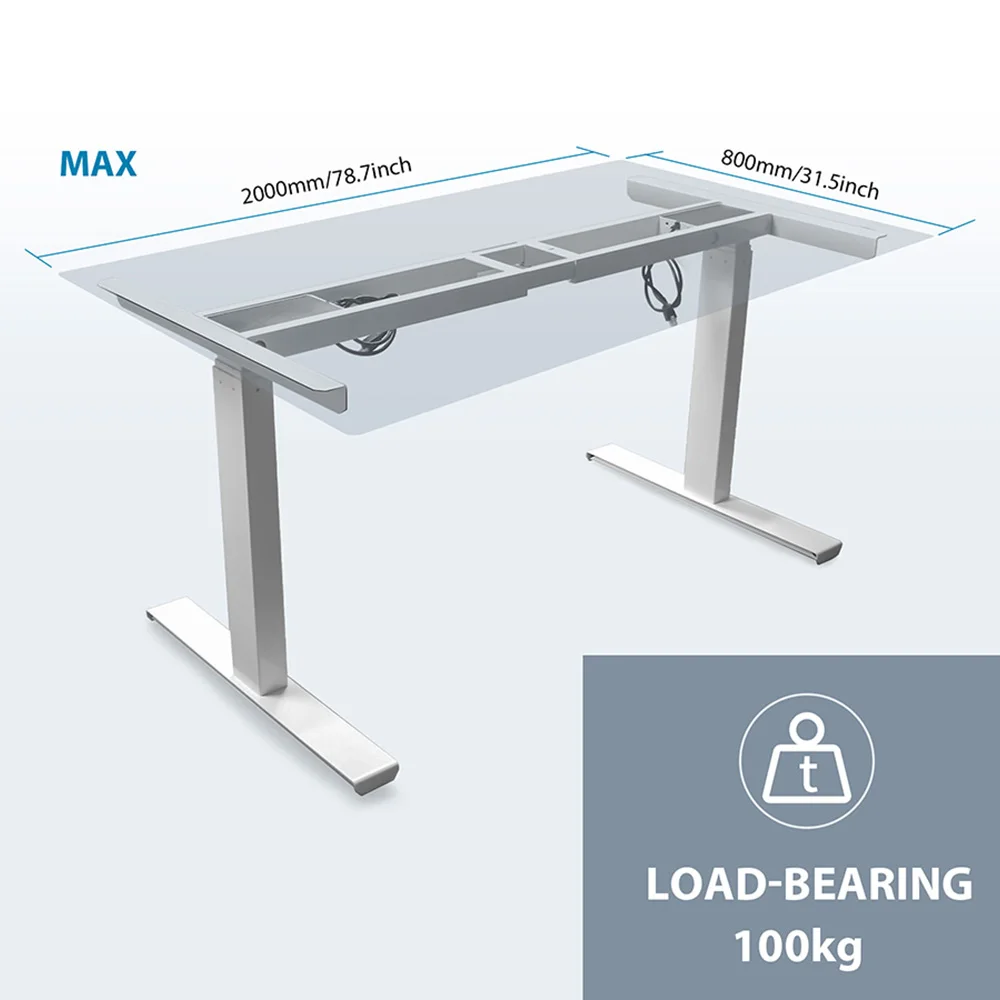

Load Capacity: 220 lbs/100 kg

Input: 110-220VAC

Output Power: 24VDC

Weight: 27 kg

this frame is three section adjustable

This frame include dual motor

Specifications(Two Section)

Frame Height: 68-118 cm(26.8"-46.5")

Weight: 24.5 kg

this frame is two section adjustable

Direction for Use

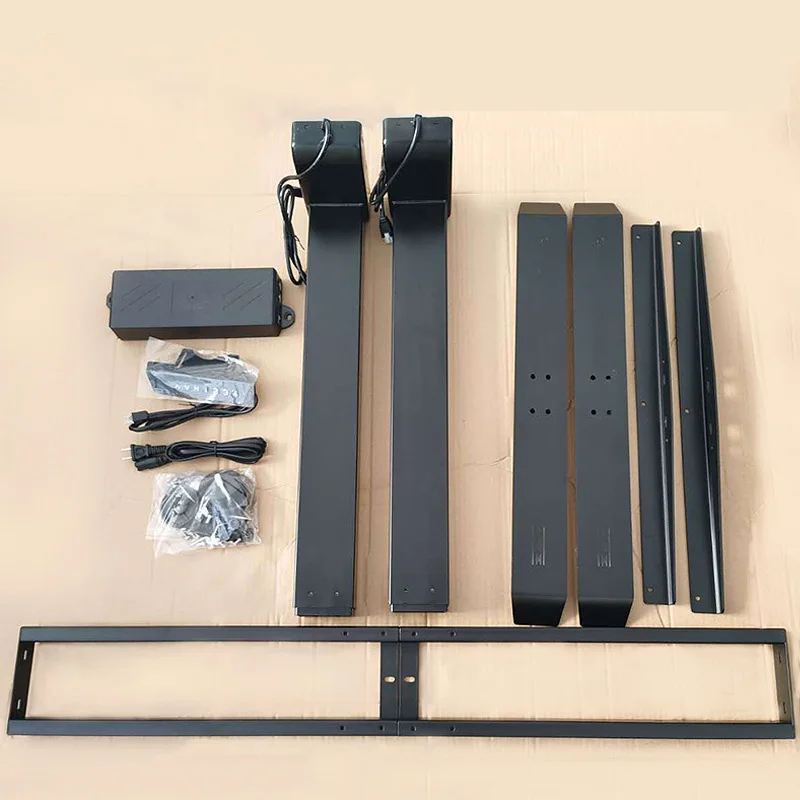

1. Correctly connect the Control Box,Handset,Power Wire,Lifting Column, Patch Cord.(Picture 1).

2. Plug the power cord into 110~230VAC outlet:The Digital Tube will display “PON” for seconds it means electrified successfully,need to reset.

After reset the Digital Tube will display 23(MM),reset finished.

RESET

Press and hold the down button, after 5 seconds the desk will begin tolower, until to the lowest height then slightly rise.Reset finished.

Release the down button.

3. After reset,press and hold “UP” button,lifting column will rise,release to Stop.

4. After reset,press and hold “DOWN” button,lifting column will fall,release to Stop.

5. How to memory

After pressing and holding UP/DOWN button to a height,press button S first,then press button 1,this height will be remembered by button 1.Still pressing and holding UP/DOWN button to another height,press button S,then press button 2,this height will be remembered by button 2.

The same way,the button 3,4 can remember other heights.

After memory,press 1/2/3/4 button,desk will motion to the height it remembers,press “UP” and “DOWN” button.The motion will bestopped.

Notice

1.This product must be used under the correct technical parameters.

2.Keep away from liquids,corrosive gases,dusty environment.
