V153 Firmware 1:1 Full Chip For ICOM NEXT A2+B+C 3 in 1 Auto Diagnostic Tool ICOM-NEXT OBD Configuration

This link is only sale Hardware configuration,it DOES NOT included HDD software program,buyer need have program yourself or you need buy it extra to works with the hardware. And use this device require professional skills.

Newest Firmware V153 (support upgrade in the future)

We have files to follow how to upgrade the firmware.

This is 1:1 Classic Hardware,it does not otherelse VX driver J2534 lite version hardware.

If buyer received Hardware Configuration V149 please do not worry,you can upgrade Firmware from your side directly.

Please Read below Carefully before order,it is IMPORTANT!!!

👇👇👇↓↓↓↓↓↓👇👇👇

The hardware only supports upgrade to V153 and DOES NOT support other higher versions of hardware. (Do not work V154, as it is unstable and not supported!!! Already tested!!!)

The customer has own software that can support V4.01,V4.31,4.39.20, 4.32.xx which works very well with our ICOM Firmware V153.

Our ICOM hardware V153 is NOT compatible with other higher software (NO WORKS V4.49, V4.53). If customers mind, please do not purchase. Because it is not supported. No need waste time to return!!!

Please read other buyer feedback to avoid buy and return process

Display Device: ICOM A1

RAM 128 (some show 126 due to chip display difference)

Q: ICOM connected and worked first time later nothing,should I reset/restore the ICOM? how can I do it?

A: It was related to IP address,so please check it out.

Whether you have changed the dynamic IP to a static IP in the URL.

Normally, we should not modify the dynamically assigned IP addresses we have set up; they can be used directly. If a client changes the static IP, ensure you know what the new IP address has been changed to

Attention to WIFI configuration

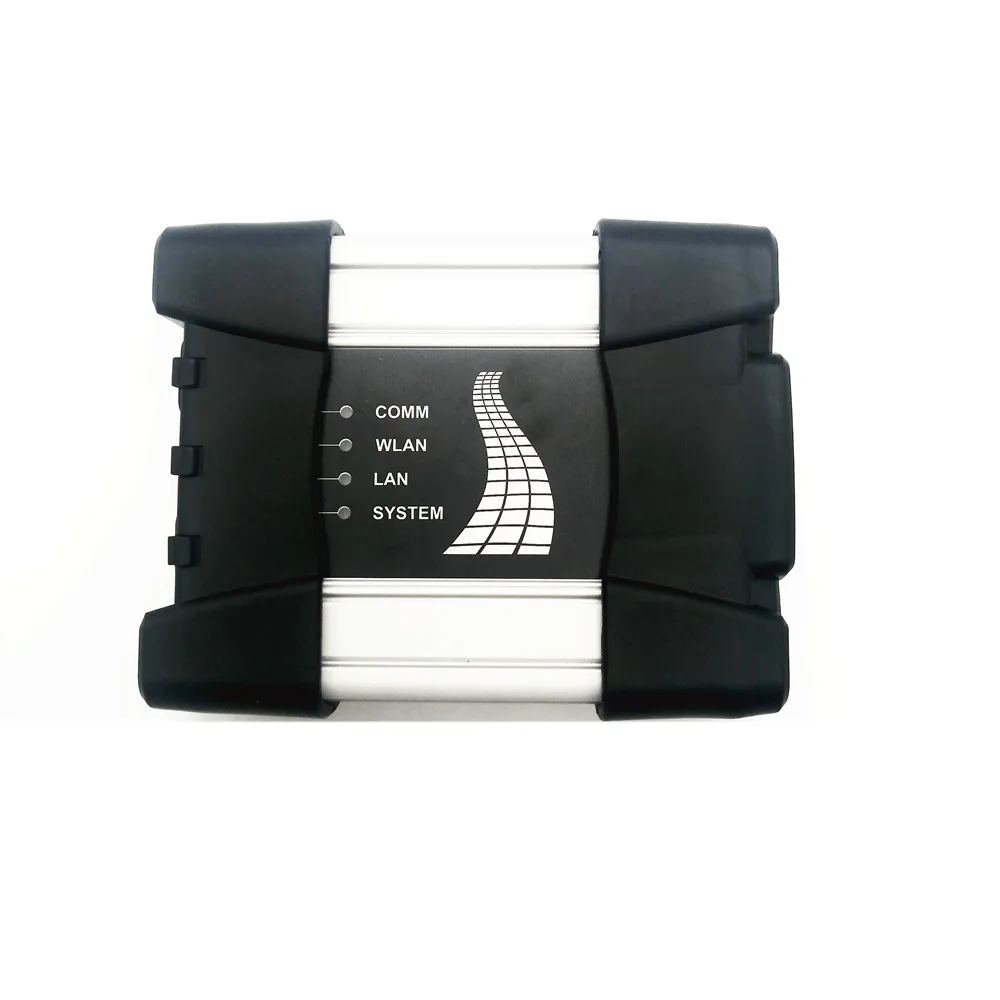

The SYS light of the device should stay on for a long time, not flash continuously or flash red, and the second LAN light should also be on.

If it is a device with WIFI WLAN hardware, it needs to first connect to the computer with a network cable,and then plug in the OBD power supply.

Devices with WIFI,must first be connected to the computer and device via Ethernet cable,and then insert OBD into ICOM

If you first provide OBD power and then plug in the Ethernet cable, and the device is in WIFI mode but the Ethernet cable is not connected, please pay attention to this

1:1 Design Single PCB Full Chips

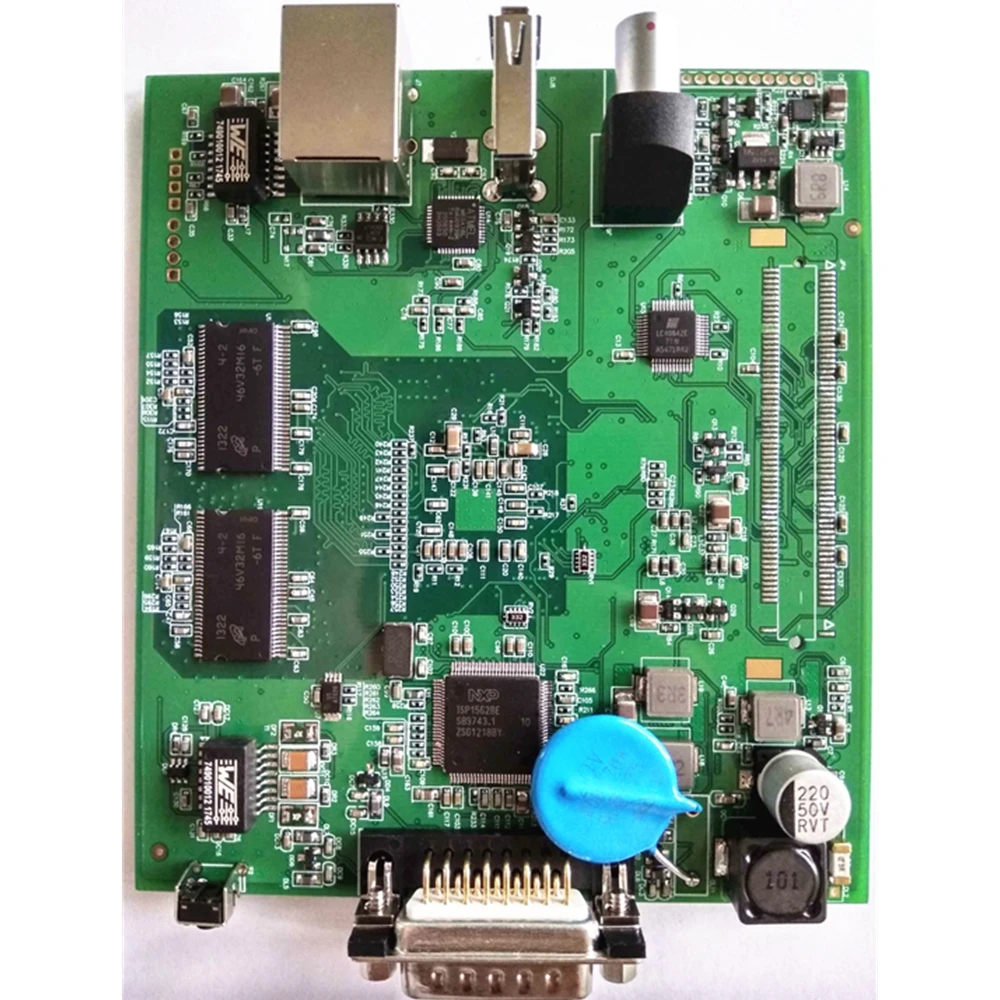

PCB Board Display

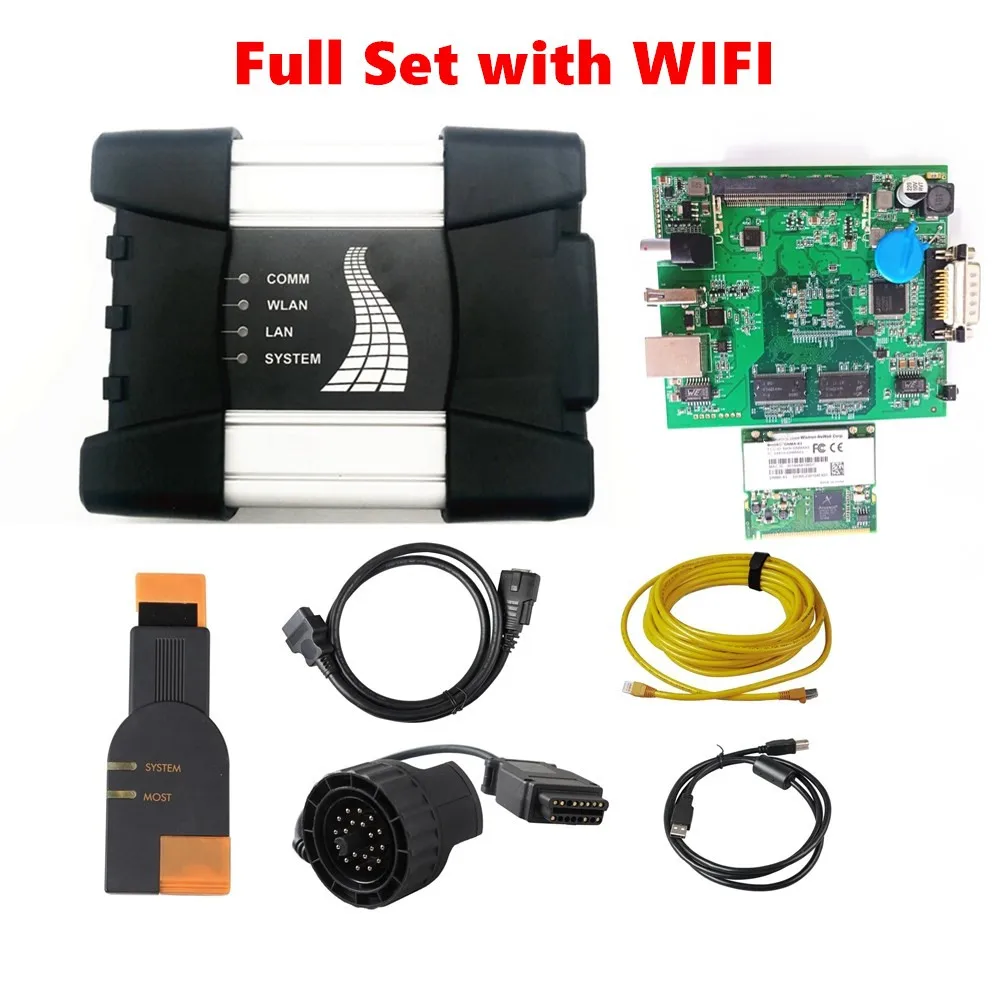

With WIFI PCB Board Display

Get for ICOM NEXT Top 3 Reasons

1. Hardware Version: ICOM Application-01.40.05

2. Support Vehicles: for Cars, for Motorcycle, for Rolls-Royce, for Mini Cooper

3. Support for All Series Diagnose and Programming

Notice

1. No Network And Also No Connection With The Original Server When You Use The for ICOM Software HDD, Ortherwise It Is Will Be Damaged, And Need You Send Back For Repair

2. If your for ICOM HDD got error "database version mismach, the found database version are not compatible", just need to set the /D language as American English

3. Power On Password

First Line: for"" in Capital Letter

Second Line: Just Leave it Empty

Then Click Enter

Functions

A - OBD diagnostic supporting MOST, D-CAN and K-CAN protocols

B - diagnostic via most bus, and have connection to A-interface via USB connection.

C - 20-pin cable for old models.

For B ICOM NEXT A+B+C 2018 New Generation OF ICOM A2

For B ICOM NEXT A Latest Generation Diagnostic Head For B, for MIN-I, for Rolls-Royce for B-Model.

Can Replace for B ICOM A2, including all function of ICOM A2.

For B ICOM NEXT not support WIFI.

ICOM NEXT can works together with ICOM Software we provided.

ICOM NEXT can connect internet and Printer.

Improved Functionality and Performance

1. Gbit workshop LAN, backwards compatible

2. Preparation for Gbit LAN on vehicle OBD(cars do not yet supportthis and interface not

yet defined,ICOM Next hardware adaptation will be necessary for future Gbit car

interface,will cause adaptation costs)

3. Faster start-up times and high throughput

4. Through high-performance,low-power ARM SoC

5. Improved handling

6. More flexible OBD cable

7. Lighted button for logs etc

ICOM NEXT A+B+C Diadnostic Head Overview?

Functionally compatible to ICOM A

Mechanical design similar ICOM A

Backwards compatible to car adapters (ICOM B, C) and motorcycle adapters (ICOM D, E)

Specifications

Zeroization of data on tamper detection

Secure supply chain assurance

Key storage using physically un-clonable function

CRI Pass-Through DPA Patent Portfolio

Advanced cryptographic Services
