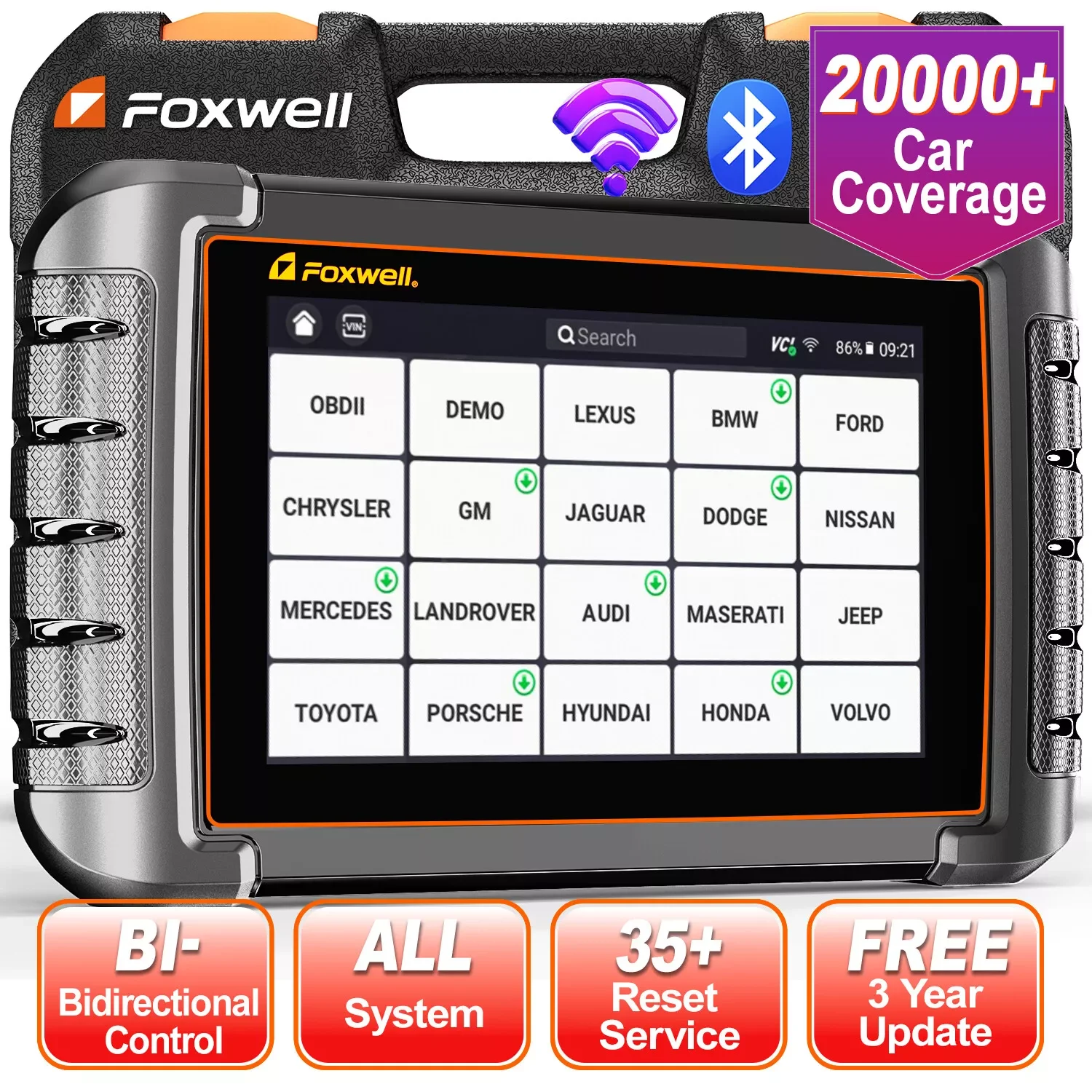

Foxwell NT809 Bi-directional All System Car OBD2 Scanner Diagnostic Scan Tool 30 Maintenance Bi-directional Test OBD2 Automotive

2025 New Version Foxwell NT809 Professional Car Diagnostic Scanner OBD2 Code Reader with Bi-directional Control Test + ALL System Diagnostics + All Reset Services + FULL OBD2 Functions + 3 Year Free Update + Multi-Language+Support All Makes

All in One Scanner, Your Garage Necessities!

Bi-Directional Control（Active Test）

Bidirectional Control, also known as Actuation Tests, is used to send a command to vehicle ECU to perform component test for checking control modules' functionality. The tests let you use the scanner temporarily activate or control a vehicle system or component, and when you exit the test, the system/component returns to normal operation. After performing the active test of vehicle system parts, you could observe the resulting data to troubleshoot and fast repair, which is great for narrowing down problems or for maintenance like brake caliper resets when replacing the brake pads.

Bi-directional Control is a commonly-used function for mechanic/workshop, can save you a loads of time and help you get through more jobs every day. This function is newly released for f-ree to greatly meet customers' demand, which brings this device unbeatable value. You will hardly find this actuation test function on such a comprehensive all system car scanner with 28 service reset at thie cost range.

Commonly-Used Actuation Tests include

Lock/unlock door

Turn A/C on/off

Roll window up/down

Cycling A/C Clutch On/ Off

Cycling ABS Pump Motor

Turn the Fuel Pump On/Off

Turn the Sound Horn On/Off

Open/Close the Sunroof

Turn on/off the radiator fan/interior & exterior lights

Operate Mirros/Fuel Injector Balance/ Injector Buzz Test Door Lock/Window/Horn/ Light/ Headlamp Test, etc

All-System Diagnosis, One is Enough!

FOXWELL NT809 is top dog in foxwell's android-based scan tool line up. This professional all system diagnostic scanner is capable of performing fast and accurate diagnosis for all available control modules (ABS, SRS, Engine, Transmission, Brake System, Suspension System, Fuel system, Light system etc.), helping you troubleshoot the root cause quickly, and clearing the fault code after fixing the problem.

NT809 Support 30+ Hot Used Reset Functions

1. Oil Light Reset (for 85 brands)- Allows you to reset the service lamps for a new calculation of engine oil life system once changed the oil. The service indicator system is designed to alert the driver when the vehicle is due for a service.

2. ABS Bleeding (for 65 brands)- Air will get inside the brake system after replace components such as calipers, wheel cylinders. The air has to be removed by bleeding the brakes to keep a firm brake pedal. Note: This function only support the vehicles that can do AUTO bleeding.

3. Battery Matching (for 43 brands)- Lets you to have new battery validated after replacement, clear faults from the dashboard and display current battery details of the vehicle.

4. D-P-F Regeneration (for 59 brands)- Only for diesel 12V vehicle. lets you perform the forced regen cleaning to clear the blockage through continuous burning of the particulates captured in the D-P-F filter. When a regeneration cycle is completed, the D-P-F light automatically goes off.

5. SAS Match (for 87 brands)- Perform calibration of the Steering Angle Sensor to keep the car running straight. On successful calibration of the sensor, its fault memory is automatically cleared.

6. Injector Coding(for 61 brands)- Write the new injector code into the car system for correct cylinder injection quantity. -For gasoline or diesel 12V vehicle.

7. EPB Reset (for 63 brands)- Help replace and reset the brake pad. This function is required for maintenance of electronic braking system's safety and efficiency.

8. TPS(for 79 brands)- When the motion range is not known, the ECU simply has no idea where to set the throttle. The ECU must know the full range of motion of the throttle in order for it to properly control the engine. Using the throttle position sensors in the throttle body, the ECU learns the full open and full closed positions through various states (idle, part throttle, WOT) known as a Throttle Body Alignment (TBA).

9. Replace Airbag ECU Module(for 27 brands)- Note: It will not support the airbag crash data cleaning. Helps to match the new airbag information with the ECU and let it know the fault has been repaired.

Else: Seat Match/ A/F Reset/ Language Change/ TPMS Reset/ E-G-R Adaption/ Headlamp Reset/ Cluster/ Clutch Adaptation/ CVT/ EVAP Test/ Gear Learn/ ODS & OPDS/ Oxygen Sensor Test/ Prime Fuel Pump/ TCM Oil/ Transmission Adaptation/ T-U-R-B-O/ Windows-door/Fuel Pressure Test/G Sensor Learn

Smart Record, Data Callback is Ready for You!

4 in 1 Live Data Stream: You can check the car conditions with the detailed data & graph in a intuitive view. Allows you to view graph simultaneously and merge 4 of them in one graph to compare.

Data Record & Playback: Recording the diagnostic troubles and playback them for further check or compare is a convenient way to repair the car faults. No need to diagnose the vehicle once again. Also can show these data to the repair shop workers when you can not solve these problems by yourself.

Online Feedback & Suggestions: You can submit your issues with detailed files & attachments in real-time. Foxwell professional technician will reply you after check the details. Touching the icon on the top to access to the submit page.

Fast Identifies VIN Number & ECU information

one-click get you vechicle information, include VIN number, release year, model and engine type. then you can enter full system diagnosis directly. it is very convenience and fast.

Foxwell NT809 Support Languages

The device only can install 2 languages, one is English, the other one you can choose from the following

Korea, Spanish, Portuguese, French,Swedish, English, Dutch, Japanese, Italian, German,Russian, Hungarian, Slovak, Greek

English is Default Language, if you need other language, please send me the SN Number when you receive it (please register account and activation the sn number first), I will help you change it.

Over 108+ Makes, Include Latest Models

Asian Coverage

for ACURA, for DAEWOO, for DAIHATSU, for FUSO,for FUSO_MIT,for GTR

for HONDA, for HYUNDAI, for HYUNDAICV, for INFINITI, for ISUZU, for KIA, for LEXUS, for MARUTI, for MAZDA, for MITSUBISHI,for NISSAN, for SAMSUNG, for SCION,for SSANGYONG,for SUBARU,for SUZUKI, for TOYOTA, for TATA, for MAHINDRA, for PERODUA,for PROTON

American Coverage

for Chrysler, for Ford, for GM, For Brazil GM, For Brazil Fiat(including brazilian car maker ). for JEEP, for TESLA, for DODGE, for BUICK,for

CADILLAC, for CHEVROLET, for HUMMER

European Coverage

for ABARTH, for ALFA, for ASTONMARTIN, for AUDI, for BENTLEY, for BENZ, for BMW, for BUGATTI, for CITROEN, for DACIA, for DS, for FERRARI, for FIAT, for FORDEU, for IVECOLD, for JAGUAR, for LAMBORGHINI, for LANCIA, for LANDROVER, for MANLD, for MASERATI, for MAYBACH, for MINI, for OPEL, for PEUGEOT, for PORSCHE, for RENAULT, for ROLLS-ROYCE, for SAAB, for SEAT, for SKODA, for SMART, for SPRINTER, for VAUXHALL, for VAZ, for LADA, for VOLVO, for VW, for VW_CV

Chinese Coverage

For Baichuansu, For Baicmotor, For Baicsenova, For Baicweiwang, For Bjev, For Bjhyundai, For Brilbmw, For Brilliance, For Byd, For Changan, For Changheauto, For Changhesuzuki, For Chery, For Chery_Ne, For Citroen_China, For Cmc, For Dffg, For Dfhonda, For Dfnissan, For Dfvenucia, For Dfxk, For Dorcen, For Dyk, For Emgrand, For Englon, For Fawdaihatsu, For Fordchina, For Foton, For Geely, For Gleagle, For Greatwall, For Gtr, For Gzhonda, For Hafei, For Haima, For Hino, For Ivecold, For Jac, For Jiangling, For Karry, For Landwind, For Lifan, For Luxgen, For Maple, For Mazdachina, For Peugeot_China, For Rely, For Riich, For Roewe, For Saicmaxus, For Saicmg, For Sgmw, For Soueast, For Tjfaw, For Zotye

Best Service For You!

One-click update via WiFi, 3 years Free Update Online

free update online, you will always have the latest bug fixes, new vehicles, newly added parameters and functionality at your fingertips

Advanced Hardware

1. Screen: 7"diagonal, daylight readable color LCD Screen； 1024*600pixel

2. Operating system: Android 9.0

3. Communication interface: WiFi

4. Connection: Bluetooth-Compatible

5. Built-in battery: 4000mAh

6. Memory+SSD Hard Drive: 1G+32G

Foxwell NT809 Package List

1 X NT809 Main Unit

1 X Diagnostic Cable

1 X USB TYPE C Cable

1 X Quick Start Guide

1 X User’s Guide

1 X Warranty Card
