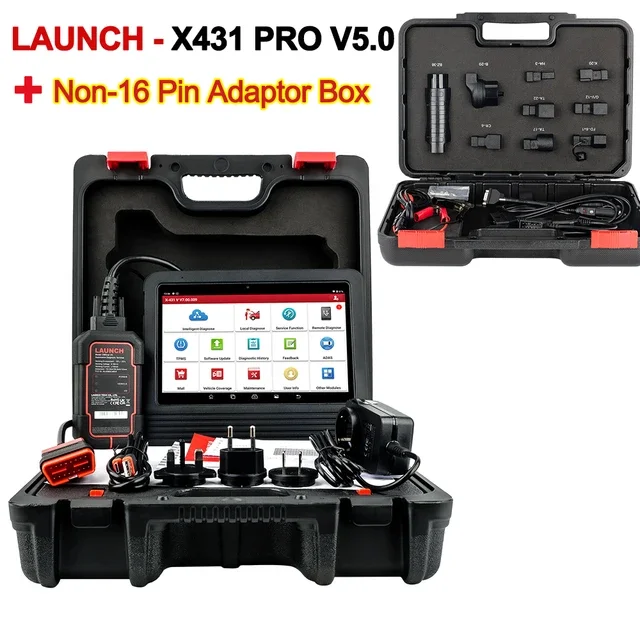

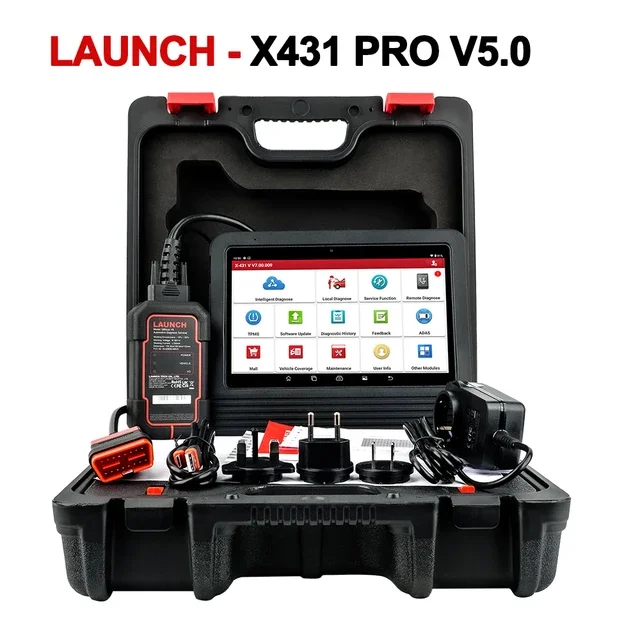

LAUNCH X431 PRO V5.0 OBD2 Scanner,Bidirectional Scan Tool support CANFD&DOIP, ECU Coding, FCA AutoAuth Car diagnostic tools

Must Read Before Buying

1.100% original LAUNCH Authorized Store, support 5 years Warranty and lifetime free technical Support.

2..Lifetime free to use and 2 years free update

3. Has 2 versions

>EU version: it has the IP limit and only can be used in European area, such as the Spain,France,Poland,Russia,UK.......

>Golobal version: it has no IP limit and can be used in all country and all area.

2026LAUNCH X431 PRO V5.0

Main Features

1.Configure the latest CarVII Bluetooth diagnostic connector

2.All system diagnosis: including Engine,Transmission, ABS, SRS, TPMS, EPB,Body System,Battery,ESP, IMMO etc.

3.Full OBD2 Functions: read car module informa,read and clear fault code.....

4.OE-level advanced diagnosis： ECU offline/online coding, Bi-Directional Test(active test), Refresh Hidden.....

5.Supports works with endoscopes, battery detection, oscilloscopes, sensors, anti-theft programmer and other expansion modules to make the diagnostic function more powerful

6. Support CAN FD & DOIP Protocols+ FCA AutoAuth access

7.Supports 37+ Reset function: includes Oil reset, A/F Reset.......

8. Auto VIN：Support VIN code intelligent identification function, quickly enter the diagnosis

9.Enjoy 2 year Free update + Lifetime free to use

10.Other function: Share & Print Diagnostic Report,4-in-1 Live Data in Graphic.........

All System Diagnosis

The LAUNCH X431 PRO V5.0 auto code reader is a cost-effective automotive scanner, that offers OE-level diagnoses on all available electronic systems, which can read/clear codes, data stream, read control module information for ECM, ABS, SRS, TCM, EPB, TPMS, SAS, A/C, BMS, ESP systems, etc.

Supports OBD2 Full Functions:It supports OBD ll functions to help you turn off the annoying instrument fault indicator and also can read/clear codes, O2 sensor test, I/M readiness, On-board monitor test, read data stream, display freeze frame data, EVAP system test, retrieve vehicle information (VIN, calibration ID, calibration verification numbers)

Supports Full System Diagnostics: Engines/Auto Transmission/Airbags/Immobilizer/Key Coding/ABS/Cruise Control/Instruments/Self Leveling Suspension systems Seats / Doors / Gateway / Steering Angle / Air Suspension / Body Systems / Electronic Power Steering & Motor Assisted / Power Steering / Tyre Pressure / Rain Sensors / 4WD System Stabilizer/Intelligent Parking Assist/Door Motors/Audio systems/Air Conditioning/Tiptronic/Anti Theft/Soft Top/Headlamp Leveling/Central Locking/Automatic Clutch/DP.F Reset Electric Windows / Plip Programming / Heated Rear Window / Xenon Headlights / Wash Wipe / Fuel Burning Heater / Transfer Box / Seat Memory / Oil Reset / Sliding Doors / Electronic Throttle Navigation System / Rollover Sensor / Cruise Control / Multi Function Steering Wheel / Aux Heating / Electronic Parking Brake / Clutch Electronics... and more.

ECU Coding：

The advanced coding function is used to re-flash the vehicle control modules, which allows you to update the computer software on the vehicle to the latest version, as well as to reprogram adaptive data for certain components after making repairs or replacements, providing solutions for the issues of drivability, fuel efficiency, power loss, fault codes, durability of mechanical parts etc. But please note, ecu coding are NOT universal for all vehicles, please check compatibility with VIN number before purchase.

1.Online Coding: Compatible with VW/ Audi/ Skoda/ Ford/ Lincoin/ Mazda ONLY

2.Offline Coding: Compatible with Benz/ BMW/ Ford/ Mazda /Jaguar /Vauxhall /Opel, etc

3.Refresh the Hidden Features(Personalization)

4.Component Matching: Matching, relearning, calibration

5.Customize OE-Settings(Retrofitting/Modification)

Note: Coding functions vary by model. Check the compatibility by sending VIN to us

Bi-directional control

Here are some other examples of active tests, which help you locate faults in the shortest time, saving time on troubleshooting

Injector Buzz Test

Fuel Pump & Valve Tests

A/C Compressorclutch Activation

Turn the Wipers ON/OFF

Modulate Throttle ON/OFF

Acceleration Device Test

38+ Resets functions

1.ABS Bleeding

When the ABS contains air, the ABS bleeding function must be performed to bleed the brake system to restore ABS brake sensitivity.

2.TPMS Reset

When due to the tire pressure is too low,tire leaks,tire pressure monitoring device is replaced or installed,tire is replaced and tire pressure sensor is damaged,The tire pressure resetting function must be performed to reset tire pressure and turn off the tire pressure MIL.

3.Oil Lamp Reset

Allows you to perform reset for a new calculation of Engine Oil life system once changed the oil.

4. Electronic Throttle Sensor Reset

To utilize the car decoder to initialize the throttle actuator so that the learning value of the ECU returns to the initial state.

5.Injector Coding

After the ECU or injector is replaced, injector code of each cylinder must be confirmed or re-coded so that the cylinder can better identify injectors to accurately control fuel injection.

6. SAS Reset

It helps clear the faulty steering angle sensor memories to reset the steering angle and plays an important role in the steering angle sensor calibration.

7.Brake-pad Reset

To deactivating and activate the brake control systems, assist with brake fluid control, open and close brake pads, and set brakes after disc or pad replacement.

8.Gear Learning

Perform gear learning for the car when the engine ECU, the crankshaft position sensor, or the crankshaft flywheel is replaced.

9.IMMO Service

To prevent the car being used by unauthorized keys, the anti-theft key matching function must be performed so that the immobilizer control system on the car identifies and authorizes remote control keys to normally use the car.

10.Battery Matching

Enables you to perform resetting operation on the monitoring unit of battery,in which the original low battery fault information will be cleared.

11.DPF Regeneration

It is used to clear PM (Particulate Matter) from the DPF filter through continuous combustion oxidation mode. Specially works for Diesel Particulate Filter system with DPF.

12.EGR Adaption

This function is used to learn the EGR (Exhaust Gas Recirculation ) valve after it is clean or replaced.

13.Suspension Matching

When replacing the body height sensor in the air suspension system, or control module or when the vehicle level is incorrect, this function can adjust the body height sensor for level calibration.

14.NOx Sensor Reset

If the NOx fault is re-initialized and the NOx catalytic converter is replaced, it is necessary to reset the catalytic converter learned value stored in the engine ECU.

15.Tyre Reset

This function is used to set the size parameters of the modified or replaced tire.

16.Windows Calibration

This feature is designed to perform door window matching to recover ECU initial memory.

17.Stop-start Reset

This function is used to open or close the automatic Start/Stop function via setting the hidden function in ECU (The precondition is the vehicle equipped with hidden function and hardware support)

18. AC Initialization

AC system relearn/initialization must be performed when the vehicle AC ECU or actuator is replaced or the ECU memory is lost.

19. AdBlue Reset

After the diesel exhaust treatment fluid (car urea) is replaced or filled up, the urea reset operation is required.

20. AFS Headlamp Reset

This function enables you to initialize the adaptive headlamp system.

21. A/F Reset
