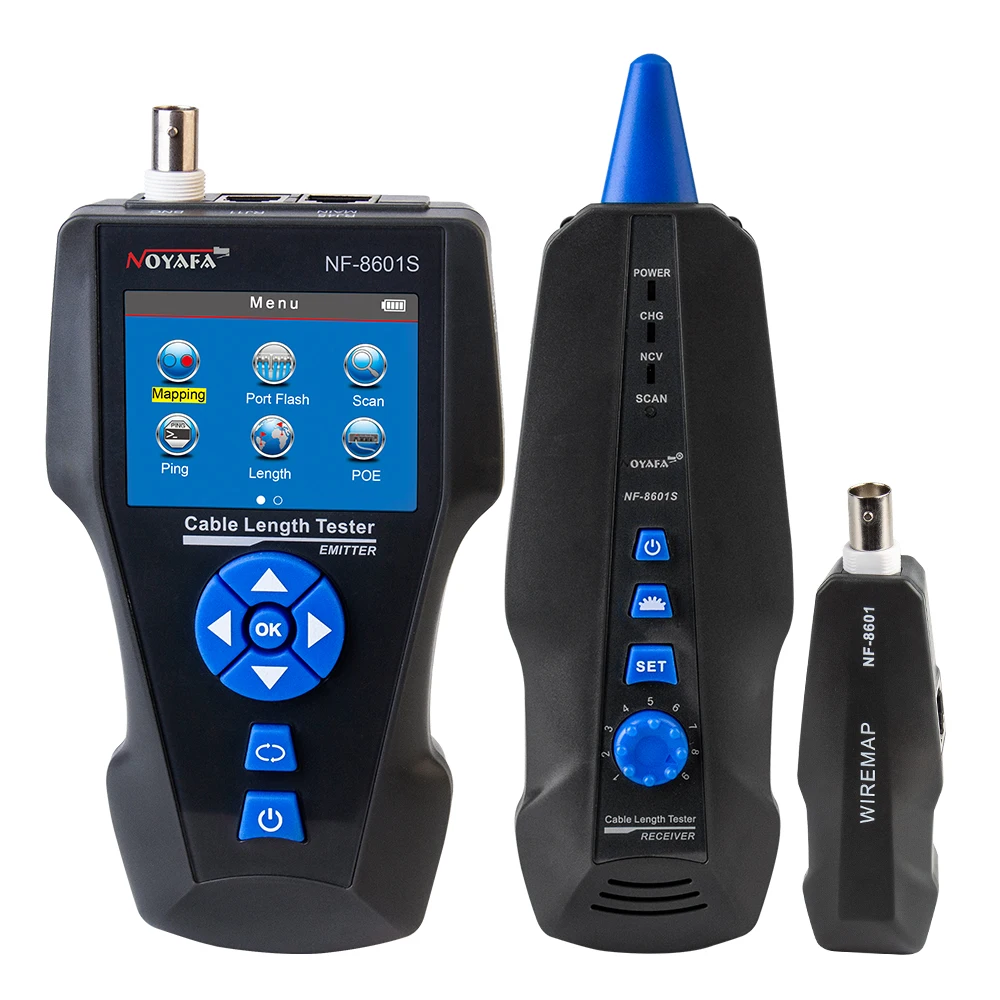

NOYAFA NF-8601S Network Cable Tester Multifunction TDR Length With PoE/PING/Port Voltage Wiremap Tracker Diagnose Tool Detector
Return&refund policy
Eligible items are covered by return and refund support. If the item does not arrive or is not as described, the buyer can request help.
Security & Privacy
Safe payments: We do not share your personal details with any third parties without your consent.
Secure personal details: We protect your privacy and keep your personal details safe and secure.
AI offer for your market
A curated pick based on category, shipping route, delivery speed and popularity in your selected market.
Why this product fits your market
- • Estimated delivery: 7.
- • Strong customer signal: 4.7★ from 43 reviews.
- • Recommendations focus on this product category and your market availability.
Product specifications
Detailed product description
This product is shown with available options, market-specific pricing and verified specifications.
- Brand: NOYAFA
- Sales: 204
- Package size: 23 × 20 × 10 cm
- Package weight: 0.9 kg
- Rating: 4.7 / 5
Before adding to cart, choose an available option and check the quantity.
Functions
1. TDR theory to measure length of cat5e, cat6 and cat7 cable, coaxil cable, telephone cable.
2. Wiremapping with length and provide the distance to fault information.
3. PoE function: identify which pins are providing power and detect how much voltage.
4. PING function to test network performance, data packet, MIN&MAX time.
5. Quickly find the targeted cable without stripping isolation among unknown cables.
6. Hub blinks for locating network port by the flashing port light on Hub / Switch.
7. Voltage detector: included in receiver (90~1000V)
Benefits
1. Tone traces cable with complete AC fliter.
2. TF card function to export data from computer (50sets, TXT format)
3. 2 scan modes: common switch and PoE switch
4. 3.7V lithium battery for power supply and 2.8 inch color screen
Technical indexes
NF-8601S Transmitter specifications
IndictorLCD 320x240 mm, with backlight
Cable test typesSTP/UTP 5E,6E network, telephone, coaxial cable.
Max. distance of wiremap1000 m
Max. distance of tracing1000m
Max. distance of cable length1000 m
Min. distance of calibration50 m
Accuracyup to 98% ( after calibration )
Compatible connectorsRJ11, RJ45, PING/POE, BNC
Cable map indicationLCD (#1-#8)
Battery Type3.7V lithium battery 1800mAh
Work temperature / humidity10℃ ~ -60℃ / 0℃~70℃
Dimension(LxWxD)173x92x34mm
NF-8601S Receiver specifications
Cable huntingRJ11，RJ45, BNC
Types of cable≥ 2 cores
Dimension(LxWxD)183x58x35 mm
NF-8601S Remote unit specifications
Compatible connectorsRJ11，RJ45, BNC
Dimension(LxWxD)106x32x30mm
Accessories Included
Bulit-in battery x 2 set
Adapted telephone line x 1 set
Adapted network cable x 1 set
Cable clips x 1 set
Charging adaptor x 1 set
Toolkit x 1 set
