40W 75W Triac Dimming Constant Voltage LED Driver 12V 24V Dimmable Power Supply PWM Digital Dimming For Indoor LED Lighting

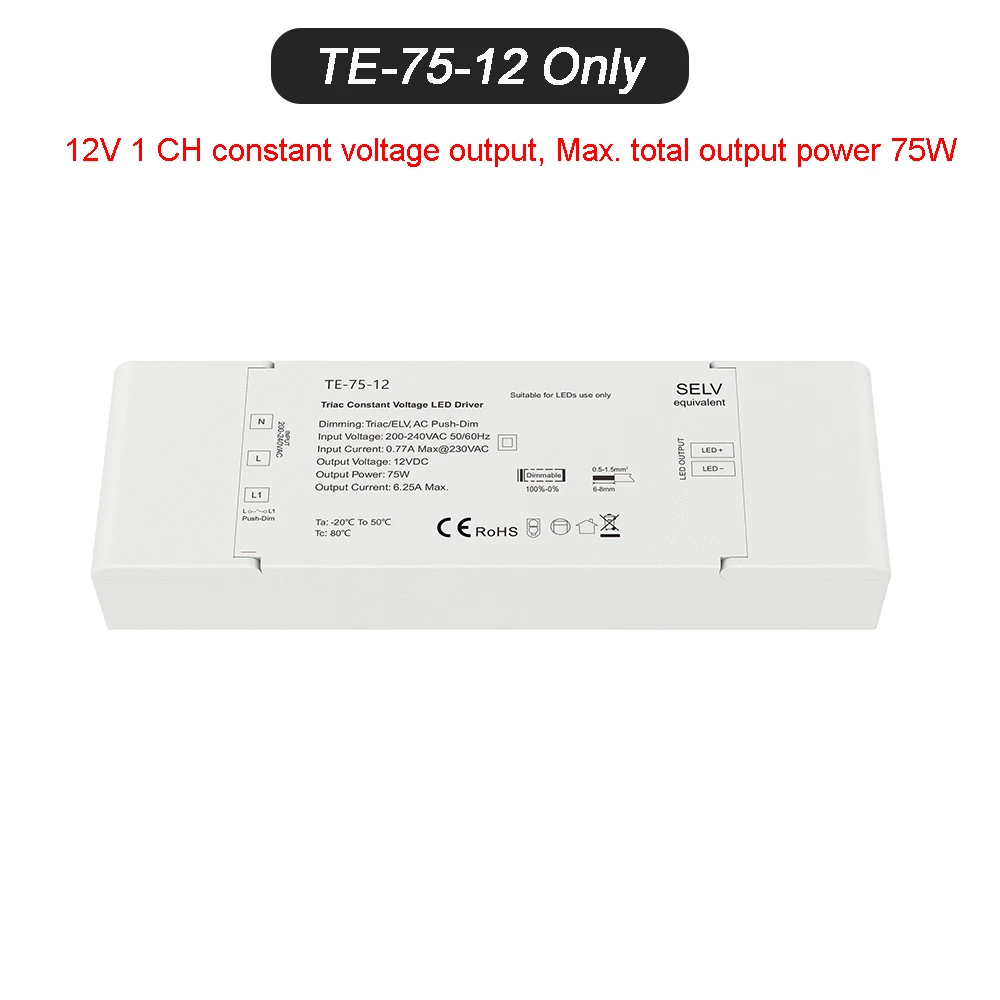

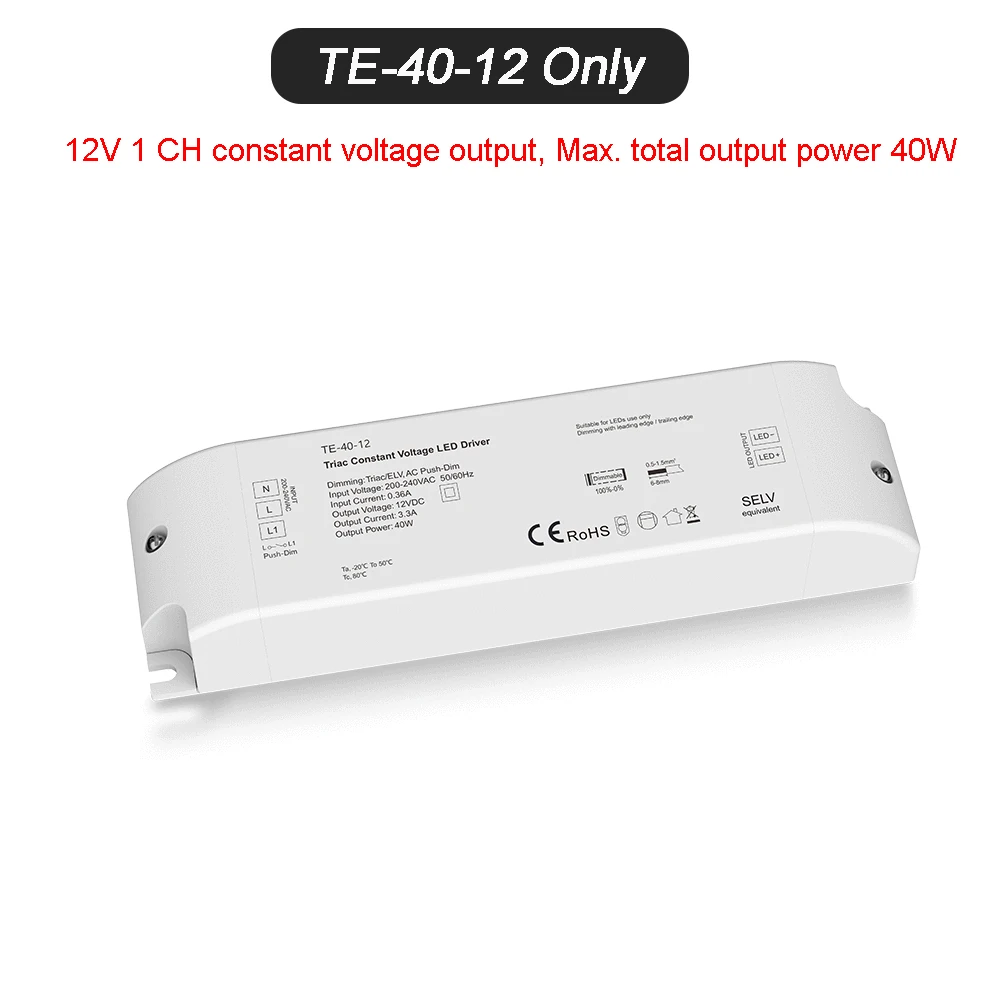

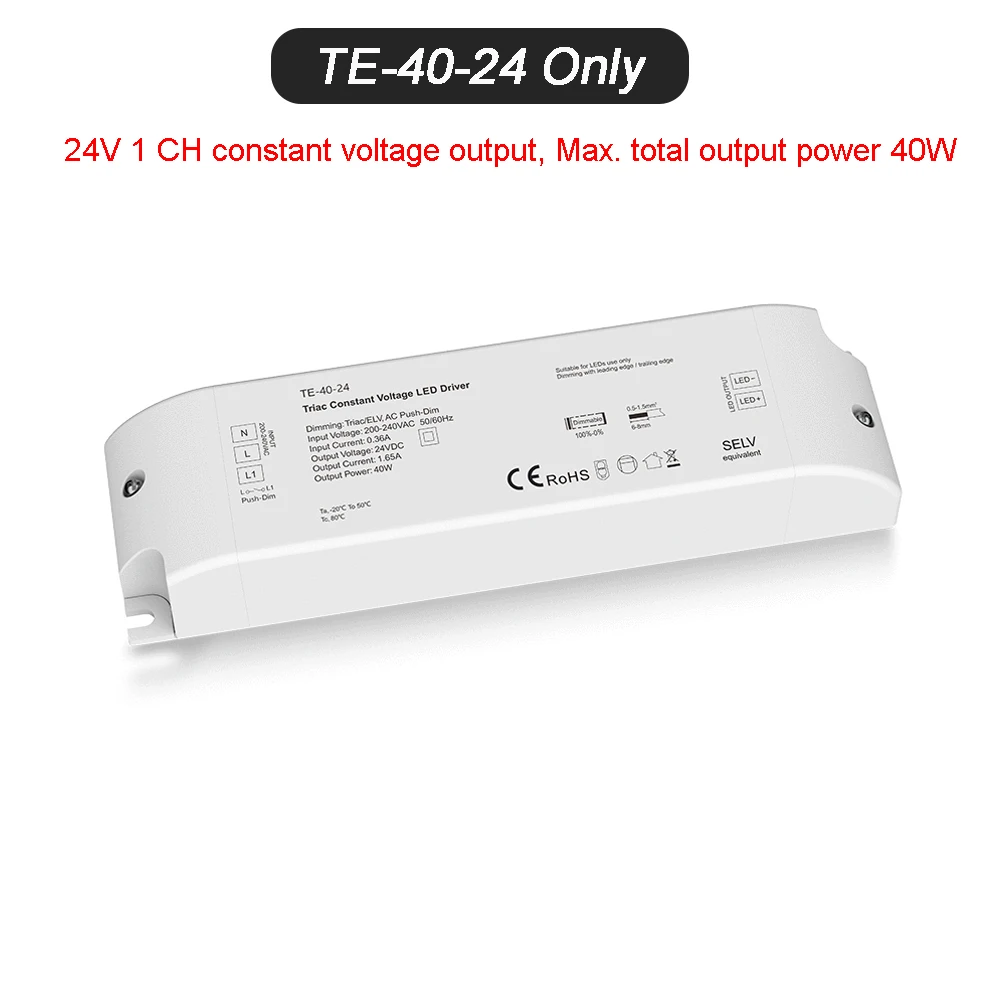

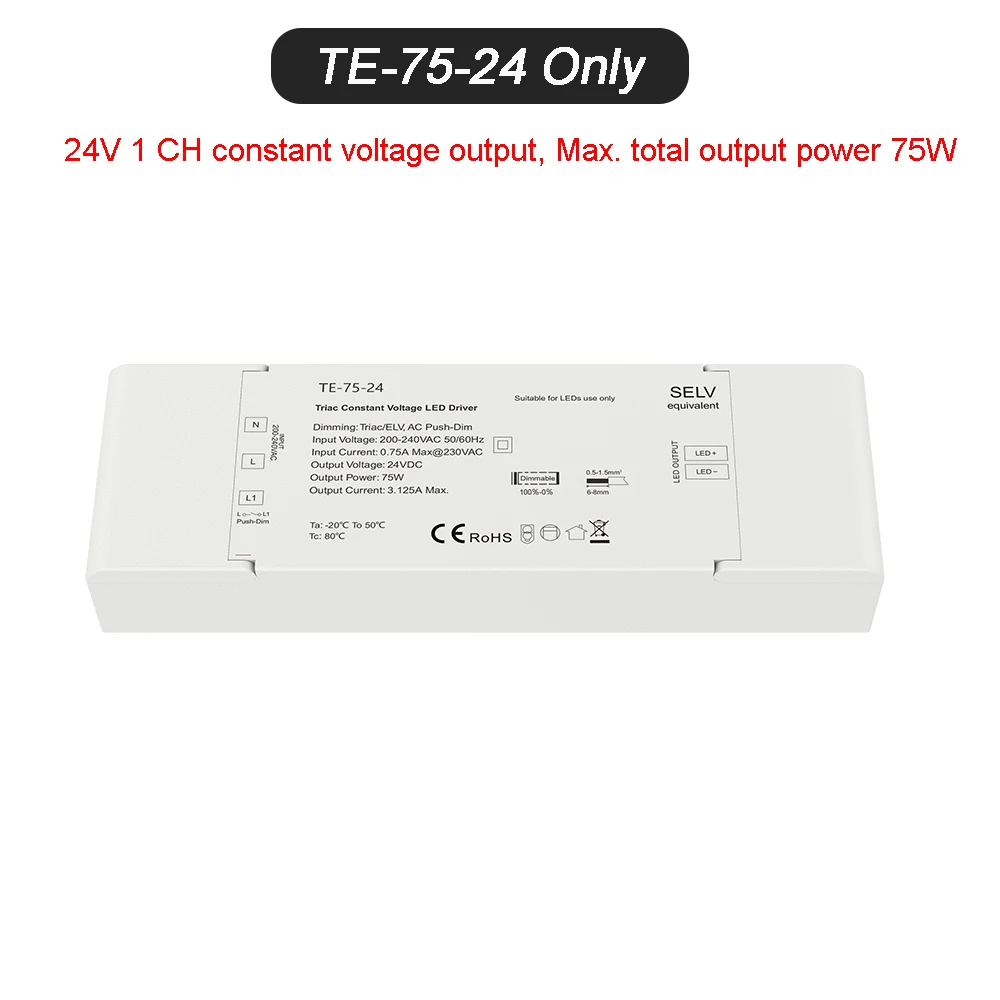

MODEL NO:TE-75-12,TE-75-24, TE-40-12,TE-40-24
Features
Applications

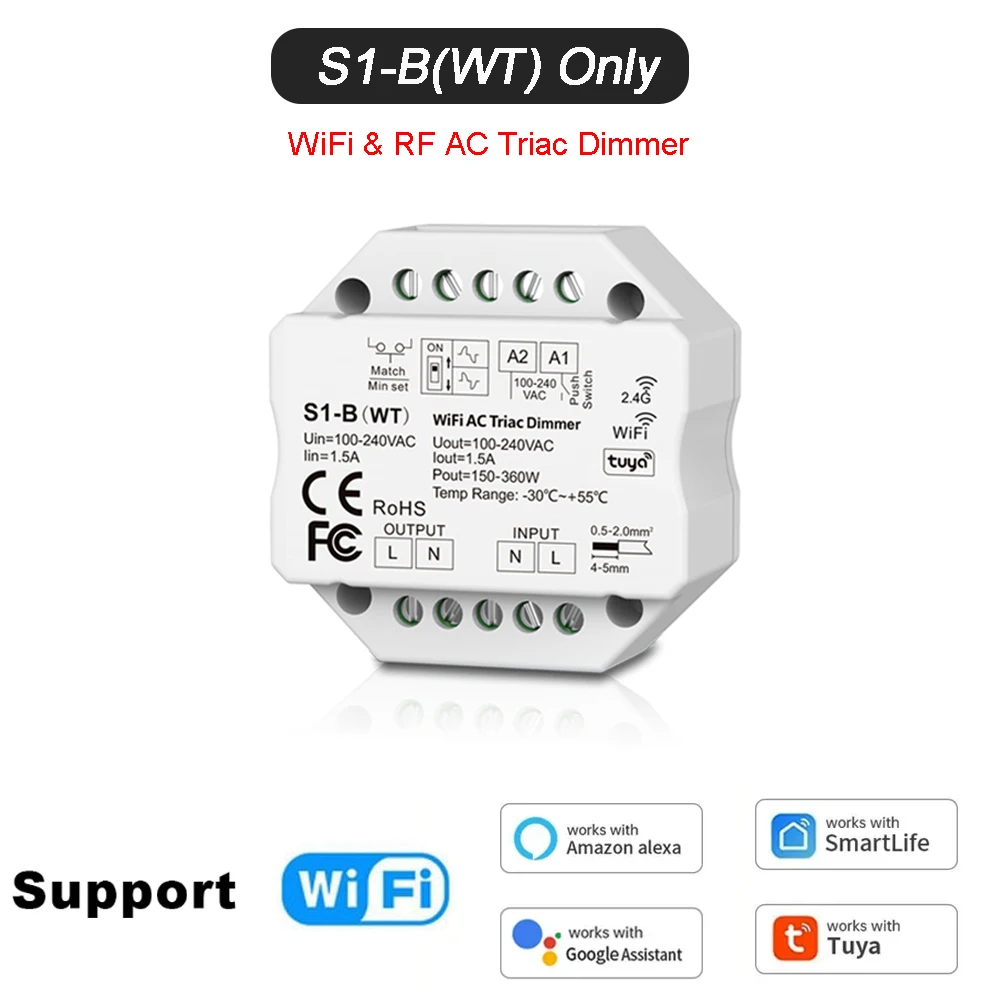

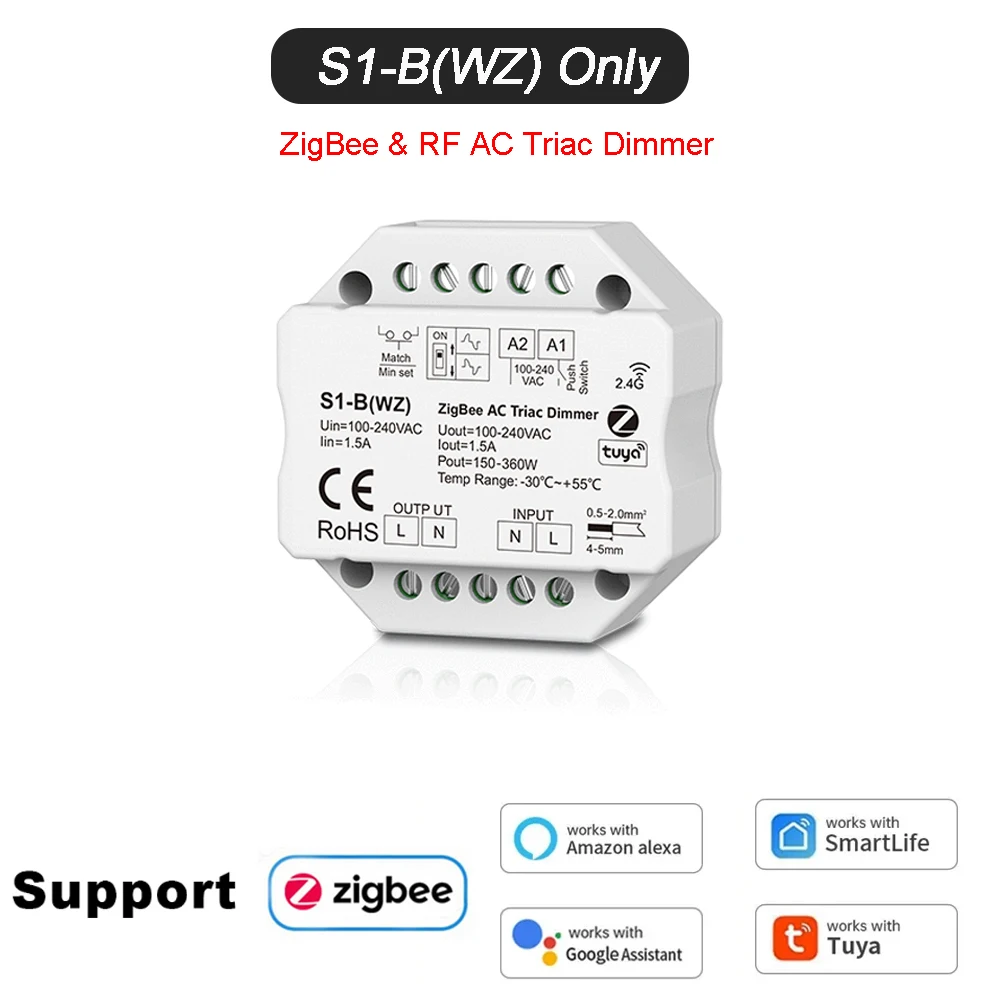

MODEL NO:S1-B(WT).S1-B(WZ) (AC Triac Dimmer)
then use Tuya APP to control one or more RF dimming LED controller or driver synchronously.
NOTE
SI-B(WZ) needs to match the ZIGBEE gateway to work

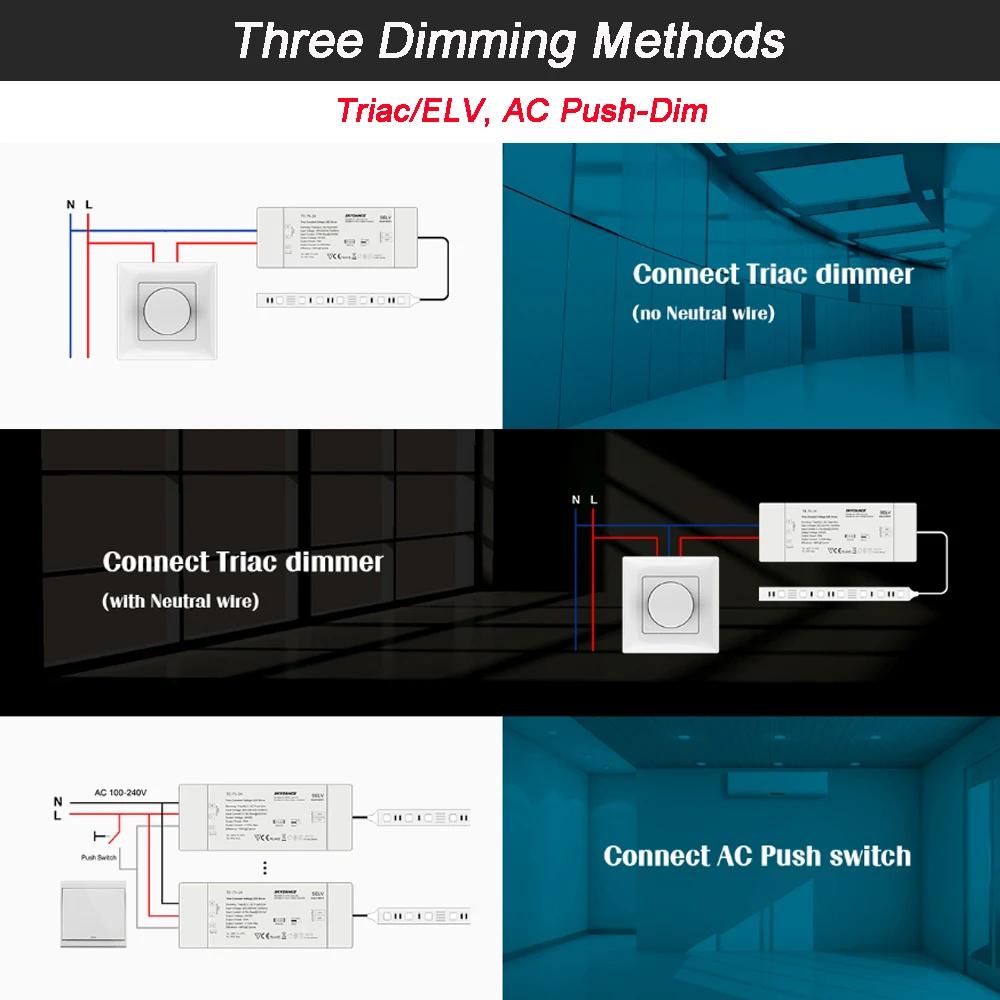

AC Push-Dim input
The provided AC Push-Dim interface allows for a simple dimming method using commercially available
non-latching (momentary) wall switchs.
Turn on or off light.
Press and hold to step-less dimming, With every other long press, the light level goes to the opposite direction.
Light returns to the previous dimming level when switched off and on again, even at power failure.
If more than one LED driver are connected to the same push switch, do a long press for more than 10s
then the system is synchronized and all lights in the group dim up to 100%.
This means there is no need for any additional synchrony wire in larger installations.
We recommend the number of LED drivers connected to a push switch does not exceed 25 pieces
The maximum length of the wires from push to LED driver should be no more than 20 meters

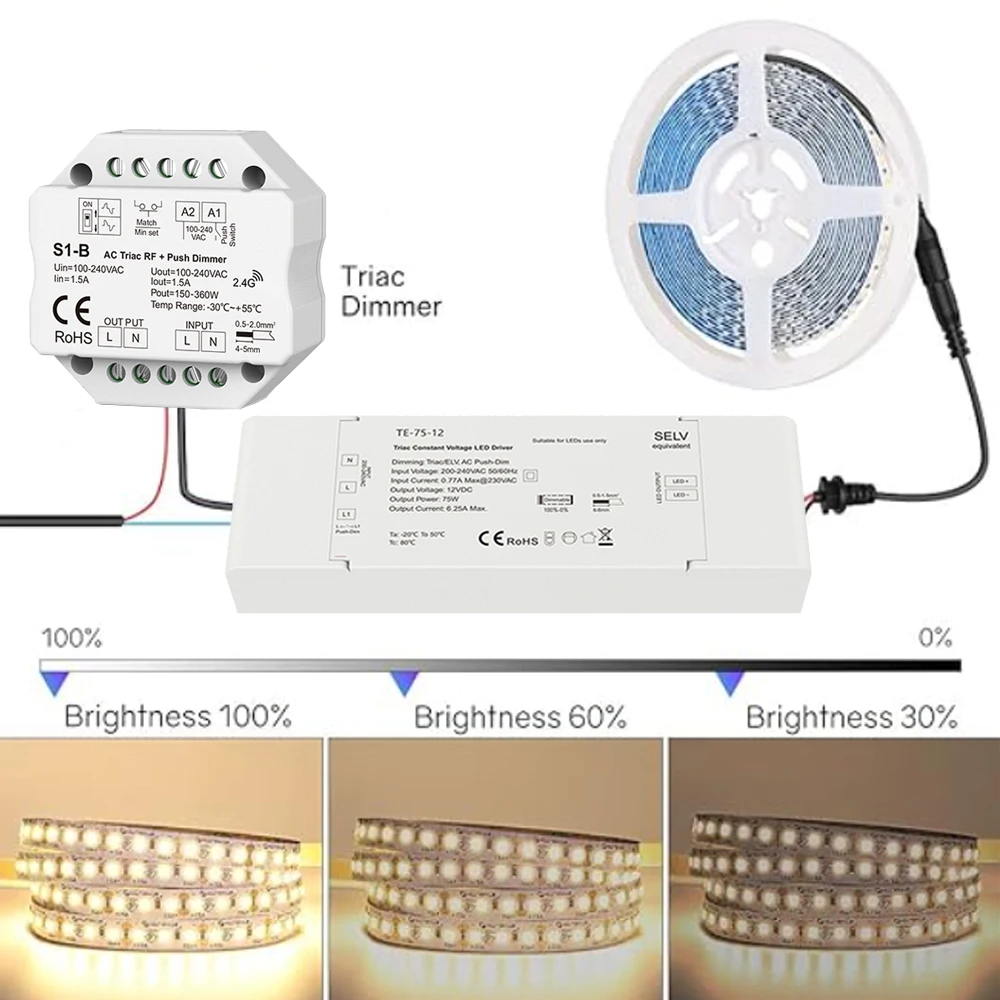

Triac Dimming Input
While connected with a Triac dimmer, such as Lutrom, Clipsal, Dynalite dimmer
To dim to 1%, please make sure the dimmer supports 1% minimum dimming level
