16 Lines Laser Level 3° Self-leveling Machine Rechargeable Omnidirectional Ground Wall Sticker Home Improvement Tools Set

The laser level meter can emit 16 visible lase horizontal, vertical and oblique lines for the automatic leveling separately or simultaneously. Equipped with self-test calibration function, ≤3° automatic leveling, but if the angle is over 3°, the laser light will keep blinking and the laser level will make a beep sound to remind you to reset them on a flat ground. Comes with one tripod bar, which is made of thicken aluminum alloy material, 3-heights adjustable, suitable to most of laser level with 5/8" interface. It provides accurate horizontal and vertical data for indoor construction stakeout and calibration, easy to operate and versatile. Suitable for flooring tile layout, paneling, wallpapering, stenciling, wainscoting, finish carpentry, wall stud layout and partition installation.

Features

Laser Level

【Compact Size】: Lightweight and portable, long-lasting ABS housing makes this laser level perfectly shock resistant, wear-resistant and impact-resistant. IP54 waterproof and dustproof.

【Millimeter-level Laser Sources】: Using 4 high-precise millimeter-level green laser line laser sources, with higher brightness, strong penetrability, adjustable thickness, and brightness, the light is visible clearly both indoors and outdoors.

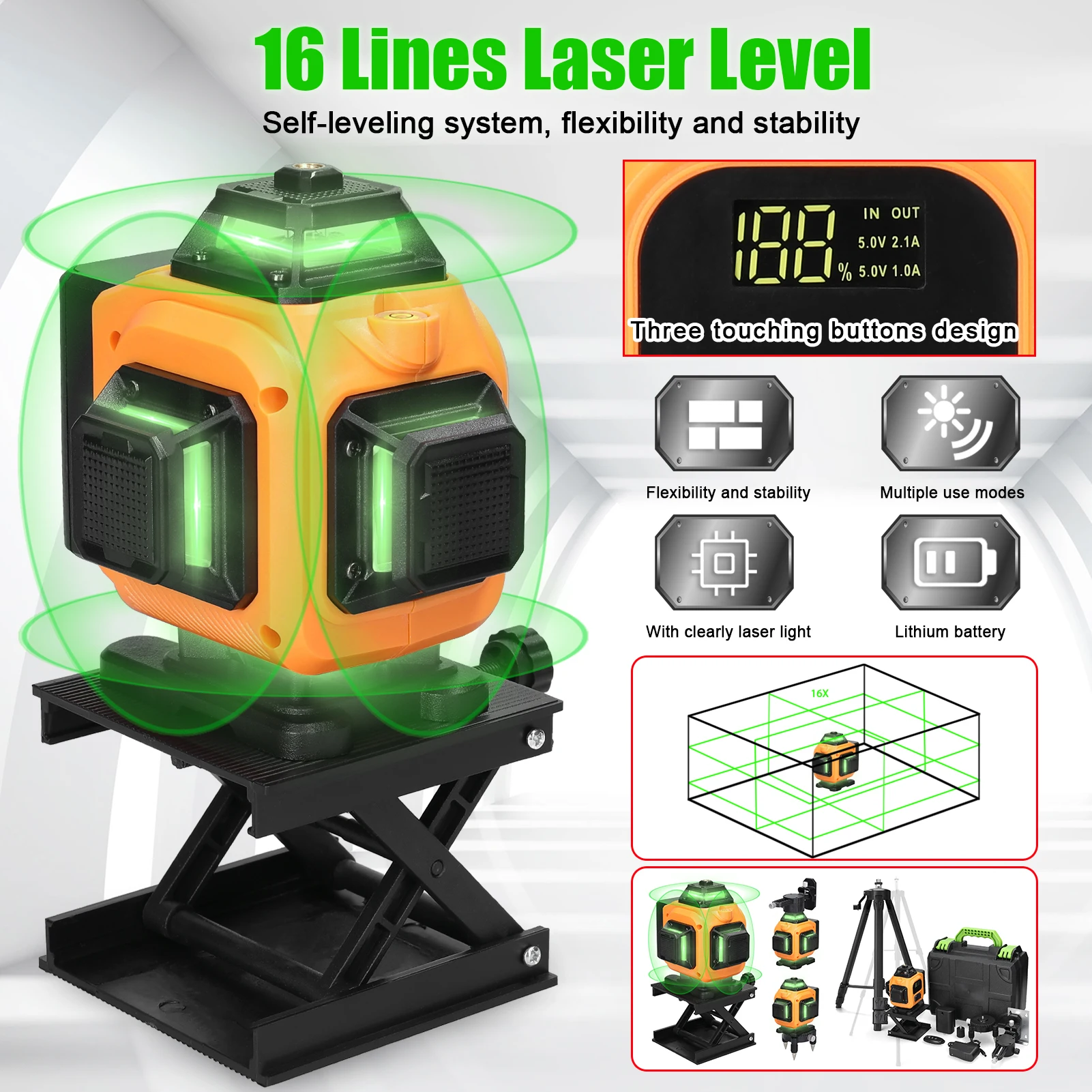

【Accurate Positioning】: One button power on/off. It can output 16 visible laser horizontal and vertical lines separately or simultaneously for finer positioning, with a 3° self-leveling system, high flexibility and stability.

【3° Automatic Leveling】: Equipped with self-test calibration function, ≤3° automatic leveling, but if the angle is over 3°, the laser light will keep flashing and the laser level will make a beep sound to remind you to reset them on a flat surface.

【Tilt Mode】: It has a tilt mode, you can place the laser tool at any angle to make tilt lines, the line will not flash and will not promote a beeping sound.

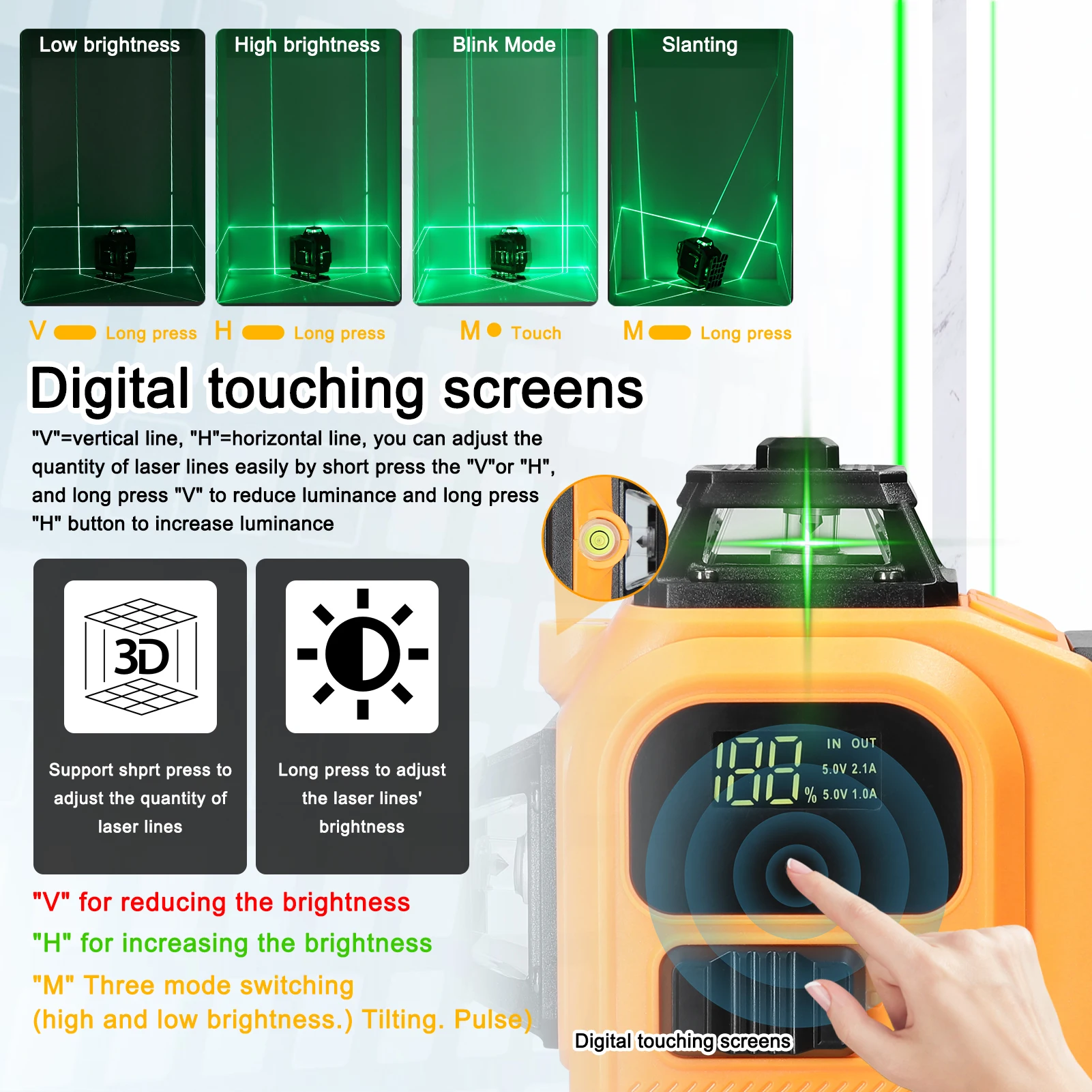

【Laser Quantity & Brightness Adjustable】: The touching display is convenient for you to control the laser quantity and laser brightness, with high sensitivity line mode switching and line brightness adjustment, and battery electric power display function. Support continuous laser and pulse laser, and also support pulse laser under tilt mode.

【Stylish Remote Controller Design】: Ergonomically designed buttons on the remote controller, wear-resistant, with high sensitivity line mode switching and line brightness adjustment, and with a comfortable grip feel. "V"=vertical line, "H"=horizontal line, you can easily adjust the amount of laser lines by briefly pressing "V" or "H"; and long pressing "V" to decrease luminance and long pressing "H" to increase luminance. Short press the "M" to switch into pulse mode, and long press "M" to switch into tilt mode.

【High Extensibility】: The bottom of the laser level is reserved with 1/4inch screw thread for easy connection, it can also be used with a tripod (included) by 1/4inch to 5/8inch threaded rotation base (included) or 1/4inch to 5/8inch adapter (included) to adjust the working height of the machine.

【7mm Wall-mounted Bracket】: The T-shaped bracket with 7mm wall mounting distance, which has 360° rotatable fine adjustment mechanism, up and down angle regulation and 47mm fore-and-aft regulation distance, all the structures can make the machine quickly find the target (1/4 inch screw size).

【Carrying Box】: Comes with a plastics box, wear resistant and impact resistant, easy to carry, providing quick and convenient mobility and storage in a complex environment.

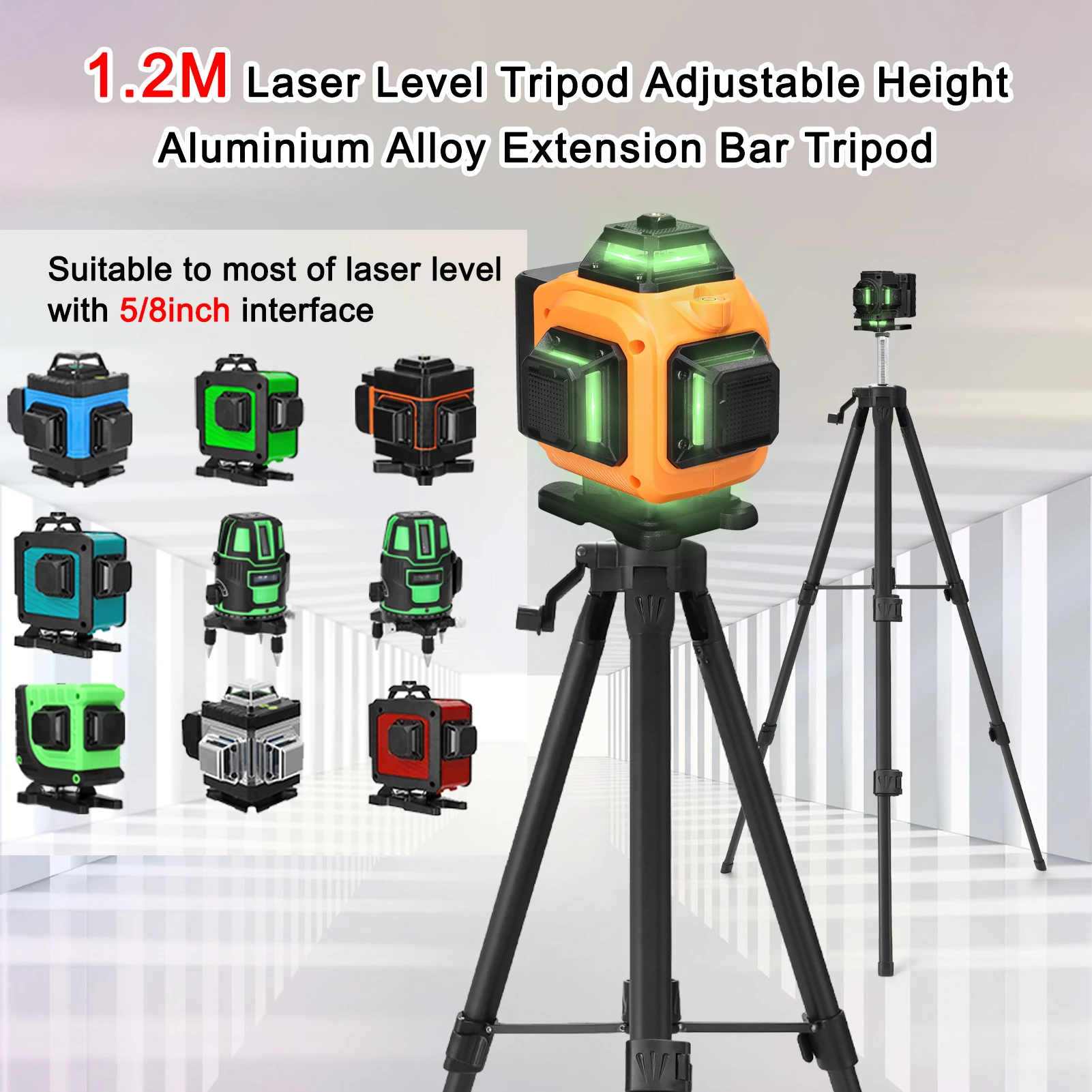

Tripod Stand

【Premium Material】: Made of reinforced aluminium alloy and ABS plastics material, firm with fine load-bearing, not easy to deformed and not easy to break.

【Adjustable Height】: Three heights adjustable, the tripod is made of 3 high-precise quick-release levers extended center column to meet your different needs.

【Bubble-level Design】: Equipped with bubble-level to help you to check whether the tripod is horizontal or not, and the measurement is more accurate with the use of the level instrument.

【Easy to Use】: Equipped with telescoping pole rocking bar to adjust the height of the tripod, 360° rotation, allows you to rotate at any angle horizontally and vertically, smooth and effort saving.

【High Stability】: The antislip rubber pads provide high stability in various terrains, and comes with carrying bag for easy to storage and transport.

【High Compatibility】: Universal thread design, suitable to most of laser level with 5/8inch interface, include a 1/4inch to 5/8inch adapter to use with 1/4inch laser level.

Note

Please do not let the laser line shoots your eyes directly, and do not stare directly at the laser light.

Do not disassemble the instrument and perform your own internal repairs.

The instrument meets laser radiation safety rating standards.

Specifications

Name: Laser Level

Main material: plastics+metal

Battery: 2 * rechargeable lithium batteries, 3.7V, 2400mAh (included)

Line type: 4 * 360°, 16 lines

Wavelength: 532nm (Green)

Self-leveling angle: ±3°

Wall mounted distance: 7mm

Operating temperature: -5℃ to 50℃

Working ranges: about 25m in diameter

Waterproof: IP54

Level machine size: 105 * 97 * 129mm / 4.13 * 3.82 * 5.08in

Rotation base: 92 * 81 * 72mm / 3.62 * 3.19 * 2.83in

Wall mounted bracket size: 82 * 65 * 157mm / 3.23 * 2.56 * 6.18in

1/4inch to 5/8inch adapter size: 23 * 23 * 32mm / 0.91 * 0.91 * 1.26in

Plastics box size: 275 * 236 * 133mm / 10.83 * 9.29 * 5.24in

Tripod stand size: 465 * 107 * 105mm / 18.31 * 4.21 * 4.13in

Tripod stand with storage bag size: 470 * 106 * 111mm / 18.50 * 4.17 * 4.37in

Item weight: 2439g / 5.38lb

Package size: 445 * 250 * 240mm / 17.52 * 9.84 * 9.45in

Package weight: 2755g / 6.07lb

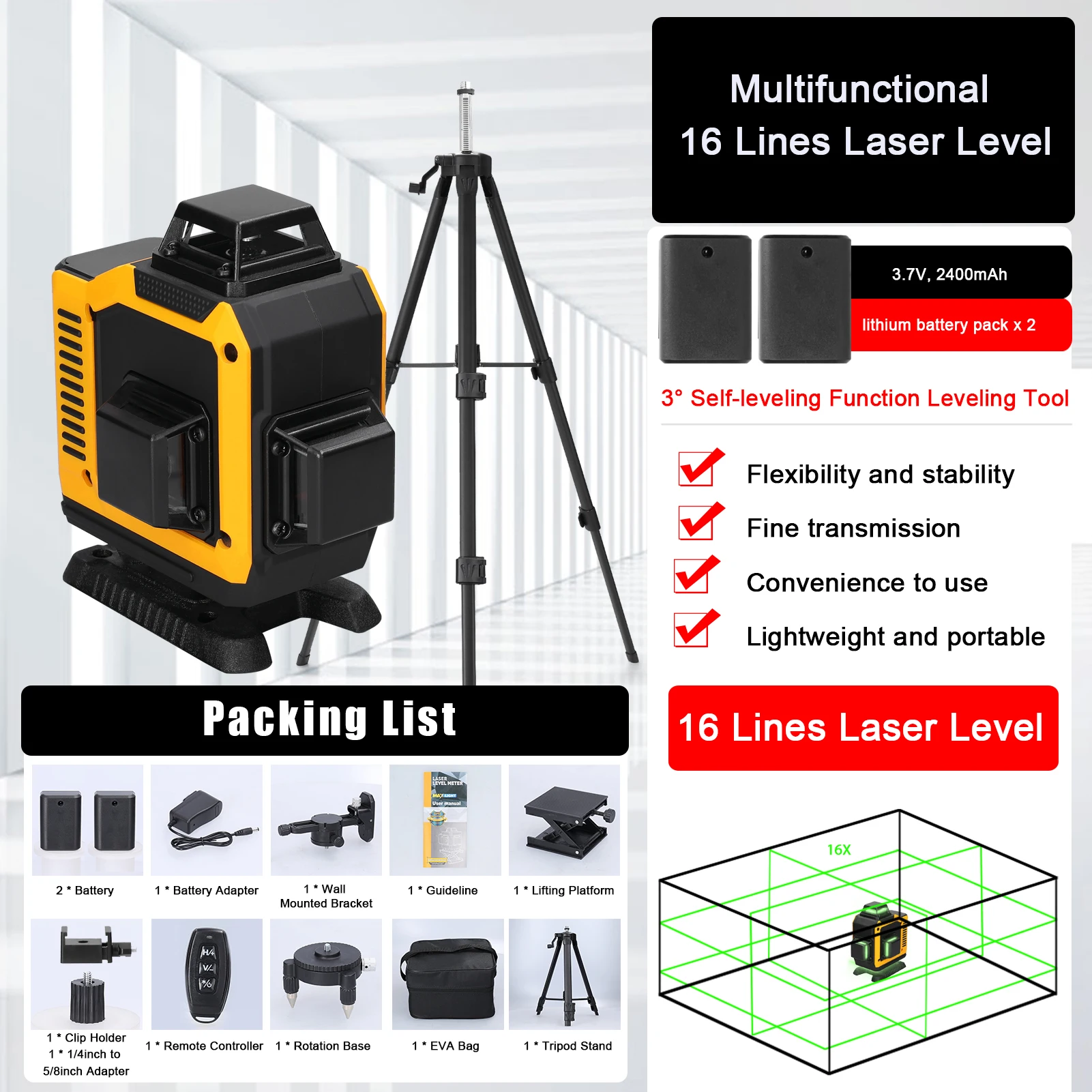

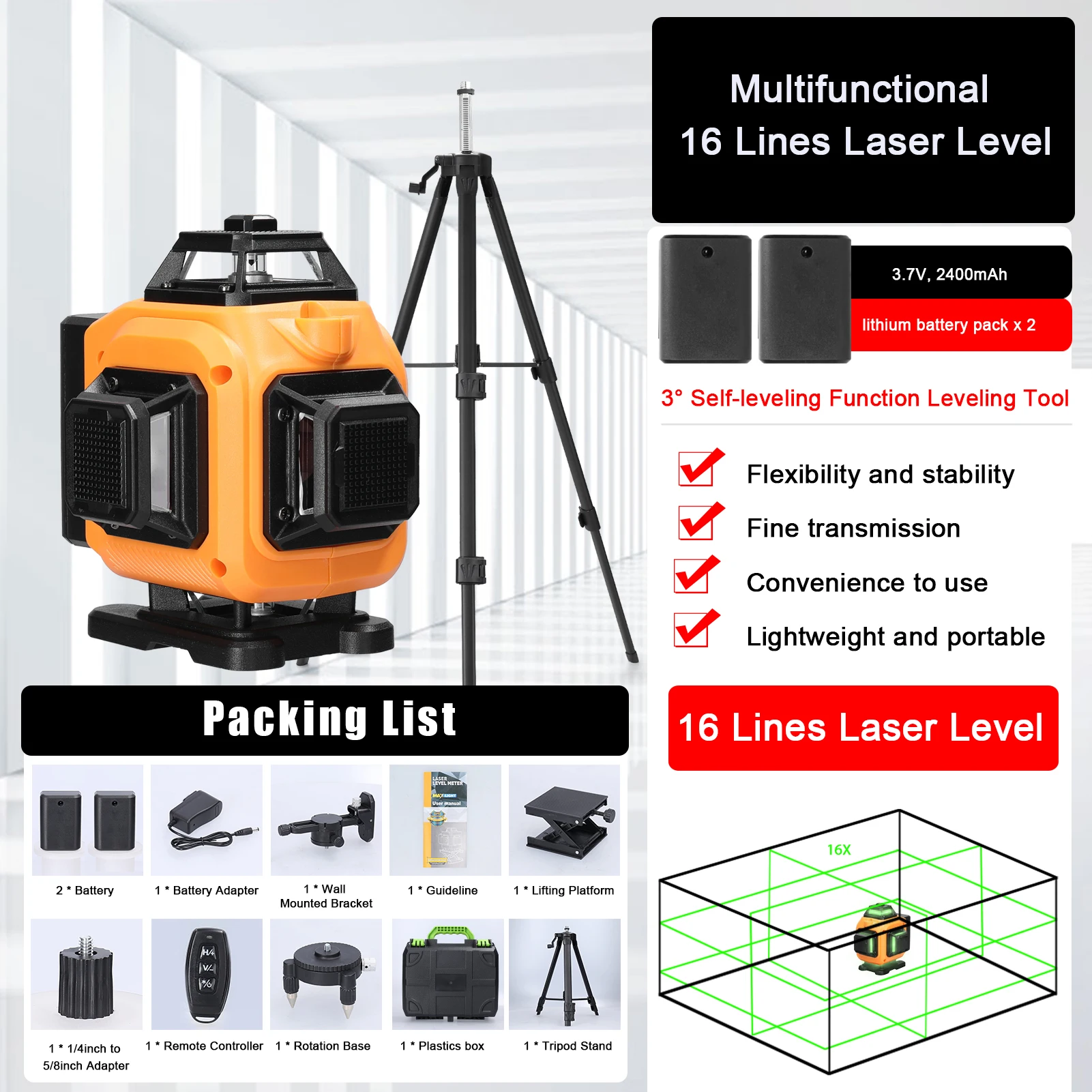

Packing List

1 * Level Machine

2 * Battery

1 * Battery Adapter

1 * Rotation Base

1 * Wall Mounted Bracket

1 * 1/4inch to 5/8inch Adapter

1 * Remote Controller

1 * Guideline

1 * Plastics Box

1 * Tripod Stand

1 * Tripod Stand Storage Bag
