500A Marine Bus Bar 48V Automotive Power Distribution Block Big Current 6 Studs With Red Black Plastic Cover For Car Boat Auto
By DaierTek
Product Description
Item
New Design 6 Studs 48V 500 AMP High Current Bus Bar Power Distribution Terminal Block Red Color With Plastic Cover For Car Boat
Continuous Rating Voltage
500A 300V AC/48V DC
Conductor Size
12-28AWG
Type
Screw
Terminal Studs
M8 (5/16") * 4+M10（3/8"）*2
Max Voltage
300V AC, 48V DC
Max Continuous Amperage
500A DC
Material of terminal
6mm Pure Copper Plate
Base Material
UL94-VO Rated,Glass Reinforced Thermoplastics
Bus Material
Nickel Plated Brass
BB500-T6M8X4M10X2-R 12V Marine Bus Bar Power Terminal Block
Terminal Studs: M8 (5/16") * 5+M10（3/8“）*2
Max Voltage: 300V AC, 48V DC
Max Continuous Amperage: 500A DC

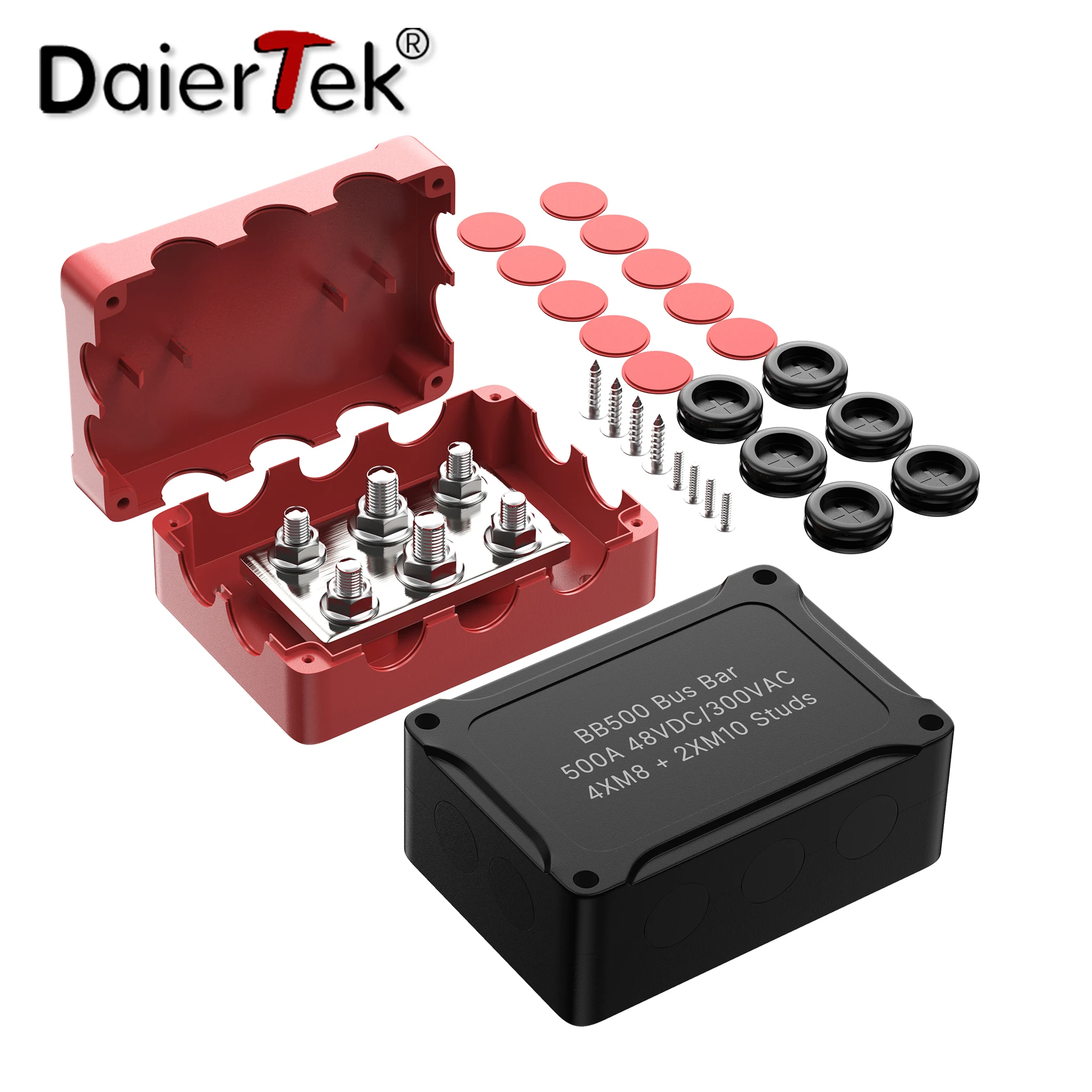

* Package Includes
* 1 x Marine Bus Bar Box
* 6 x Rubber Gaskets
* 8 x Mounting Screws
Description
Highest amperage rated bus bar (500A) withM8 (5/16") * 4+M10（3/8"）*2 terminal studs
Module box design for easy wiring configurations
The High Current busbar is also known for its durability and stability, making it ideal for various industrial and commercial applications. Its compact design and outstanding performance make it an excellent choice for electrical systems, especially in situations that require high current transmission and dust and water protection.
We believe that this new 500A bus bar will meet your needs and provide excellent performance and reliability for your automotive
car, marine, boat, etc.
And the Cover can be designed by own's logo!

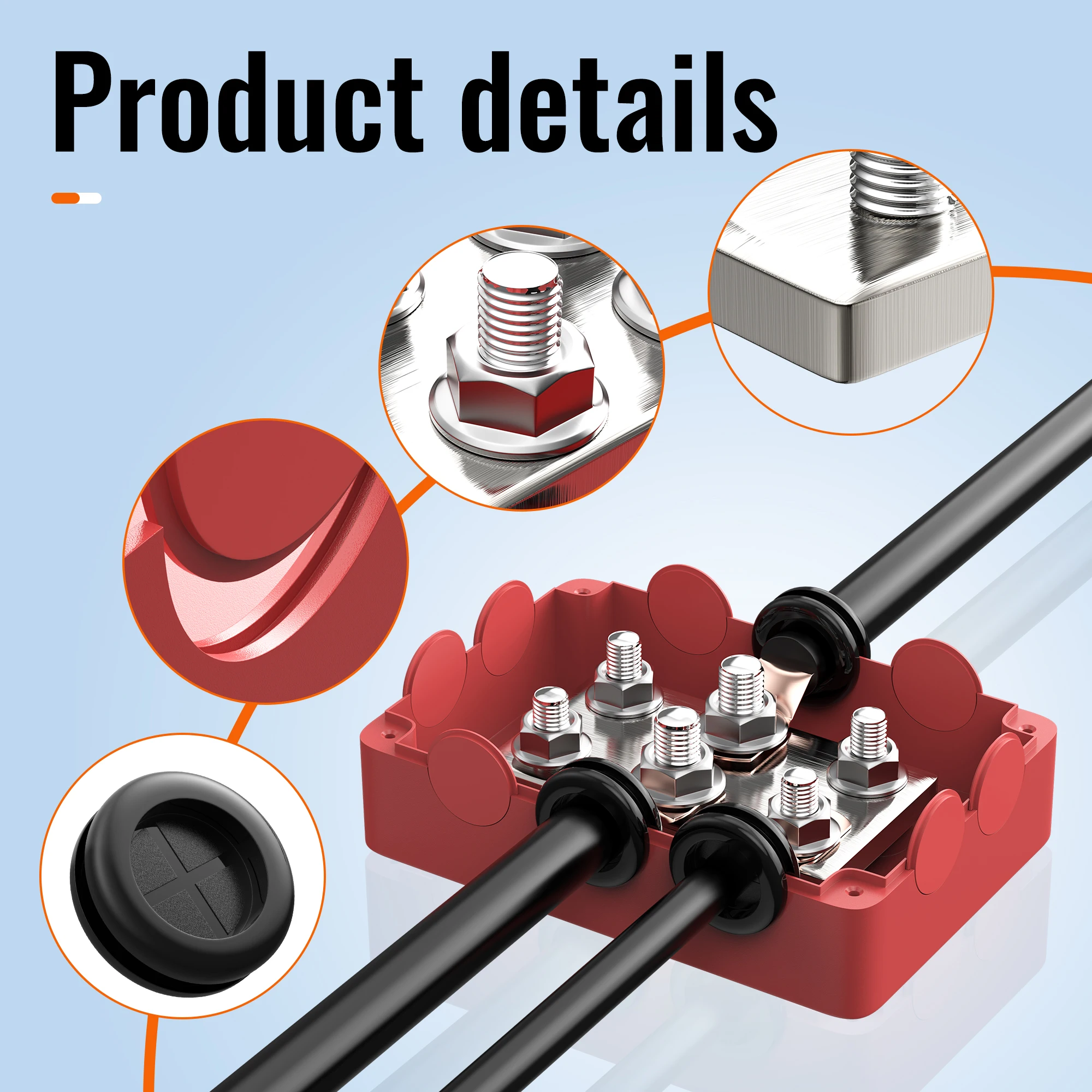

Copper Plate & Stainless Steel Terminals
6mm Pure Copper plate and stainless steel terminals as the conductors of the busbars, make the bus bar 12v have better performances on conduction and corrosion resistance, enables the bus bars to be used in extreme environment..

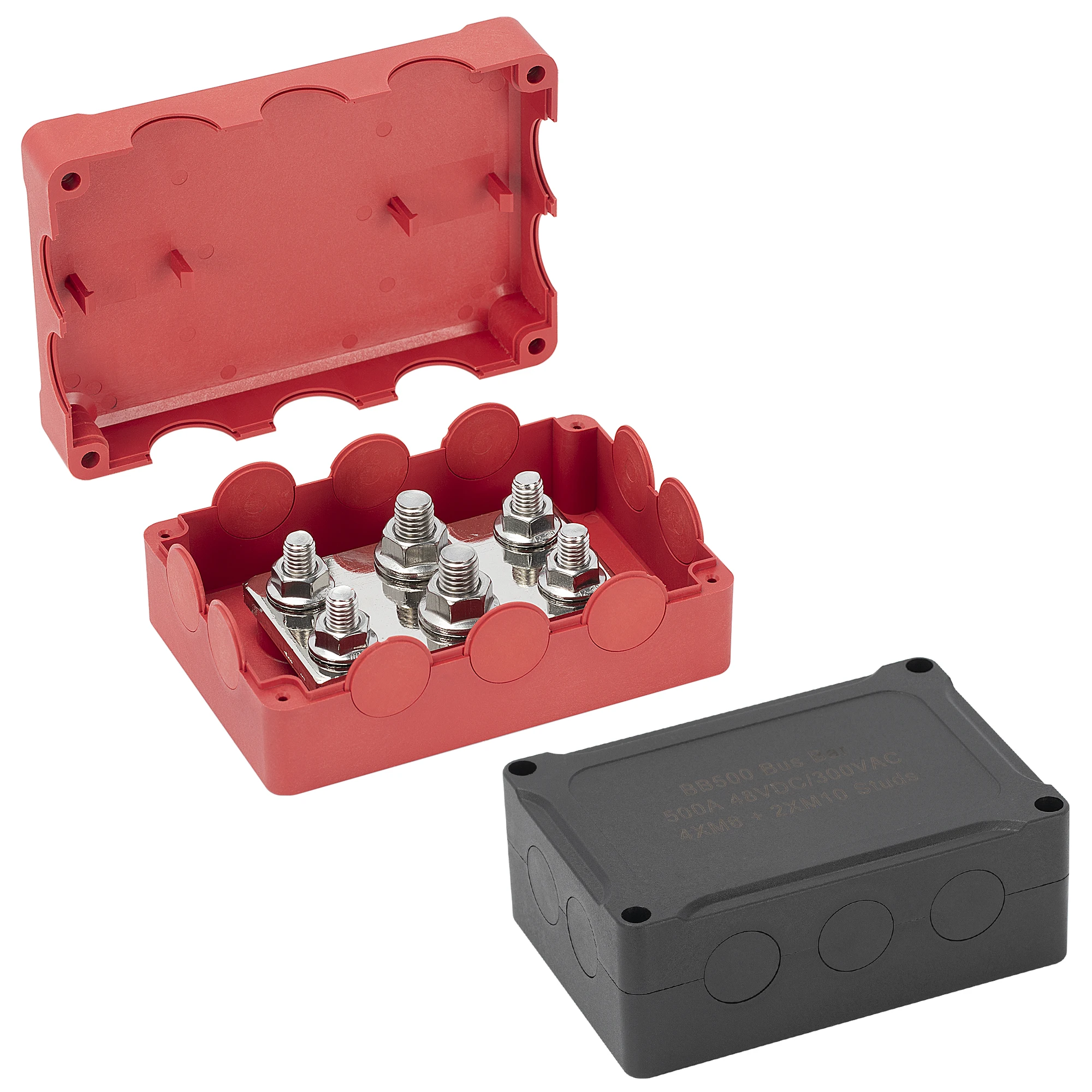

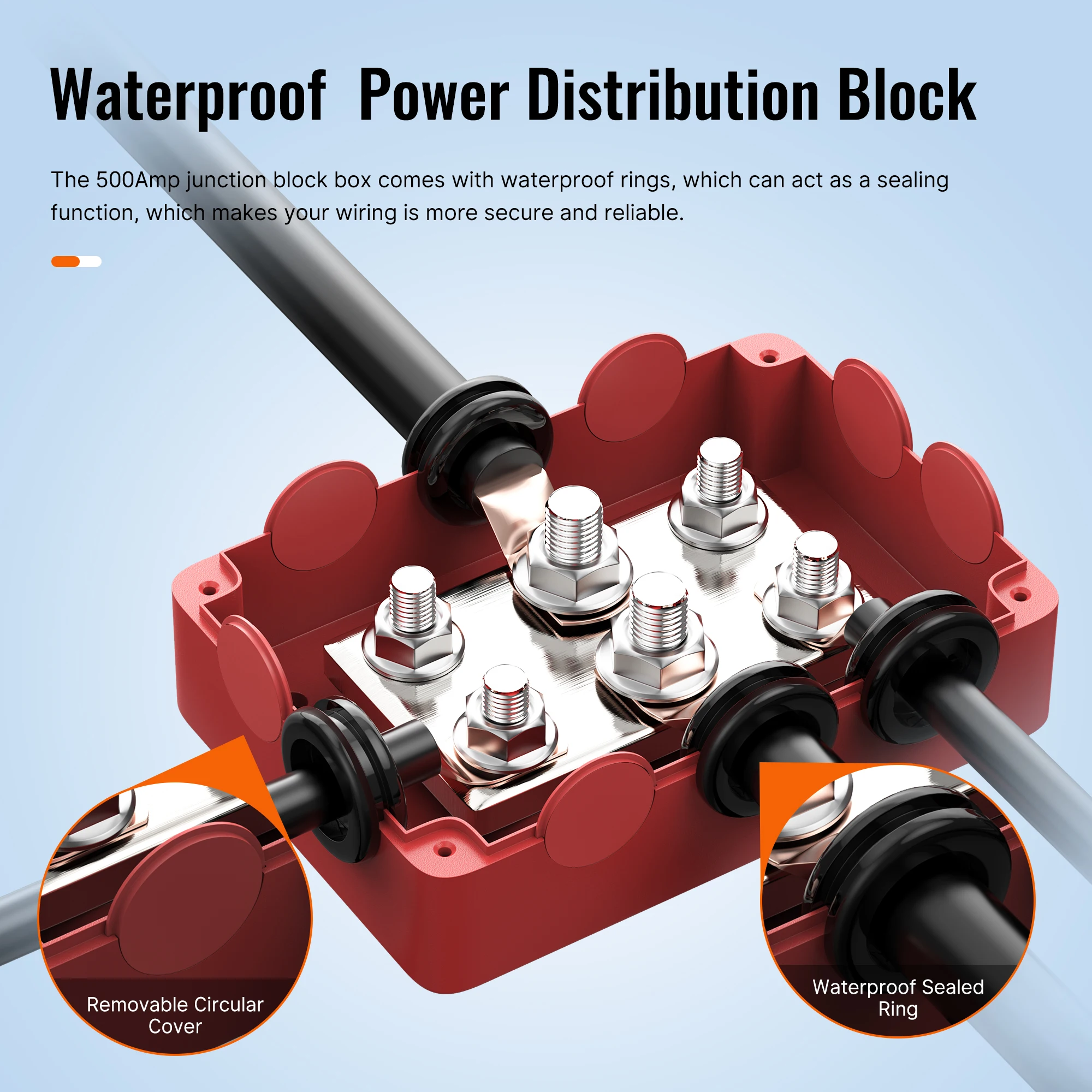

Cover&Rubber Gaskets
achieving a dust and waterproof function, which helps to safeguard the stability and safety of the wires and connectors.
Application
The package includes both positive and ground distribution block, which is easy to use. This bus bar 12v is suitable for both automotive and marine use, such as car, truck, rv, utv, atv, boat, yacht, etc.
