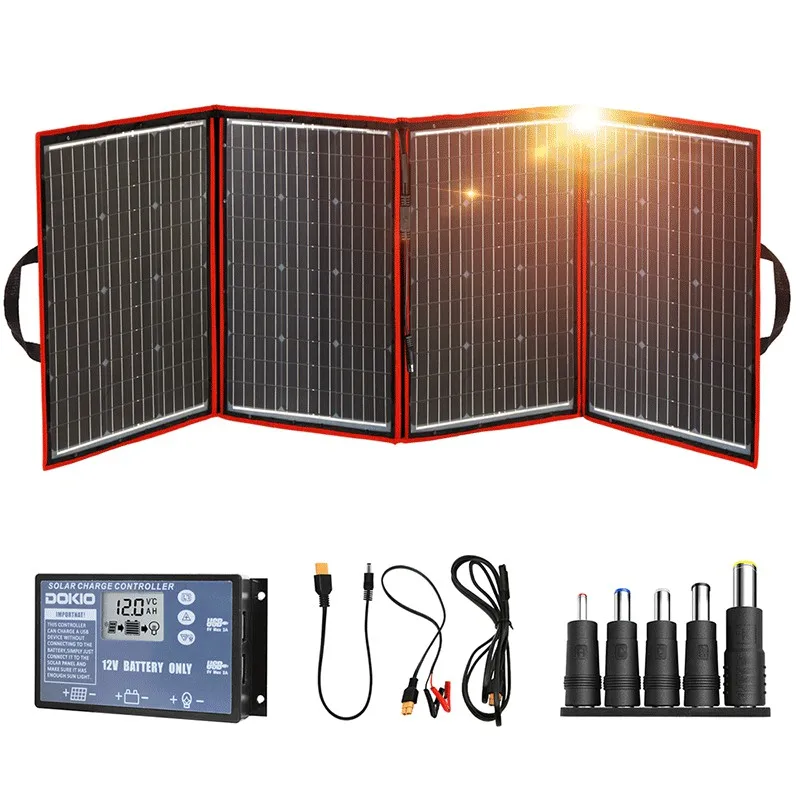

Dokio Flexible Foldable 200W(50Wx4) Mono Solar Panel High Power Portable Solar Panel For RV&Boat&Travel Solar Panel China
Return&refund policy
Eligible items are covered by return and refund support. If the item does not arrive or is not as described, the buyer can request help.
Security & Privacy
Safe payments: We do not share your personal details with any third parties without your consent.
Secure personal details: We protect your privacy and keep your personal details safe and secure.
AI offer for your market
A curated pick based on category, shipping route, delivery speed and popularity in your selected market.
Why this product fits your market
- • Estimated delivery: 7.
- • Strong customer signal: 3.6★ from 10 reviews.
- • Recommendations focus on this product category and your market availability.
Product specifications
Detailed product description
This product is shown with available options, market-specific pricing and verified specifications.
- Brand: DOKIO
- Sales: 37
- Package size: 76 × 61 × 7 cm
- Package weight: 6 kg
- Rating: 3.6 / 5
Before adding to cart, choose an available option and check the quantity.
Delivery is not supported in the following areas
1. Spanish island region. The zip code starts with "35" and "38".
Dimensions have been changed due to material upgrades.
If you received a new size solar panel,the product has no quality problems.
Model FFSP-220M
Solar panel handle design, easy to carry. Folding design to save space.
Adopt High efficiency with quality single crystal silicon silicon materials for long term output stability.
Suitable for camping, outdoor sports, hiking and other scenarios.

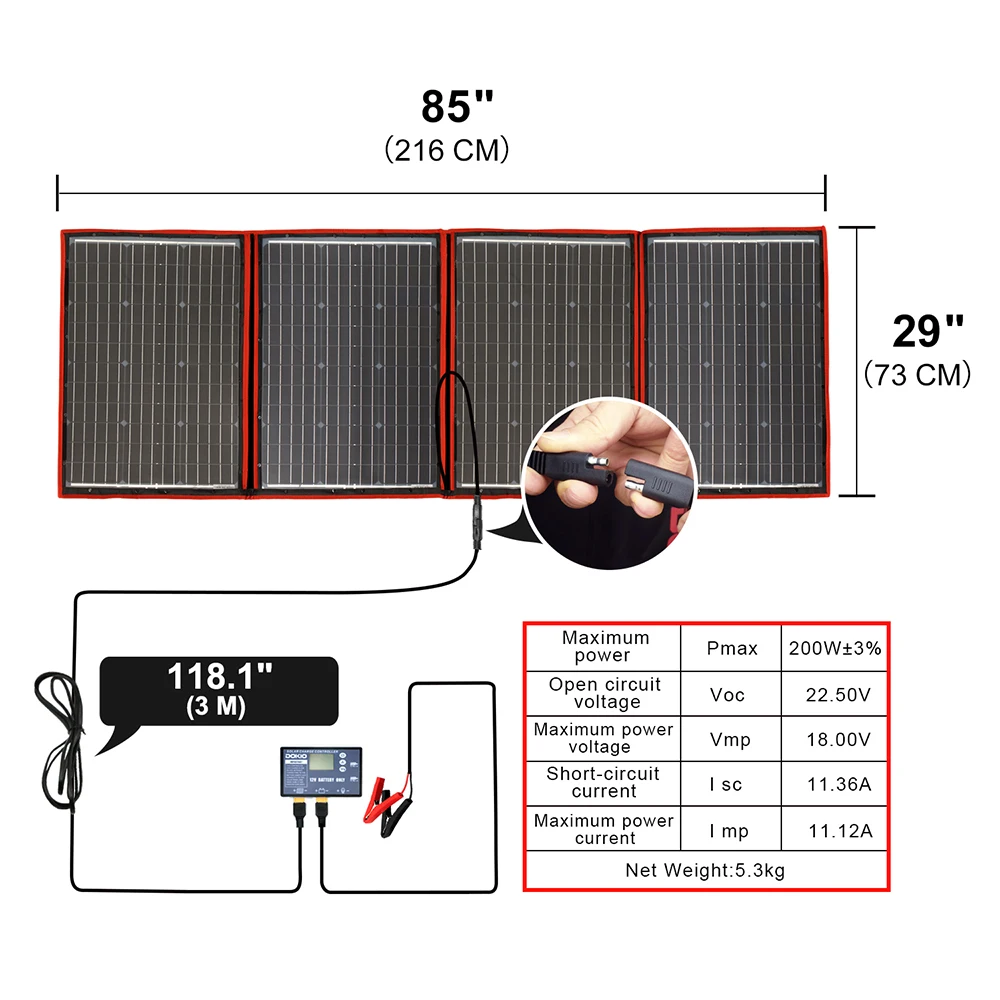

Performance Data
Maximum Power(Pmax): 200W±3%
Maximum Power Voltage(Vmp):18.00V
Maximum Power Current (Imp):11.12A
Open-Circuit Voltage (Voc): 22.50V
Short-Circuit Current (Isc):11.36A
Nominal Operating Cell Temp.(NOCT):-45 to 80℃
Maximum System Voltage: DC1000V
(The above data is based on the laboratory standard test environment)
For field connections,use minimun No.12AWG copper wires insulated for a minimum 90℃
Standard Test Conditions
AM=1.5 IRRADIANCE=1000W/m2 Temp.=25℃
How to test the power
Without connecting any load, use a multimeter to directly test the SAE cable in the middle of the solar panel.
Additional Date
Material:Monocrystalline silicon
oldable Dimension:28x21x0.9(in)/70x50x2.4(cm)
Expansion Dimension:85x28x0.24(in)/216x72x0.6(cm)
Net Weight:5.3kg
Package Weight:6.3kg
Package Size:80x60x7cm
(The size is manually measured and there is a certain error.）

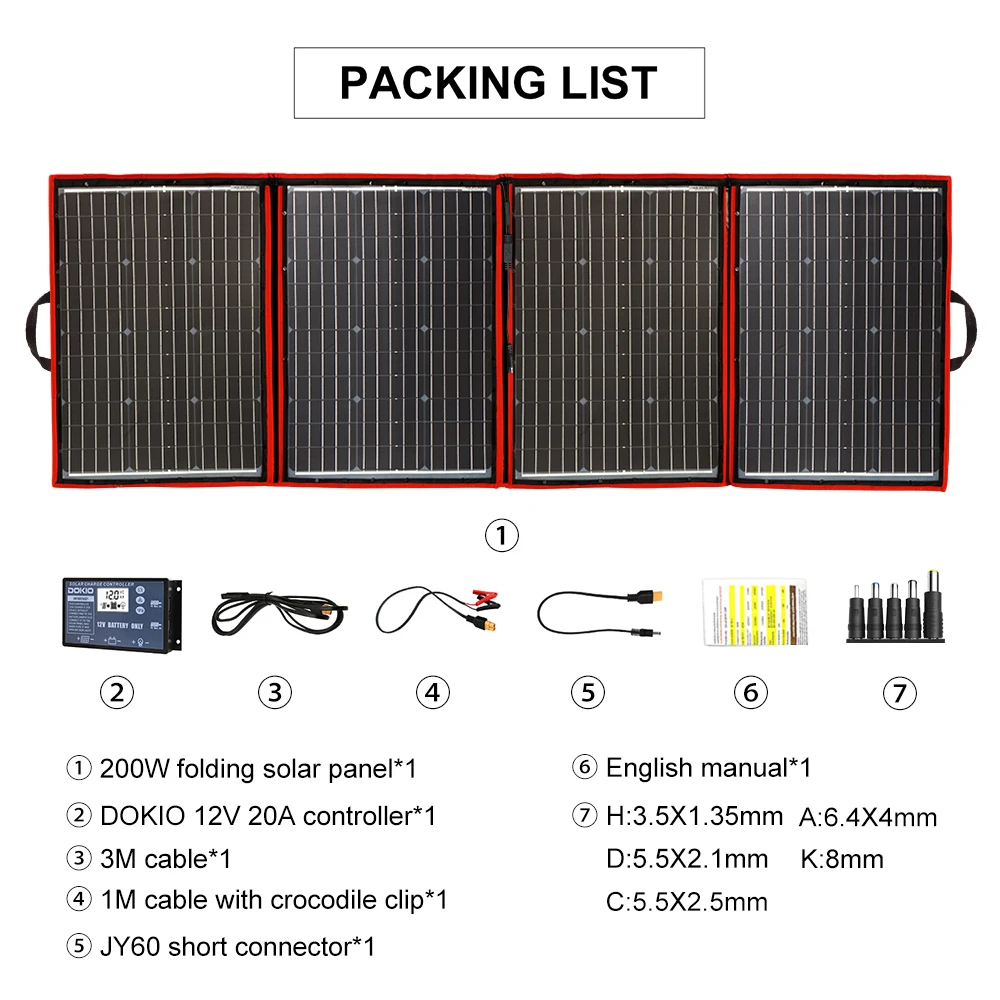

Package List
1*Flexible Foldble Solar Panel
1*3M wire,1*English User Manual,1* PWM controller
(controller support 12V lead-acid,lithium ions and LiFePO4 battries.)
How to use the solar panel
Connection sequence for charging the power station
(Note: The DC connector must match the solar charging port of the power station)
Connection sequence for charging the battery
Battery(Need to purchase by yourself) → ④Crocodile clip → ②Controller → ③3M SAE Cable → ①Solar Panel
Prouduct Detail
The surface is made of ETFE material, which has the characteristics of corrosion resistance, high temperature resistance, High stain resistance and high light transmittance etc.
The solar panel uses Insulating resin as the substrate Compared with the aluminum substrate, it has better thermal insulation, stronger insulation, harder hardness, less deformation and lighter weight.
R&D team with key technologies, international certification, accept mass customization, processing!
All products are certified to ISO, IEC, CE, TUV
