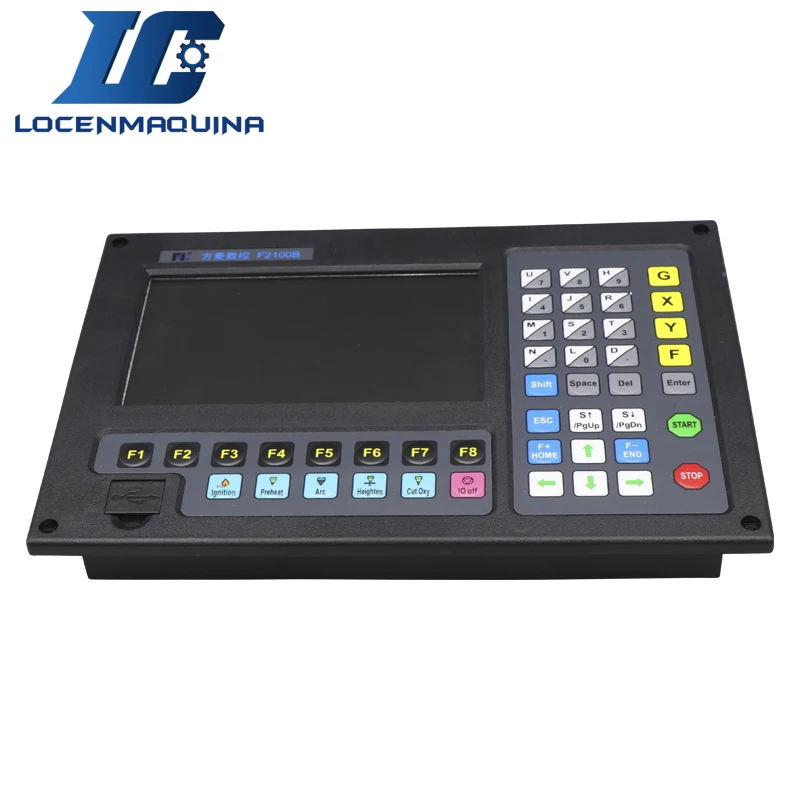

Fangling F2100B CNC Plasma Cutting Machine Controller + Torch Heright Controller F1621 3.0 V + 24V 10A Power Supply
Return&refund policy
Eligible items are covered by return and refund support. If the item does not arrive or is not as described, the buyer can request help.
Security & Privacy
Safe payments: We do not share your personal details with any third parties without your consent.
Secure personal details: We protect your privacy and keep your personal details safe and secure.
AI offer for your market
A curated pick based on category, shipping route, delivery speed and popularity in your selected market.
Why this product fits your market
- • Estimated delivery: 5.
- • Recommendations focus on this product category and your market availability.
Product specifications
Detailed product description
This product is shown with available options, market-specific pricing and verified specifications.
- Brand: locenmaquina
- Sales: 3
- Package size: 36 × 20 × 20 cm
- Package weight: 3.4 kg
- Rating: 0.0 / 5
Before adding to cart, choose an available option and check the quantity.
F2100B kit includes
1*F2100B
1*F1621 3.0 version
1*24V 10A power supply

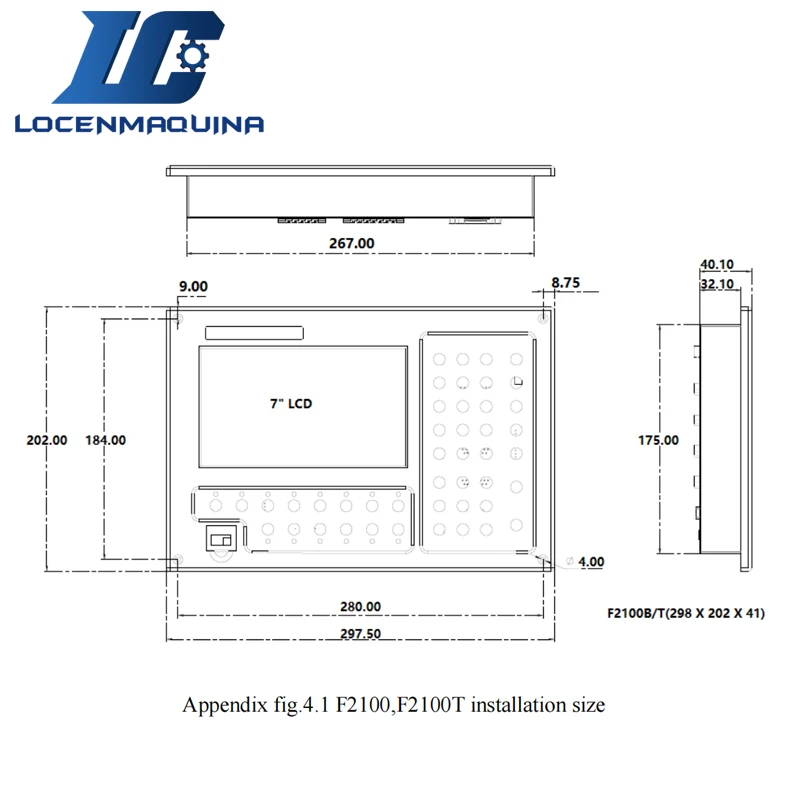

F2100B Parameter
Controller Interface
Hardware Configuration
Function of F2100B

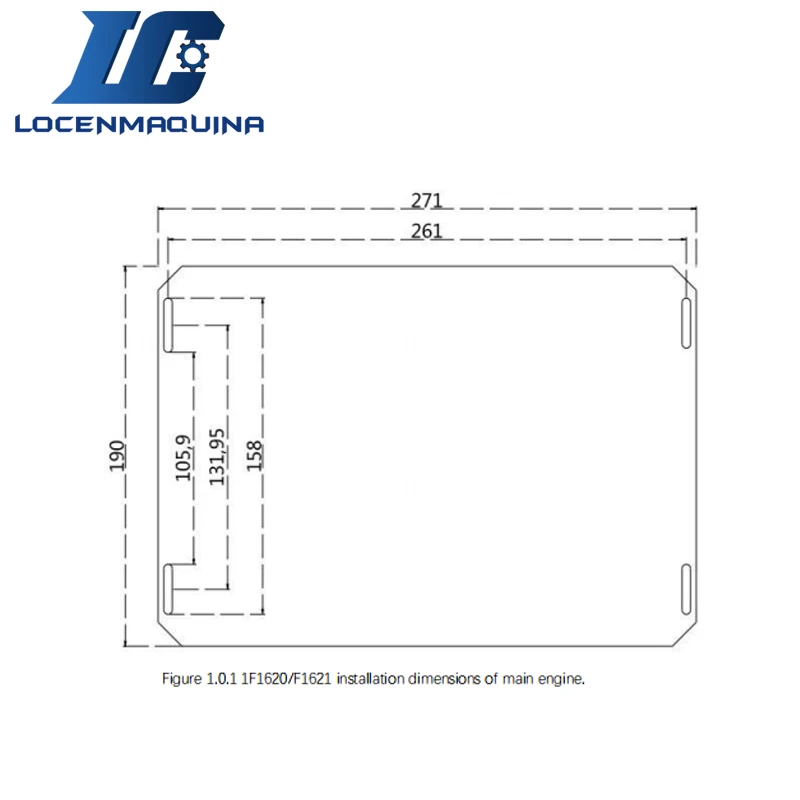

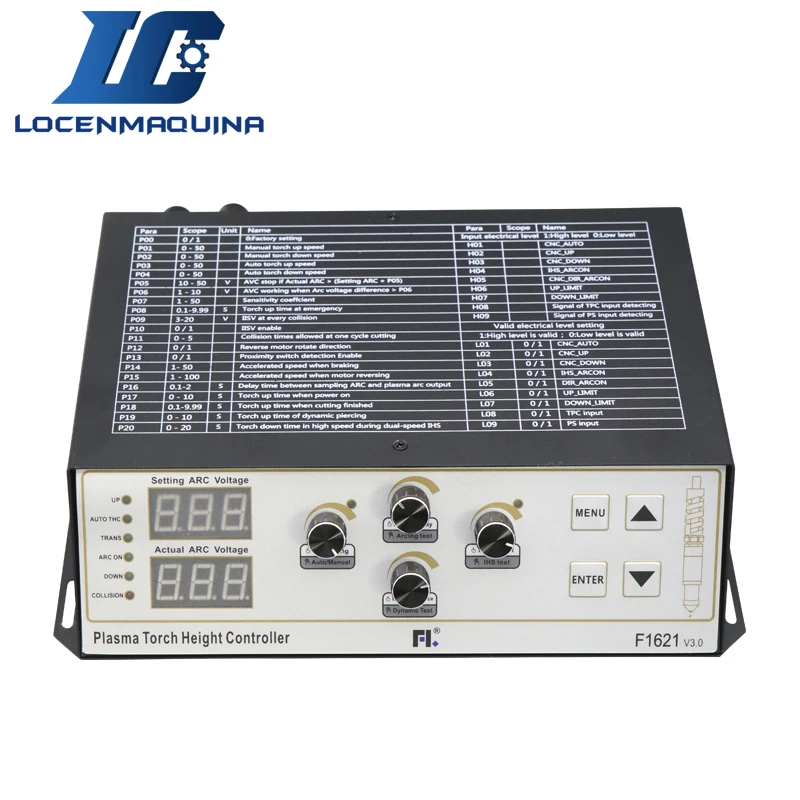

F1621 3.0 Version parameters
1. Model: F1621
2. Operating voltage: DC24±10%, 60W
3. Lifting motor: DC24V motor, 45W
4. Drive mode: PWM stepless speed regulation, H-bridge MOS drive
5. Operating temperature: 0-50℃
6. Positioning method: protective cap positioning or proximity switch positioning
7. Arc voltage range: 0V-600V
8. Sampling accuracy: 0.2V
9. Control accuracy: 0.5V
10. Partial pressure ratio: 100: 1
11. Lifting speed: 8000MM / MIN
12. Sensitivity: adjustable through parameters
13. Protection: overload protection
14. Over temperature protection
15. Short circuit protection
16. Under voltage protection
17. Power supply anti-reverse protection
Product Features
1. Two initial positioning methods
(1.) Proximity switch positioning
(2.) Protective cap positioning.
2. Automatic arc pressure height control: When cutting, it automatically tracks the height of the steel plate and always keeps the cutting gun at a fixed height from the steel plate to ensure the cutting quality.
3. Automatic elevation to protect the cutting gun: (1)After crashing the gun, automatically elevate the gun (2)After cutting is completed, automatically elevate the gun.
4. Various operation modes: (1) Automatic operation (2)Manual operation.
5. Arc voltage monitoring: dual arc voltage display, convenient for users to monitor the height during cutting in real time.
6. Arc pressure intelligent adjustment: after multiple collisions, automatically raise the set arc pressure.
7. Dynamic perforation: The moment of perforation, raise the cutting gun. Protects the cutting gun from splash damage.
8. Collision feedback: After a collision, the collision signal is immediately fed back to the control system.

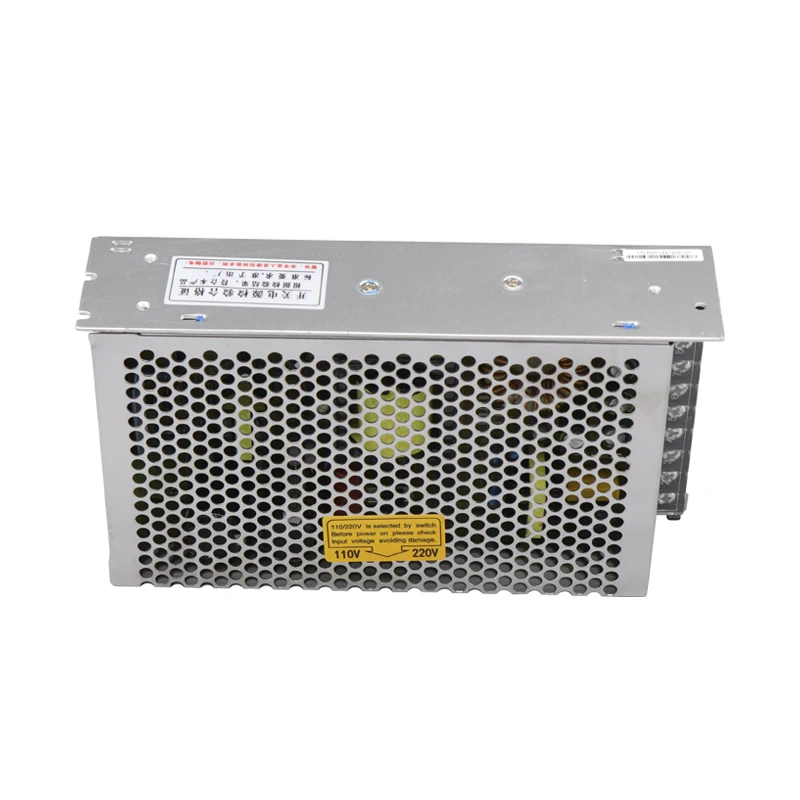

Power Supply
24V 10A
