Micro ESC 20A 30A Brushed ESC RC ESC Electric Speed Controller 2S 4~8v for DIY Mini 1/16 1/18 1/24 RC Car Boat Tank w/Brake
Return&refund policy
Eligible items are covered by return and refund support. If the item does not arrive or is not as described, the buyer can request help.
Security & Privacy
Safe payments: We do not share your personal details with any third parties without your consent.
Secure personal details: We protect your privacy and keep your personal details safe and secure.
AI offer for your market
A curated pick based on category, shipping route, delivery speed and popularity in your selected market.
Why this product fits your market
- • Estimated delivery: 7.
- • Strong customer signal: 4.8★ from 420 reviews.
- • Recommendations focus on this product category and your market availability.
Product specifications
Detailed product description
This product is shown with available options, market-specific pricing and verified specifications.
- Brand: NONE
- Sales: 700+
- Package size: 14 × 10 × 1 cm
- Package weight: 0.033 kg
- Rating: 4.8 / 5
Before adding to cart, choose an available option and check the quantity.
Features
1. Micro ESC: Compact and lightweight, easy to install and use.It's bidirectional 20A/30A miniature brushed ESC with brake for DIY mosquito/mini-z car.Designed for receiver and steering SERVO
2.Brushed ESC 2S: Suitable battery type: 2S Li-ion(7.4V) (not included)
3.Brushed ESC 1/24: For 1/16 1/18 1/24 RC Car Boat Tank RC Quadcopter, helicopter, multicopter and airplane.Function: forward, reverse, brake
4.Brushed Motor ESC: 20A ESC can work with 130/180/260/280/380 Brush Motor
5.RC ESC Connecting Rod: Short red (positive) and black (negative)------battery
Long red and black(positive or negative is random)------motor
Black red and white three-one line------CH2 of receiver
Description
RC ESC 20A / 30A is bidirectional miniature brushed ESC with brake for 1/16 1/18 1/24 RC Car Boat Tank RC Quadcopter, helicopter, multicopter and airplane.Designed for receiver and steering SERVO.
Specifications

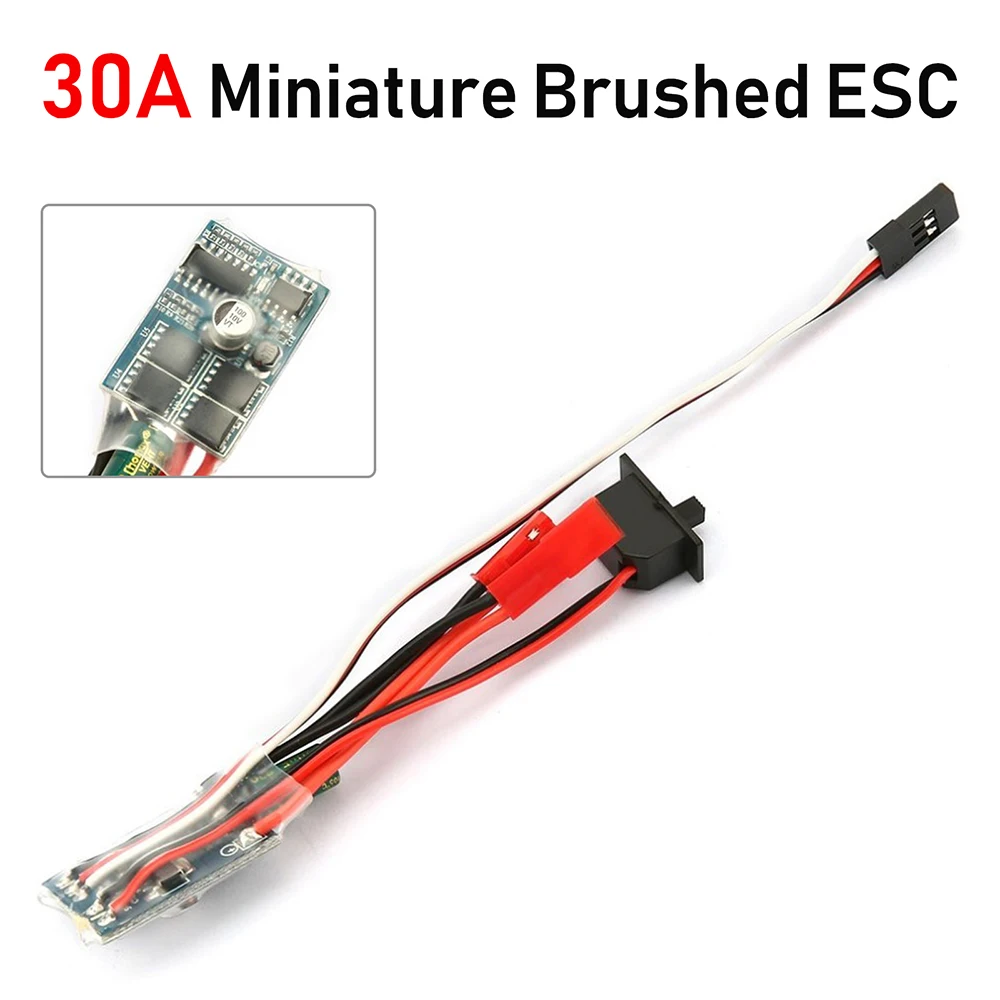

Name: 30A Miniature Brushed ESC(Blue Main Board)
Material: Composite material
Color: black & red
Size: 40*19*10mm
Input voltage: 4-8V
Electric current
Go forward: 30A
Instant for peak value: 40A
Go backward: 20A
Braking value: 40A
UBEC output voltage: 5.7V
Output current: 1A
Name: 20A brush speed controller(Red Main Board)
Function: Forward, Reverse, Brake
Working voltage: 4.8V-8.4V
Dimensions(L*W*H): 35.0*22.0*6.0mm
Current(A): 20A
Driver frequency: 2KHz
Input: Li-Po 2S / Ni-Mh/Ni-cd 4-7cell
Constant current 20A Max 25A< 30s Pulsed 50A< 5s
Brake On / with brake
This ESC can work with 130/180/260/280/380 Brush Motor
Size: 20*20 MM

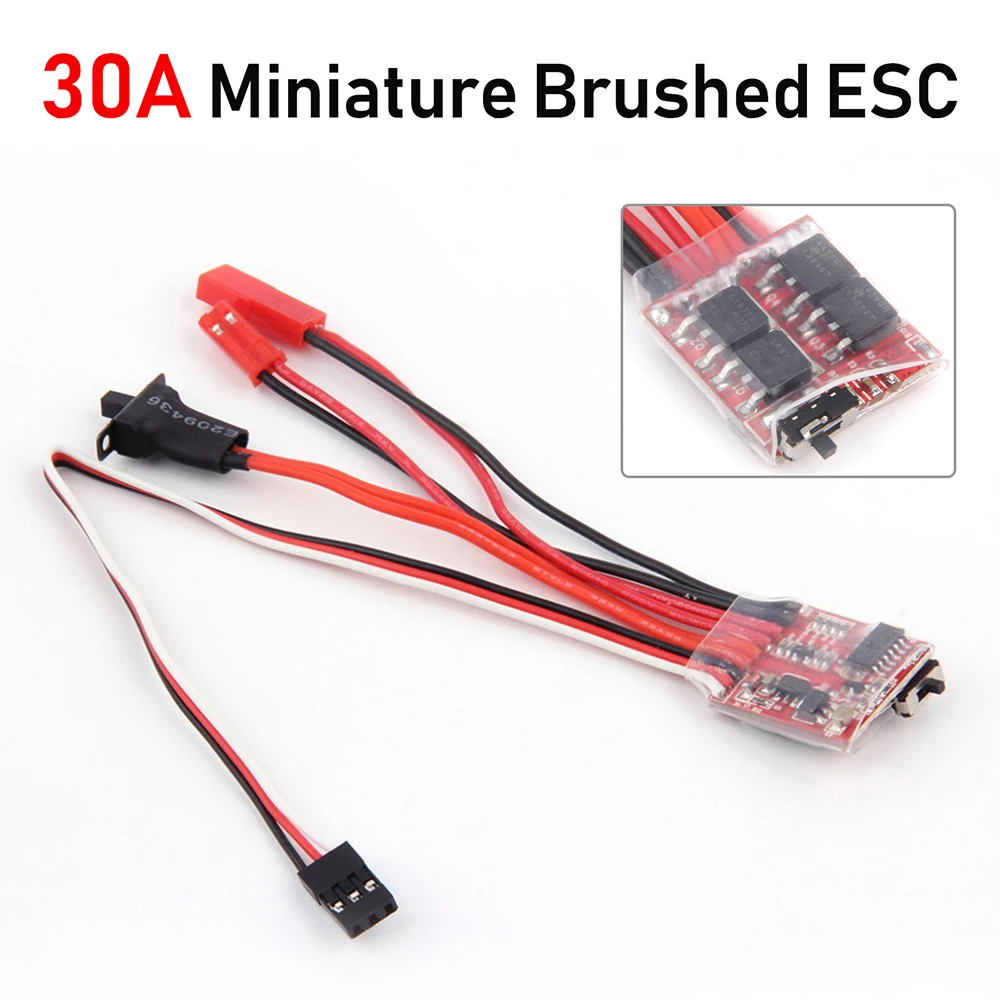

Name: 30A brushed speed controller(Red)
Material: Synthetic Material
Current Parameters
Forward 30A
Instantaneous peak: 40A
Back: 20A
Brake: 40A
UBEC Output: Voltage 5.7V, Current 1A (Supply receiver, servo power)
Voltage support: 4.8~ 8.4v can be directly on the 2s lithium (7.4V)
Size: Approx.25 x 23 x 5mm/0.98 x 0.91 x 0.2"
Weight: Approx.13g (with line)
Package Included
1x Brushed speed controller
Tips
JST header by default, with a switch.
Wiring
Battery (must dividends positive black and negative)
Motor (regardless of positive and negative)
Black red and white third-line -> receiver CH2 (usually black by the outside, white by stickers)
Adjustment
ESC is set in the middle of the range, the new control generally need to fine tune the throttle.
The ESC does not light, is the median, throttle trim is controlled TH TRIM.
Note
Only the above package content, other products are not included.
1.Due to the difference between different monitors,the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.
2.Due to the manual measurement and different measurement methods, please allow 1-3mm deviation.Thanks!
