KUAIQU 4K Electronic Digital Microscope For Soldering IMX678 IMX415 IMX323 Sensor Optional UHD Microscope For PCB Welding Repair

🔥You might have missed great deals buying via this link.

For buyers from Brazil, the EU, and the US: Sometimes your interface may show that the package is shipped from China, which results in higher prices and requires you to handle customs clearance yourself.

However, if you follow the instructions in the image below, click on the shipping method option, you can choose delivery from our local overseas warehouse. This will give you much lower prices and no need to deal with customs clearance at all!

If you find this helpful, feel free to share it with your friends!

🔥There are 5 types of microscopes for you to choose from. Whether you pursue quality or affordability, you can find a satisfying one here. The best option is the microscope set with an IMX678 sensor, while the most economical one is with an IMX323 sensor. If you want both good quality and great value for money, go for the Sony IMX415 set. You can easily pick the right microscope for you based on your budget and needs.

🔥The first step to operate after installing the microscope

After assembling the microscope, the first step is to prioritize using the one-click exposure function. Then, place a piece of white paper horizontally directly below the lens and perform a one-click white balance. In most cases, this will achieve the most suitable results for your working environment.(Don't forget to turn on the LED light)

🔥You may be wondering what the actual difference is between different microscope chips.

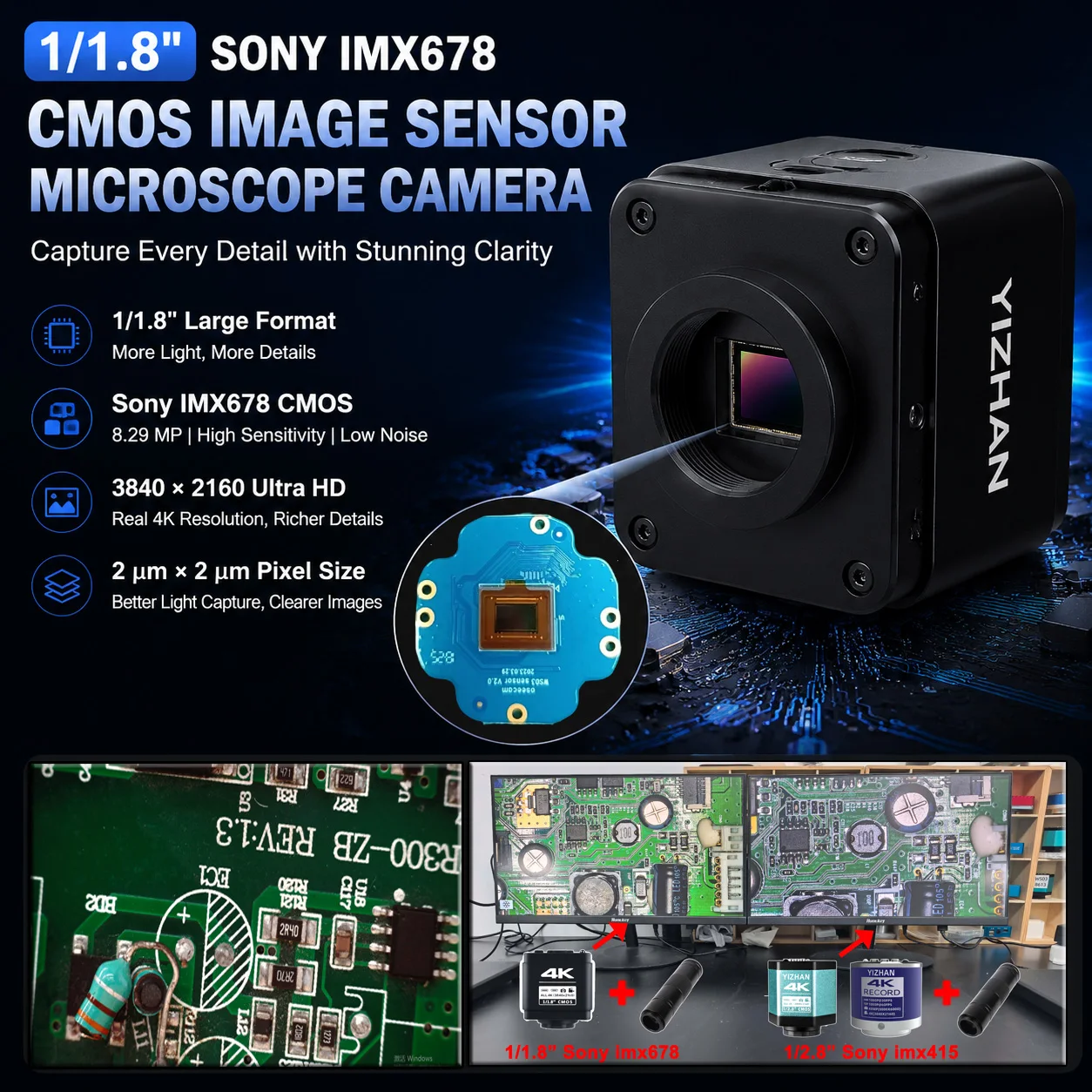

Both use a 150X lens, and the stand and LED lights are exactly the same. As you can see, under the same distance and with the same accessories, the microscope kit with the Sony IMX678 chip produces more vibrant colors and a wider field of view than the one with the Sony IMX415 chip.

🔥Pre-purchase Tips

The Sony IMX678 camera has a 1/1.8" sensor. Our 150X lens is designed for cameras with a sensor size of 1/2" or smaller.When paired together, it will crop roughly 10.4% of the field of view on the Sony IMX678 camera, because the lens is not properly matched to this camera.

However, this lens has a long working distance, which is why we put together this kit.If you have higher standards, I recommend buying our 215X zoom lens (0.75X–4.5X zoom) to pair with the Sony IMX678 camera.This 215X lens supports 1/1.8" sensors perfectly — the only trade-off is that the working distance will be reduced to 12.7 cm.

🔥Application Scenarios

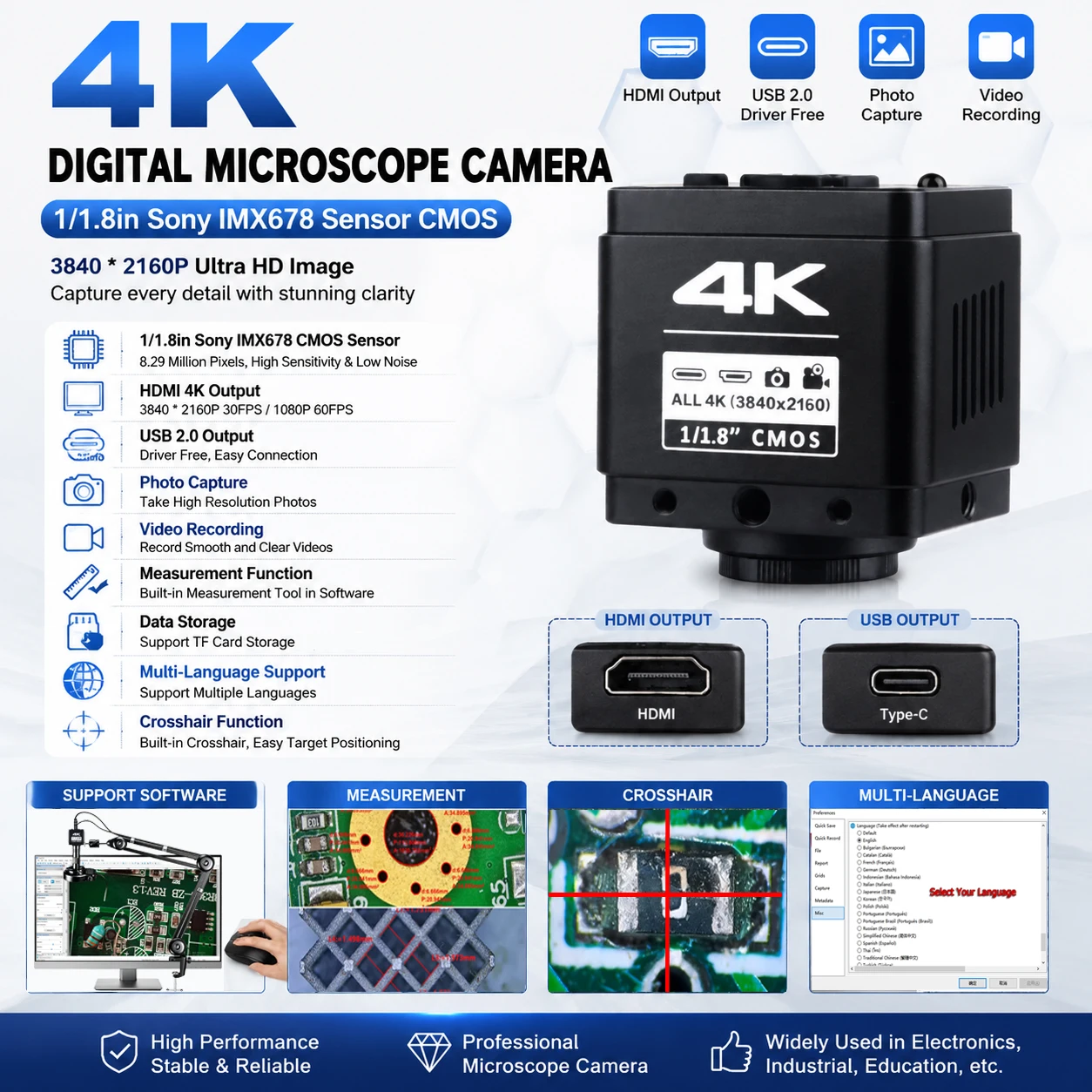

🔥4K UHD 1/1.8in Sony imx678 Senor Camera Parameter

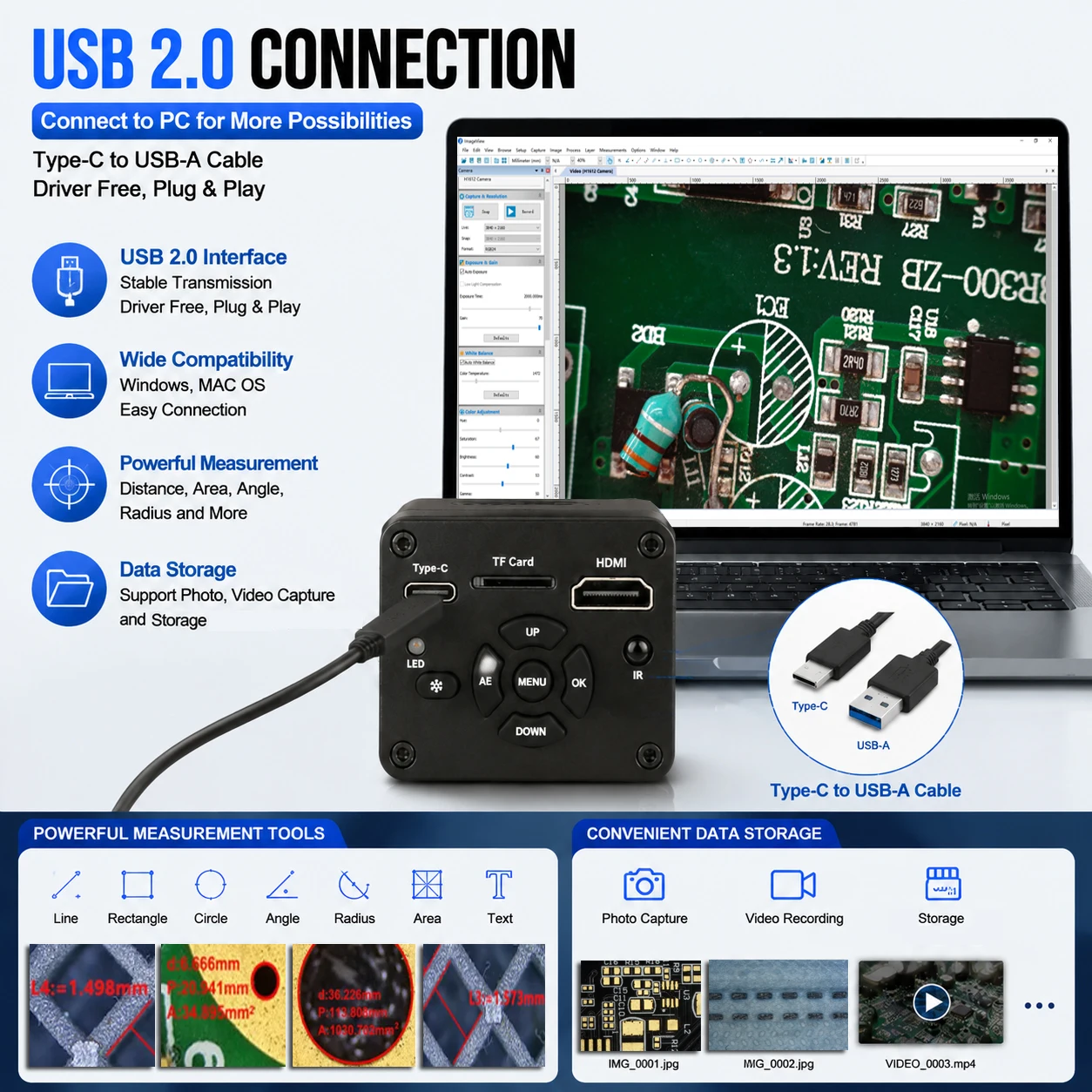

🔥Connect to PC via USB for operation.

You can first switch the language to your preferred one in the PC software. It allows you to take photos, record videos and adjust the video image more conveniently. There is also an additional measurement function, which will be of great help to your work.

🔥Effect of Exposure Adjustment on the Image

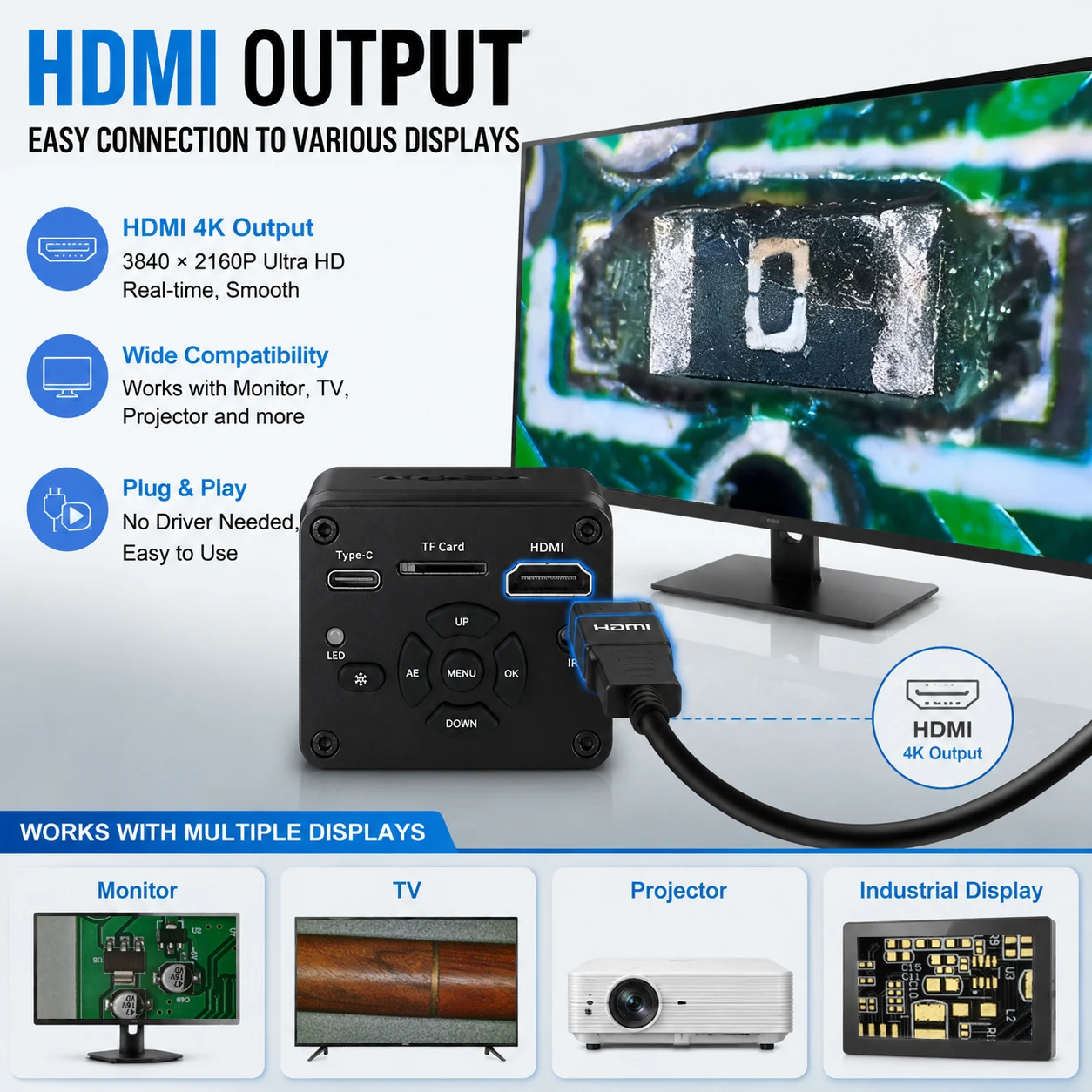

Whether you connect the device to a monitor or TV via HDMI, or connect it to a computer via USB, exposure is a key parameter. Properly setting the optimal value will help you obtain the best image quality.

How to adjust

Under unchanged lighting conditions, turn on Auto Exposure and increase the gain value when ambient light is insufficient. When ambient light is too strong and causes overexposure, turn on Auto Exposure and lower the gain value.

🔥Function of White Balance

Correct light color cast and restore the true original color of objects.

1, Different light sources (indoor yellow lights, fluorescent lamps, natural overcast light and ambient lights) all have inherent color cast. White balance can correct yellowish, bluish and reddish tones in the image.

2, Under any ambient light environment, it ensures white paper, white housings and white electronic components are captured without yellow or cold tint. It calibrates the overall image color with white as the reference standard.

3, When shooting circuit boards, metal accessories and product appearances, the presented colors are exactly the same as what the naked eye sees, without color distortion or color cast. It is perfectly suitable for taking photos and recording videos for product display.

🔥1X-150X zoom C-mount lens：

Working distance: 50mm-1000mm

Zoom ratio: 1:15

Magnification: 0.15-2X (approx. 1-150X on display)

Maximum magnification field of view: 4.2mm*2.4mm

Minimum magnification field of view: 130mm*70mm

Size: 30mm (diameter) * 99mm (length)

Weight: 195g

🔥Sony imx678 Set List of packing：

1 * Microscope camera

1 * Microscope lens

1 * Remote Control

1 * LED light

1 * Folding bracket

1 * Instruction manual

1 * Type-C cable

1 * HDMI cable

1 * Power cord

🔥4K UHD 1/2.7in GC8613 Senor Camera Parameter(60MP Photo)
