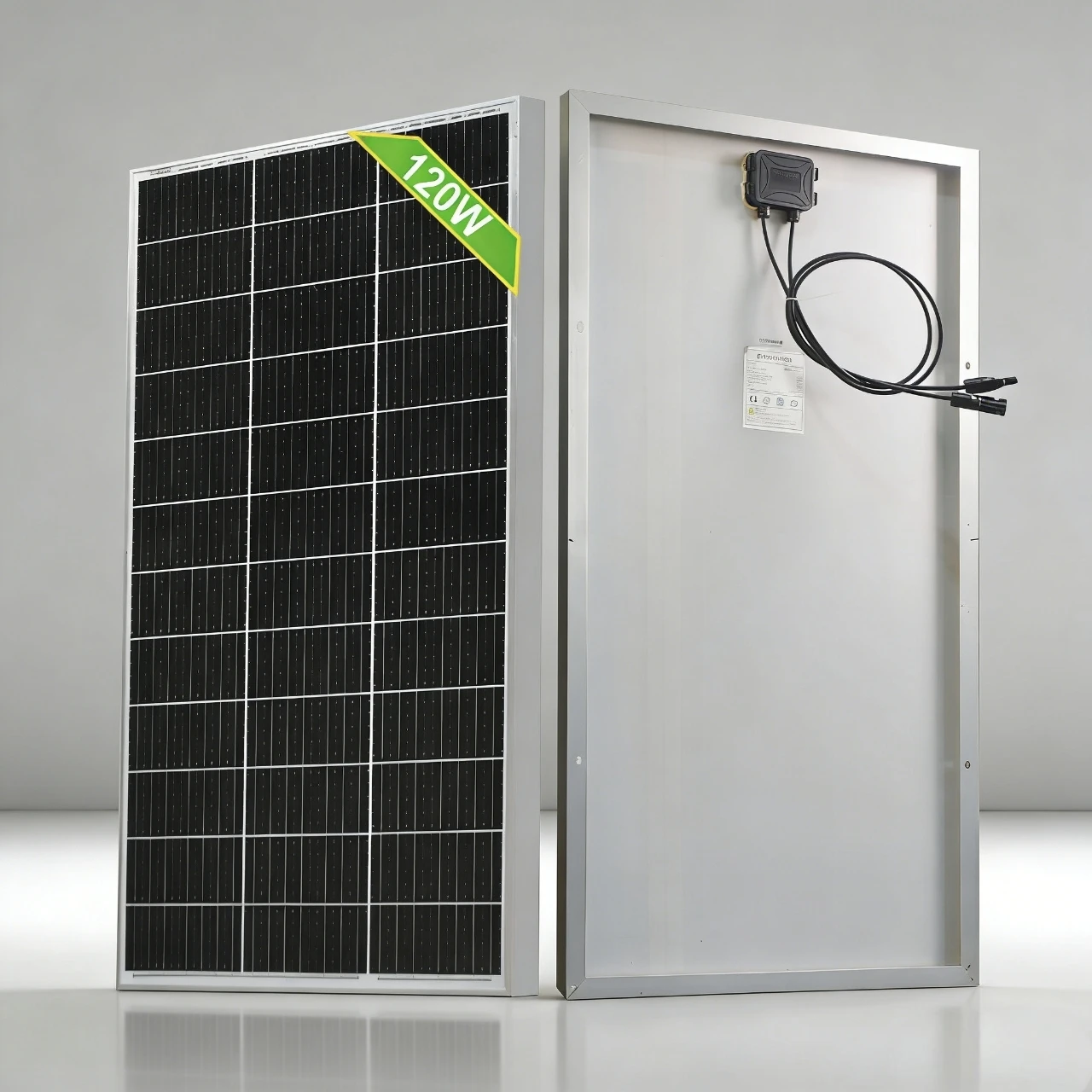

solar panel 120W rigid temper glass monocyrstalline solar cell 120W 18V for 12v Battery Charge IP 55 Waterproof Camping RV Boat
Return&refund policy
Eligible items are covered by return and refund support. If the item does not arrive or is not as described, the buyer can request help.
Security & Privacy
Safe payments: We do not share your personal details with any third parties without your consent.
Secure personal details: We protect your privacy and keep your personal details safe and secure.
AI offer for your market
A curated pick based on category, shipping route, delivery speed and popularity in your selected market.
Why this product fits your market
- • Estimated delivery: 7.
- • Strong customer signal: 4.5★ from 2 reviews.
- • Recommendations focus on this product category and your market availability.
Product specifications
Detailed product description
This product is shown with available options, market-specific pricing and verified specifications.
- Brand: JINGYANGPV
- Package size: 109 × 59 × 10 cm
- Package weight: 14 kg
- Rating: 4.5 / 5
- Reviews: 2
Before adding to cart, choose an available option and check the quantity.
Advantages of JINGYANG Tempered solar panels
Multi-layer sheet package, sturdy and durable, good heat dissipation. No hot spots will appear.
The aluminum frame is corrosion resistant and is suitable for both indoor and outdoor use.
With a service life of more than 25 years, it is 3-4 times that of ordinary flexible solar panels. It is the best choice for motorhomes and families. It has a very high cost performance and is the best choice for home energy investment.
Product description
The surface is tempered glass, waterproof, snowproof, resistant to small hail.
Diodes are pre-installed in junction box and a pair of 24-inches cables with connectors comes with the panel automatically

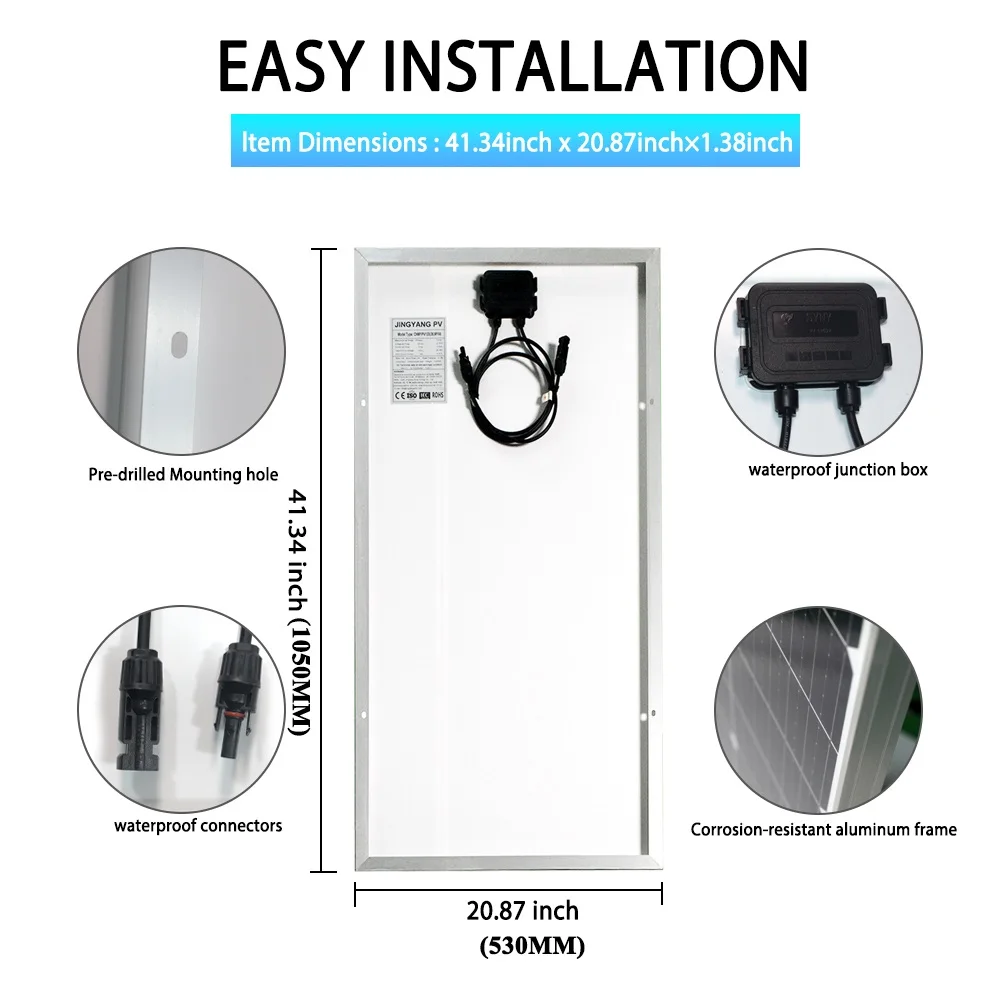

The back has 8 drill hole that can be quickly installed.
Model:CNMYPV120(36)M166
Material:Monocrystalline silicon
Maximum Power(Pmax):120W
Maximum Power Voltage(Vmp):21.5V
Maximum Power Current (Imp):5.59A
Open-Circuit Voltage (Voc): 25.4V
Short-Circuit Current (Isc):6.07A
Solar Cell: Newly 166MM*166MM Monocrystalline
Nominal Operating Cell Temp.(NOCT):-45 to 80℃
Maximum System Voltage:DC1000V
Maximum Series Fuse:10A
Dimension:1050*530*30mm
Package Weight:7.5kg
Package Dimension:1150*590*60mm
(The above data is based on the laboratory standard test environment)
For field connections,use minimun No.12AWG copper wires insulated for a minimum 90℃
Standard Test Conditions
AM=1.5 IRRADIANCE=1000W/m2 Temp.=25℃
(The size is manually measured and there is a certain error.）
3 Years Warranty, 25 Year Lifetime
Minor reduction in efficiency under partial load conditions at 25degC: at 100 W/m2, 95%- (+/-5%) of the STC efficiency (1000 W/m2) is achieved.
Extra: We keep right to change the specification of the data, and there is about ±5%deviation for all specification, pls notice this point。
Jingyang Solar Energy is mainly engaged in crystalline silicon solar cells, modules, photovoltaic systems engineering and the research, manufacturing and sales of PV application products. In the past decades, Jingyang Energy built a wide sales network in global market which covers more than 68 countries, our major target markets are Europe, USA, Southeast Asia, America, Australia, Africa, etc, Our overseas projects involves State grid solar power plant, household solar system, outside portable solar system,etc
