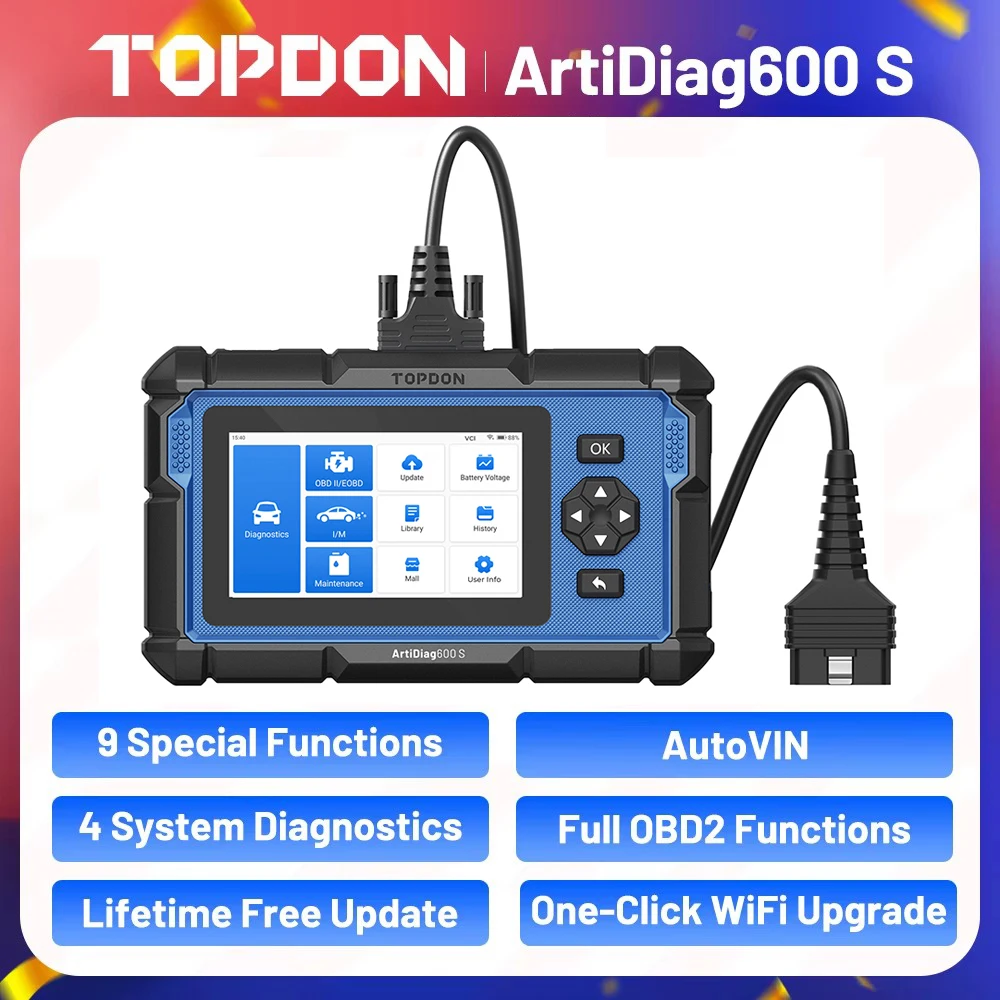

TOPDON ArtiDiag600S OBD2 Scanner Diagnostic Tool Code Reader Oil/BMS/ABS/SAS/EPB/DPF/TPMS/Throttle Engine Test Scan

Lifetime Free Updates

Description

The ArtiDiag600S is a compact diagnostic scanner that now supports the CAN-FD protocol, offering extensive compatibility across more than 80 automotive brands worldwide. Designed to provide a detailed analysis of four major vehicle systems—Engine, Transmission, Airbag, and ABS—this scanner enables fast and efficient repairs. It features nine essential maintenance functions, including Oil, Brake, SAS, BMS, DPF, ETS, and TPMS resets, along with ABS bleeding and injector coding. User-friendly and versatile, it’s an invaluable tool for streamlining troubleshooting and supporting effective, everyday vehicle maintenance.

Features

💡Wide Brand Coverage

Most OBD2 scanners work with vehicles manufactured after 2001, but TOPDON ArtiDiag600S compatible with OBDII-equipped vehicles built after 1996, and it works on more than 90 Vehicle Brands.

💡4 Systems Diagnostic Tool

1.For Engine

The car scanner can read & erase DTCs, turn off the check engine light and view live data, this engine code reader allow you to immediately pull the error log from the engine system. Quickly determines the cause of common faults of Poor lubrication, Failing oil pump, Oil deposits and debris, Inadequate fuel and air compression, Leaking engine coolant, Blocked engine radiators, Prolonged engine detonation, Damaged oxygen sensors, Aged spark plugs, etc., to avoid engine breakdowns, or even require a brand-new one.

2.For Antilock Braking System (ABS)

This AD600S scan tool is also designed to work with the anti-lock brake system (ABS) in the same way as basic code readers communicate with the engine. It will pull the diagnostic trouble code of causing the ABS lights to come on. Some of the common problems include blown sensor fuses, low brake fluids, and faulty sensors. Once the problem has been fixed then you can use this ABS diagnostic tool to reset the ABS lights.

3.For Airbag System (SRS)

To prevent serious harm or death in case of an accident, this SRS diagnostic scanner makes the car work in a safe and proper way by reading and clearing any fault code that exists in SRS (Airbag) system, and then turning off the airbag’s warning light.

4.For Transmission

The ignorance of a gearbox problem will lead you to a tremendous maintenance cost. To keep the transmission system output closely linked to the load and speed, this scan tool views live data, reads and clears codes in transmission systems, and turns off the warning light.

Note: The function list is dependent on your car’s make, model and year. Reach us for details.

💡9 Hot Rest And Relearn Maintenance Services

1.Injector Coding

Write the new injector code into the car system for correct cylinder injection quantity.

2.Oil Reset

You can use this OBD2 scanner to reset the oil maintenance minder system: reset the oil service light and program oil life change intervals. It can also turn off oil change lights. This function is especially handy for mechanics having to reset a multitude of oil lights every day.

3.BMS Reset

Your car system still holds the old battery parameters and treats the new battery like an old one? Use this service to evaluate the battery charge state, and register the new battery replacement.

4.ABS Bleeding

This car scanner can check the operating conditions of Anti-lock Braking System (ABS). It helps remove the trapped air, improves the performance of the brake system, and ensures your car remains safe to drive.

5.DPF Regeneration

This diagnostic tool can manage DPF regeneration to clear the blockage through continuous burning of the particulates captured in the filter. With AD600S, you can get rid of stored soot and even find faults in the DPF system with no hassle.

6.Brake Reset

Cars and trucks with electronic parking brakes can be a pain to service without a scan tool allowing you to retract electric parking brake calipers. This feature allows you to reset the brake pad after the replacement.

7.TPMS Reset

When replacing TPMS sensors, it can quickly look up the tire sensor from the vehicle's ECU, reset tire pressure and turn off the tire pressure MIL.

8.Throttle Adaptation

This scan tool can make initial settings to throttle actuators so you'll have smooth driving after the throttle body has been replaced or cleaned.

9.SAS Reset

This feature helps erase the record of the old steering angle sensor and overwrite it with a new one. This is a function not frequently found on cheaper scan tools. It is important that your steering stays aligned, and vital to ensure that the driver-assistance system works properly.

💡Lifetime Free Updates

Maximize your investment with lifetime free software updates, ensuring you always have access to the latest features and data—all at no extra charge. With just one click, you can effortlessly upgrade via Wi-Fi and stay ahead.

💡CAN-FD Protocol--Diagnose Faster

Upgrade your diagnostic capabilities with the latest ArtiDiag600 S, now equipped with CAN-FD protocol support for rapid data exchange between the scanner and your vehicle. This device is compatible with an expanding range of modern vehicles, including GM, Chrysler, and Fiat models from 2020 onward, enabling faster and more efficient diagnostics.It also fully supports traditional CAN protocols, making it a versatile tool for 1996 and newer vehicles.

💡5-Second One-Touch AutoVIN

With AutoVIN Technology, quickly identify the vehicle and initiate repairs right away. This scanner automatically generates detailed diagnostic reports, which can easily be shared electronically, facilitating seamless communication and quicker decision-making in your workflow.

💡Four Streams, Faster Resolution

Displaying four streams simultaneously allows for easy comparison of system parameters, accelerating issue resolution and enhancing performance insights. The ArtiDiag600 S also enables data recording for playback, allowing you to monitor performance trends over time.

💡One-Tap Code Clear & Quick Feedback

Effortlessly perform rapid system checks and clear codes with the "Clear Code" feature on the Health Report interface, all with a single tap. Use the Quick Feedback option to report issues directly to technical support, giving you instant access to essential information and minimizing downtime.

💡Durable, Dependable, and Independent

The ArtiDiag600 S features a large, easy-to-read display for seamless data viewing and analysis. Built for durability, it is shock-resistant and waterproof, making it ideal for rugged environments. Additionally, it operates independently, allowing you to perform diagnostics and generate reports without concerns about battery life or connectivity issues.

Specifications

Display Screen: 1280*720 Touchable Screen

CPU: 4-Core Processor, 1.8 GHz, Android 11.0

Memory: 2G RAM, 32G ROM

Battery: 3350 mAh/3.7 V

Input Voltage Range: 9-18 V

Working Temperature: -10℃ to 50℃ (14℉ to 122℉)

Storage Temperature: -20℃ to 70℃ (-4℉ to 158℉)

Dimension: 8.9*5.3*1.56 inch (225.15*135.15*39.7 mm)

Net Weight: 578 g (20.39 oz)

Multilingual Support: English, French, German, Spanish, Portuguese, Russian, Japanese, Italian, Simplified/Traditional Chinese, Korean, Polish, Turkish

Please note that vehicle software requires re-downloading after switching the language.

Packing List

1*ArtiDiag600 S

1*OBD-II Diagnostic Cable

1*USB Cable (Type-A to Type-C)

1*Quick User Guide

1*Carrying Case
