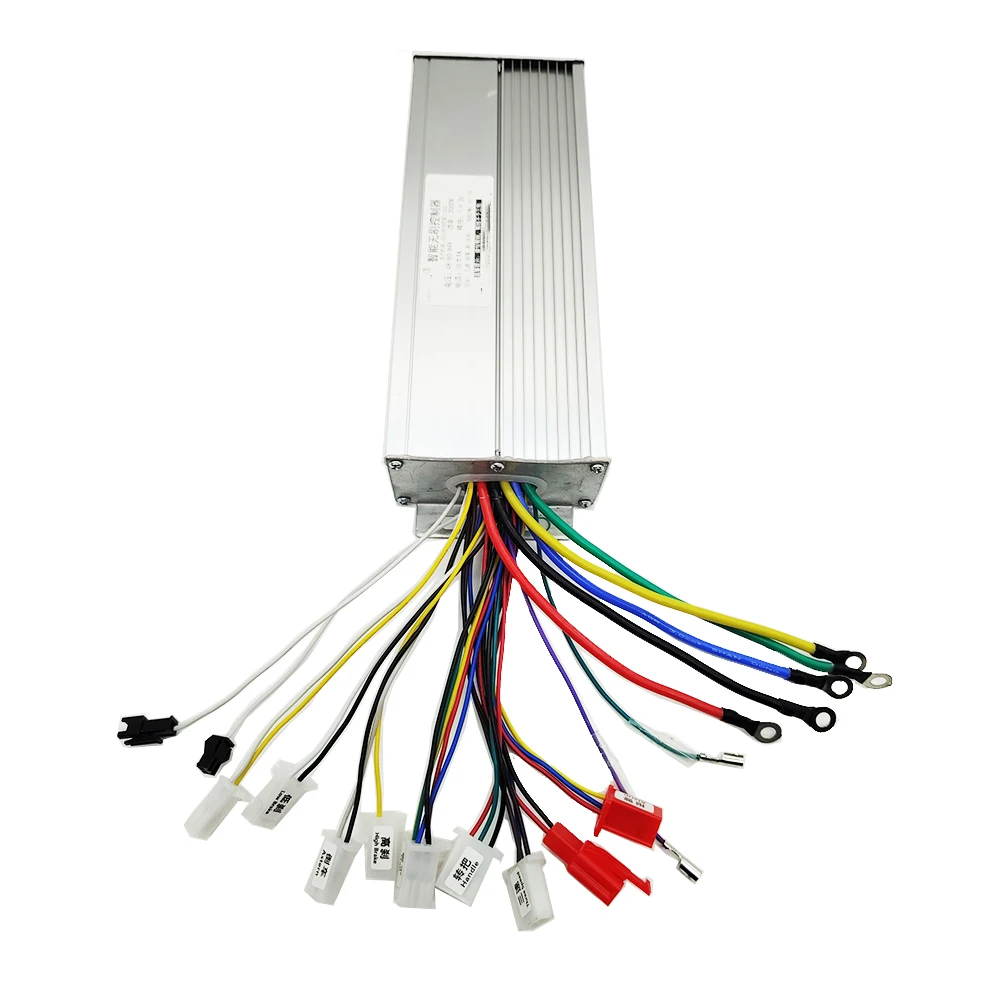

48V/60V/64V 2000W Square Wave Brushless Controller 18mos 45A for Electric Bike/Trycycle/E-Scooter/BLDC Motor
Return&refund policy
Eligible items are covered by return and refund support. If the item does not arrive or is not as described, the buyer can request help.
Security & Privacy
Safe payments: We do not share your personal details with any third parties without your consent.
Secure personal details: We protect your privacy and keep your personal details safe and secure.
AI offer for your market
A curated pick based on category, shipping route, delivery speed and popularity in your selected market.
Why this product fits your market
- • Estimated delivery: 7.
- • Strong customer signal: 5.0★ from 5 reviews.
- • Recommendations focus on this product category and your market availability.
Product specifications
Detailed product description
This product is shown with available options, market-specific pricing and verified specifications.
- Brand: NONE
- Sales: 14
- Package size: 25 × 12 × 8 cm
- Package weight: 1.1 kg
- Rating: 5.0 / 5
Before adding to cart, choose an available option and check the quantity.
48-64V 2000W square wave brushless controller
Rated Voltage: 48V-64V
Low Voltage: 42V±0.5V
Rated Power: 2000W
Limit Current:45A

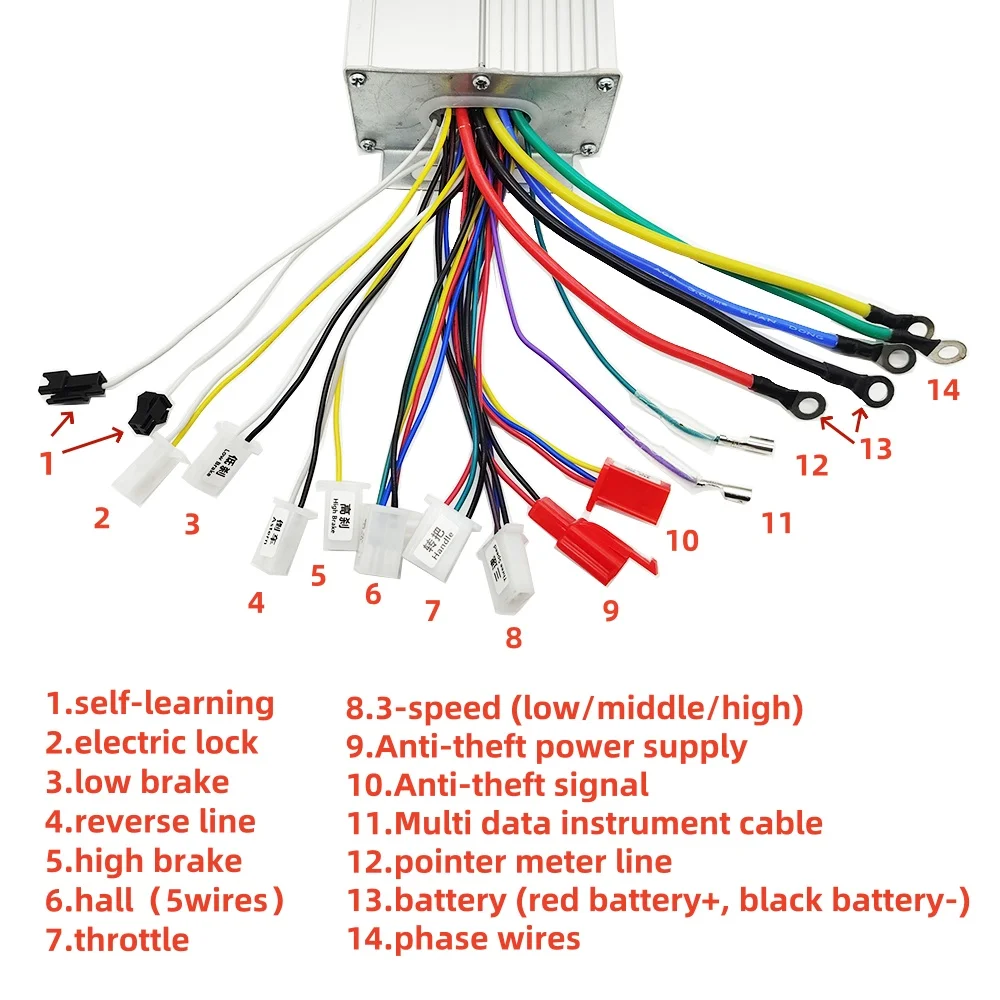

1.self-learning
2.electric lock
3.low brake
4.reverse line
5.high brake
6.hall（5wires）
7.throttle
8.3-speed (low/middle/high)
9.Anti-theft power supply
10.Anti-theft signal
11.Multi data instrument cable
12.pointer meter line
13.battery (red battery+, black battery-)
14.phase wires
how to connect line?
1.connect the phase wires
2.connect hall wires(color to color connection，if motor without hall line, don't need connect hall line）
3. connect the battery line(red:battery +, black:battery-)
4. connect the controller throttle line to throttle, controller electric lock connect to throttle electric lock
（if throttle not have electric lock,the electric lock 2 wires of the controller can be docked together,let they short）
5.off power,let two self-learning lines connect together,open power,the wheel will forward or reverse.
(1.if wheel forward,Separate the self-learning line.
2.if wheel reverse, Separate the self-learning line.then let two self-learning line connect together again，
if wheel forward,Separate the self-learning line.)
The self-learning step is to enable the controller to match the motor phase
adjust the direction of motor operation, and also adapt to the battery voltage
note：when use throttle control speed,two self-learning lines must separate.
6.other functions can be connected as needed.
