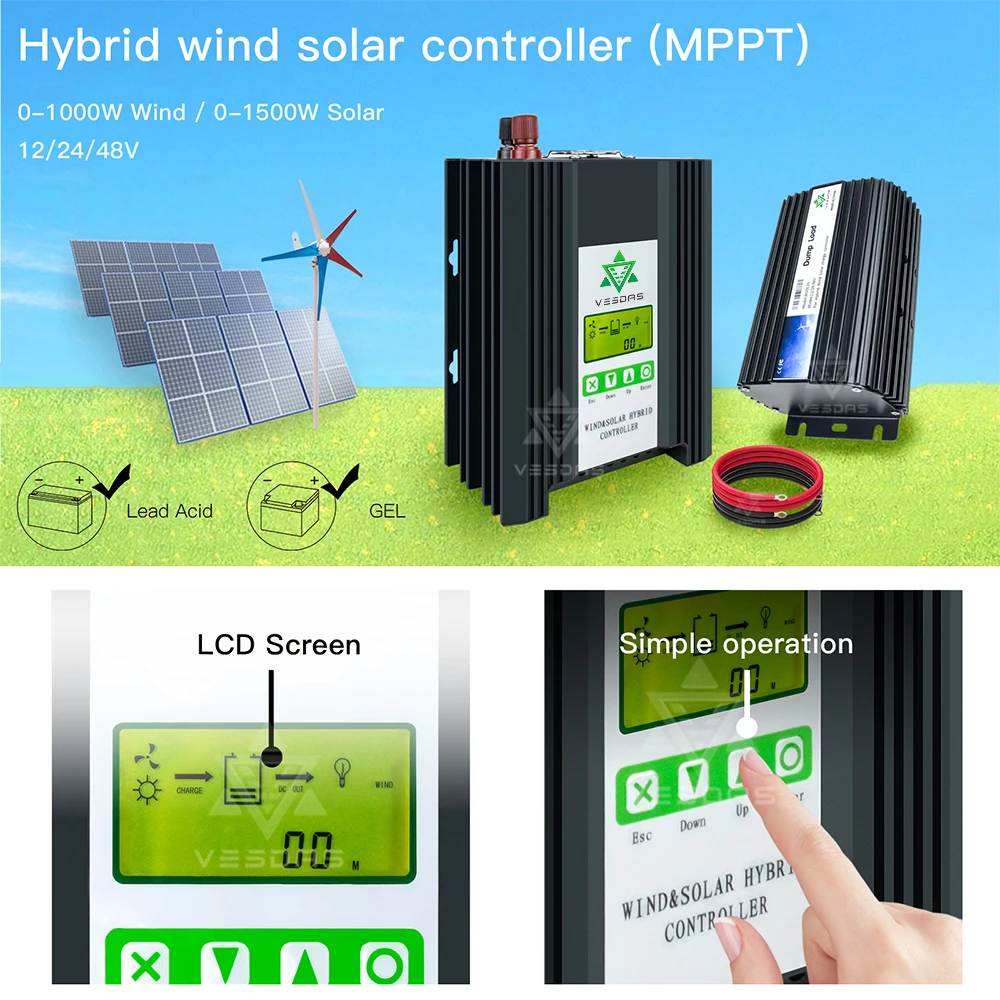

MPPT 2500W 48V Boost & Buck Wind Solar Hybrid Controller Wind 1000W & Solar 1500W Best Heat Dissipation Design with LCD display
Return&refund policy
Eligible items are covered by return and refund support. If the item does not arrive or is not as described, the buyer can request help.
Security & Privacy
Safe payments: We do not share your personal details with any third parties without your consent.
Secure personal details: We protect your privacy and keep your personal details safe and secure.
AI offer for your market
A curated pick based on category, shipping route, delivery speed and popularity in your selected market.
Why this product fits your market
- • Estimated delivery: 7.
- • Recommendations focus on this product category and your market availability.
Product specifications
Detailed product description
This product is shown with available options, market-specific pricing and verified specifications.
- Brand: VESDAS
- Package size: 36 × 31 × 13 cm
- Package weight: 4 kg
- Rating: 0.0 / 5
- Color: Wind1000W Solar1500W
Before adding to cart, choose an available option and check the quantity.
Intelligent Wind Solar Hybrid Controller is special designed for hybrid wind solar power system charge for low-power street lamp, monitoring etc. It can be flexibly installed in cruise ships, RVs, and land indoors.
Advantage
1.48V match for 0-1000W wind, 0-1500W solar system.Wind turbine charging adopted boos and buck MPPT technology, which makes under low wind speed, the Wind turbine's electricity can still be used.

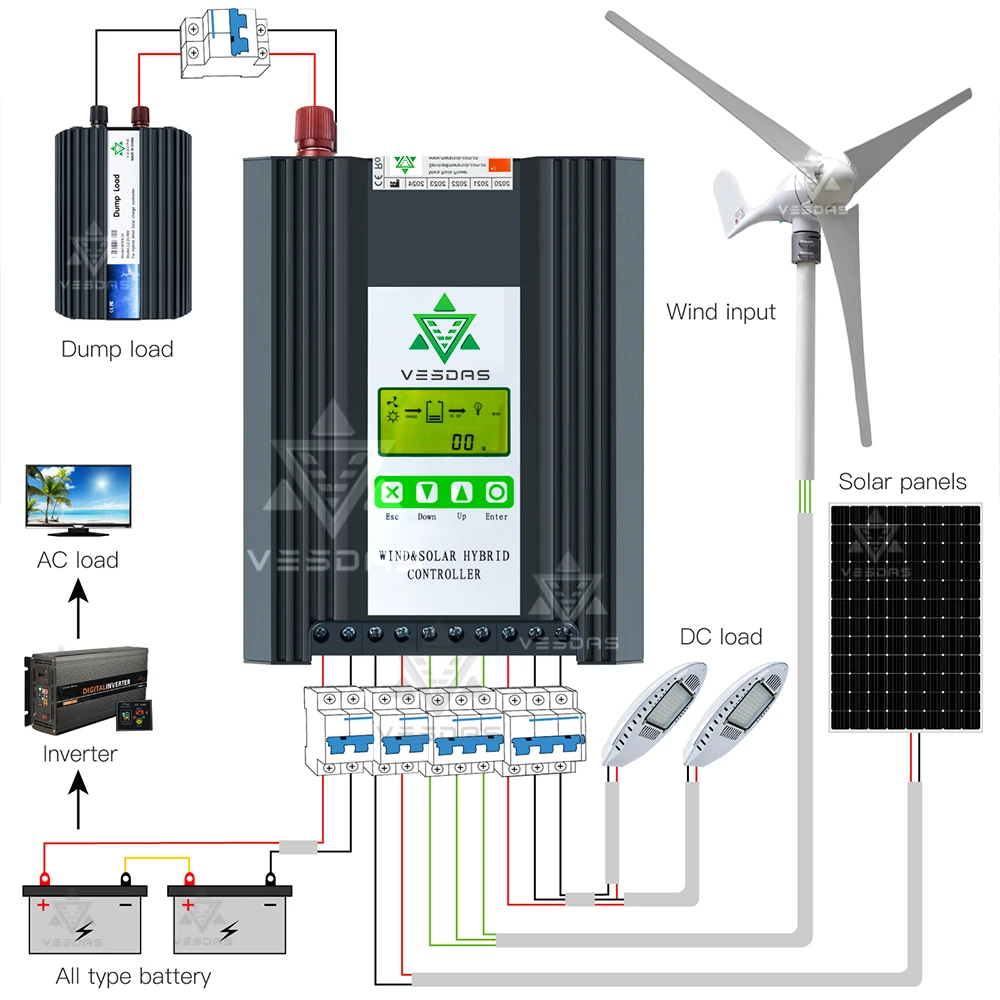

2.The controller is provided with two-channel DC output interfaces, and each channel has a maximum output current 10A; for each channel, user can independently set three kinds of different output modes, namely, light-controlled on/off, light-controlled on/timecontrolled off, and normally open.
3.The controller is provided with MPPT (maximum power point tracking) function.This controller can used for GEL and lead-acid battery.
4.The controller is provided with a unique solar charging circuit, with a small loss and heat, which is of open-circuit unloading mode, so as to effectively prolong the solar cell's service life.
1.The controllers with perfect protection function, including: lightning counter-attack, solar charger, over-voltage automatic braking, storage battery reverse connect and open protection, etc.

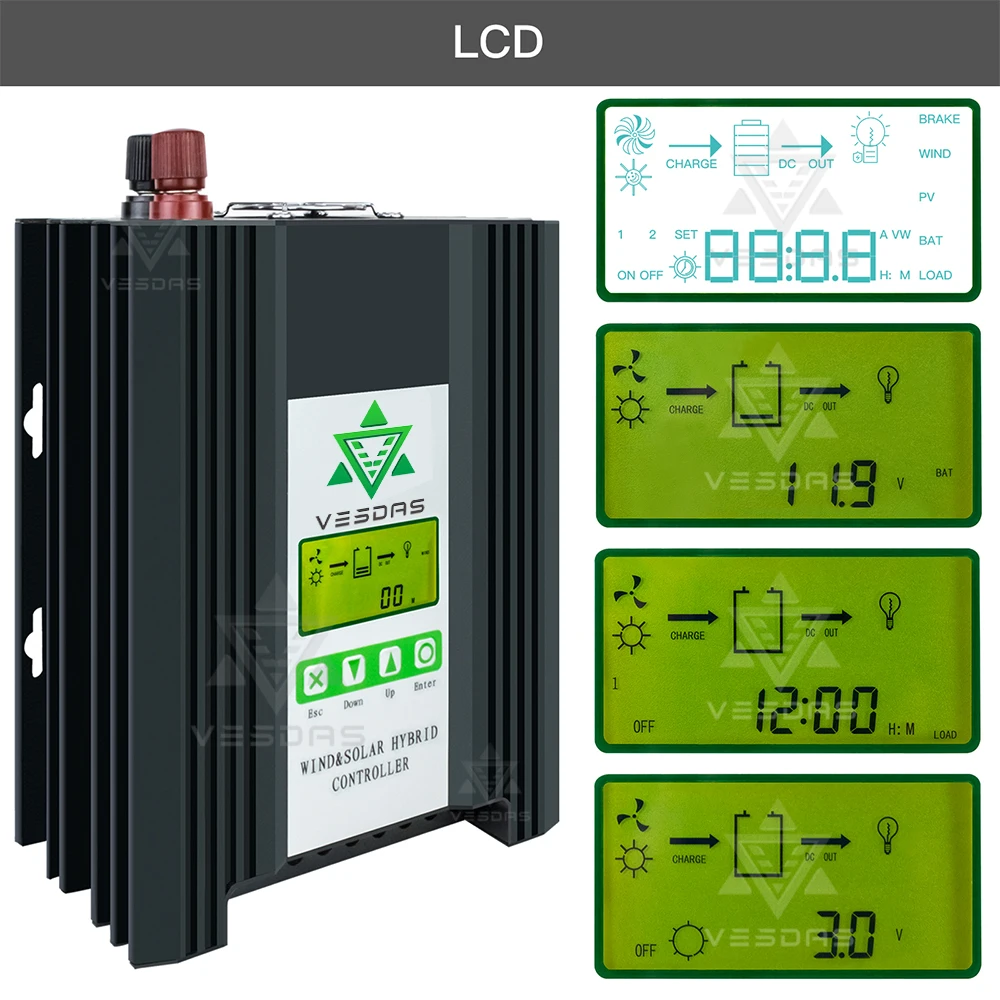

2.It is workable for GEL, Lead-acid battery with full charge and discharge protection. Large size LCD screen is convenient for parameter(from solar, wind and battery) query.
Model
WSB900
WSB1600
WSB2500
System Voltage
12V
24V
48V
Solar Module
Voc
30V
60V
105V
Vmp
>Vbat+1V
Imp
30A
Workable Power
0W~500W
0W~1000W
0W~1500W
Wind Turbine
Rated Voltage
400W
600W
1000W
Rated Current
0W~400W
0W~600W
0W~1200W
DC Load
Out Power
0W~120W
(Per one-way)
0W~240W
0W~480W
12VDC
24VDC
48VDC
Current Max
20A(10A*2)
Battery
Max Charging
Special Note: No one-key restore function, please do not modify preset parameters.
Uunder
Over Discharge Voltage
10.8V
21.6V
43.2V
Runder
Over Discharge Return
13.1V
26.2V
52.4V
Uover
Over Charge Voltage
15.5V
31.0V
62.0V
Rover
Over Charge Return
15.0V
30.0V
60.0V
BCV
Increase Charge
14.4V
28.8V
57.6V
Float
Floating Charge
13.8V
