SCULPFUN CAM500 Camera 5MP Pixel 120° Wide-angle Lens with 400*400mm Working Area Suitable for Sculpfun S6/S6 pro/S9/S10/S30

Feature

1. Industrial Camera for Laser Engraver: This industrial assist camera is specially designed for laser engraving machines, which fully matches with the lightburn software. With a true high-definition 5MP, this laser camera can capture clearer images and identify more accurate positioning.

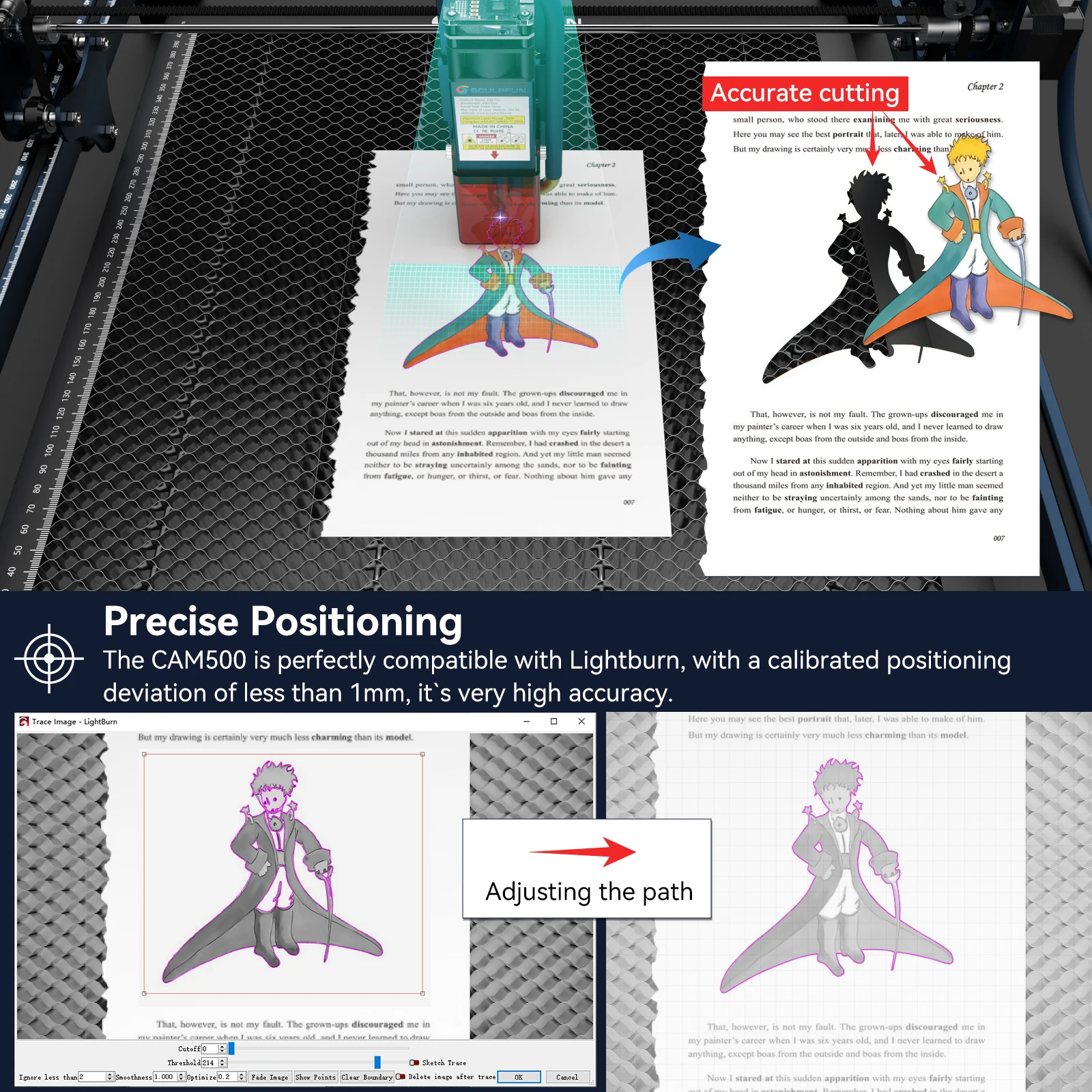

2. Precise Positioning: The SCULPFUN CAM500 camera is perfectly fit with the CAM function of the Lightburn software, which can identify the position of engraving objects via the camera, with a positioning deviation of less than 1mm.

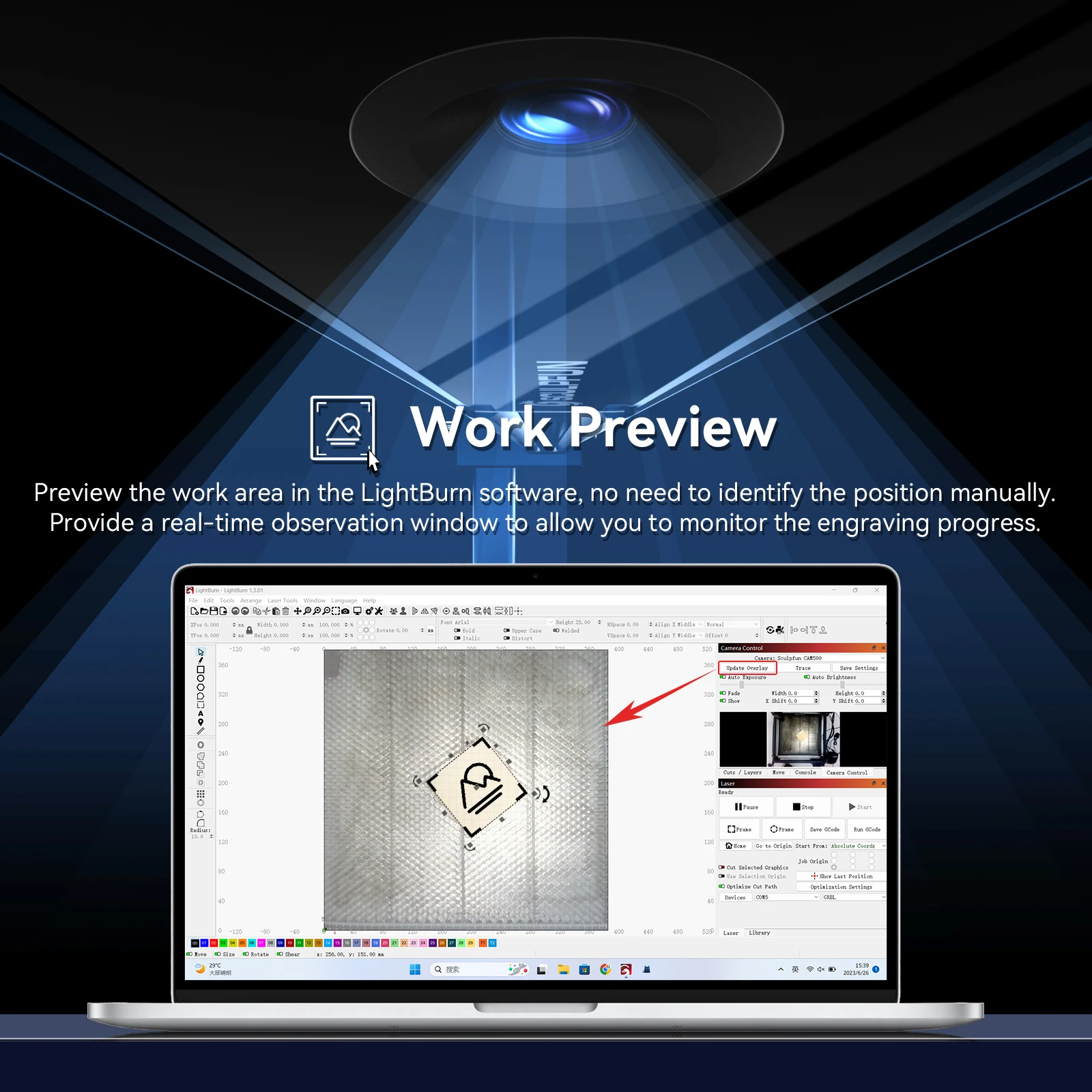

3. Engraving Position Controlling: With the Sculpfun CAM500 Lightburn camera, you can move the pattern onto a certain position of the material through the lightburn software interface. After the setting is complete, the laser machine will engrave the pattern at that position.

4. Image Tracing: CAM500 camera module can identify and extract the patterns from the surface of objects such as T-shirt patterns, children's hand-drawn patterns or other simple designs and form engraving vector files, which is super convenient for getting vector files quickly.

5. Batch Engraving: Through the laser Lightburn camera, you can add multiple engraving objects and complete the different independent tasks at one time, without the need to preview the positioning of each engraving material. The laser will automatically find the engraving objects one by one and work on them, which improves the working efficiency.

6. HD Video Recording: This laser engraving camera has a 120° wide-angle lens with a working area of 400*400mm. It can record the entire creation process of works through camera time-lapse shooting, easy for you to share the creative process with friends. And also makes the engraving and cutting visible and observable.

7. High Adaptability: 2 fixation structures, T-shaped fixation clamp and U-shaped fixation clamp. T-shaped fixation clamp is suitable for SCULPFUN machine models including S6,S6 pro,S9, S10, S30/S30 Ultra series and almost all engraving machines with V-slot structure. Please note that the additional purchased area expansion kit is not applicable. U-shaped fixation clamp is suitable for U-shaped beam machines. Other applicable models: D1PRO, falcon2, LM2 PRO S2, 20PRO 20S, 55, JL3, 3 MAX V2.

Specification

Product Model: SCULPFUN CAM500

Mount Material: Aluminum

Recommended Height from the Camera to the Engraving Position: 325mm

Optimal Working Area: 400*400mm

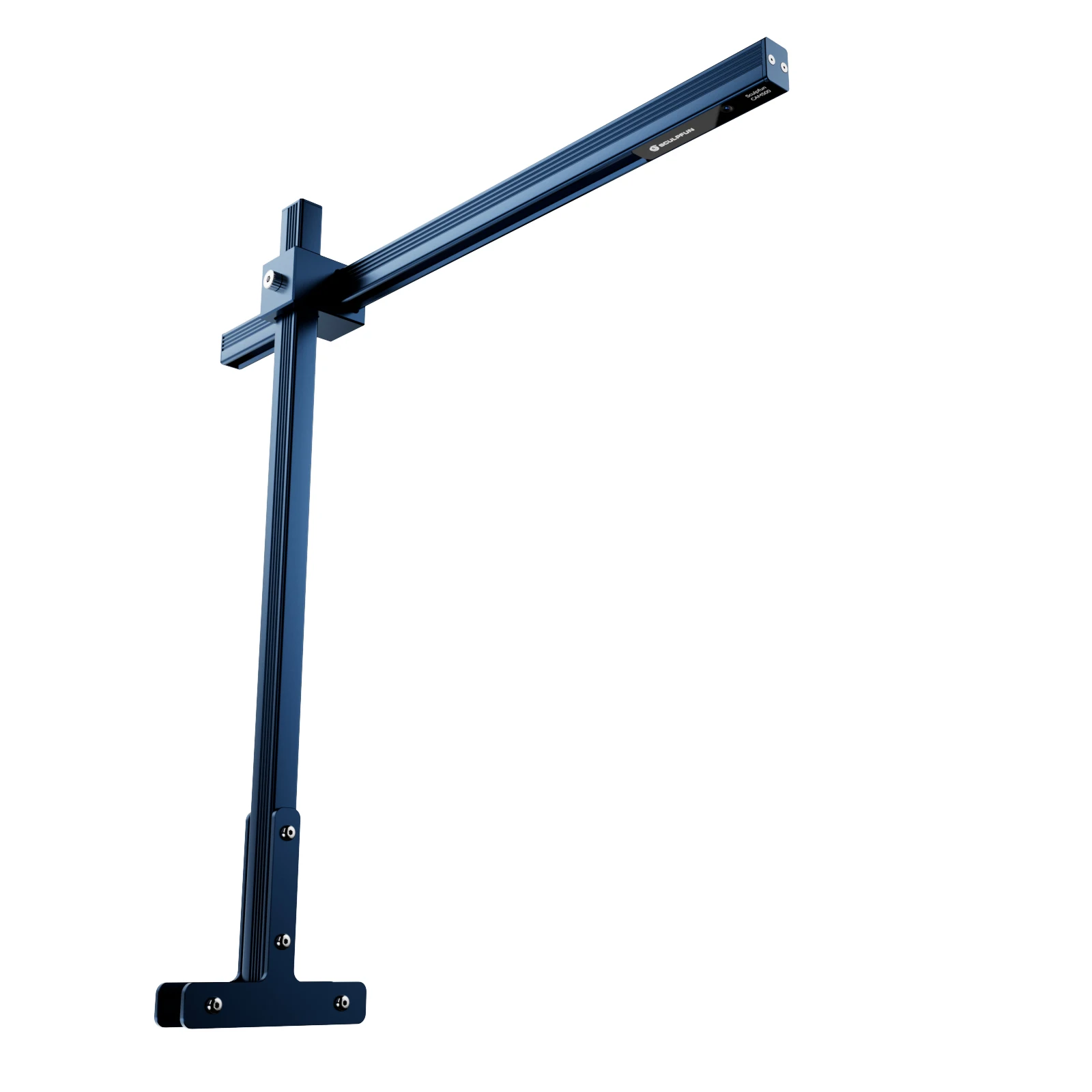

Product Size (Horizontal Rod and Vertical Rod are the same): 400*15*20mm Notice: please allow the variations due to manual measurement!

Compatible System: win7/win10/win11/mac (Notice: For better product usage experience, we recommend to use with the system win7 later version)

Camera Parameter

Pixel: 5MP

Color Image Sensor: 1/4-inch CMOS

Maximum Resolution: 2592*1944

Pixel Size: 1.4um*1.4um

Focal Length: 1.79mm

Focusing Mode: Fixed Focus

Fixed Focus Distance: 325mm

Viewing Angle Width: 120°

Aperture: F2.4

USB Interface: USB 2.0

Package Weight: 0.8KG/28.2oz

Package Size: 462x180x55mm/18.1x7x2.1in

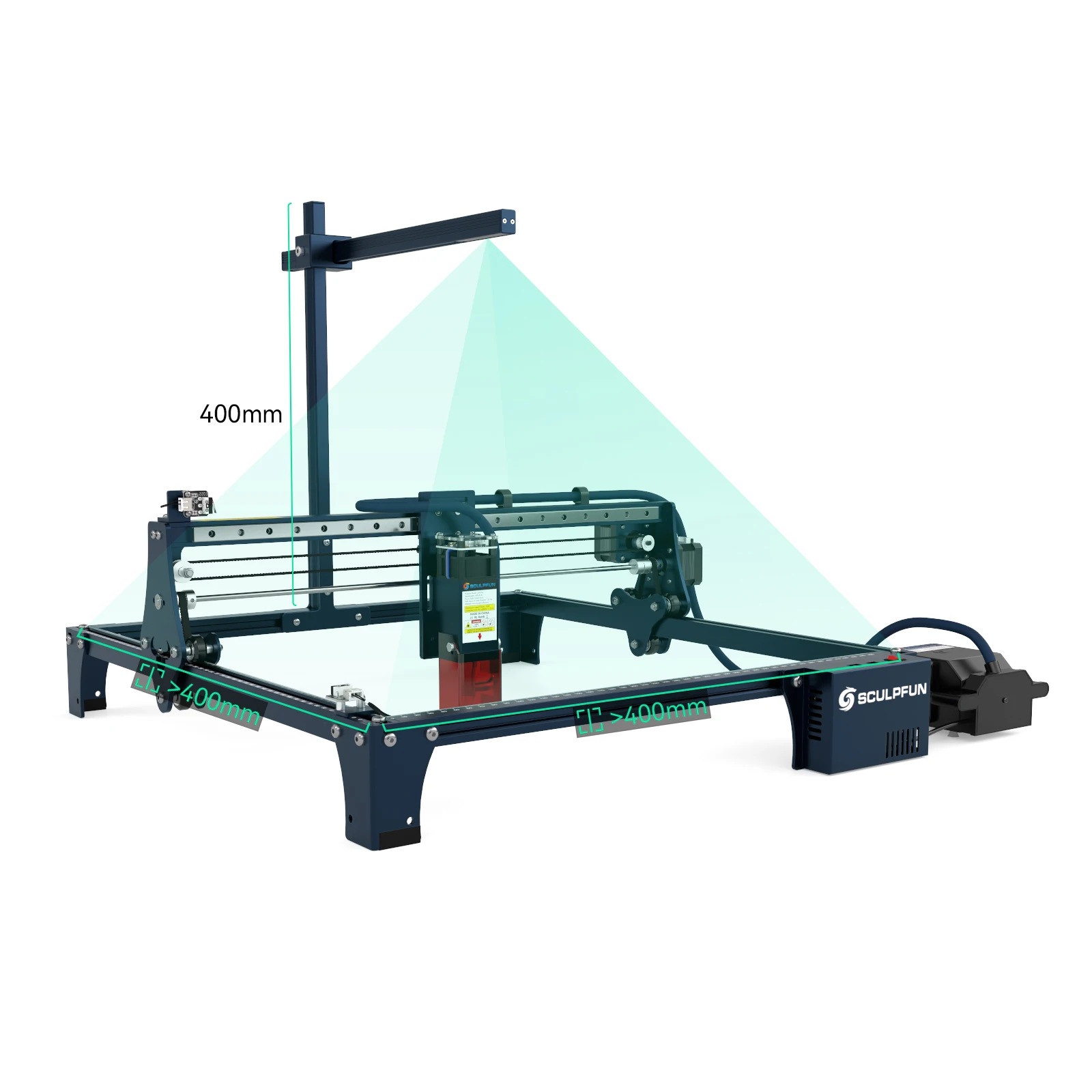

Note: The recommended height from the camera to the engraving position is 325mm. With the camera well aligned, please make the objects as close to the center of the camera as possible, within the 400*400mm working area. The precision will be decreased as the engraving objects are moved away from the camera center.）

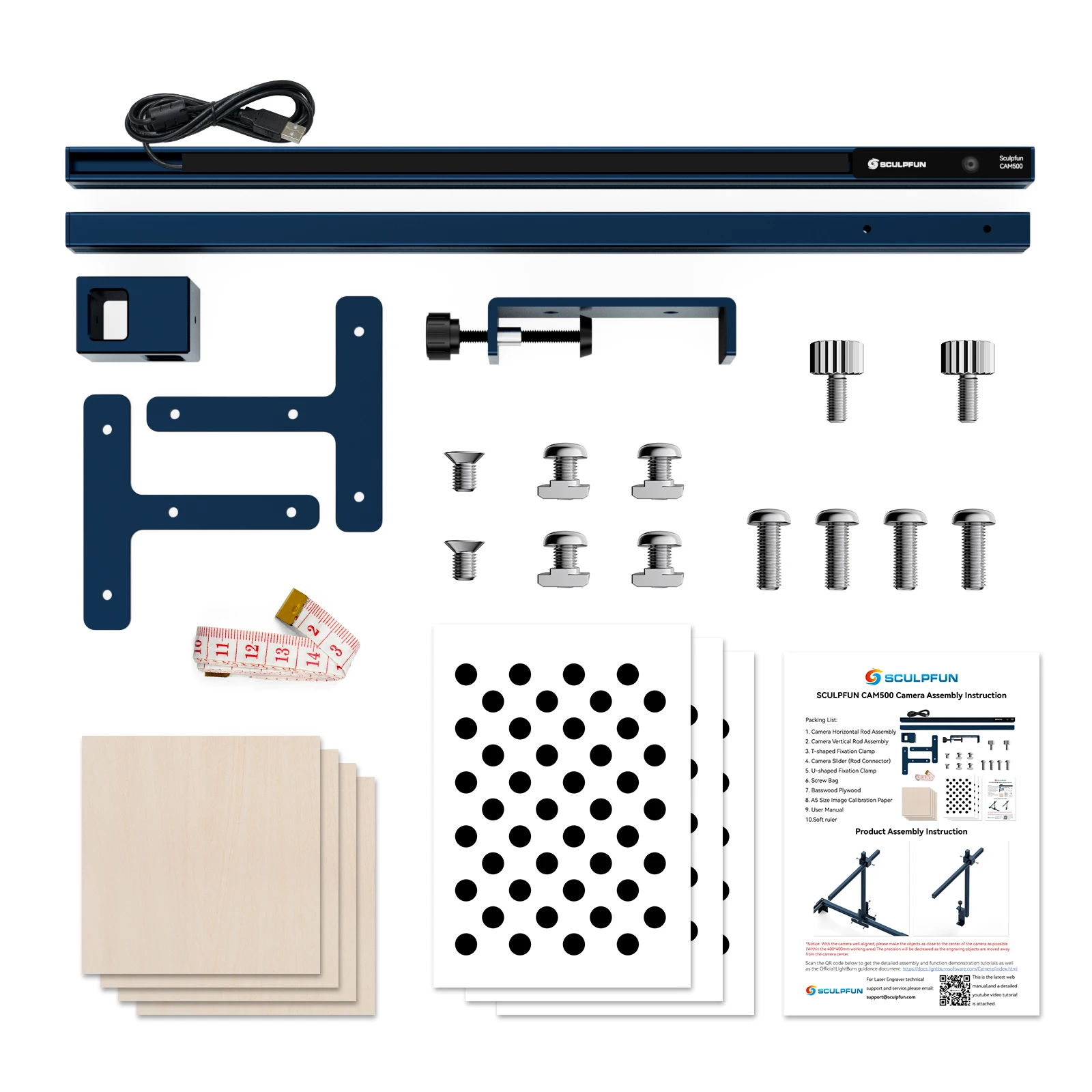

Packing List

1 x Camera Horizontal Rod Assembly

1 x Camera Vertical Rod Assembly

1 x T-shaped Clamp Assembly

1 x Camera Slider (Rod Connector)

1 x U-shaped Clamp Assembly

1 x Screw Bag

4 x Basswood Plywood

3 x A5 Size Image Calibration Paper

1 x User Manual

1 x Soft Ruler
