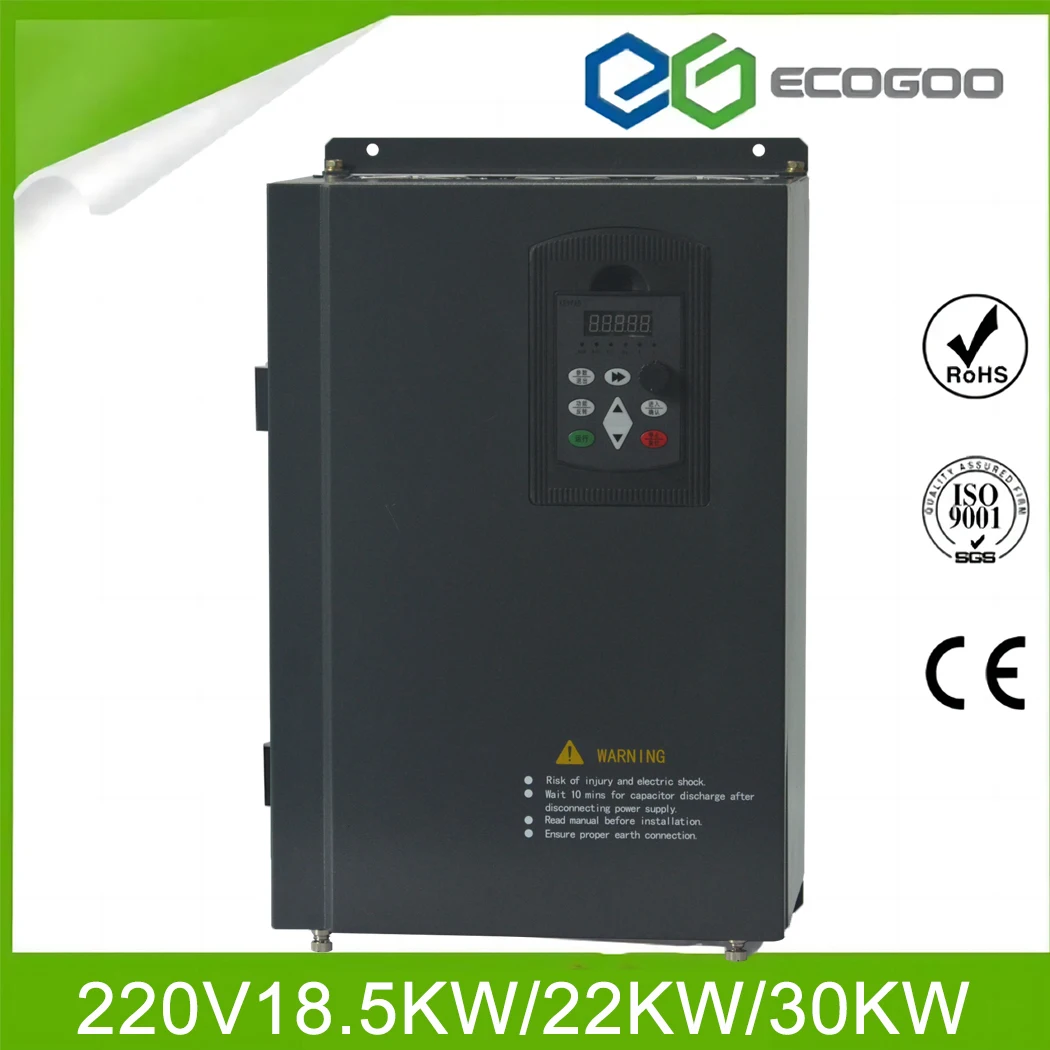

AC 220V 22KW/30KW 1/3 Three phase input 3 phase output frequency converter for motor Speed Controller 50HZ 60HZ inverter drives
Return&refund policy
Eligible items are covered by return and refund support. If the item does not arrive or is not as described, the buyer can request help.
Security & Privacy
Safe payments: We do not share your personal details with any third parties without your consent.
Secure personal details: We protect your privacy and keep your personal details safe and secure.
AI offer for your market
A curated pick based on category, shipping route, delivery speed and popularity in your selected market.
Why this product fits your market
- • Estimated delivery: 7.
- • Strong customer signal: 5.0★ from 1 reviews.
- • Recommendations focus on this product category and your market availability.
Product specifications
Detailed product description
This product is shown with available options, market-specific pricing and verified specifications.
- Brand: ECOGOO
- Sales: 3
- Package size: 23 × 21 × 20 cm
- Package weight: 3.5 kg
- Rating: 5.0 / 5
Before adding to cart, choose an available option and check the quantity.
Output Power:11kw/15kw /18.5KW/22KW/30KW
Rated Frequency:50hz
Rated Current:42A/55A/70A/80A/110A
Output Frequency Range:0~650Hz
Input Voltage Range: 1 phase 220V±15% /3 phase 220V±15%
Output Voltage Range:3 phase 0-220V
Control way: Open loop vector control(SVC) V/F control
Starting Torque: G type machine:0.5Hz/150%( SVC)
Basic Function: Speed tracking,PID control,auto speed compensation,AVR,Torque control.time control, multi-speed choice etc
Digital Display/Status ldicator: Display frequency.speed,current.voltage,forward/reverse,fault etc
Main function: Control and adjust the speed of the ac motor
We have sophisticated engineers, scientific producing workmanship and management team with rigorous quality control systems, frequency inverter are equipped with advanced features as below
01 V/F control, vector control and output torque control
02 Built-in RS-485 communication interface
03 Compact size, easy to install
04 With a speed potentiometer and external panel
05 Built-in synchronous control and proportional synchronization control
06 16 speed control modest,Can run automatically
07 Can choice multiple running commands or frequency channel
08 Can be achieve Part or all of the keys locked(Analog potentiometer unlock)
09 Relay normally open or closed and two high configuration output have 100 kinds of ways optional
10 6 digital opto-isolated inputs, 100 kinds of ways optional
11 3 analog input, 1 analog output channel
12 Having textile pendulum frequency function, It can be widely applications for many kinds of textile equipment
13 Built-in user timer / counter
14 Built-in PID regulation function to facilitate the realization of closed loop control of the temperature, pressure and tension.
15 At zero speed time,can be achieve output 0-100% of Adjustable torque,With zero speed brake function,instead foreign inverter application on freight elevator and crane.
