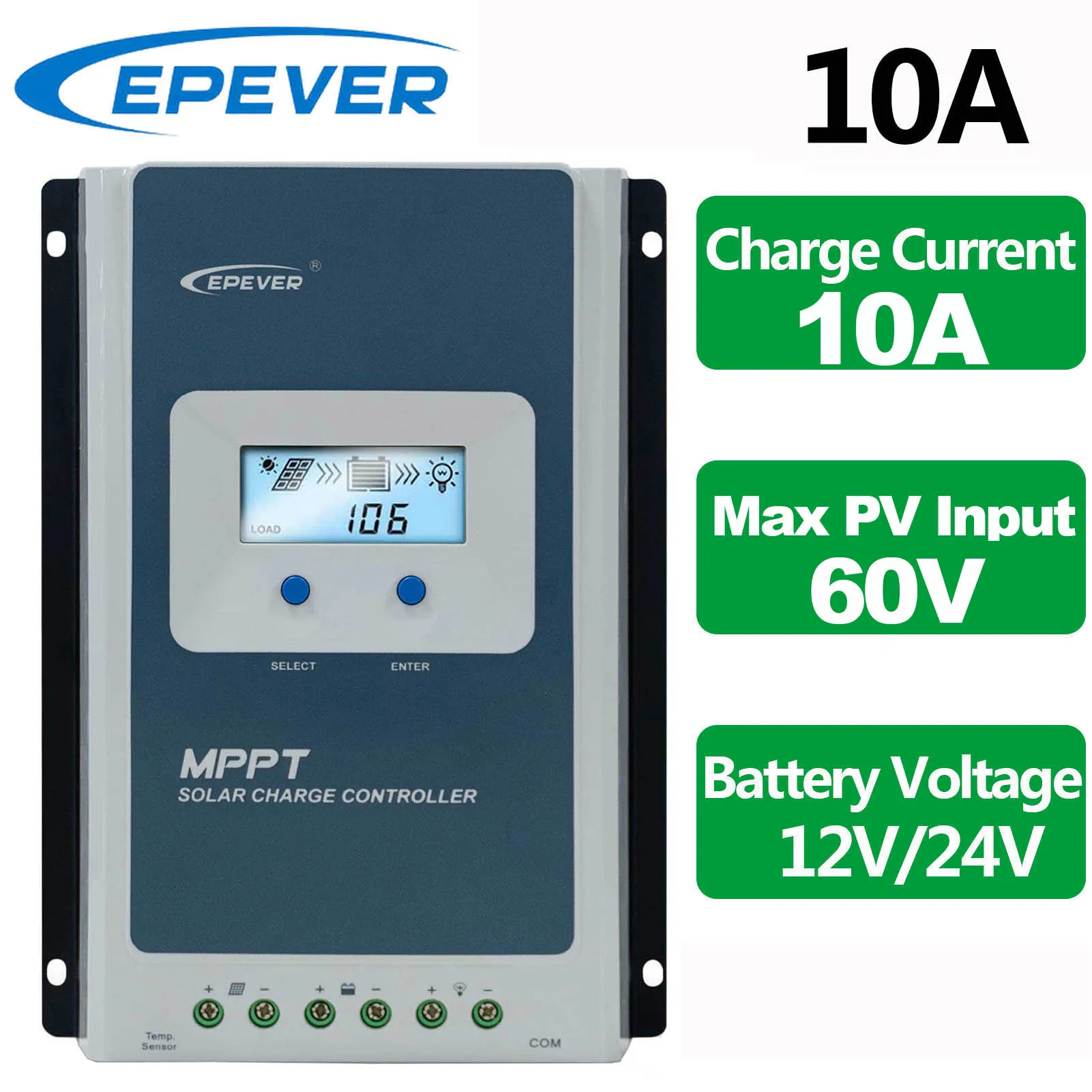

EPEVER 10A MPPT Solar Charge Controller Battery Voltage 12V 24V Max PV Input 60V
Return&refund policy
Eligible items are covered by return and refund support. If the item does not arrive or is not as described, the buyer can request help.
Security & Privacy
Safe payments: We do not share your personal details with any third parties without your consent.
Secure personal details: We protect your privacy and keep your personal details safe and secure.
AI offer for your market
A curated pick based on category, shipping route, delivery speed and popularity in your selected market.
Why this product fits your market
- • Estimated delivery: 7.
- • Recommendations focus on this product category and your market availability.
Product specifications
Detailed product description
This product is shown with available options, market-specific pricing and verified specifications.
- Brand: EPever
- Package size: 20 × 16 × 8 cm
- Package weight: 0.76 kg
- Rating: 0.0 / 5

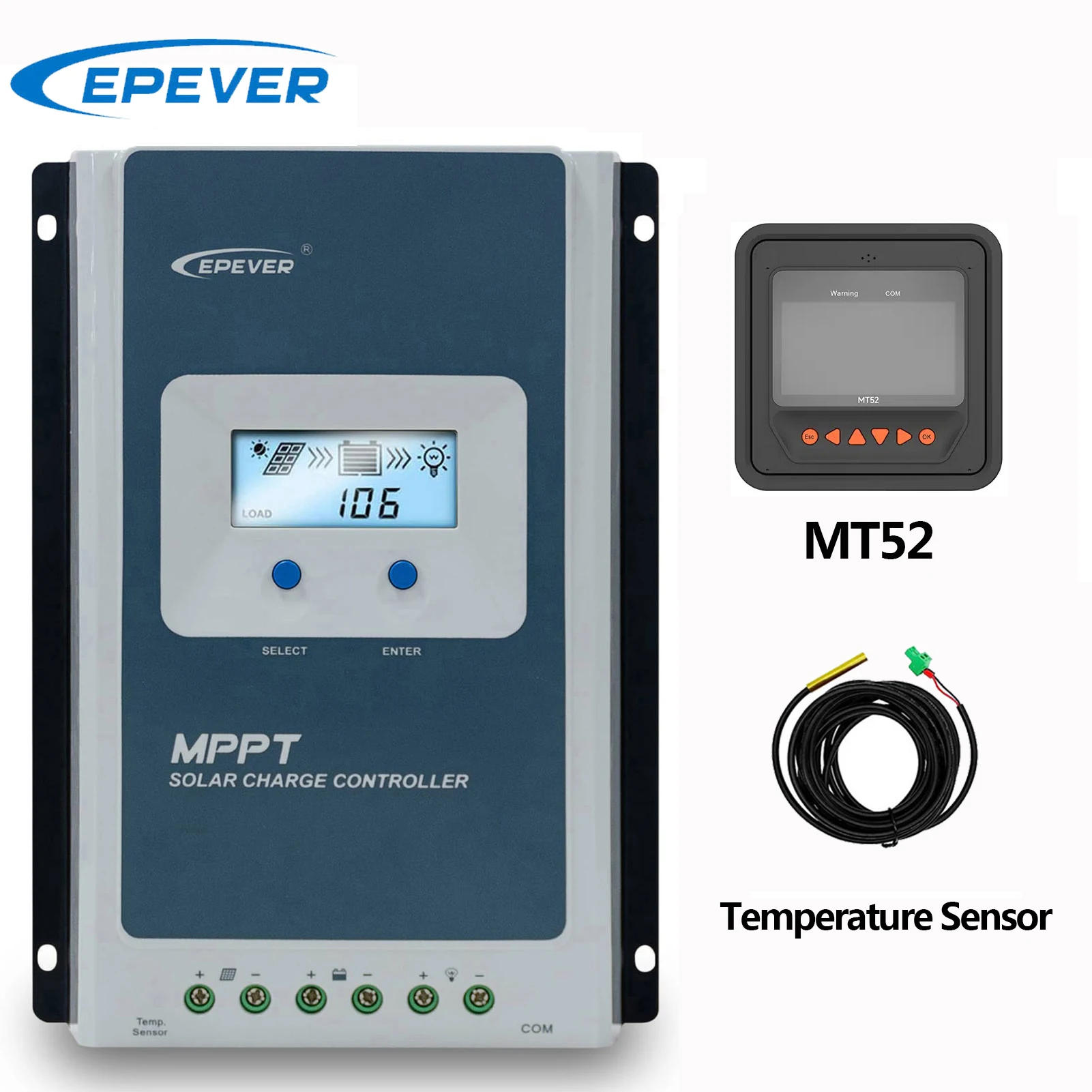

- Color: With Sensor MT52
Before adding to cart, choose an available option and check the quantity.

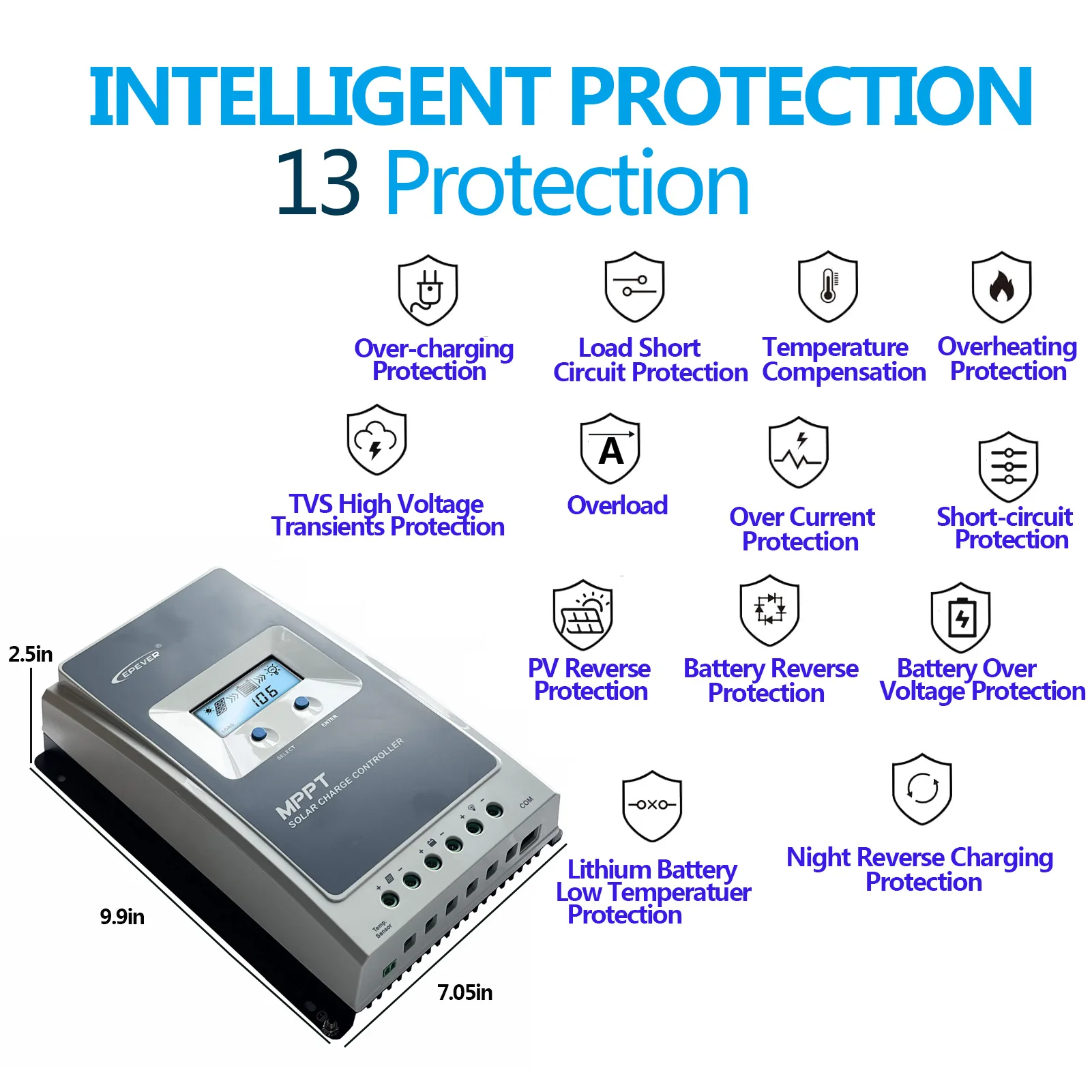

Apply for All Kind Of Protection
PV Over Current PV short-circuit protection
PV reverse polarity protection
Night reverse charging protection
Battery reverse protection
Battery over voltage protection
Battery over-discharging protection
Battery overheating protection
Lithium battery low temperature protection
Load short circuit protection
Overload protection
Device overheating protection
TVS high voltage transients protection
Product Parameters
Model
Tracer1206AN
Tracer2206AN
Nominal system voltage
12/24VDC/Auto

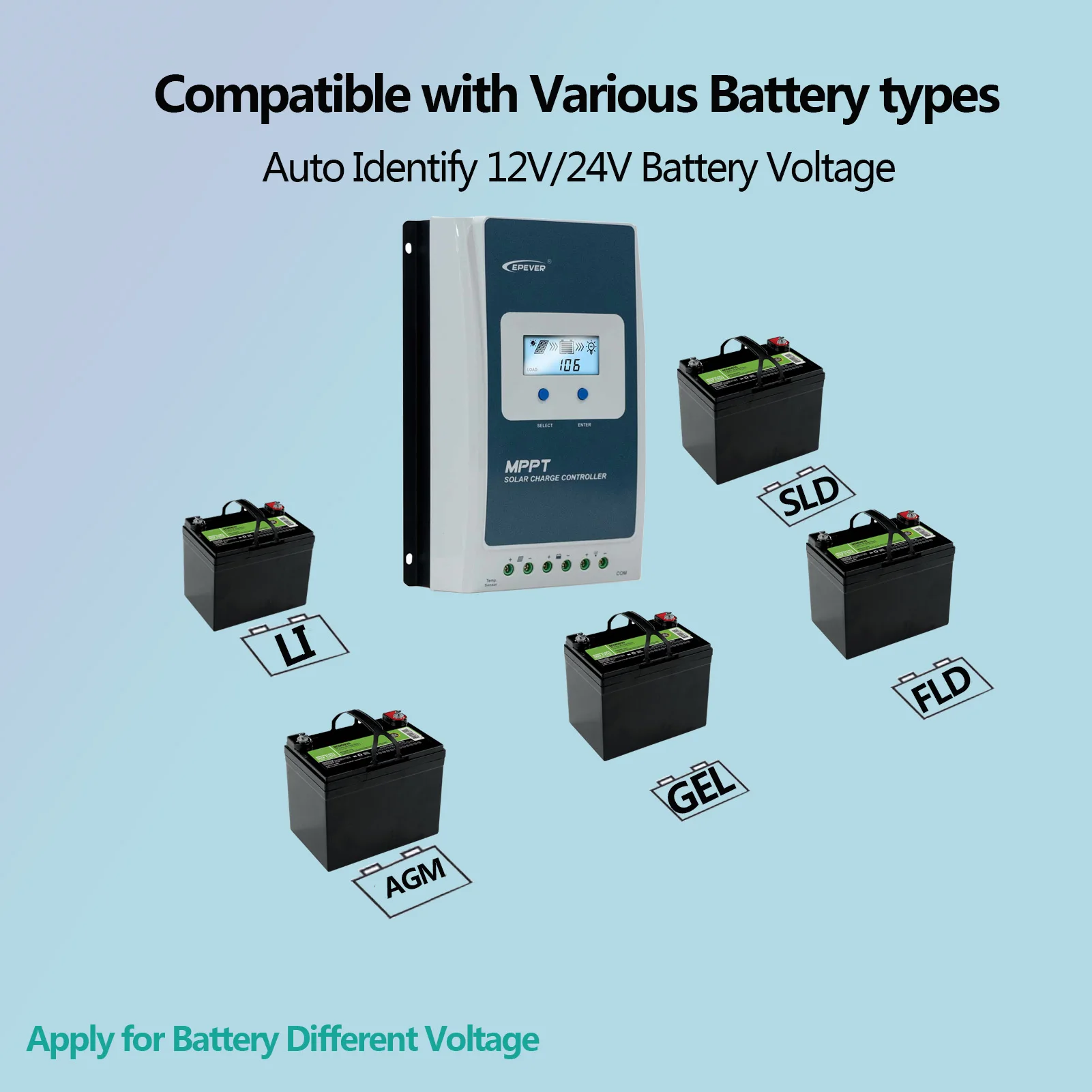

Battery type
Lead-acid(Sealed/Gel/Flooded)/Lithium(LiFePO4/Li(NiCoMN)O2)/User
Battery input voltage range
8~32V
Rated charge current
10A
20A
Rated discharge current
Rated charge power
130W/12V
260W/24V
260W/12V
520W/24V
Max. conversion efficiency
Tracking efficiency
MPP voltage range
(Battery Voltage+2V)~36V
Max. PV open circuit voltage
60V(At minimum operating enviornment temperature)
46V(At 25℃ environment temperature)
Equalization voltage
Sealed:14.6V,Flooded:14.8V,User-defined:9-17V
Boost voltage
Gel:14.2V,Sealed:14.4V,Flooded:14.6V,User-defined:9-17V
Float voltage
Gel/Sealed/Foolded:13.8V,User-defined:9-17V
Low voltage reconnect voltage
Gel/Sealed/Foolded:12.6V,User-defined:9-17V
Low voltage disconnect voltage
Gel/Sealed/Foolded:11.1V,User-defined:9-17V
Self-consumption
Temperature compensation
(for lead-acid battery)
3mV/℃/2V(Default)
Relative humidity
Enclosure
IP30
Communication interface
RS485(RJ45)
Grounding
Common Negative
Operating temperature range
25℃~+45℃(100% input and output)
Dimensions(LxWxH)(mm)
172 x 139 x 44
220 x 154 x 52
Net weight
0.57kg
0.94kg
High quality and low failure rate components of ST or IR to ensure the service life
100% charging and discharging in the environment temperature range
Standard Modbus communication protocol based on the RS485 communication bus, making the communication distance longer
A power protection chip, which can provide 5VDC/200mA power and over-current, short-circuit protections, is adopted by the communication interface
Support monitoring and setting the parameters via the APP or PC software
Comprehensive electronic protection
For the BCV, FCV, LVD, and LVR, users can modify them on the local controller when the battery type is "USE."
Product Features
