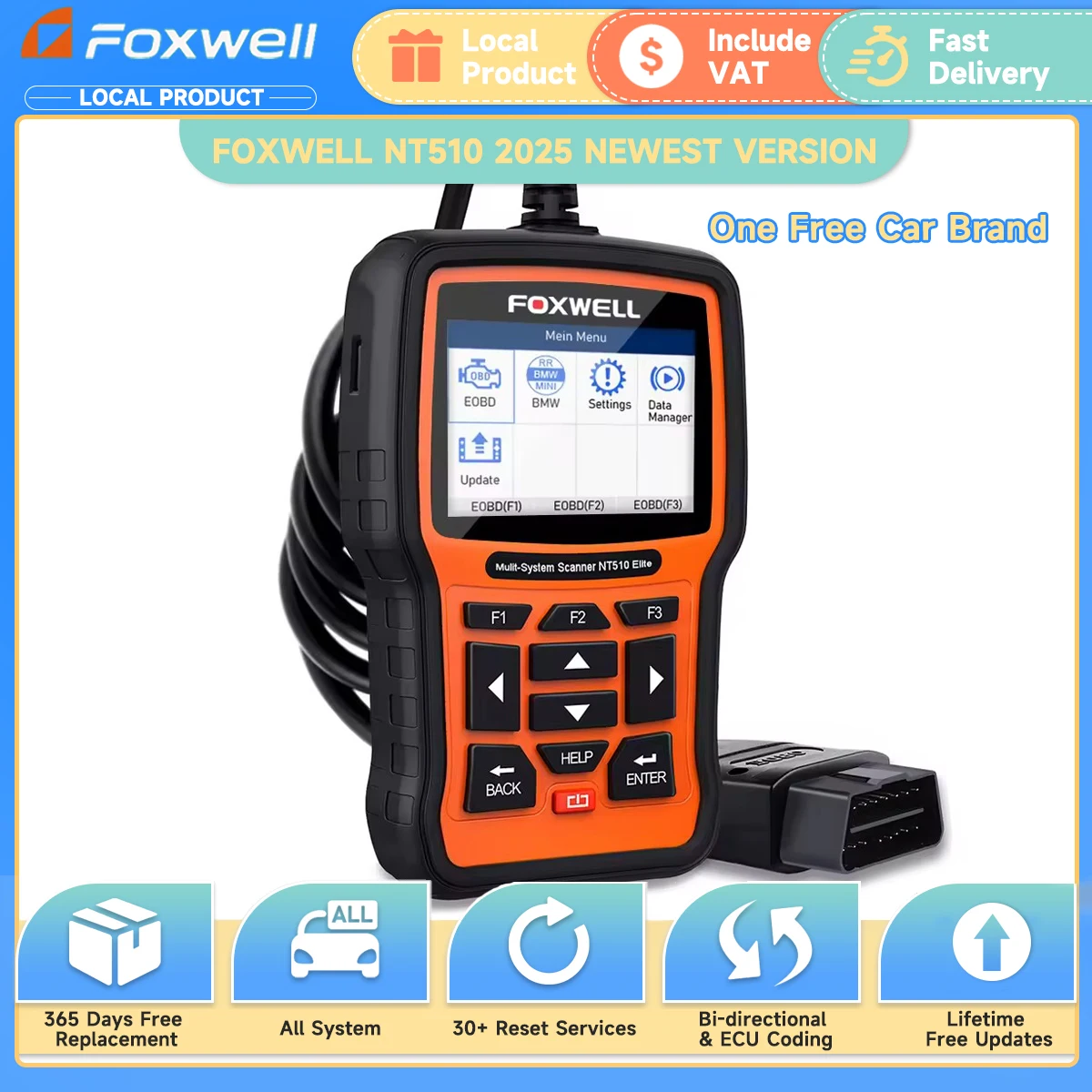

FOXWELL NT510 Elite OBD2 Car Scanner Tools Bi-Directional All System Code Reader 30+ Reset OBD 2 Automotive Diagnostic Scan Tool

2025 Enhanced FOXWELL NT510 Elite

FOXWELL NT510 Elite Scan Tool is the most cost-effective professional codes reader for enthusiasts, small garages, independent repairs, specialized garages and technicians by delivering OE-level diagnosis on all the electronic systems.

Main features

1. Diagnostics for all systems. The NT510 Elite lets you scan all the available systems for problems. From the engine and transmission to the ABS, SRS, EPS, wheels and every other on-board system.

2. Full OBD2 Check,the Foxwell NT510 Elite will display and clear generic codes in all the available systems. Just as important, it allows you to view freeze frame data so that you know when a code was registered. And you can also pull live sensor data to check the health and performance of various components.

3. Many reset functions. First of all, you can use the NT510 Elite to reset (turn off) the Check Engine Light. The same goes for all other warning lights. In addition to that, it supports oil reset, EPB reset, SAS reset, battery reset, DPF reset, TPS reset, ABS bleeding etc.

4. Bi-directional controls. You can initiate bidirectional control tests with the Foxwell NT510 Elite. It will command the component to perform as if the command was from the PCM. For example, you can fold mirrors, roll windows, open/close doors, activate/deactivate brakes using this scanner.

5. Active tests and adaptations. While you won’t actually be able to do coding and programming, you can perform active tests and relearn new components. That means you can use the tool to replace components like battery and sensors and to relearn steering angle position, throttle position etc.

6. Multilingual: support 11 kinds of language, include English, Spanish, Portuguese, French, Swedish, English, Dutch, Japanese, Italian, Russian, German

Please note

Professional Check All Systems ECU Modules

Foxwell NT510 elite-- New generation full systems diagnostic code reader, supports reading codes, clearing codes and live data of all electronic control modules, bringing you cost-effective vehicle diagnosis and maintenance. This car diagnostic scanner can pinpoint the exact issue source from Engine, gearbox, ABS, SRS, EPB, Immobilizer, IC, DSC, HVAC, etc.

Read their ECU version numbers of the tested control units.

Read & erase DTCs to locate trouble areas and clear the codes.

View Live Data of each parameter item.

Multi Maintenance Service——All Free

Maintenance Light Reset: Reset the oil service lamp after changing the engine oil; Re-calculate the optimal oil life change interval for the engine oil maintenance being on schedule.

Steering Angle Reset: Reset the steering angle to zero to keep the car running straight.

Injector Coding: Write the new injector code into the car system for the correct cylinder injection quantity.

Electronic Parking Brake Reset: Help replace and reset the brake pad. - ABS Bleeding: Help exhaust the air in ABS system in an easy way.

Throttle Matching: Initialize the throttle actuators to the default state.

Battery Matching: Register the battery after replacement.

Diesel Particulate Filter Regeneration: Help remove the particulate matter to keep the trap stable.

Anti-theft Matching: Disable any lost keys to prevent the car from being stolen, and add new keys.

Tire Pressure Reset: Reset the tire pressure.

Suspension Level Calibration: Adjust the vehicle body height sensor for level calibration.

Headlight Matching: Initialize the adaptive headlamp system.

Gearbox Matching: Help complete the gearbox self-learning to improve gear shifting quality.

Tooth Learning and EGR Adaption, ODO Reset, Sunroof Initialization, Airbag Reset, Transport Mode, A/F Reset, Stop/Start Reset, NOx Sensor Reset, AdBlue Reset (Diesel Engine Exhaust Gas Filter), Seat Calibration, Coolant Bleeding, Tire Reset, Windows Calibration … still expanding.

Capable of Advanced Functions

Active Test, Actuation, Activation, Adaptation, Initialization, Learn/Relearn, Adjustment and Coding.

Active Tests, also known as Actuator Tests, are bi-directional diagnostic tests on vehicle systems and component. The tests let you to use the scanner temporarily activate or control a vehicle system or component, and when you exit the test, the system/component returns to normal operation. NT510 elite for Honda & Acura cannot only read your codes, but it can also actuate components, run system tests, program control modules. It allows you to use the scan tool temporarily activate or control a vehicle system or component.

NT510 Elite support bi-directional control over various car systems, sub-systems and components and perform active tests(function tests) like ABS brake bleeding, Motor Pump Test to determine the integrity of the system or parts by reading the ECU data or by monitoring the operation of the actuators, such as switching a solenoid, relay, or switch, between two operating states.

Full OBDII Check

The diagnostic scanner featuring the complete 10 functions of OBDII test with Live PCM Data Stream in graphics formats, Read/Clear DTCs and do smog tests, I/M readiness and O2 sensor tests, read freeze frame data, EVAP system test, retrieves vehicle info, Malfunction Indicator Light (MIL), Real time battery voltage and more.

Foxwell NT510 Elite Support Language

Korea, Spanish, Portuguese, French, Swedish, English, Dutch, Japanese, Italian, Russian, German

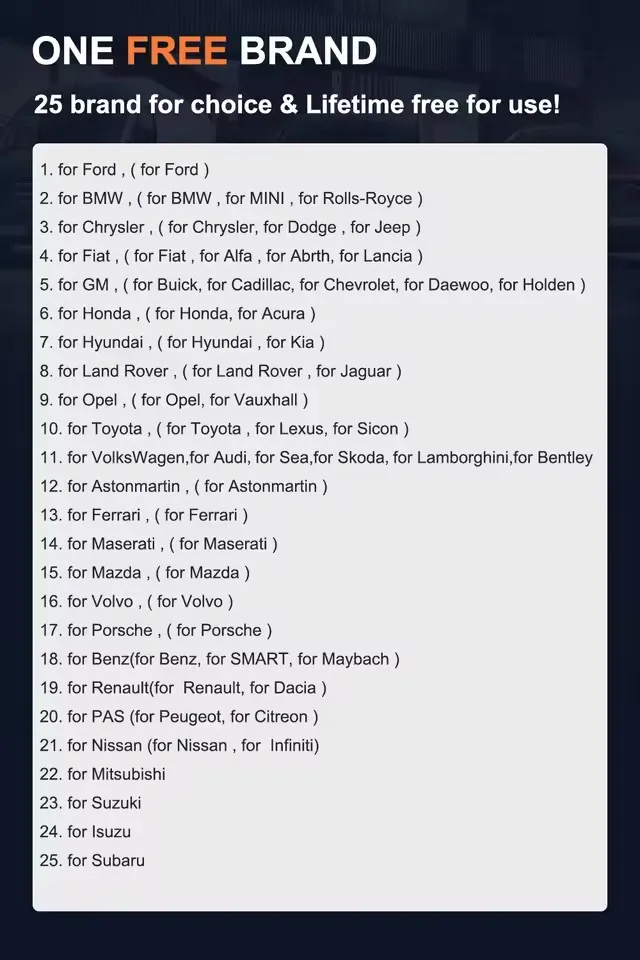

Foxwell NT510 elite Car Software List (updated to 2025)

NOTE: you can choose one brand to installed, or left a message, we can install software for you!

1. for BMW ( for BMW, for MINI, for Roll-royce)

2. for Chrysler ( for Chrysler, for Jeep, for Dodge)

3. for Ford

4. for GM

5. for Honda ( for Honda, for Acura)

6. for Mazda

7. for Nissan

8. for Toyota ( for Toyota, for Lexus, for Scion)

9. For VW （ for VW, for VW_CV, for Audi, for Bently, for Bugatti, for Lanborghini, for Seat, for Skoda)

10. for Volvo

11. for Tesla

12. for Aston Martin

13. for Benz ( for Benz, for Maybach, for Smart, for Sprinter)

14. for Ferrari

15. for Fiat ( for Abrth, for Alfa, for Romeo, for Fiat, for Lancia)

16. for Hyundai ( for Hyundai, for Kia)

17. Land Rover (for Land Rover, for Jaguar)

18. for Maserati

19. for Mitsubishi

20. for Opel

21. for Porsche

22. for Renault (for Renault, for Dacia, for Samsung)

23. for PAS (for Peugeot, for Citroen)

24. for Isuzu

25. for Suzuki

26. for Subaru

27. for Darwoo

28. for Daihatsu

29. for Proton (for Proton, for Perdua)

30. for Ssangyong

31. for TATA

32. for Fuso

33. for Saab

What else can NT510 Elite do?

Data Manage ( Data Record and print )

Live data in 3 graph

Built-in DTC library

Free Update

Best Service for You!
