Motor Actuator 38-61cm Recliner Replacement Motor Actuator Kit Haushalt Sofa PRO DC 24V Electric Linear Actuator
Return&refund policy
Eligible items are covered by return and refund support. If the item does not arrive or is not as described, the buyer can request help.
Security & Privacy
Safe payments: We do not share your personal details with any third parties without your consent.
Secure personal details: We protect your privacy and keep your personal details safe and secure.
AI offer for your market
A curated pick based on category, shipping route, delivery speed and popularity in your selected market.
Why this product fits your market
- • Estimated delivery: 7.
- • Recommendations focus on this product category and your market availability.
Product specifications
Detailed product description
This product is shown with available options, market-specific pricing and verified specifications.
- Brand: NONE
- Sales: 1
- Package size: 47 × 17 × 11 cm
- Package weight: 2.9 kg
- Rating: 0.0 / 5
Before adding to cart, choose an available option and check the quantity.
Specifications

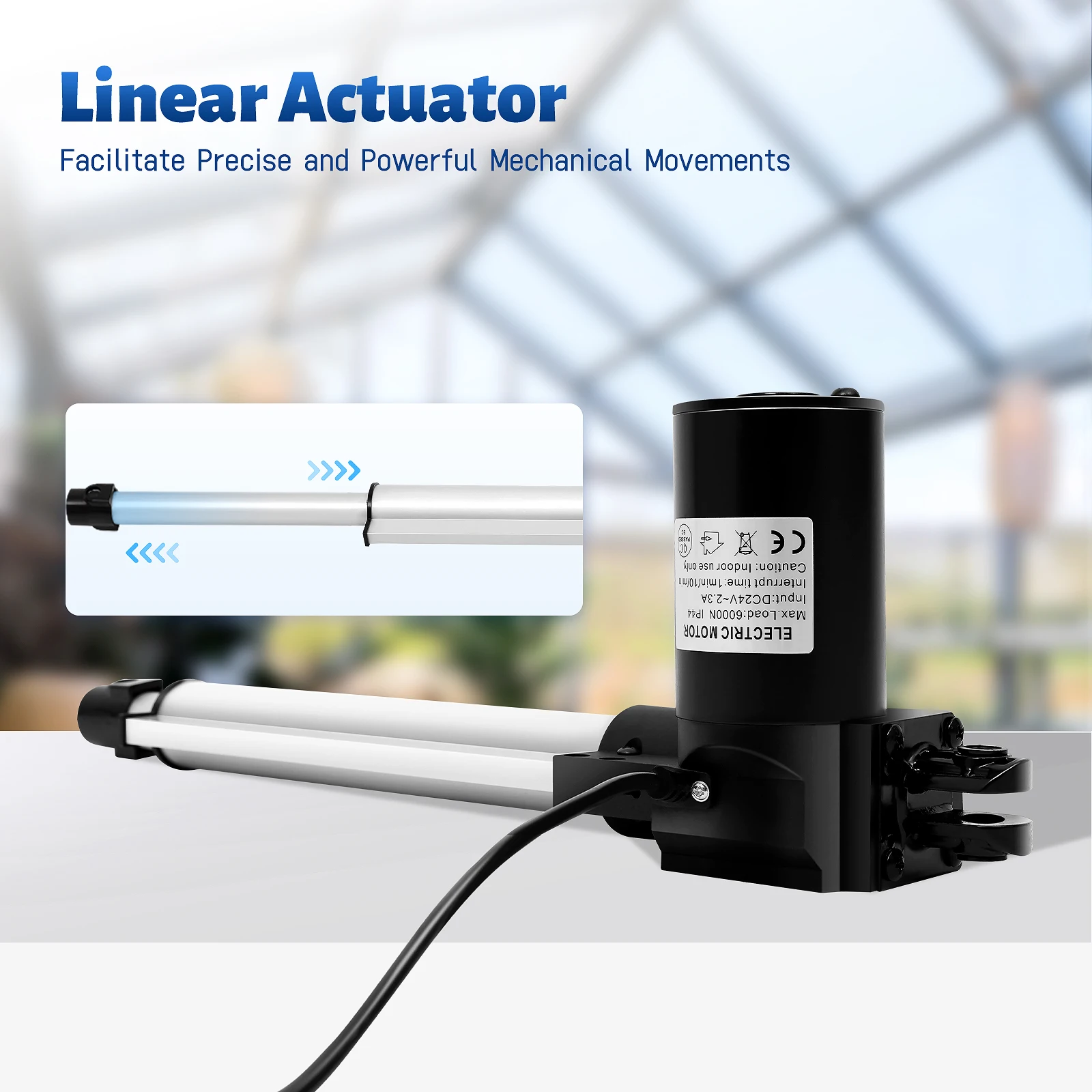

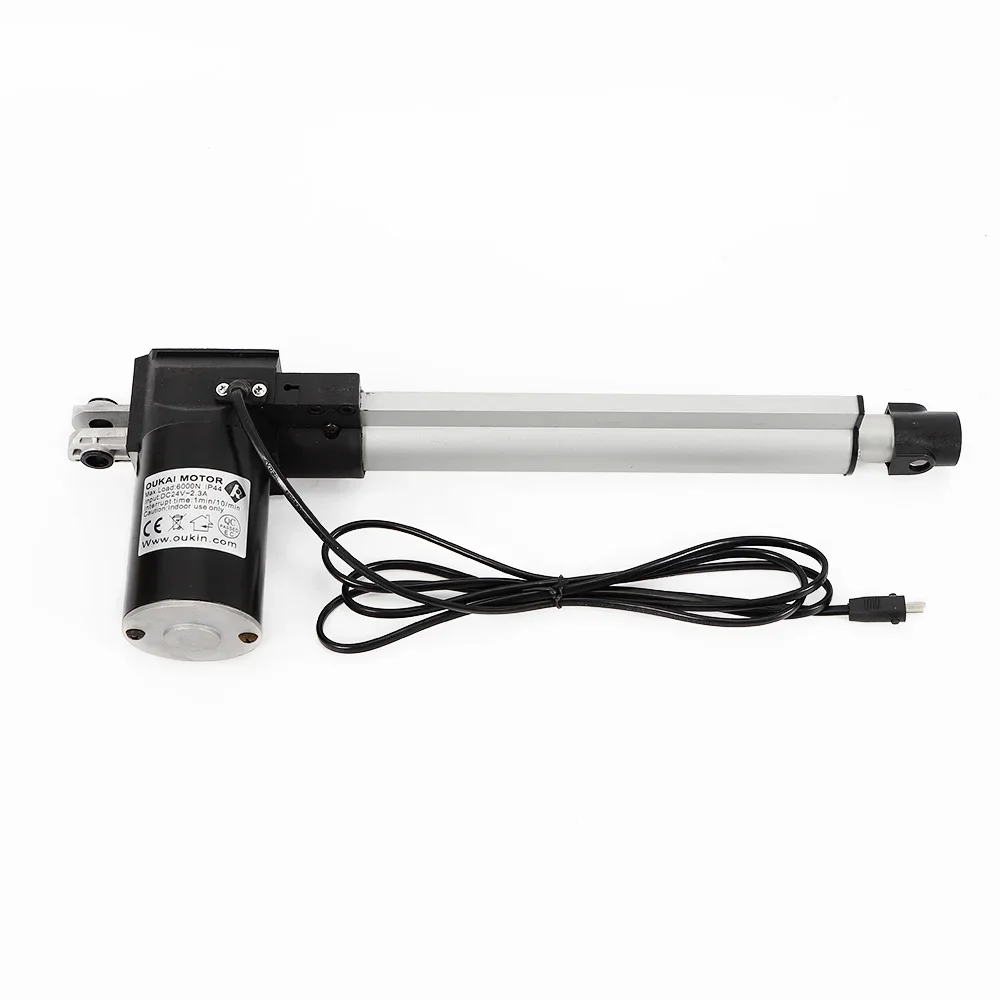

Product: Power Recliner Motor Actuator
Stroke Length: 230mm

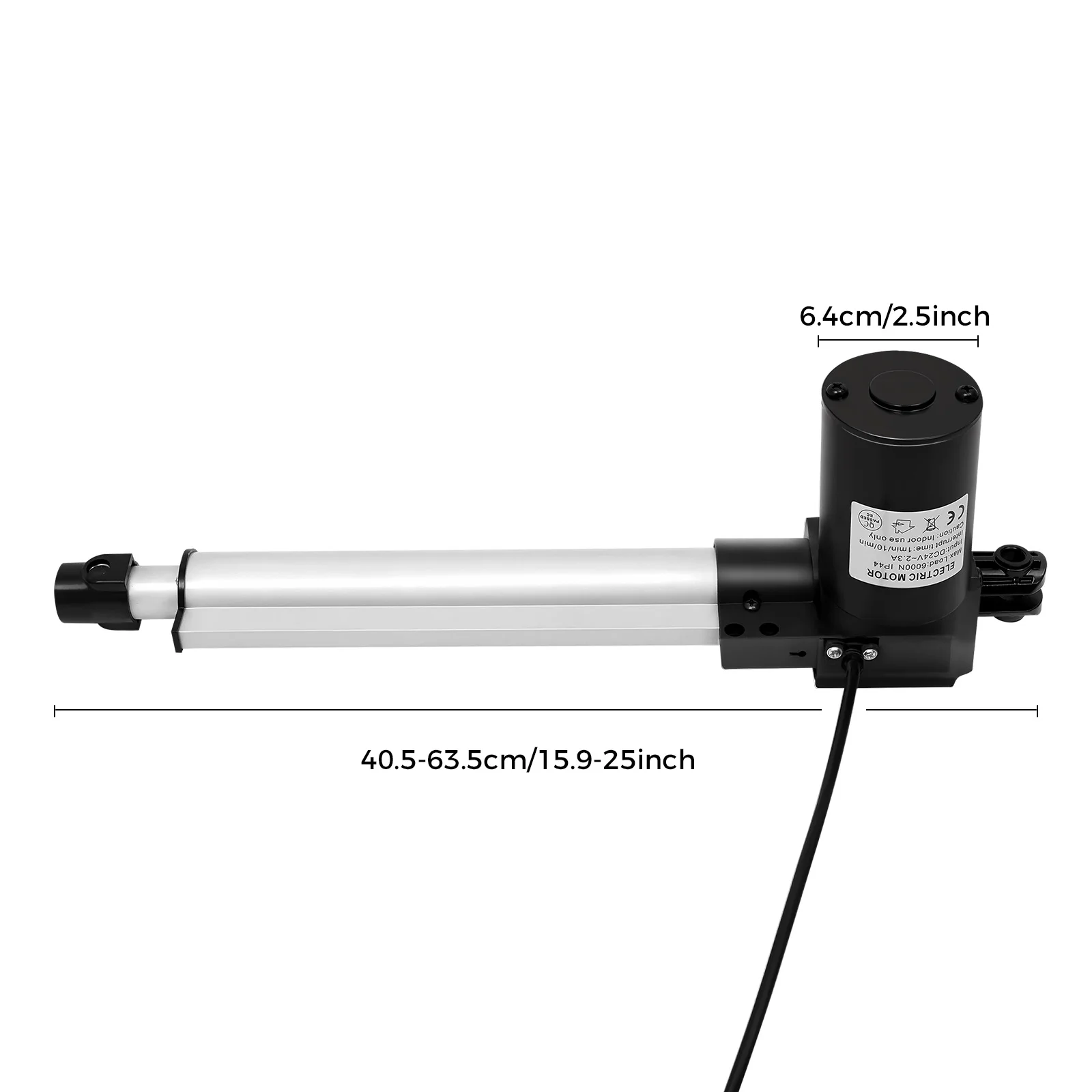

Unextended Size: 230 + 175 = 405mm
Extended Size: 230 + 175 + 230 = 635mm
Permanent Magnet Dc Motor Drive
Voltage: 24VDC
Maximum Push / Pull: 600KG / 600KG
Minimum Installation Size (Distance Between The Push Holes And The Two Holes Before And After The Return Of The Putter):L = S (Stroke) + 175mm
The Distance Between The Push Rod And The Two Holes Before And After Is Extended To =2Xs (Stroke) +175mm
Rated Load Rate: 5mm / S (600KG)
Ambient Temperature: -5 C + + 50 C
Standard Protection Level: IP44
Net Weight:2.5kg
Gross Weight:2.95kg
Packages
1 x Recliner Replacement Motor Actuator 38-61cm
1 x 8-Suffix Ac Line
1 x DC Line
1 x Power Adapter
1 x Embedded Hand Controller
2 x Pins
2 x Cotter Pins

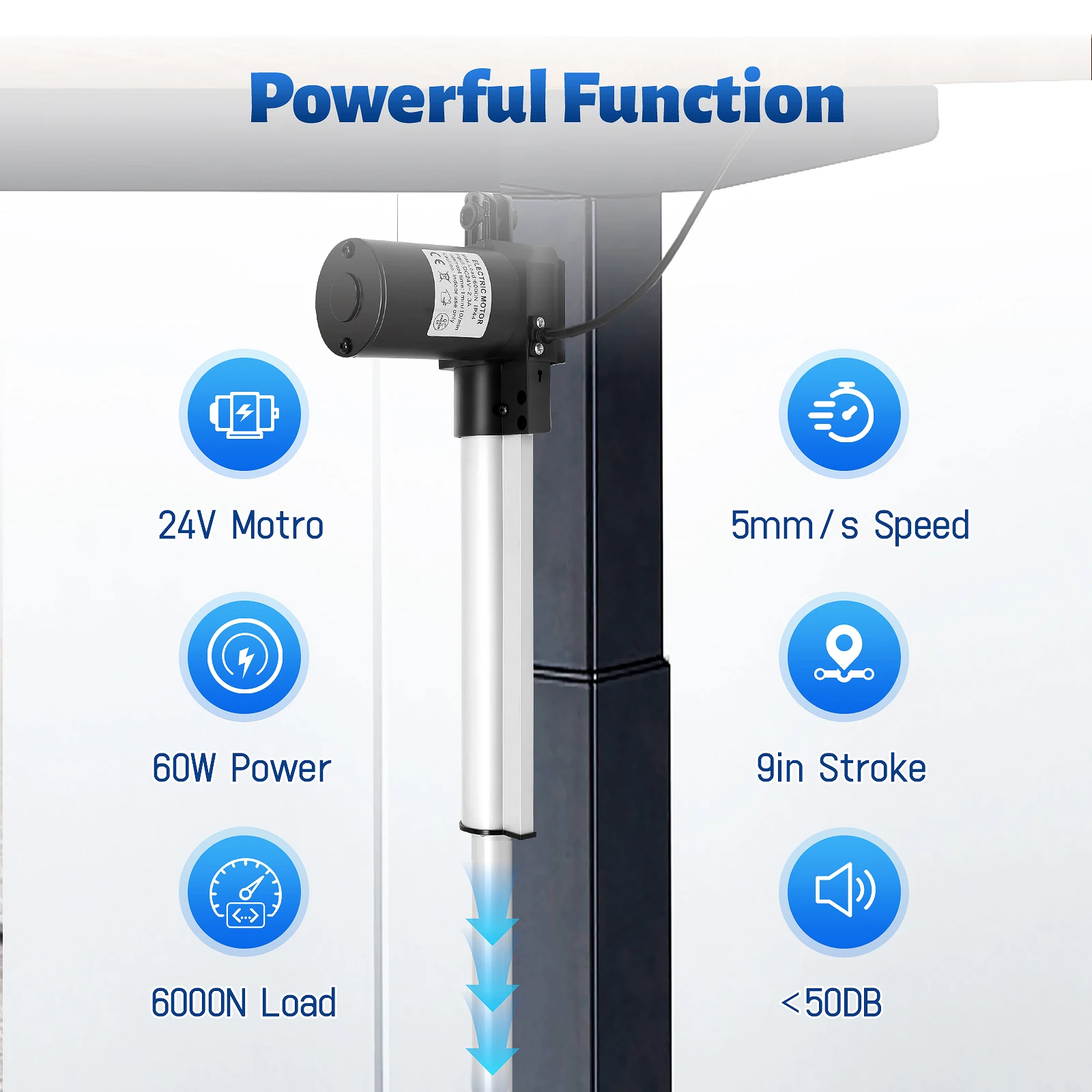

Features
24Vdc Permanent Magnet Motor
Thrust Up To 6000 N In Push.And Up To 4000 N In Pull.

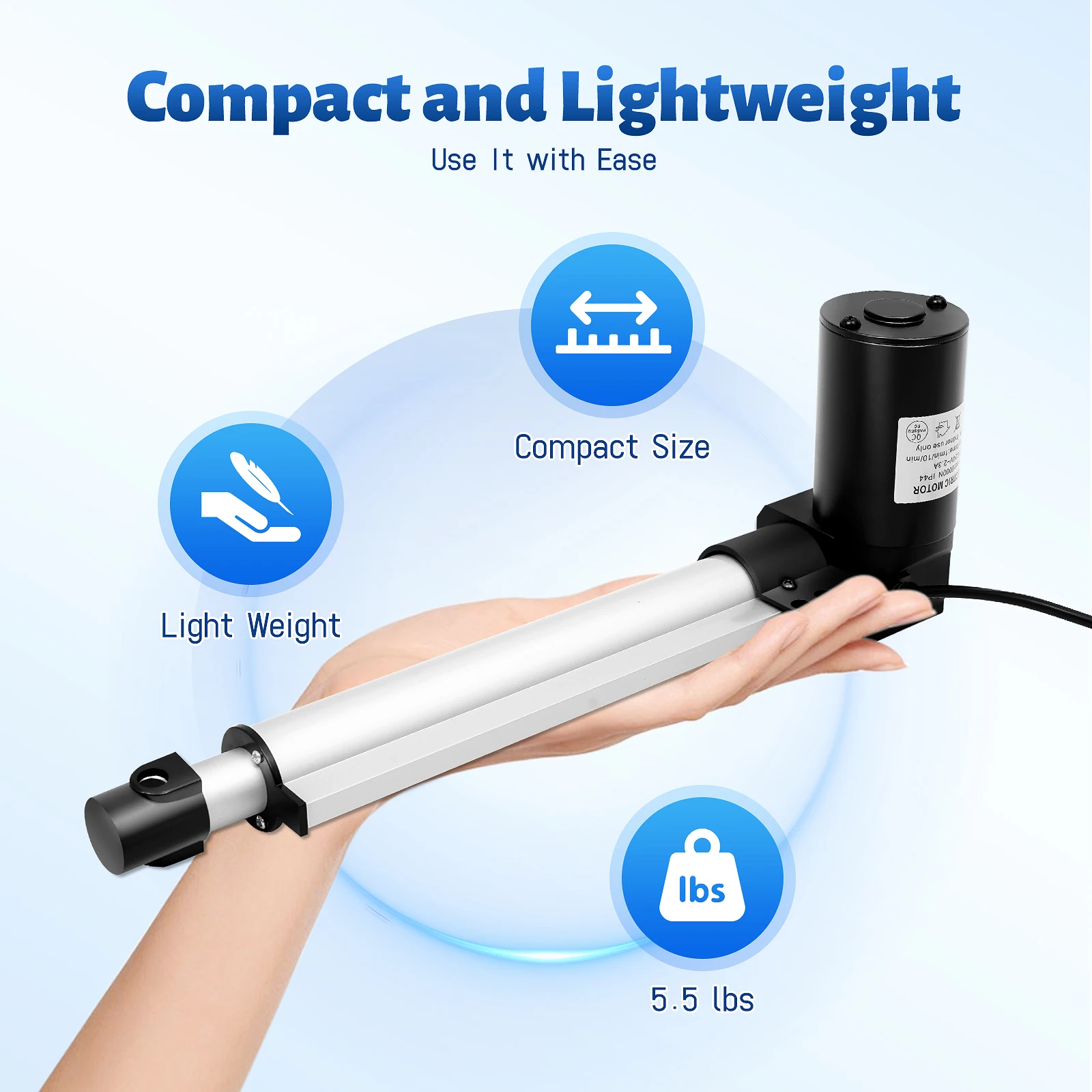

Elegant And Compact Design With Small Installation Dimensions
Built-In Limit Switches (Not Adjustable)

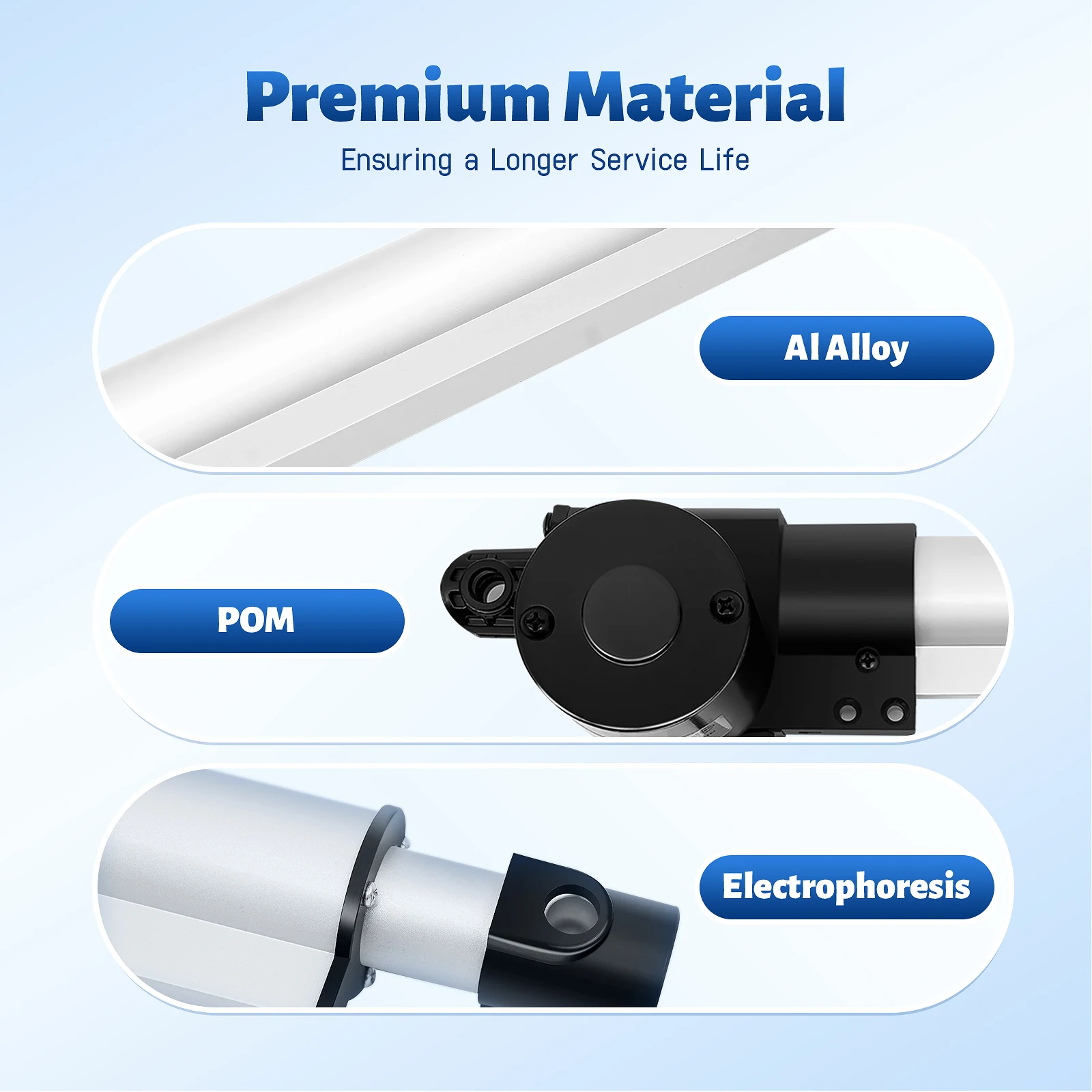

Aluminium Outer Tube Ø30 Mm
Aluminium Inner Tube Øø24mm
Steel Back Fixture
Standard Protection Class, IP44
Noise Level 48 dB (A), Actuator Not Loaded.
Duty Cycle, Max 10% Or 2 Minutes Continuous Use Followed By 18 Minutes Not In Use.
Option
Standard Stroke, 25-800 Mm, Can Design As Customer’s Requirement.
Free Load Speed, 6.5mm-45mm/s
Rated Load Speed, 4.5mm-40mm/s

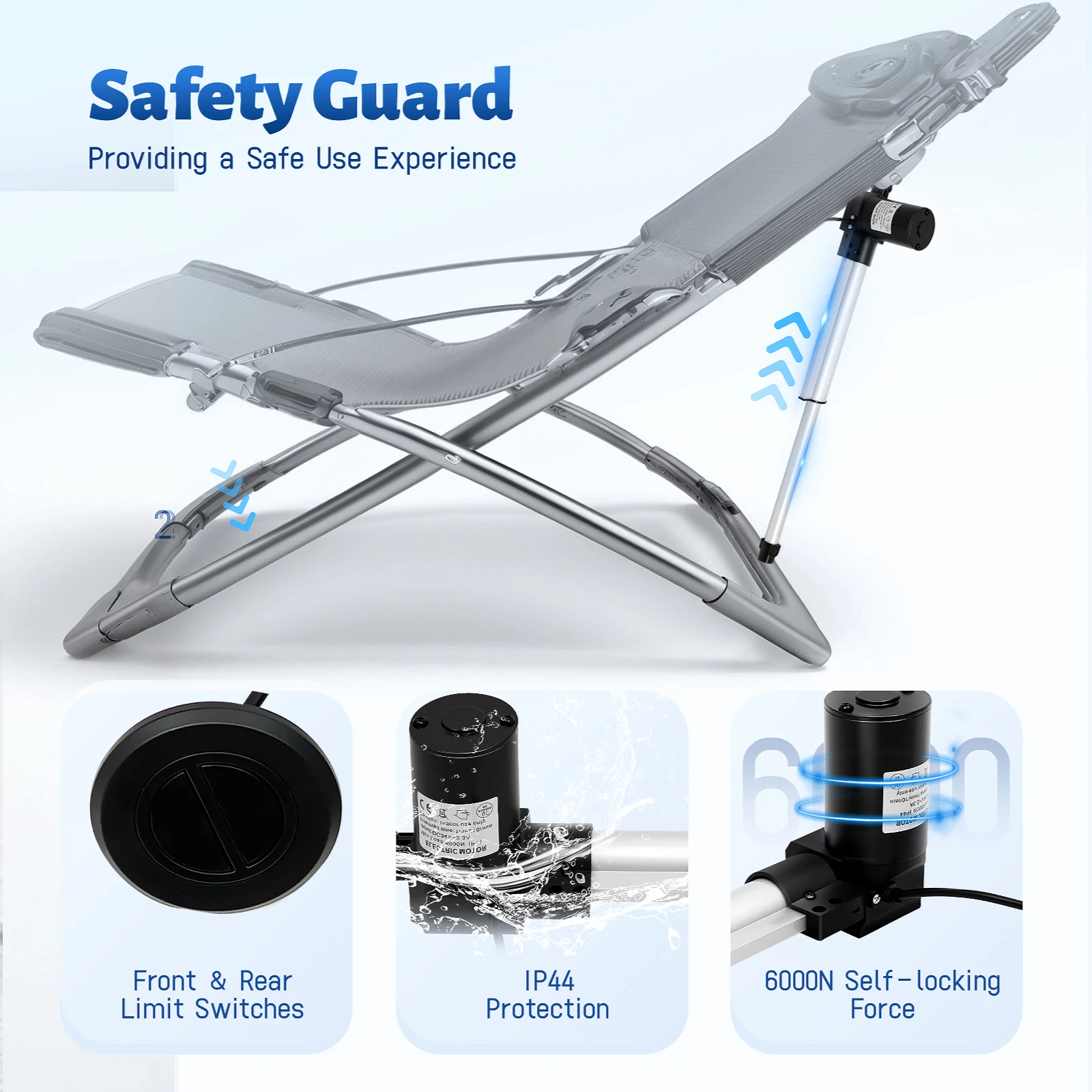

Application
This Power Recliner Lift Chair Linear Actuator Motor Will Open And Close The Lift Mechanism Of Power Recliner Or Lift Chair. Connects To Motor Handset Hand Control Via 5 Pin Style Connector, And Connects To The Power Transformer Via The Standard 2 Pin Style Connector.
