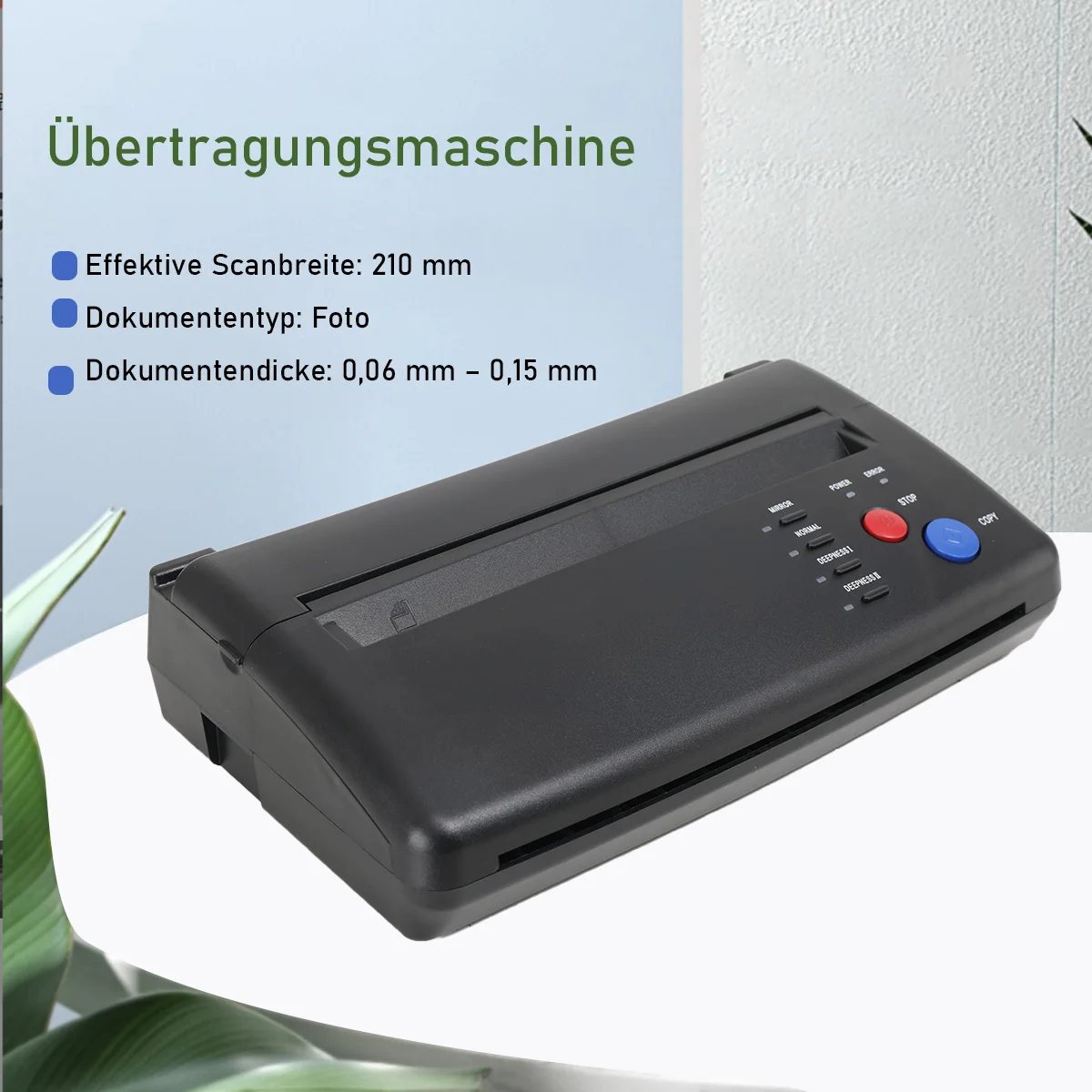

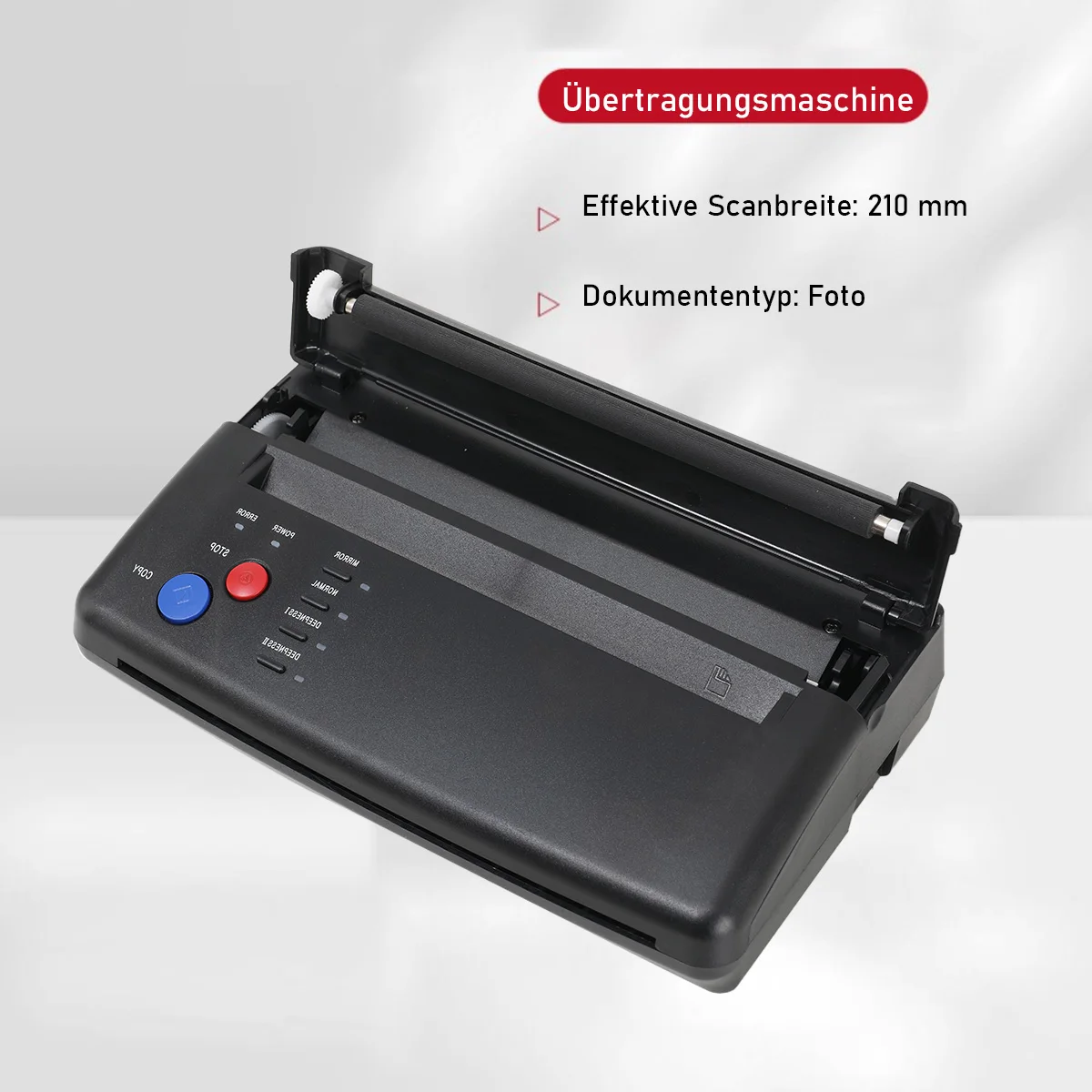

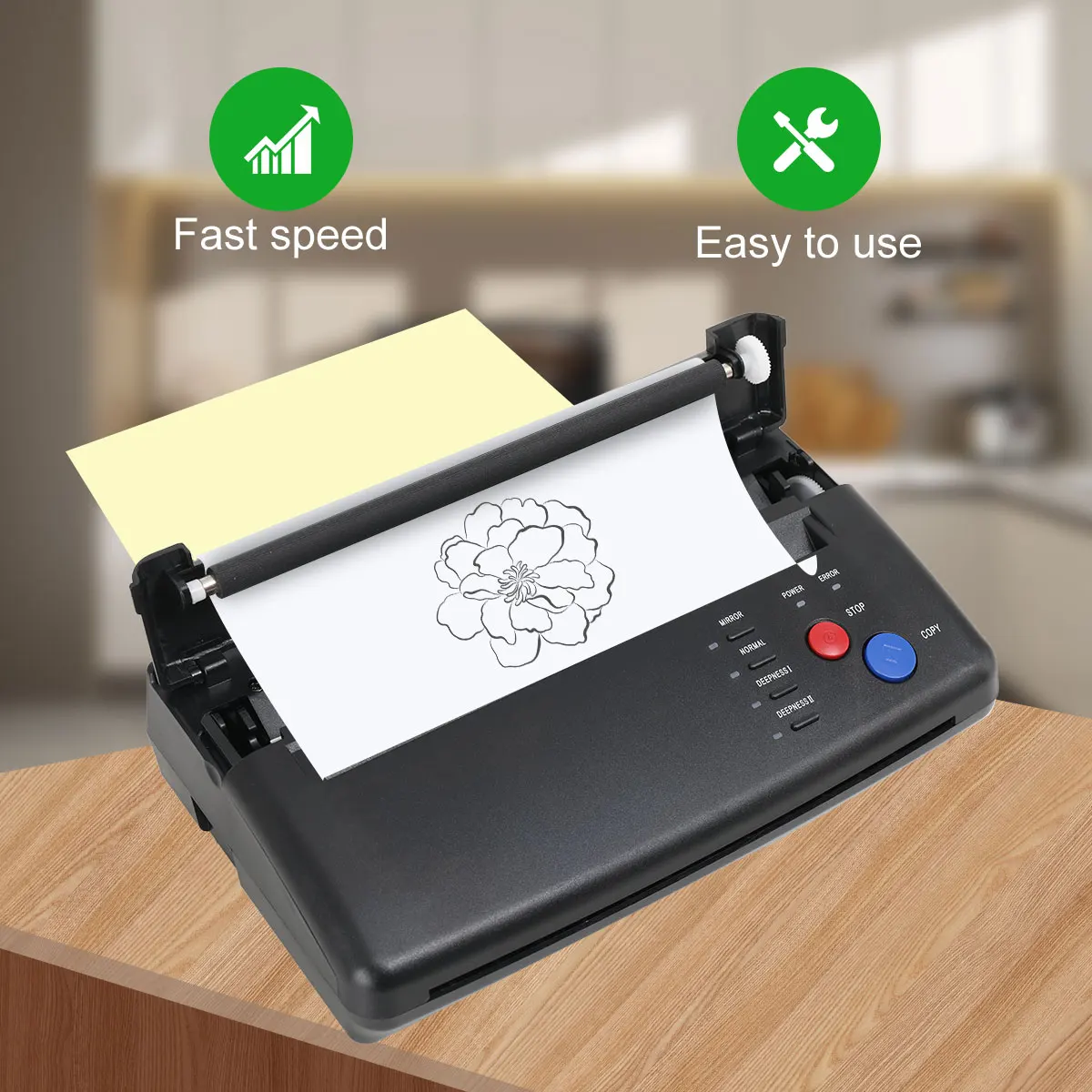

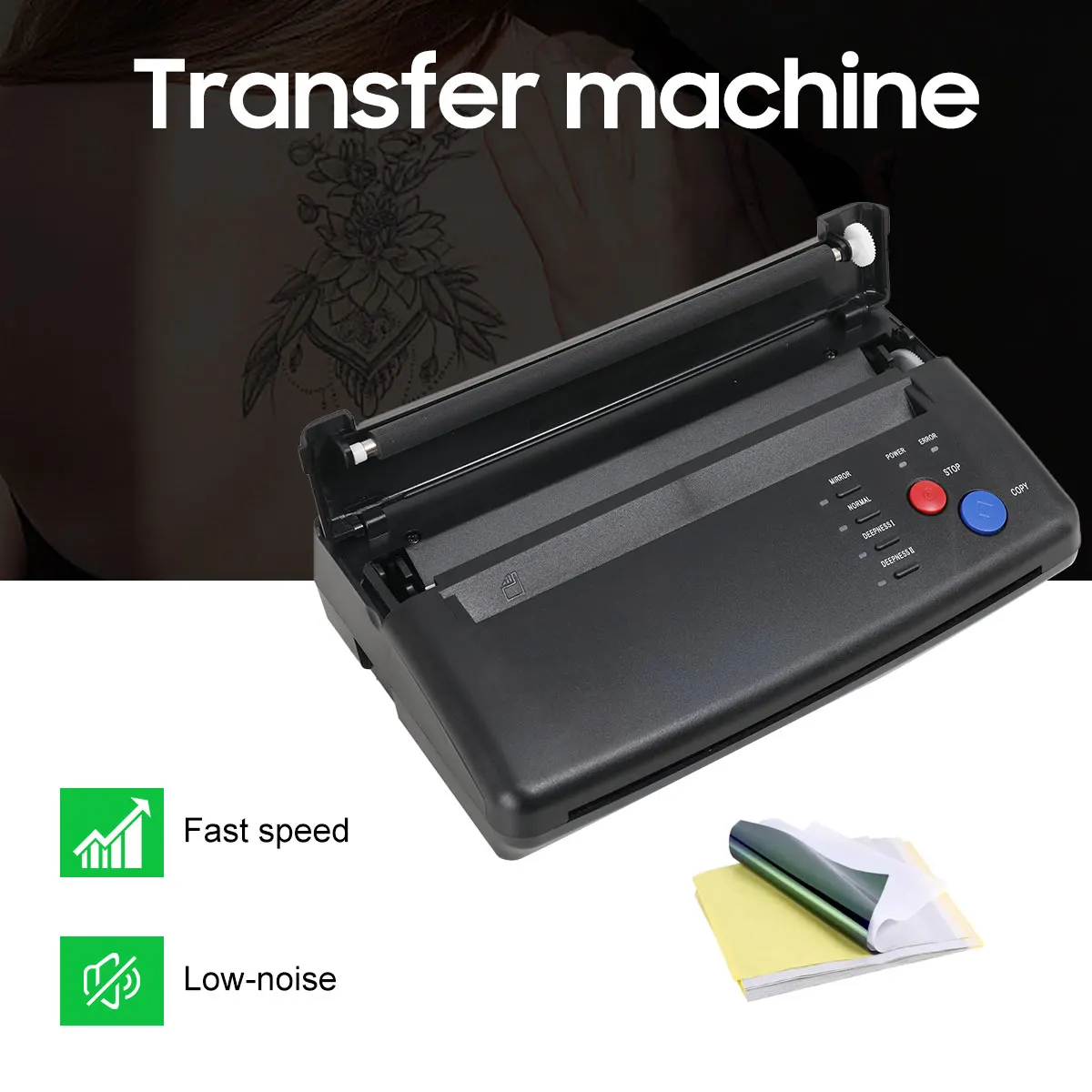

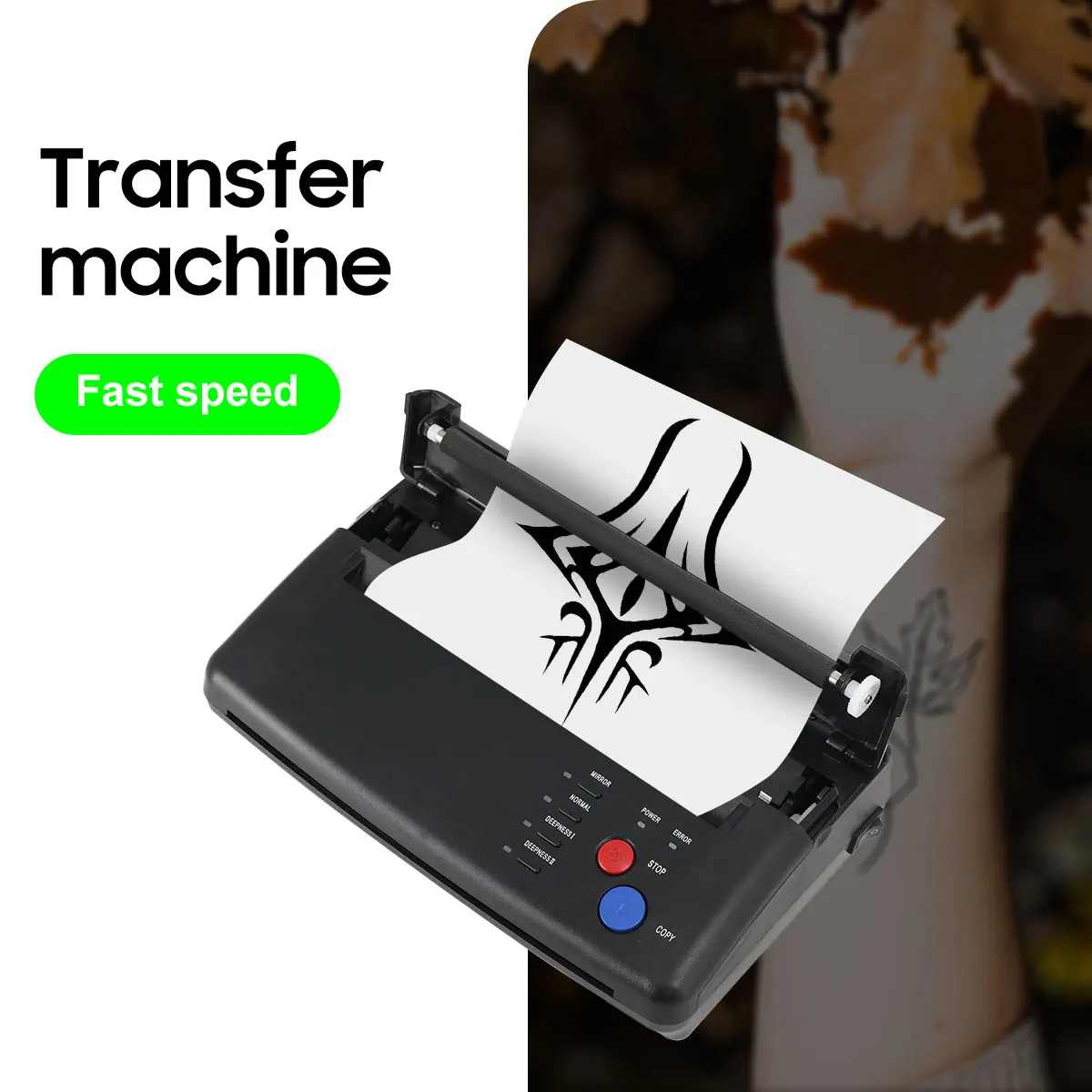

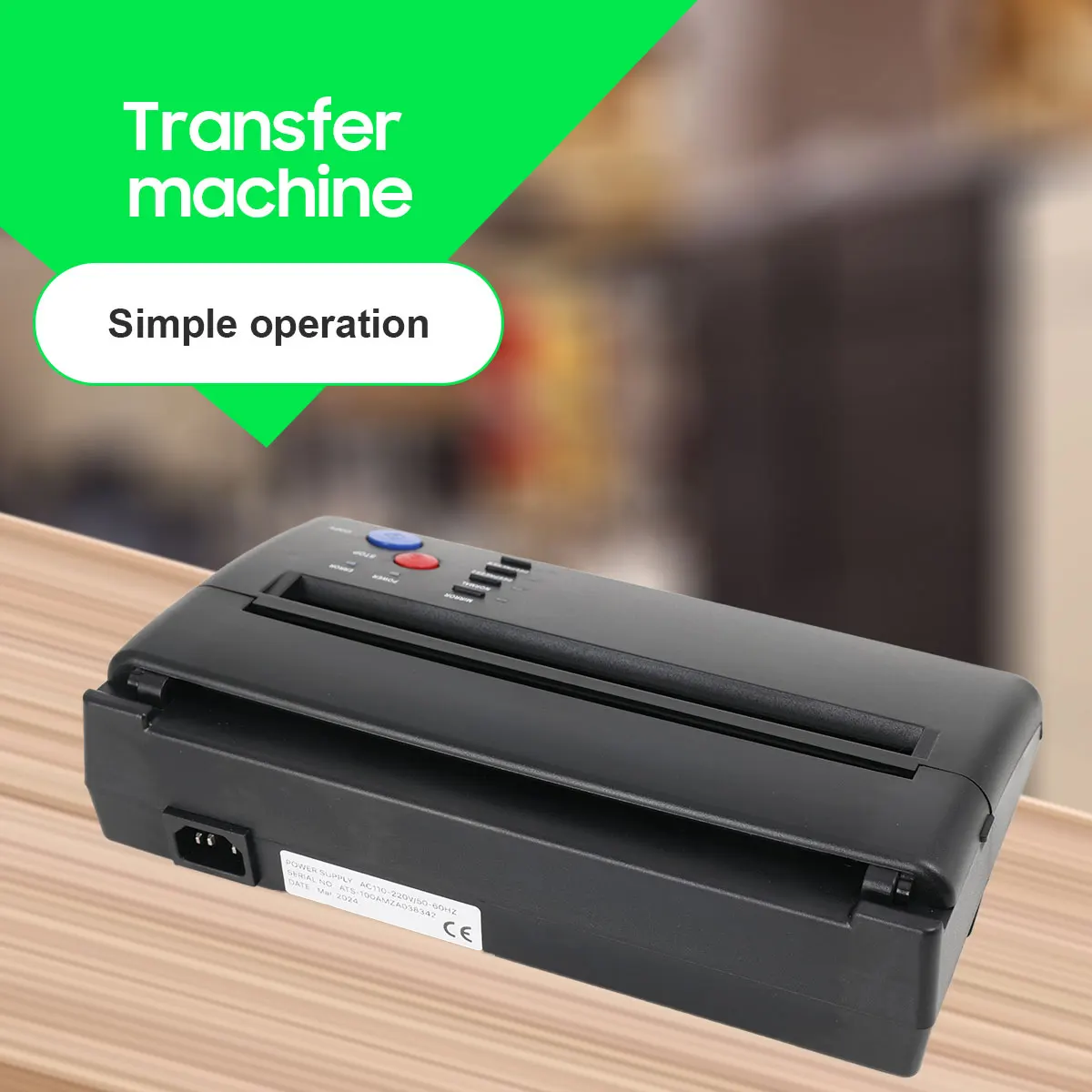

Tattoo Transfer Machine Stencils Device Copier Printer Drawing Thermal Tools For Tattoo Photos Transfer Paper Copy For beginner
Return&refund policy
Eligible items are covered by return and refund support. If the item does not arrive or is not as described, the buyer can request help.
Security & Privacy
Safe payments: We do not share your personal details with any third parties without your consent.
Secure personal details: We protect your privacy and keep your personal details safe and secure.
AI offer for your market
A curated pick based on category, shipping route, delivery speed and popularity in your selected market.
Why this product fits your market
- • Estimated delivery: 7.
- • Recommendations focus on this product category and your market availability.
Product specifications
Detailed product description
This product is shown with available options, market-specific pricing and verified specifications.
- Brand: NONE
- Package size: 33 × 25 × 13 cm
- Package weight: 1.55 kg
- Rating: 0.0 / 5
Before adding to cart, choose an available option and check the quantity.
Introduction to the control panel
MIRROR: The key switches between two types of light situations. When the mirror copy function starts, the mirror light works.
Nomal: The key switches between two types of lighting conditions. When the normal copy function starts, the normal light illuminates.
Copy: The key is used to start the copy function.
Stop: The key to stop the copy function.
Power: The light indicates that the machine is ready to work.
Error: The light is to indicate that an error has occurred on the machine. If the TPH overheats, the light comes on.
Description
Color: Black
Type: Transfer machine
Effective scan width: 210 mm
Document type: Photo
Document thickness: 0.06 mm - 0.15 mm
Power supply: AC 110 - 220 V, 0.46 A
Weight: 1.80 kg
Scan mode: CIS
Scan resolution: (H) 8 dots/mm (V) 7.7 lines/mm
Document size: A4
Capture mode: TPH
Power consumption: Standby 5 W
Temperature: 5 - 35 °C
Relative humidity: 20 - 80 %
Package size: 290 mm (W) x 280 (D) x 80 mm (H)
Start operation
Insert the mains plug into an available socket. When the machine is in standby mode, the “DOO” sound can be heard. All parameters can be set when the machine is in standby mode.
Copying in mirror mode
1, Open the copy paper cover.
2, Pull out the oiled paper; Insert the paper according to the picture and hold up the template paper, pull the paper to the TPH side. You can also tear off the yellow paper and then insert the paper.
3, Close the copy paper box.
4, The copied document should be placed in the feeder with the printed side down. When the document is caught, press the “COPY” button.
Copy in normal mode
Press the “MIRROR” button before copying so that the mirror light remains extinguished.
1. open the copy paper box.
2. pull out the oiled paper; load the paper according to the picture and hold the template paper down. Pull the paper to the TPH side. You can also tear off the yellow paper and then insert the paper.
3. the copied document should be placed in the feeder with the printed side facing down. When the document is caught, press the "COPY" button.
Note
If you want to stop the copying process, please press the “Stop” button.
If a warning signal sounds and the error light illuminates, the device will stop the copying process immediately.
If you use the large black pen for copying, the effects will be better.
Scope of delivery
1 x transfer machine
1 x power cable
1 x instruction manual (others not included)
Please allow the deviation of 1-3 cm from the actual dimension due to manual measurement. Thank you for your understanding!
