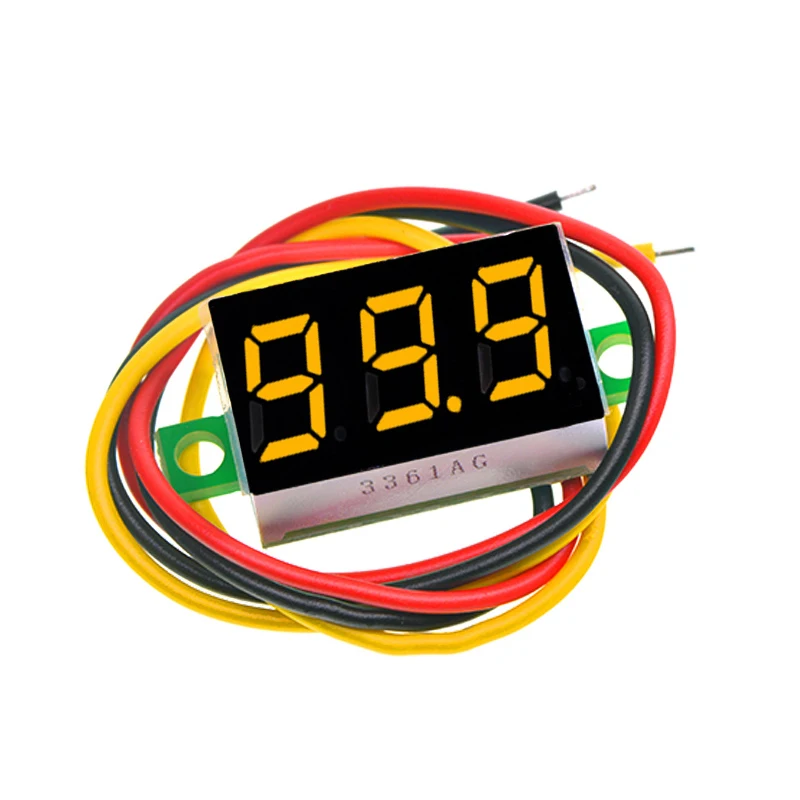

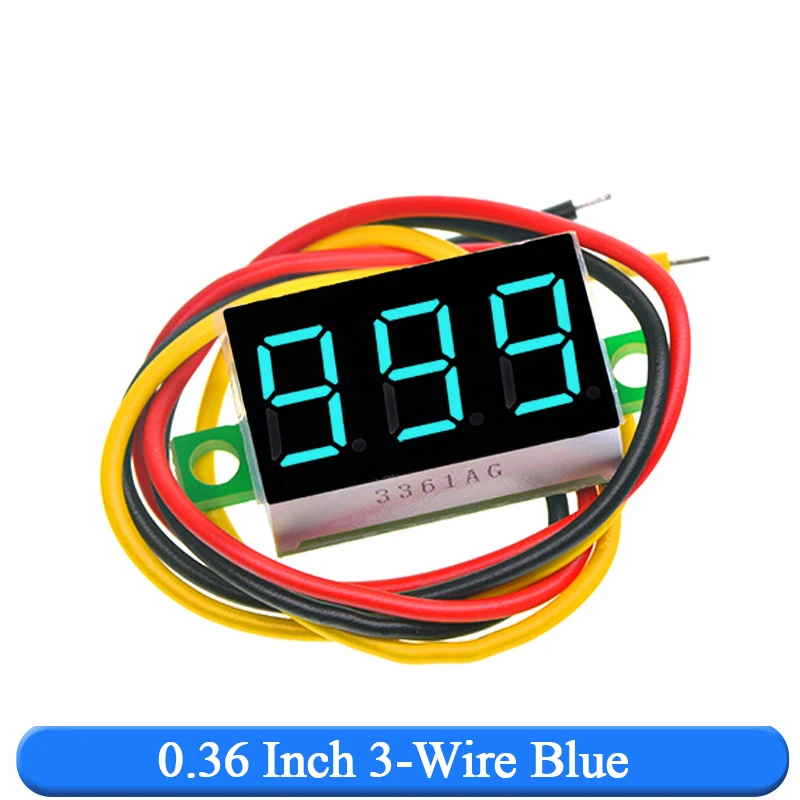

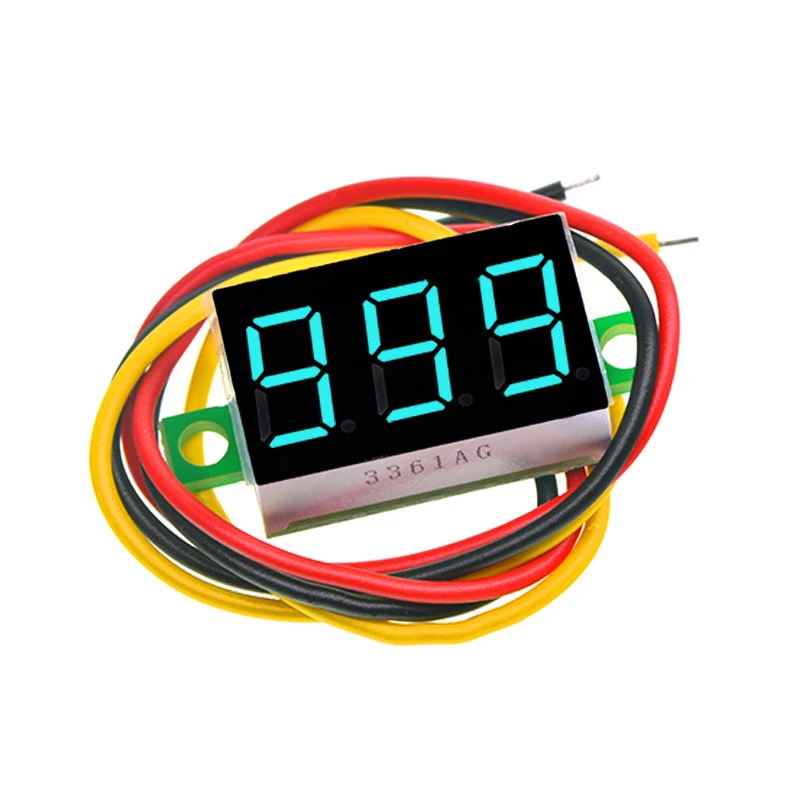

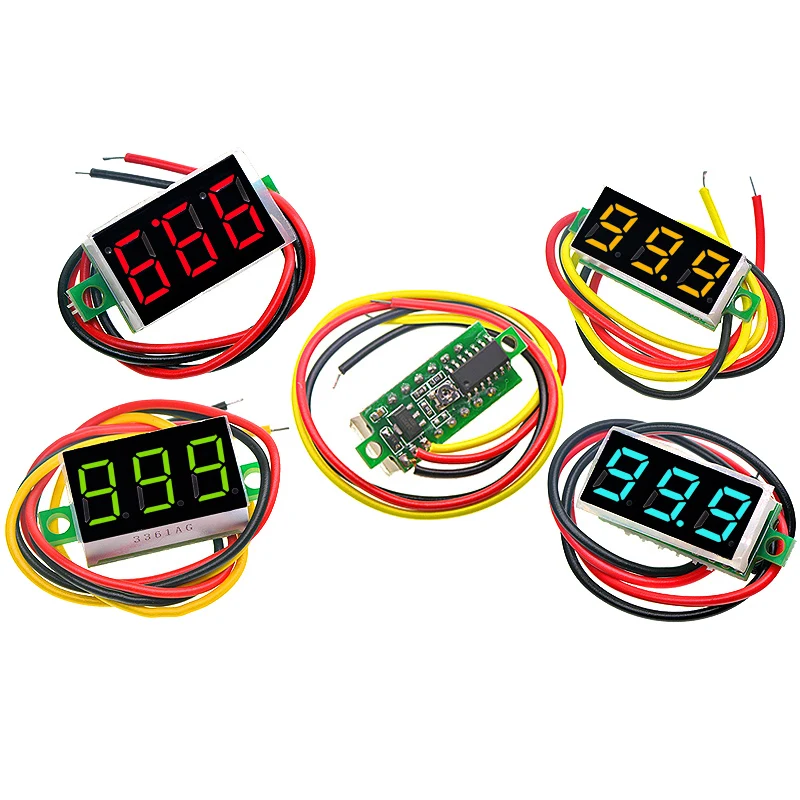

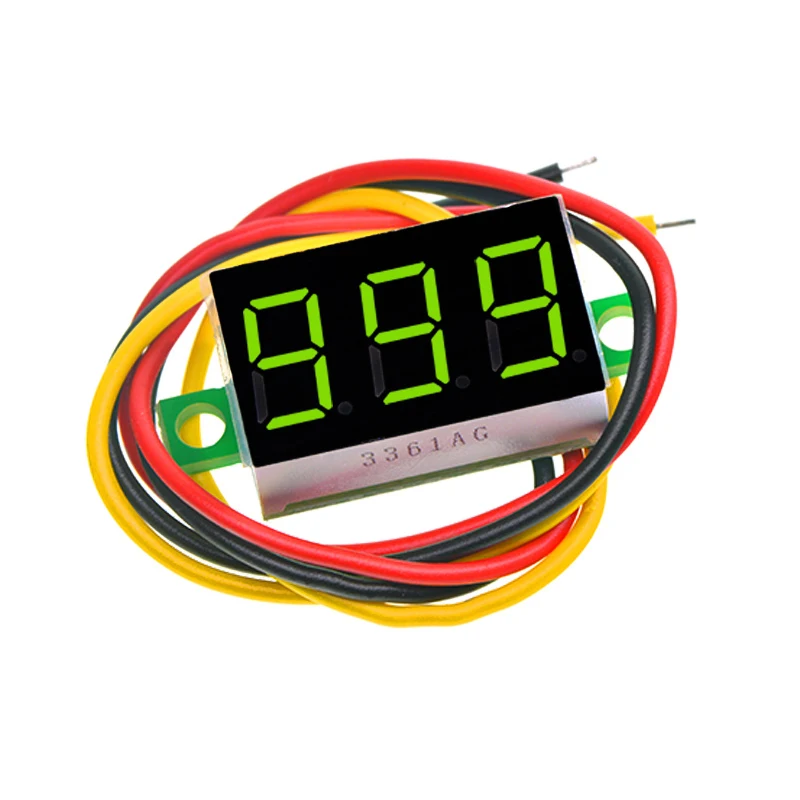

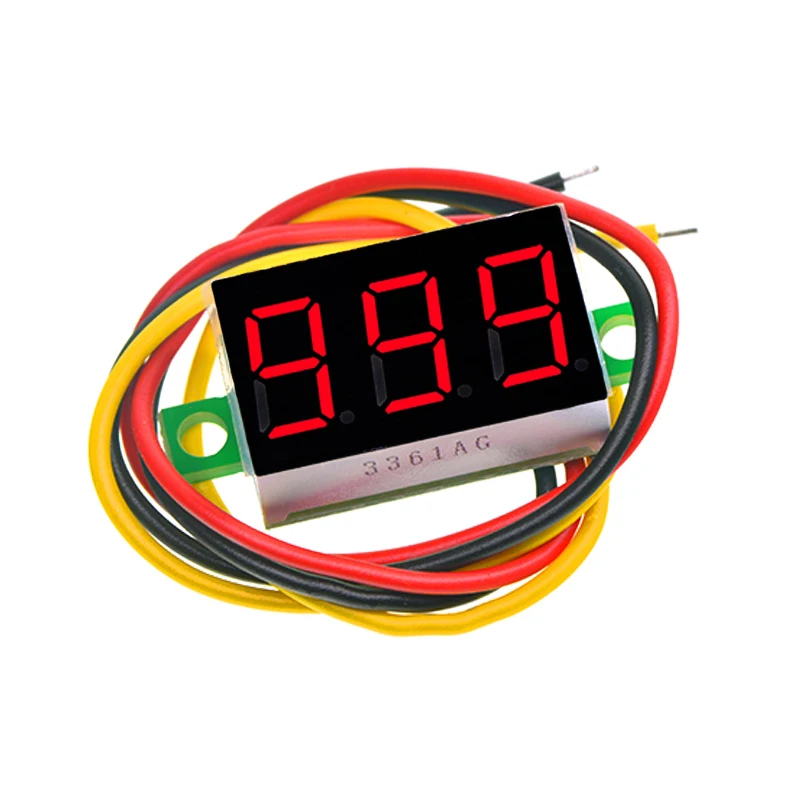

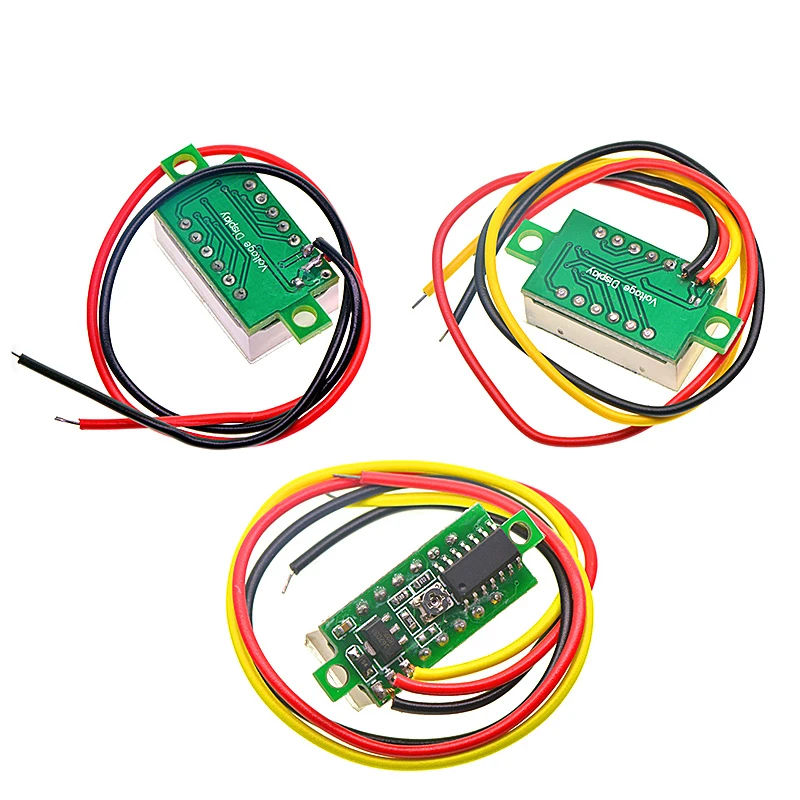

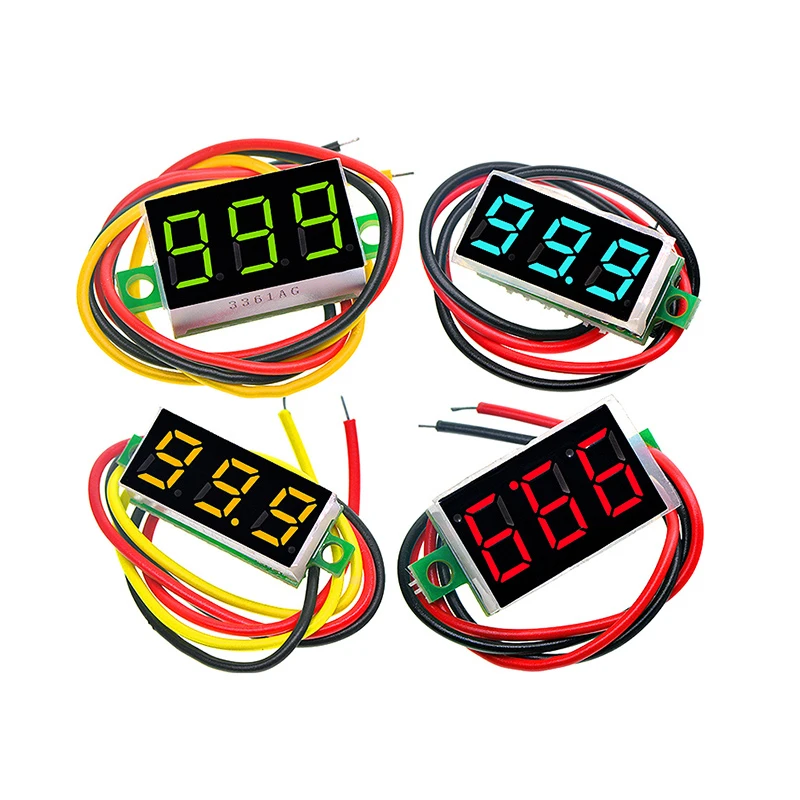

0.28 / 0.36 Inch DC LED Digital Voltmeter 0-100V Voltage Meter Auto Car Mobile Power Voltage Tester Detector 12V Red Green Blue
Return&refund policy
Eligible items are covered by return and refund support. If the item does not arrive or is not as described, the buyer can request help.
Security & Privacy
Safe payments: We do not share your personal details with any third parties without your consent.
Secure personal details: We protect your privacy and keep your personal details safe and secure.
AI offer for your market
A curated pick based on category, shipping route, delivery speed and popularity in your selected market.
Why this product fits your market
- • Estimated delivery: 5.
- • Strong customer signal: 4.8★ from 1,523 reviews.
- • Recommendations focus on this product category and your market availability.
Product specifications
Detailed product description
This product is shown with available options, market-specific pricing and verified specifications.
- Brand: Stlxy
- Sales: 1000+
- Package size: 11 × 11 × 4 cm
- Package weight: 0.01 kg
- Rating: 4.8 / 5
Before adding to cart, choose an available option and check the quantity.
Description
Three-wire measurement range: DC 0V-100V
Two-line measuring range: DC 4-30V
Working current: Over 20mA
Input Range: DC 5-30v
Showing: Three 0.28inch Digital Tube
Size: 24mm*11mm*9mm
Perforation size: 23mm*10.5mm
Refresh rate: 200ms/Time
Measuring accuracy: 1%
Operating Temperature: 10±65 Celsius
Features
1.Three-wire digital voltmeter, 0.28” LED display, mini, with reverse protection."
2.Voltage measurement range regulated: DC4-30V, need external power supply.
Package Included
1 x Digital Voltmeter
The voltmeter is small, only 0.36 inches, range DC DC0-100V, 2 and 3-wire generic products, to break the routine voltmeter, is the latest design, can work directly on 5V, 9V, 12V, 24V and other circuits, without regulation. With three wiring, easy access to car / battery car / motorcycle car line, with reverse polarity protection function, line reversed not burn. Used to monitor battery voltage, grasp the battery voltage state, it can also be used for other products voltage measurement applications.
Feature
1. product stability, high measurement accuracy
2. Overall standard size, easy installation
3. Power supply protection circuit using a polar
NOTE: Three-line voltage range 0-100V, but also for the use of second-line voltage is within 30V, otherwise there is a danger of burning.
Technical Parameters
Operating voltage: 4.0 ~ 30V (with a reverse polarity protection function)
Detection voltage: 0.0 ~ 100V
Operating Current
Display: 0.28 "LED, red green blue yellow (colors)
Dimensions: 30 × 11.7 × 9.2 mm (length*width*height)
Installation hole: 32.6 × 14mm
Measurement rate: ≥200mS / times
Accuracy: 3 ‰
Extreme working conditions
Low operating voltage: + 4.0V
Maximum working voltage: + 30V
Working temperature: -10 ~ + 65°C
Humidity: 10 to 80% (non-condensing)
Working pressure: 80 ~ 106kPa
Sun exposure: no direct exposure
