Electronic Door Lock Electric Magnetic Lock Gate Opener Suction Holding Force Electromagnetic for Access Control System Various
Return&refund policy
Eligible items are covered by return and refund support. If the item does not arrive or is not as described, the buyer can request help.
Security & Privacy
Safe payments: We do not share your personal details with any third parties without your consent.
Secure personal details: We protect your privacy and keep your personal details safe and secure.
AI offer for your market
A curated pick based on category, shipping route, delivery speed and popularity in your selected market.
Why this product fits your market
- • Estimated delivery: 7.
- • Strong customer signal: 4.8★ from 11 reviews.
- • Recommendations focus on this product category and your market availability.
Product specifications
Detailed product description
This product is shown with available options, market-specific pricing and verified specifications.
- Brand: 5YOA
- Sales: 27
- Package size: 27 × 6 × 6 cm
- Package weight: 1.646 kg
- Rating: 4.8 / 5
Before adding to cart, choose an available option and check the quantity.
Magnetic Locks (Various options for choosing)
What is Feedback function?
Magnetic lock with Feedback function means it can give back signal for additional function, for example: work with alarm system
What is Delay function?
Magnetic lock with Delay function means that it can set the delay time from the open status to close status (normally set as 0 second or 3 seconds or 6 seconds or 9 seconds)
60kg Magnetic Lock
Product details
Lock dimensions: 80 x 40 x 22 mm
Armature plate: 74 x 35 x 10 mm
Maximum tension: 60 kg (100 lbs)
Input voltage: DC12V +10%
Operating current: 12V/300mA
Surface temperature: Within + 20 degree below ambient temperature
Suitable temperature: -10 to 55 + degrees (14-131F)
Suitable humidity: 0 to 90% relative humidity
Shell: Anodized plating processing
Lock and suction plate processing: Environmentally friendly zinc plating processing
Weight: 0.55kg
Suitable for file cabinets, small doors, and more.
Connection diagram with access control device
Diagram with remote control
Using Example
Other Magnetic Locks
Features

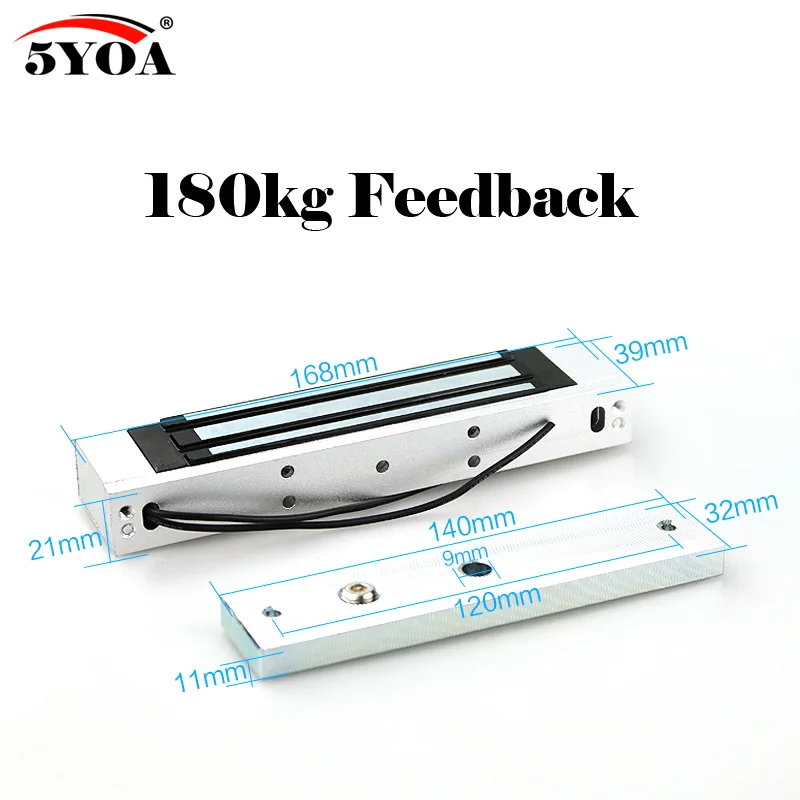

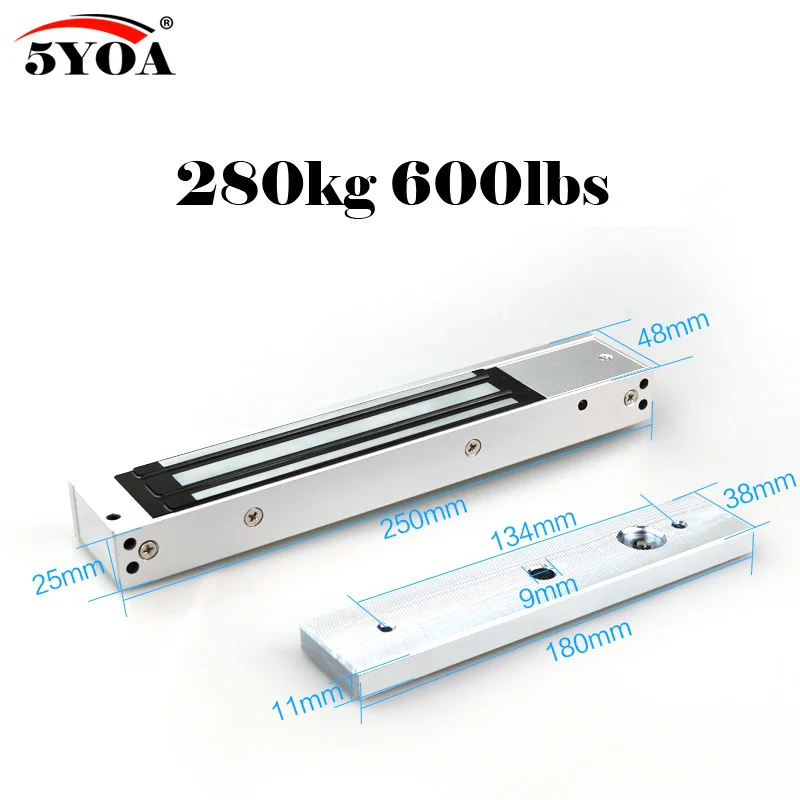

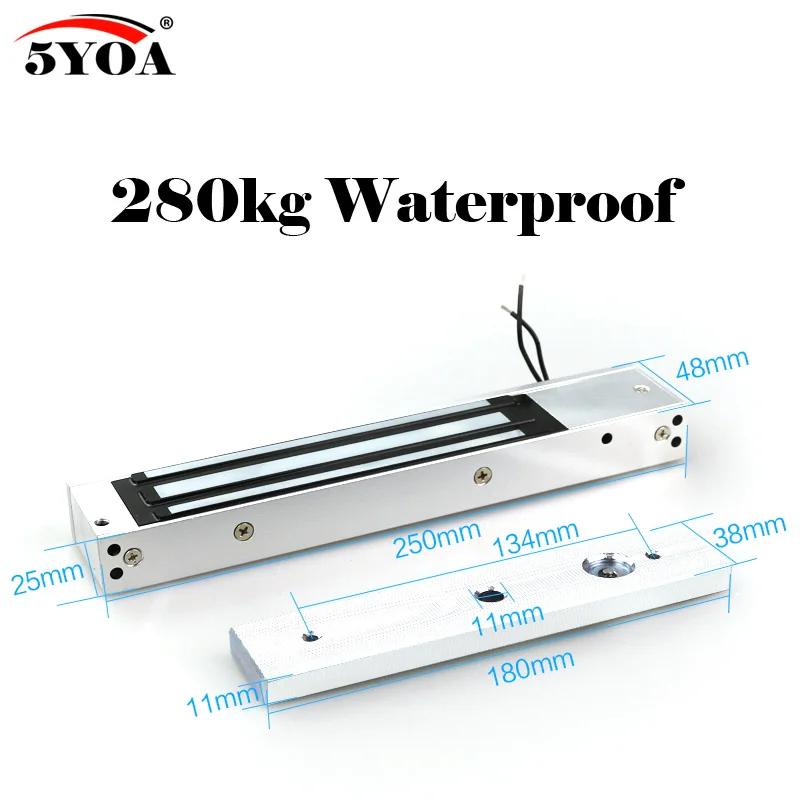

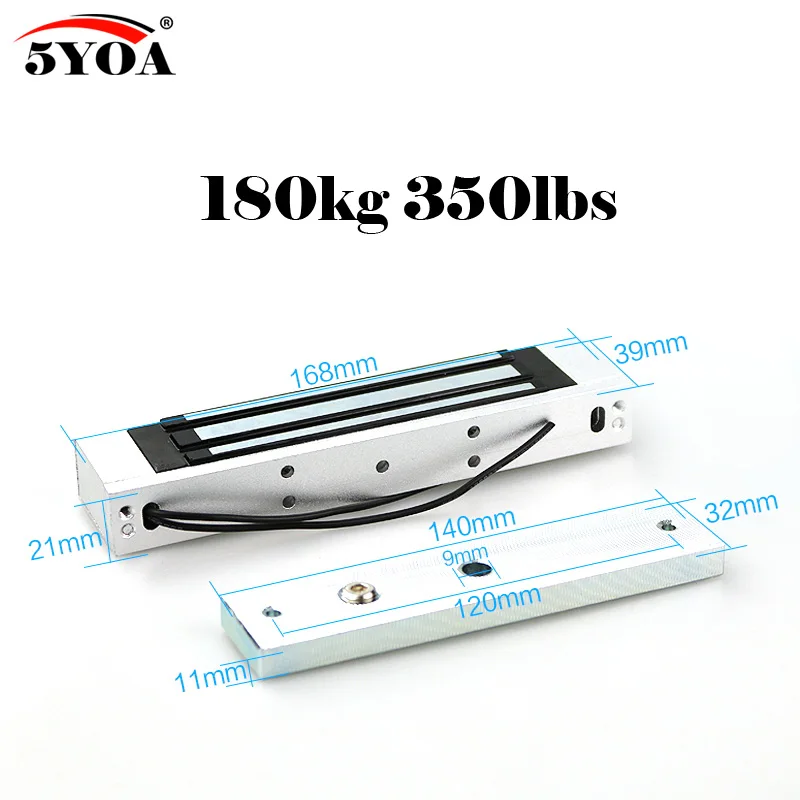

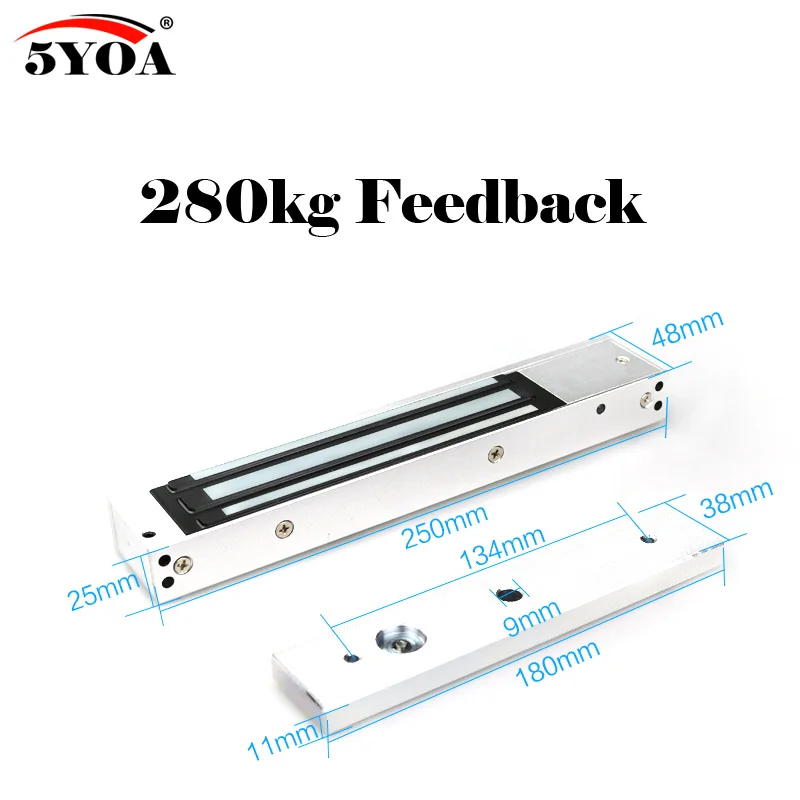

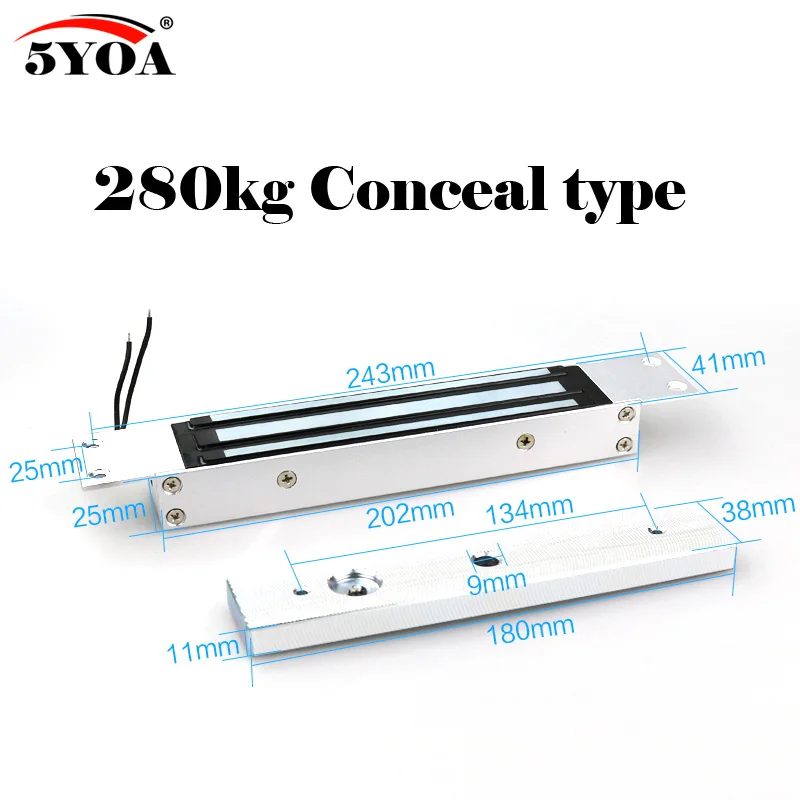

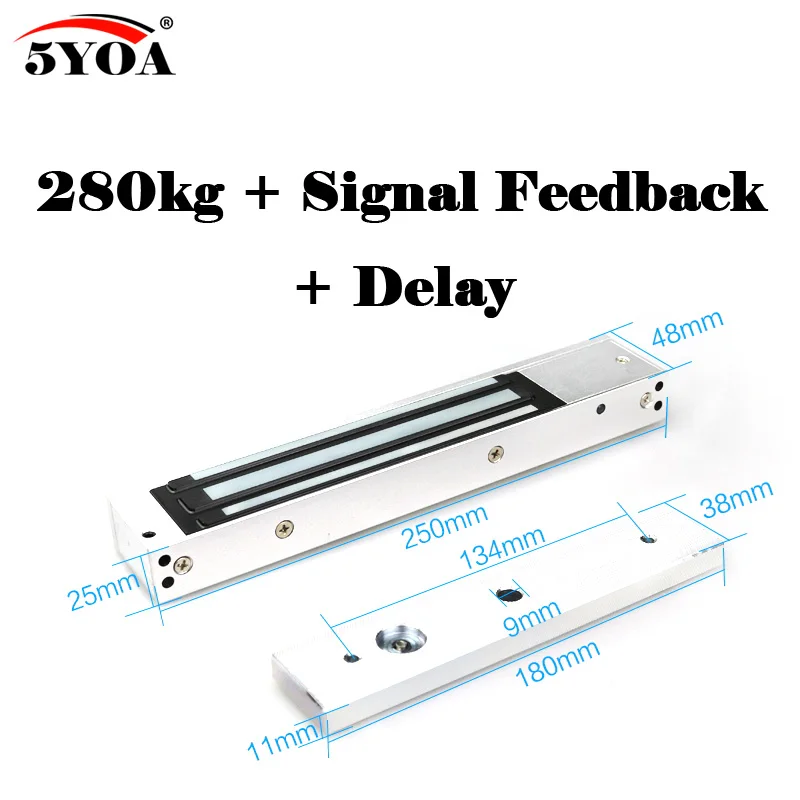

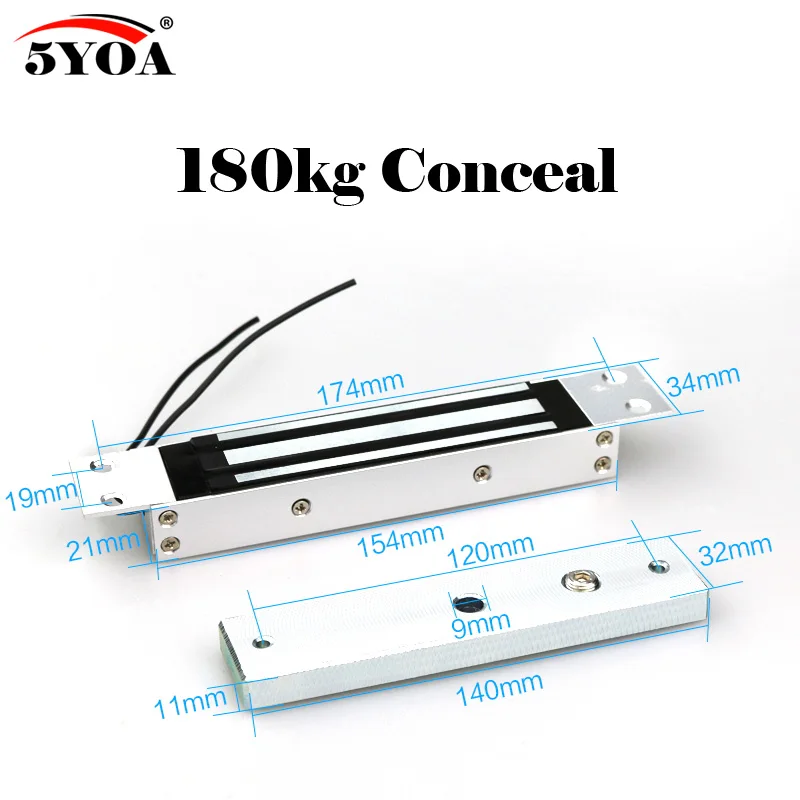

Use magnetic power to lock the door, 180kg(350lbs)/280kg(600lbs)/350kg(800lbs)/500kg(1000lbs) holding force.
Built-in reverse current protection device (MOV).
Alluminum shell adopts high strength material, with hard anodised processing.
Corrosion resistant.
Good quality and durable to use.
Can be opened by push button, remote controller, etc.
Fit for wooden door, metal door, glass door, fireproof door, etc.
Specifications
Holding force: 180kg(350lbs)/280kg(600lbs)/350kg(800lbs)/500kg(1000lbs)
Voltage: DC 12V
Current: 380-430mA
Working temperature: -10 to 55 Celsius degree (14 to 131 Fahrenheit degree)
Humidity: 0 to 95%
Working mode: power-on to lock
Packing list
1 Electronic magnetic lock
1 Armature plate
1 Bag of installation kit
1 Pad
Normal Magnetic Lock Connection Diagram
With Feedback Function Magnetic Lock Connection Diagram
Products Showing
