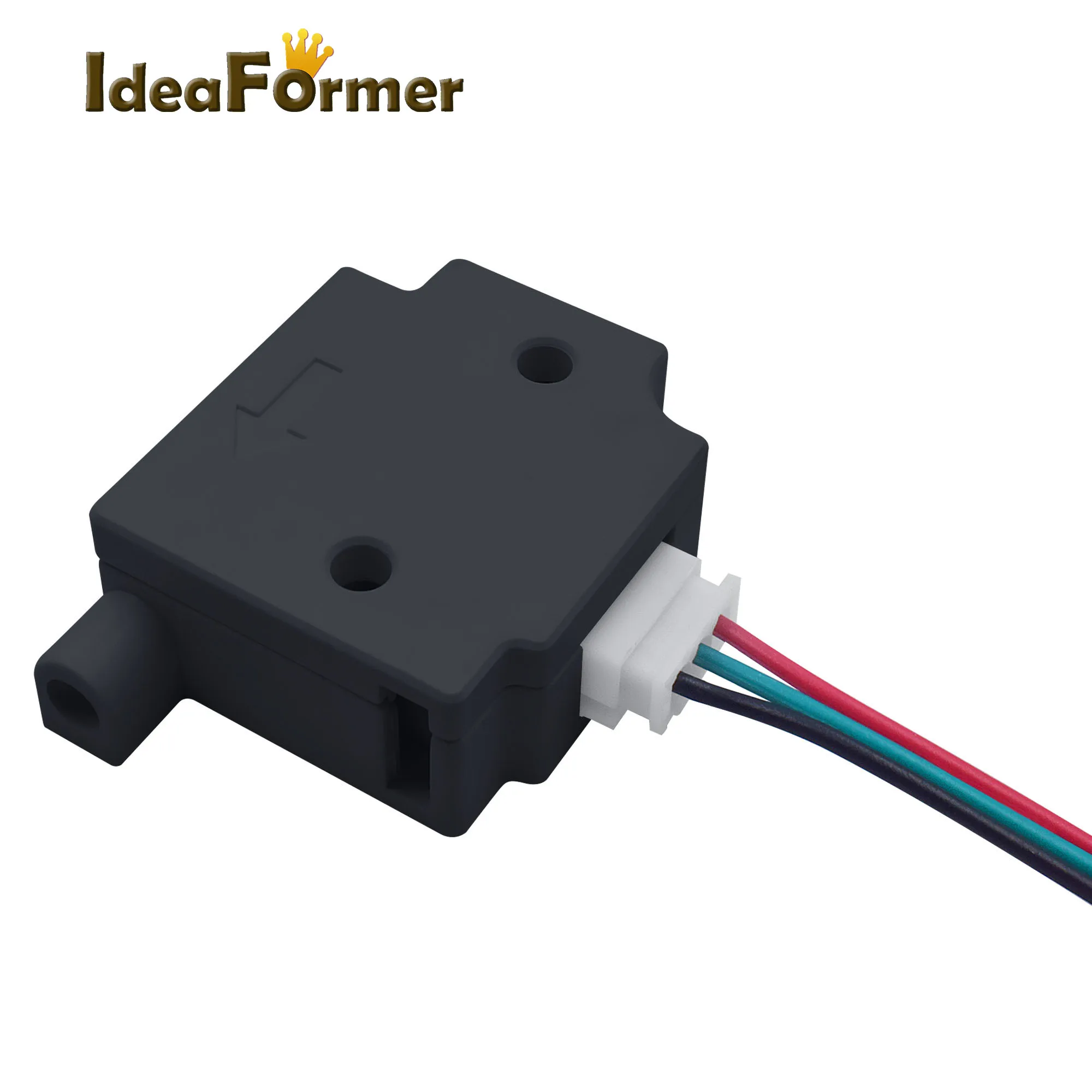

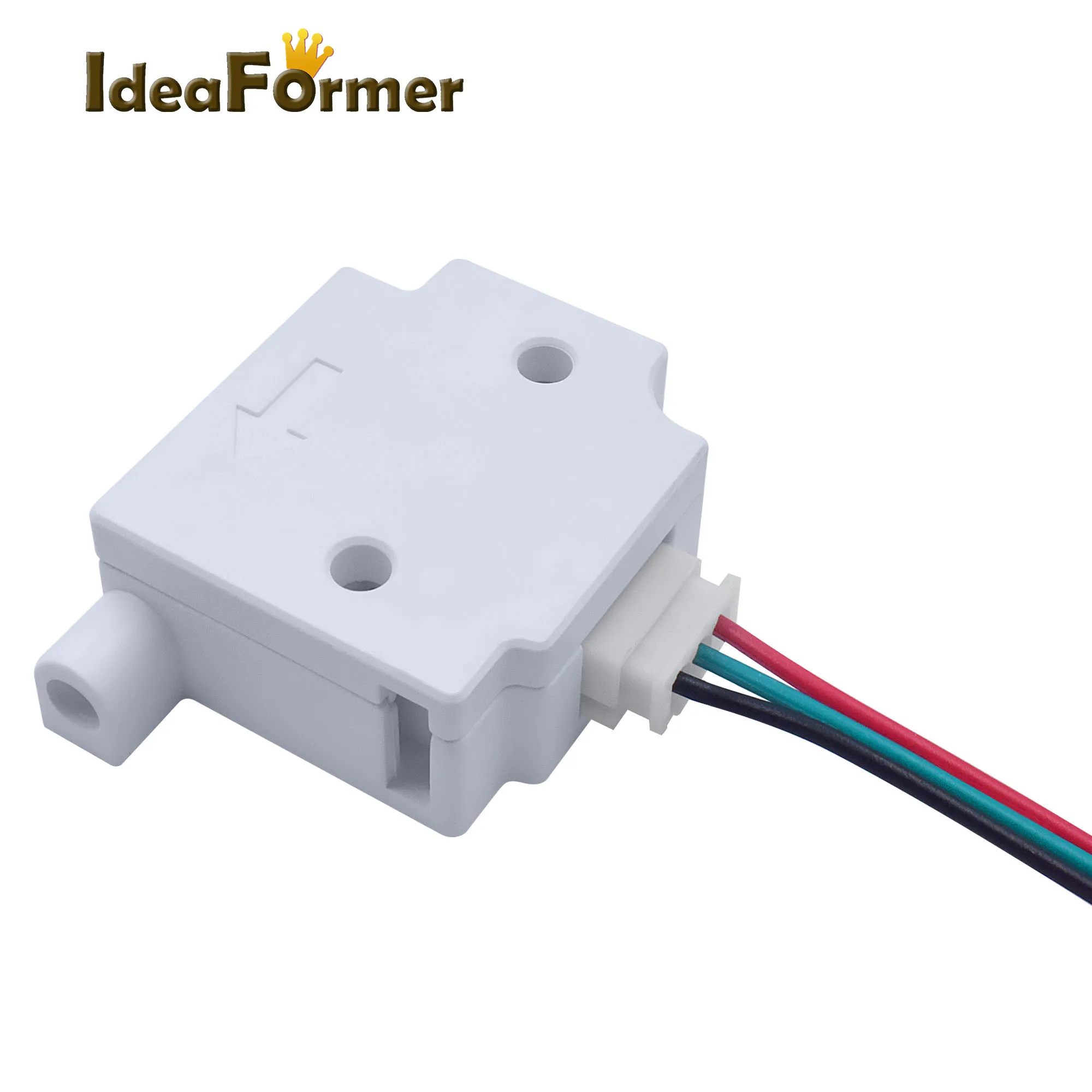

Filament Breakage Detection Module With 1M Cable Run-out Sensor Material Inspection Switch 3D Sensor Detector 3D Printer Parts
Return&refund policy
Eligible items are covered by return and refund support. If the item does not arrive or is not as described, the buyer can request help.
Security & Privacy
Safe payments: We do not share your personal details with any third parties without your consent.
Secure personal details: We protect your privacy and keep your personal details safe and secure.
AI offer for your market
A curated pick based on category, shipping route, delivery speed and popularity in your selected market.
Why this product fits your market
- • Estimated delivery: 3.
- • Strong customer signal: 4.8★ from 50 reviews.
- • Recommendations focus on this product category and your market availability.
Product specifications
Detailed product description
This product is shown with available options, market-specific pricing and verified specifications.
- Brand: IdeaFormer
- Sales: 193
- Package size: 5 × 5 × 5 cm
- Package weight: 0.025 kg
- Rating: 4.8 / 5
Before adding to cart, choose an available option and check the quantity.
Product details
Name: 3D Printer Parts Filament Break Detection Module With 1M Cable Run-out Sensor Material Inspection Switch 3D Sensor Detector.

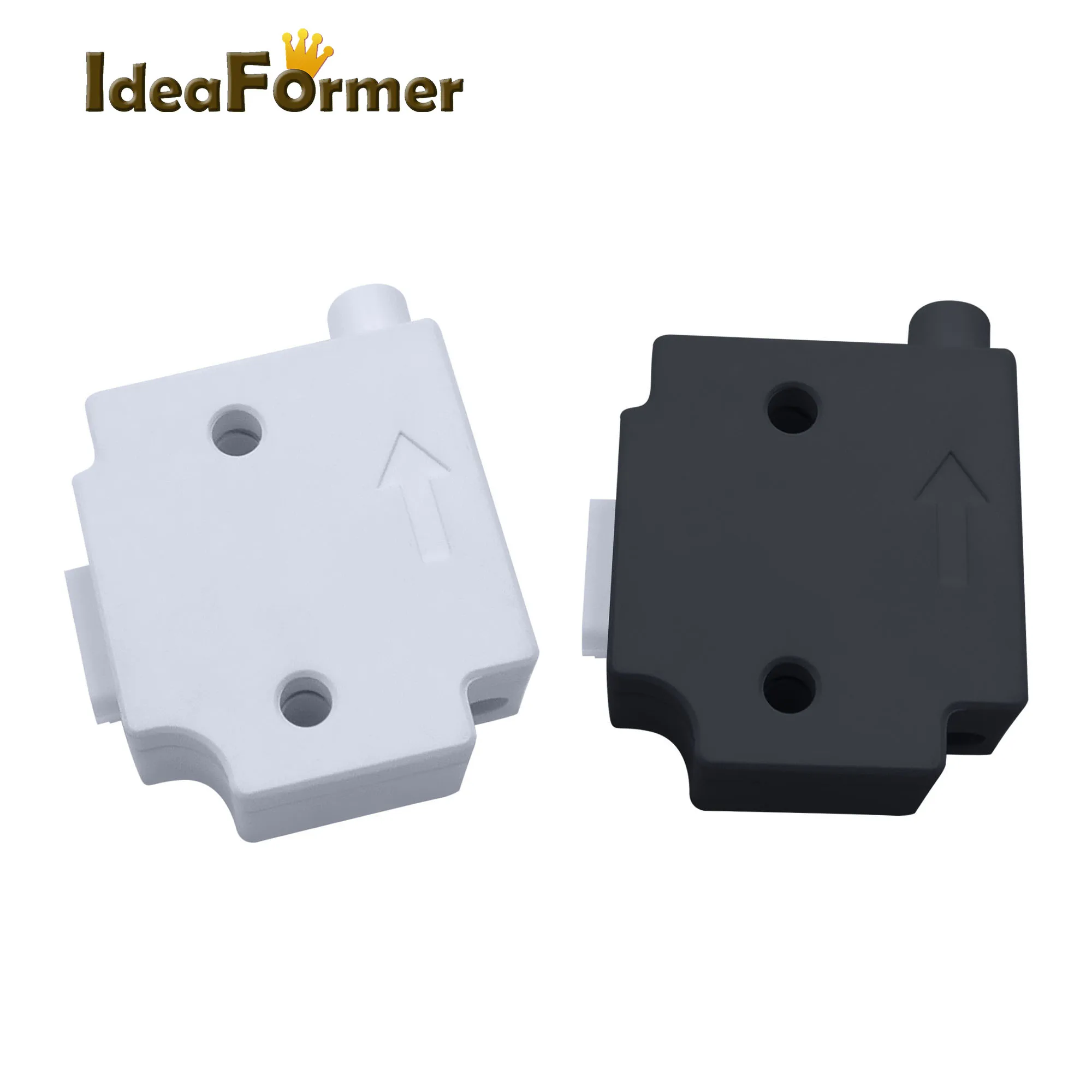

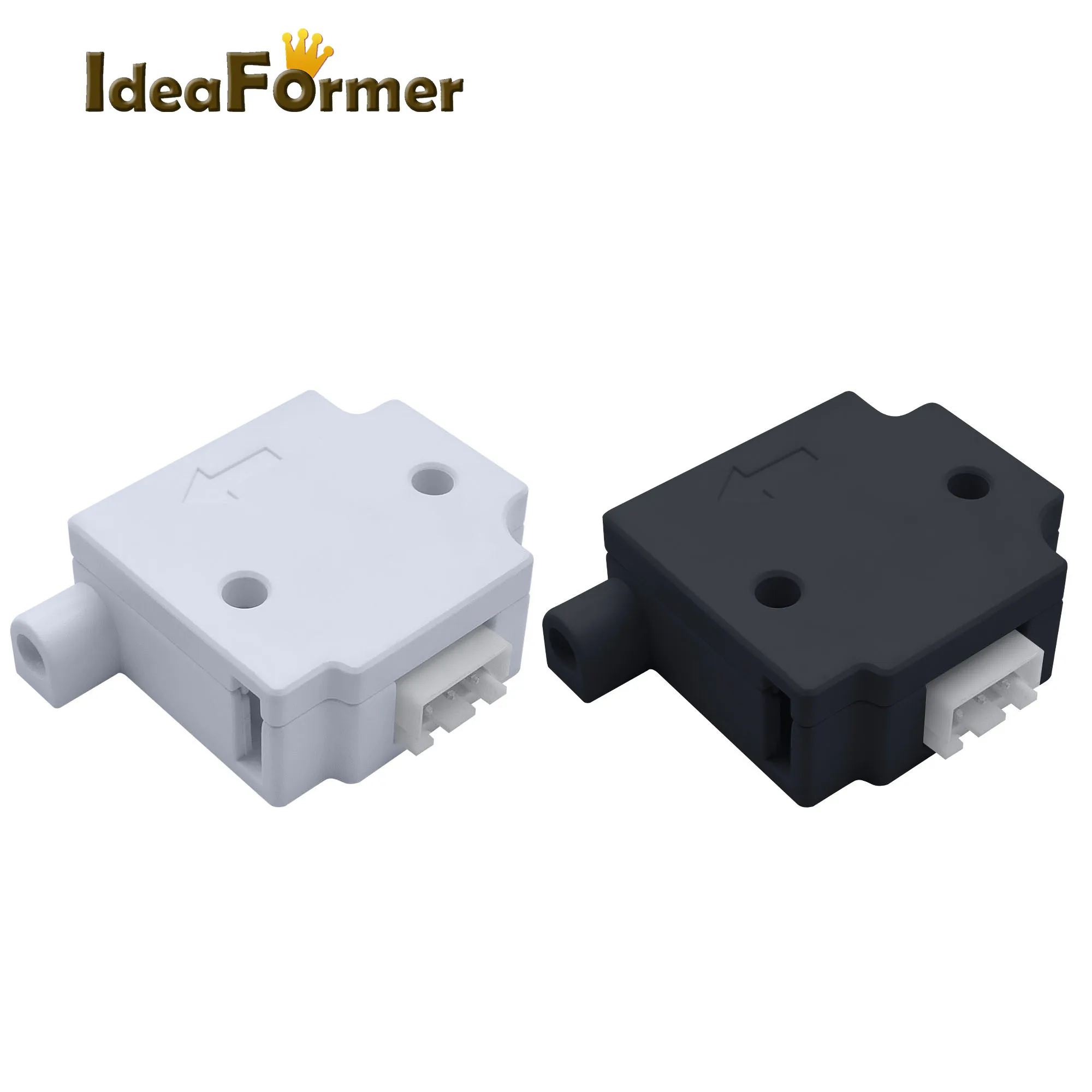

Color: Black/White

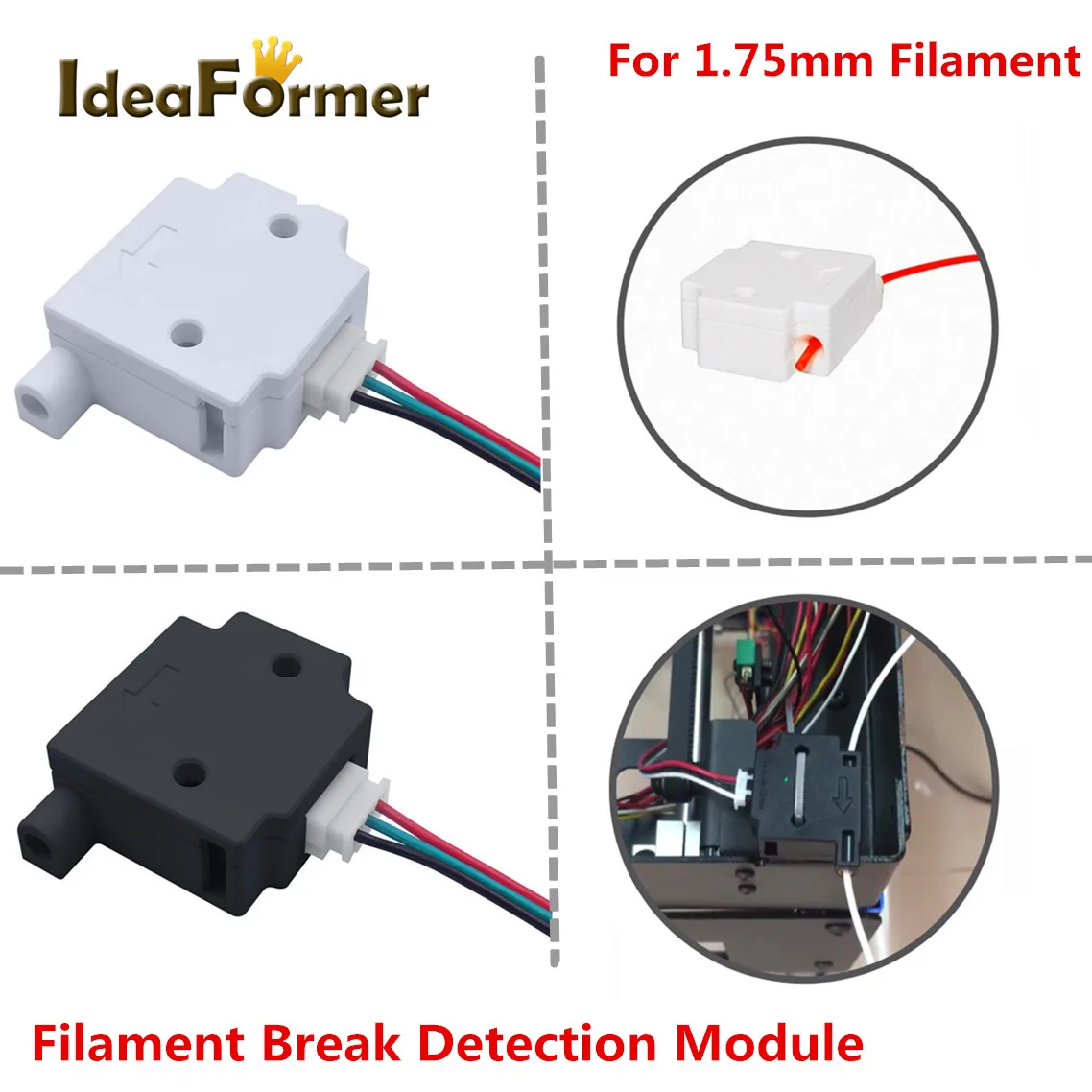

Specific selection: suitable for 1.75mm filament.
Features
At the same time, a copper sleeve is added to the wear-resistant material inlet and material intake, which can effectively extend the product's life span.
Product manual

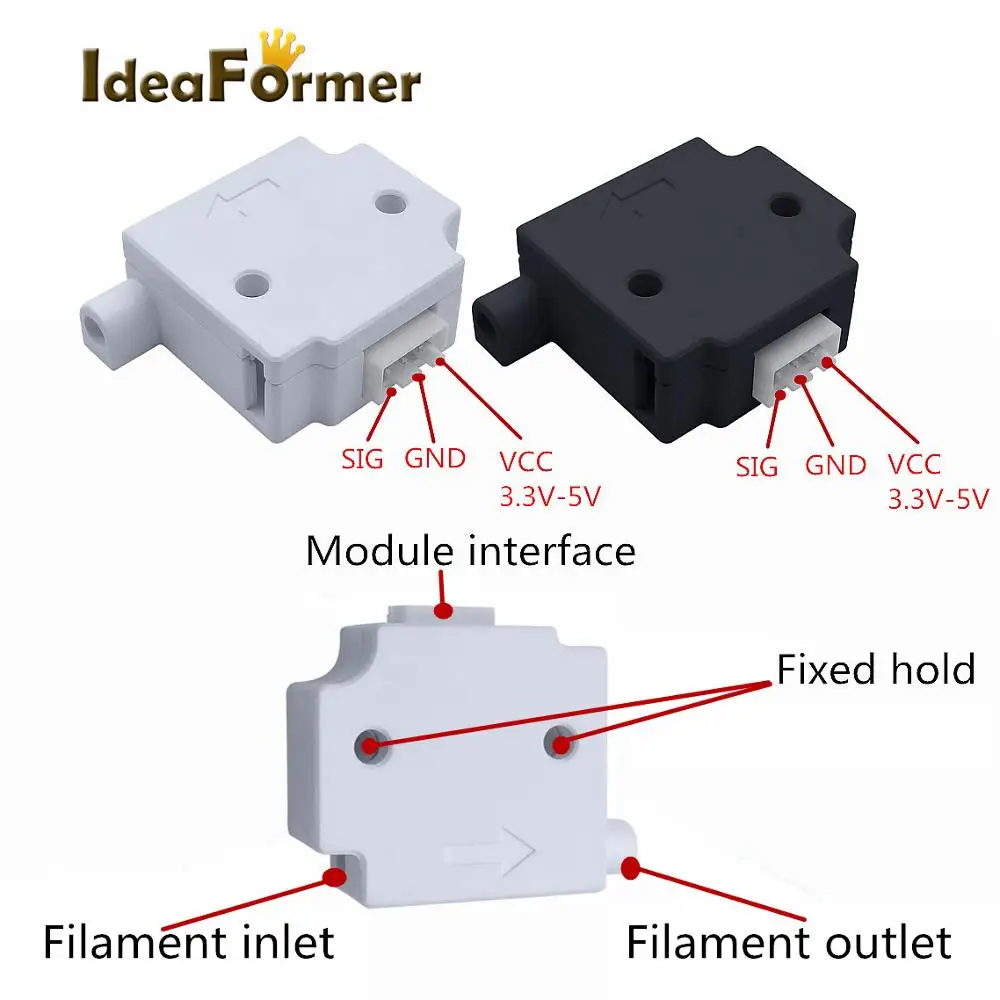

1.for use on Lerdge motherboard: when there is material, the green light of the module is always on. when the material is used up, the green light goes out, the main board executes suspend operation command, and the user keeps printing after waiting for material replacement. Lerdge motherboard Wiring: The M-port sensor on the motherboard.
2.For use on other boards: the module detection material uses the jump detection method level. when there is material, the signal level of the detection port should be at a high level. when there is no material, the level signal of the door material becomes low, and the system detects one. if the high-to-low transition is determined, the material is considered exhausted and a pause command is executed. after the human has replaced the material, the printer continues printing.
Package including

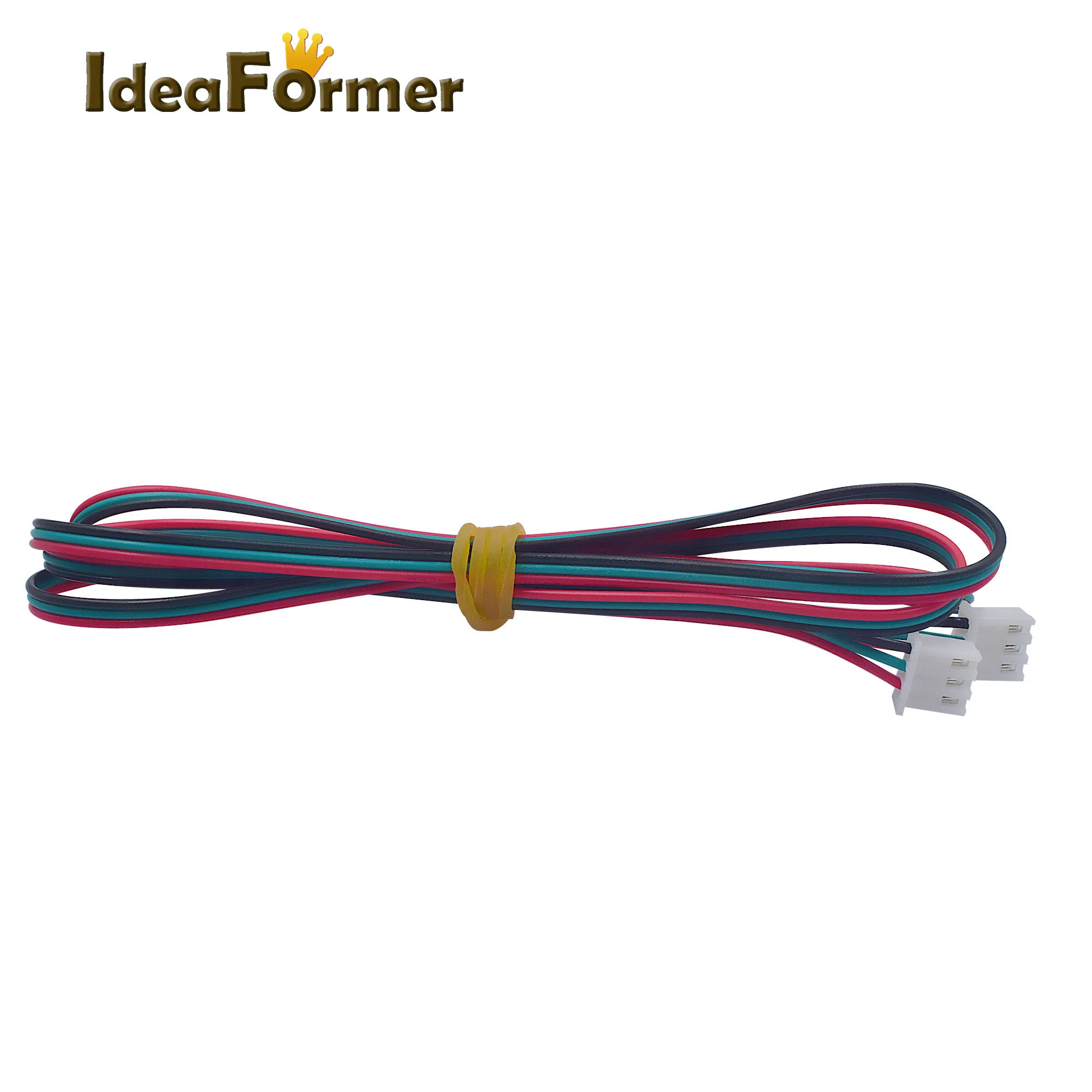

1 Pcs Filament Break Detection+1 Pcs Cable.
