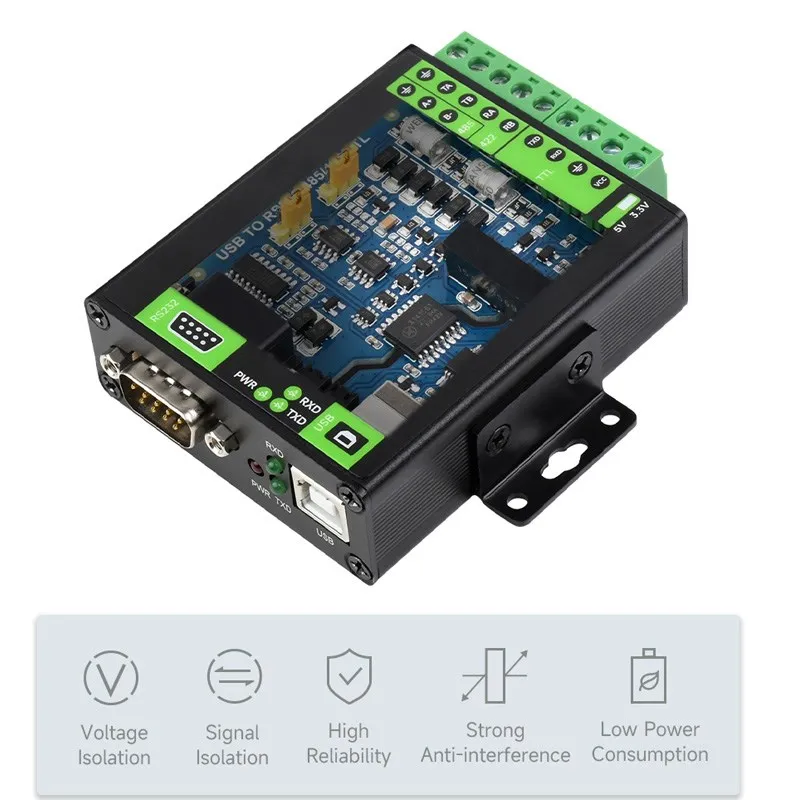

FT232RNL USB to RS232/485/422/TTL Interface Converter Industrial Isolation USB Converter for Mac Windows Linux Android
Return&refund policy
Eligible items are covered by return and refund support. If the item does not arrive or is not as described, the buyer can request help.
Security & Privacy
Safe payments: We do not share your personal details with any third parties without your consent.
Secure personal details: We protect your privacy and keep your personal details safe and secure.
AI offer for your market
A curated pick based on category, shipping route, delivery speed and popularity in your selected market.
Why this product fits your market
- • Estimated delivery: 5.
- • Strong customer signal: 5.0★ from 27 reviews.
- • Recommendations focus on this product category and your market availability.
Product specifications
Detailed product description
This product is shown with available options, market-specific pricing and verified specifications.
- Brand: Caturda
- Sales: 161
- Package size: 15 × 10 × 8 cm
- Package weight: 0.26 kg
- Rating: 5.0 / 5
Before adding to cart, choose an available option and check the quantity.

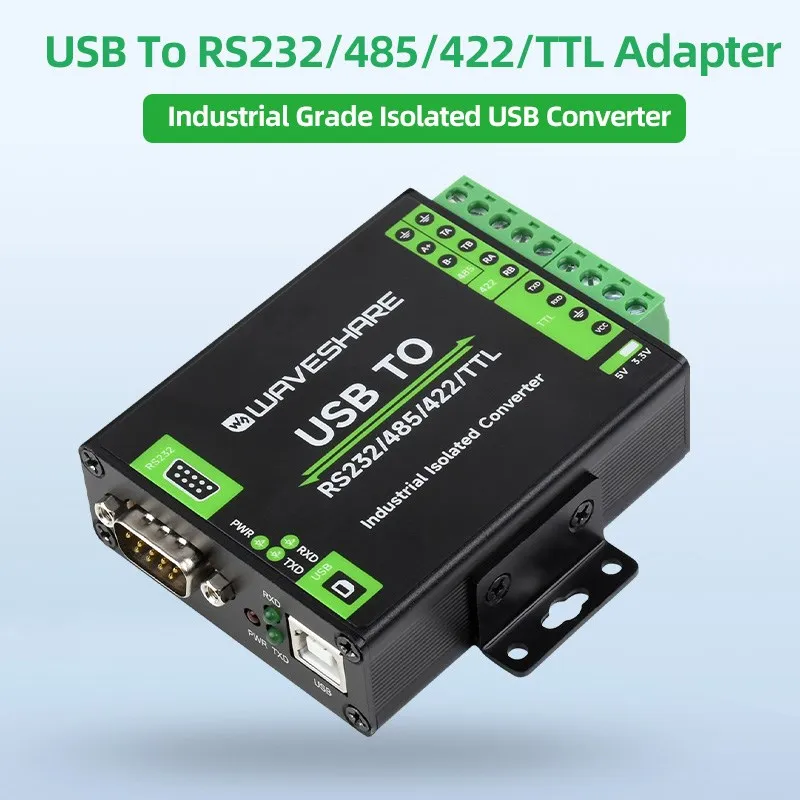

FT232RNL USB TO RS232/485/422/TTL Interface Converter, Industrial Isolation
Industrial Grade Isolated USB Converter
USB TO RS232/485/422/TTL
Original FT232RNL | Stable Transmission | Multiple Devices Applicable | Multi-OS Compatible
Features At A Glance
Specifications
PRODUCT TYPE
Industrial grade digital isolated converter
USB
Operating voltage
5V
Connector
USB-B
Protection
200mA self-recovery fuse, isolated output
RS232
DB9 male
TVS diode, surge protection & ESD protection
Transmission mode
Point-to-point
Baud rate
300bps ~ 3Mbps
RS485/422
Screw terminal
Direction control
Hardware automatic control
600W lightningproof and surge-suppress, 15KV ESD protection (reserved two 120R balancing resistors, enabled/disabled via jumper)
Point-to-multipoints (485 mode: up to 32 nodes, it is recommended to use repeaters for 16 nodes or more； 422 mode: up to 256 nodes, it is recommended to use repeaters for 16 nodes or more)
TTL (UART)
3.3V / 5V
Pins
TXD, RXD, GND, 5V/3.3V
clamp protection diode, over-voltage/negative-voltage proof, shock resistance
300 bps ~ 3Mbps
INDICATORS
PWR
Red power indicator, light up when there is USB connection and voltage is detected
TXD
TX indicator, light up when the USB port sends data
RXD
RX indicator, light up when the device ports send data back
OPERATING ENVIRONMENT
Temperature
15℃ ~ 70℃
Humidity
5%RH ~ 95%RH
OPERATING SYSTEM
Mac, Linux, Android, Windows 11 / 10 / 8.1 / 8 / 7
Original Industrial Grade Chip
Onboard Original FT232RNL Chip
Fast Communication, Stable & Reliable, Better Compatibility

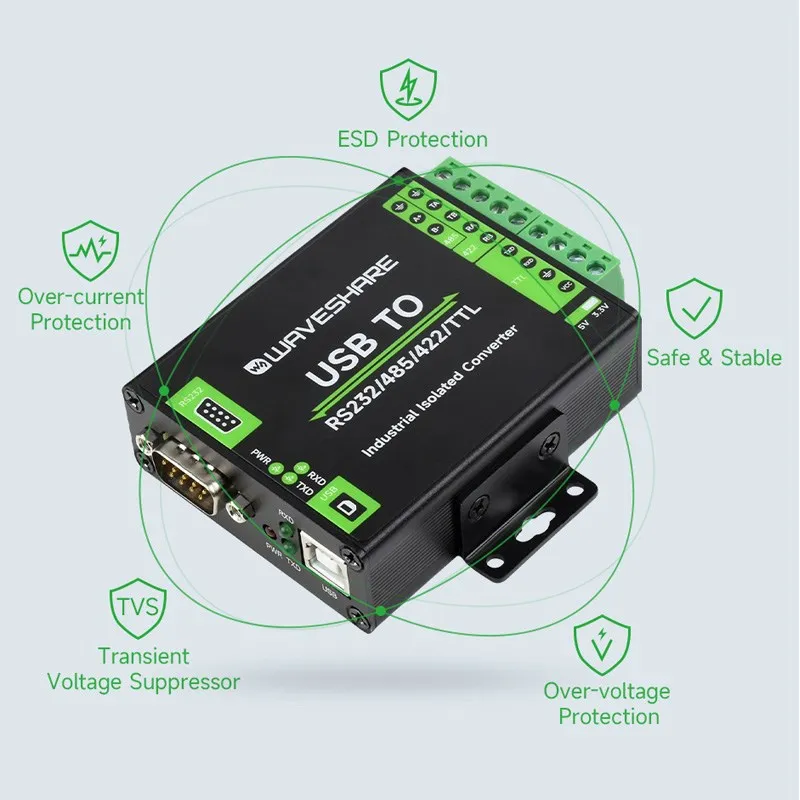

Safer Isolated Design
Multiple Protection, Safe And Stable
Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & ESD protection. Onboard self-recovery fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock resistance.
Multi System Support
Supports Mac, Linux, Android, Windows 11 / 10 / 8.1 / 8 / 7, Etc.
Aluminium Alloy Enclosure
Aluminium Alloy Enclosure With Sand Blasting And Anodic Oxidation
Solid And Durable, Fashionable And Good Hand Feeling
Wall-Mount And Rail-Mount Support, More Flexible For Industrial Installation

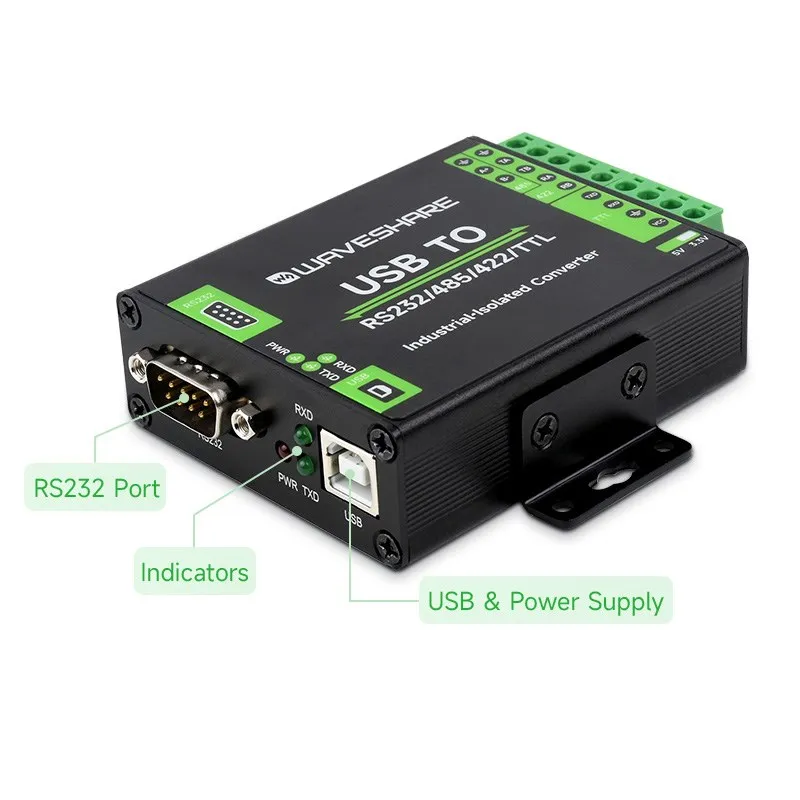

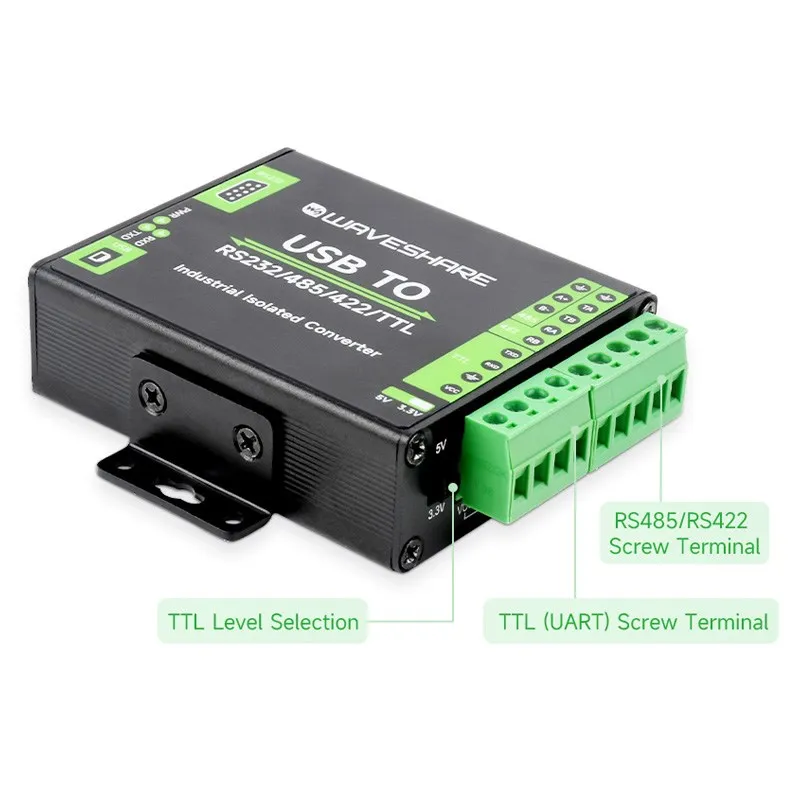

Interface Introduction
Product Show
Outline Dimensions
Resources & Services

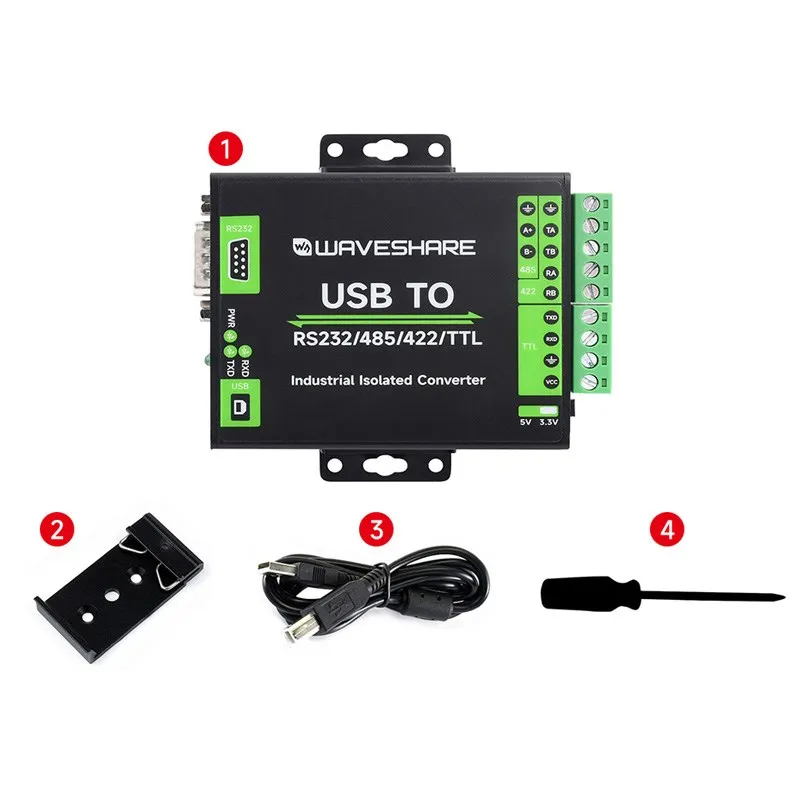

Packing List
