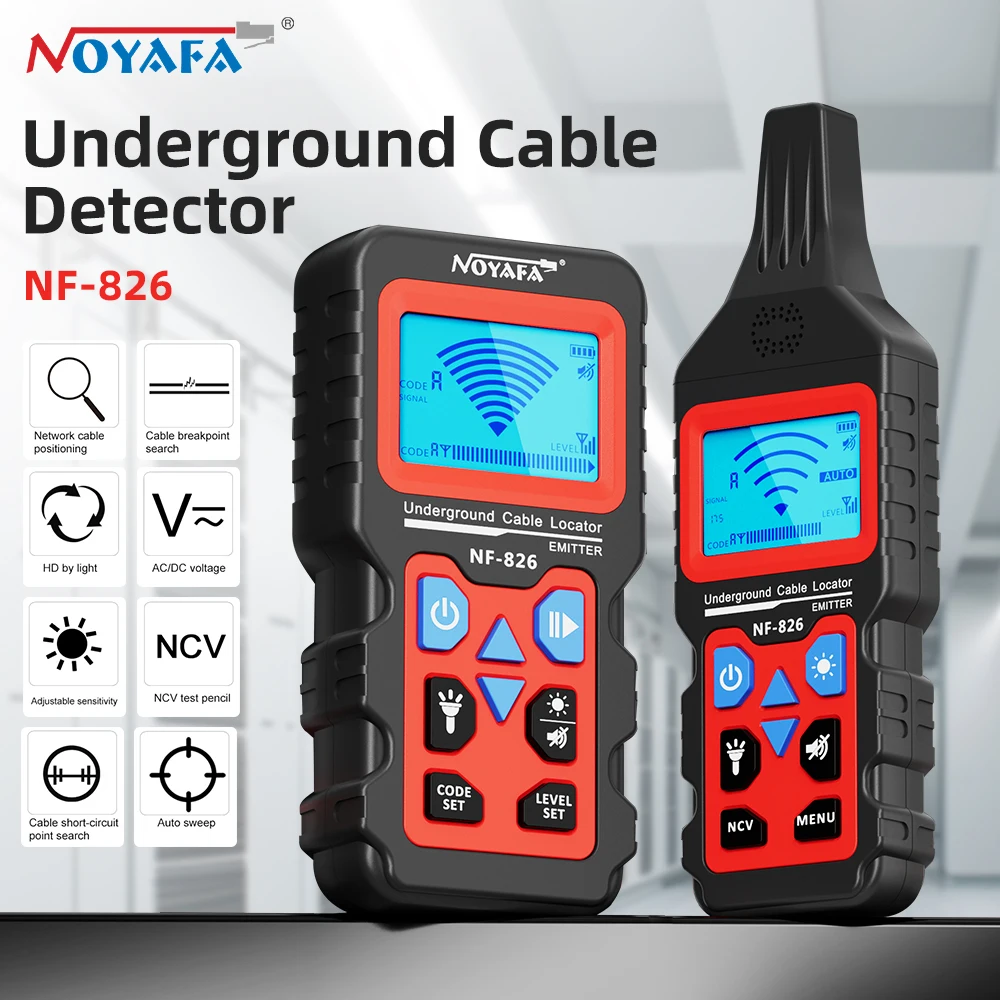

NOYAFA NF-826 Underground Cable Tester Wire Tracker LCD Display Cable Locator Detect Wall Electrical Lines Locator Cable Finder
Return&refund policy
Eligible items are covered by return and refund support. If the item does not arrive or is not as described, the buyer can request help.
Security & Privacy
Safe payments: We do not share your personal details with any third parties without your consent.
Secure personal details: We protect your privacy and keep your personal details safe and secure.
AI offer for your market
A curated pick based on category, shipping route, delivery speed and popularity in your selected market.
Why this product fits your market
- • Estimated delivery: 7.
- • Strong customer signal: 4.6★ from 47 reviews.
- • Recommendations focus on this product category and your market availability.
Product specifications
Detailed product description
This product is shown with available options, market-specific pricing and verified specifications.
- Brand: NOYAFA
- Sales: 162
- Package size: 27 × 20 × 8 cm
- Package weight: 1.1 kg
- Rating: 4.6 / 5
Before adding to cart, choose an available option and check the quantity.
Product Description
Brand: NOYAFA
Product Name: Wire Tracker
Type: NF-826
Size: 156x80x32mm(Transmitter), 226x73x69mm(Receiver)
Detection Depth: 0.1 - 1.5 meter
External voltage identification range: DC 12~400V±2.5%, AC12~400V(50~60Hz)±2.5%
External voltage's dielectric strength: Max.400VAC/DC
Fuse: F0.5 A 500V 6.3x32mm
Single-pole Application: About 0~1m
Dual-pole Application: About 0-0.5m
Single Loop Line: Up to 2.5m
Power Supply: 3.7V 1400mAh
Display: LCD Display with function displayand column chart
Product Function
1. Detecting cables, electrical lines buried in wall or earth, Detection depth is 0-1.5m
2. Detecting the direction, break points and short circuit points of the cable and electrical cable in wall or earth
3. Detecting fuse and fuse circuits
4. Finding the sockets and junction boxes which having been covered.
5. Detecting the broken wires and short circuits of the electric heating circuits under the floor.
6. The transmitter has built-in AC and DC voltmeter function, which can linearly measure AC and DC voltages of 12V to 400V.

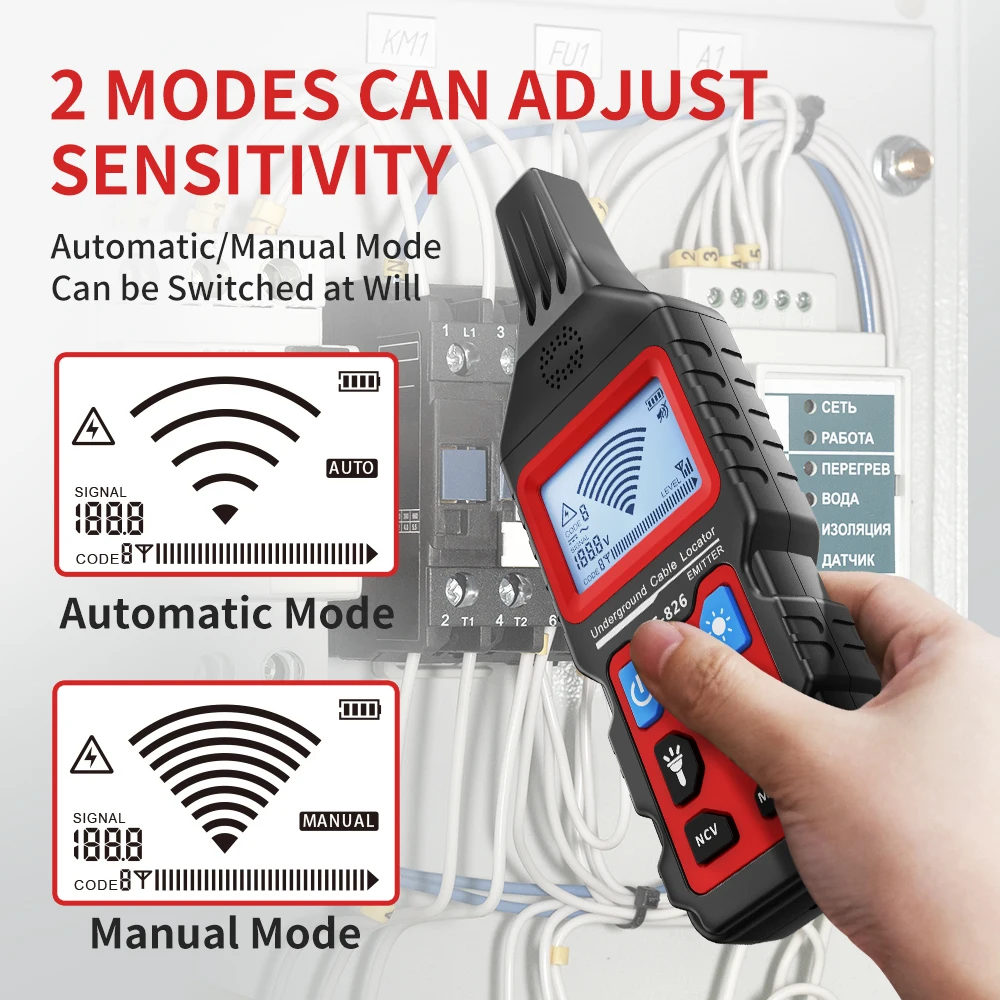

7. Sensitivity adjustment function: can be adjusted manually or automatically
8. Both receiver and transmitter have mute function
9. The receiver LCD screen has a backlight function, which is convenient for application in poor light places

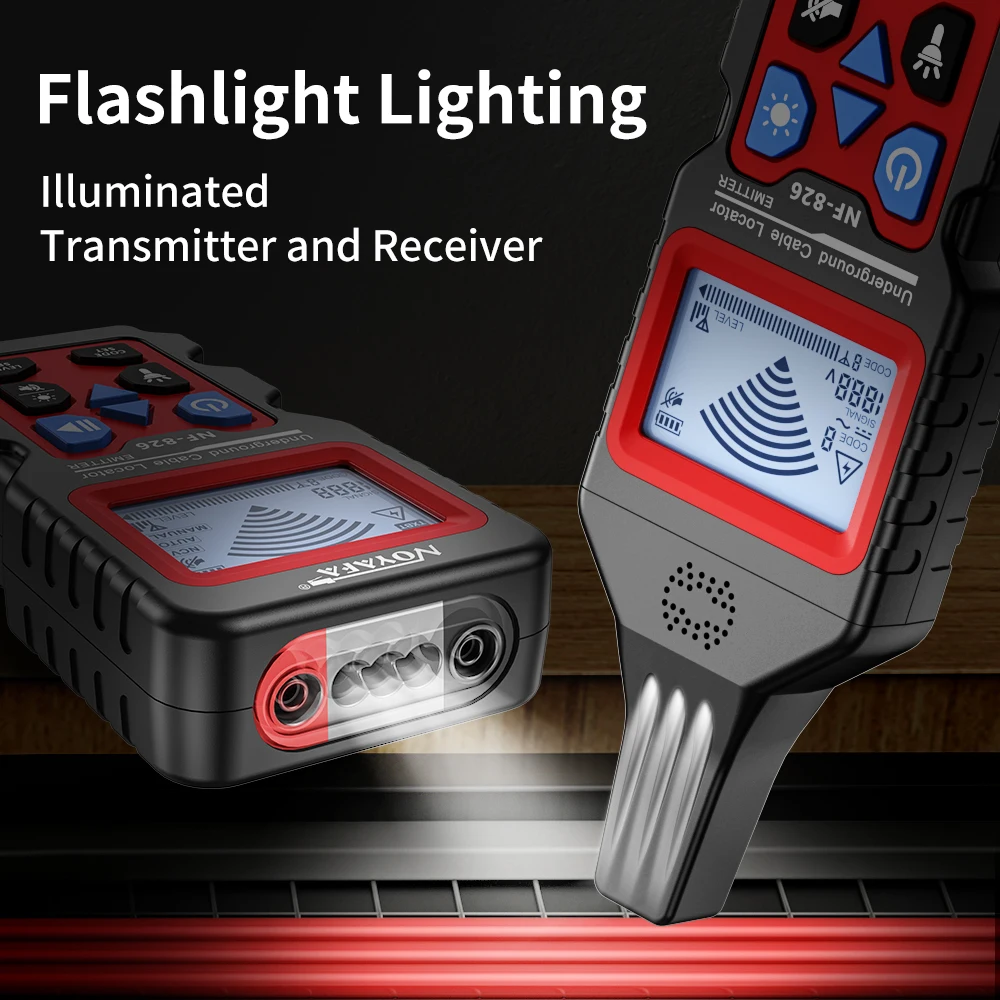

10. Both receiver and transmitter are equipped with torch function, convenient to work in dark environment.
11. Rechargable Lithium battery for long-time work. Automatic shutdown function.
Three Common Methods of Use（Line must be de-energized）：

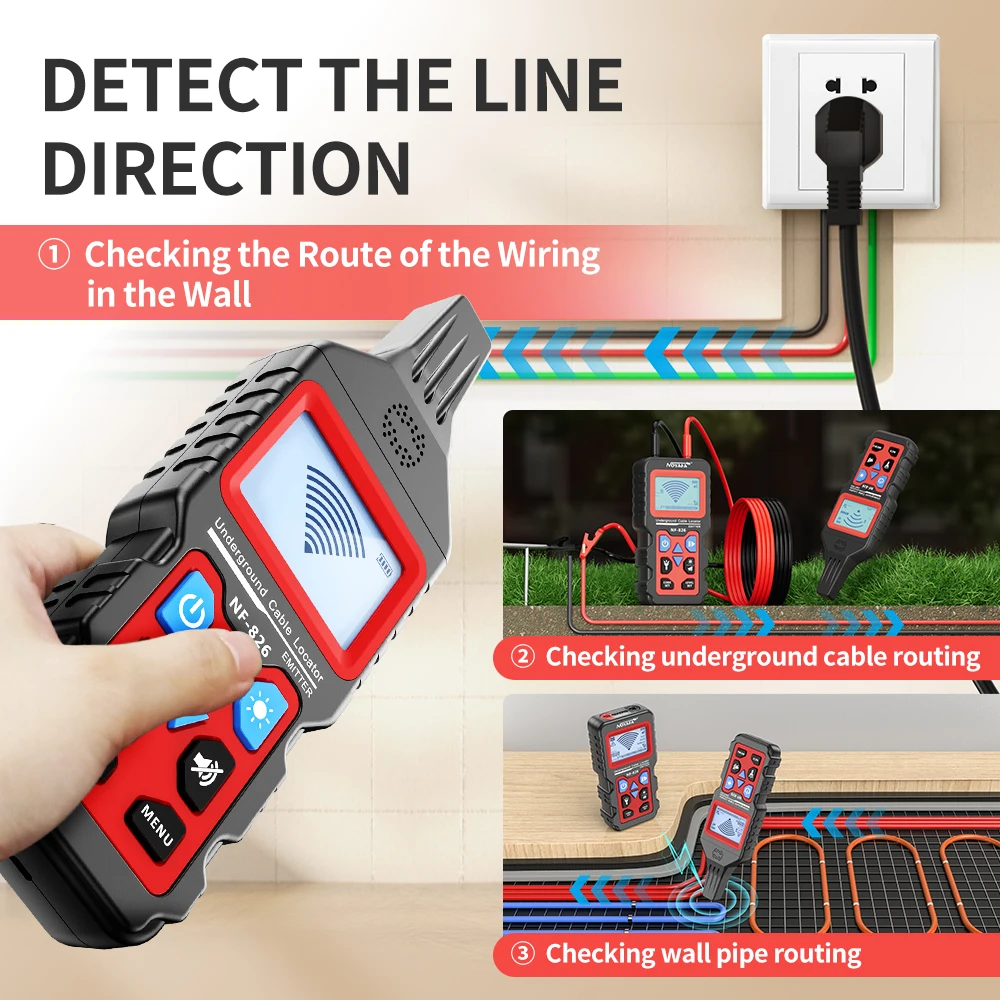

1. Look for underground cables
Use the red clip (red needle)to clamp the cable that needs to be searched and the black clip (black needle)to the ground wire and the receiver traces the signalalong the line to find the cable direction.
2. Look for short-circuit points of underground cables
Use the red clip/black clip to clamp the short-circuited wire separately, adjust the sensitivity to an appropriate levelthe receiver will sound before the short-circuit point, and the receiver will not sound after the short-circuit point.
3. Find underground cable breakpoints
The red clamp clamps the target line, the black clamp clamps all the remaining lines and then connects the ground rod to ground(good groundingis required), the receiver will sound before the break pointand the receiver will not sound after the break point.
