Steel Case 5/8 Port Gigabit Switch Desktop RJ45 Ethernet Switch 10/100 / 1000mbps Lan Hub Network Switch Gigabit
The power plug can be EU, US type!

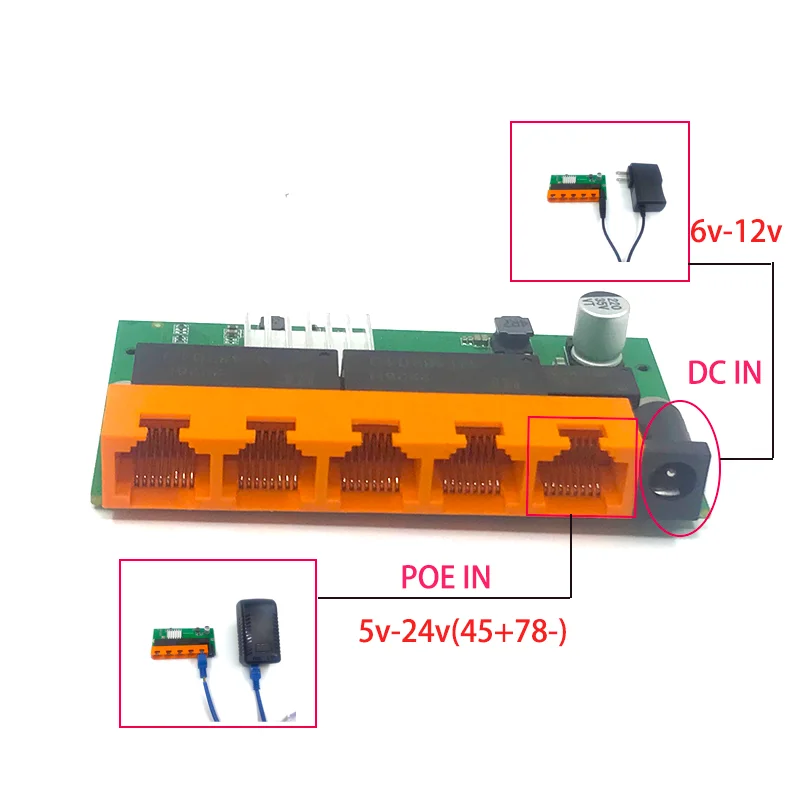

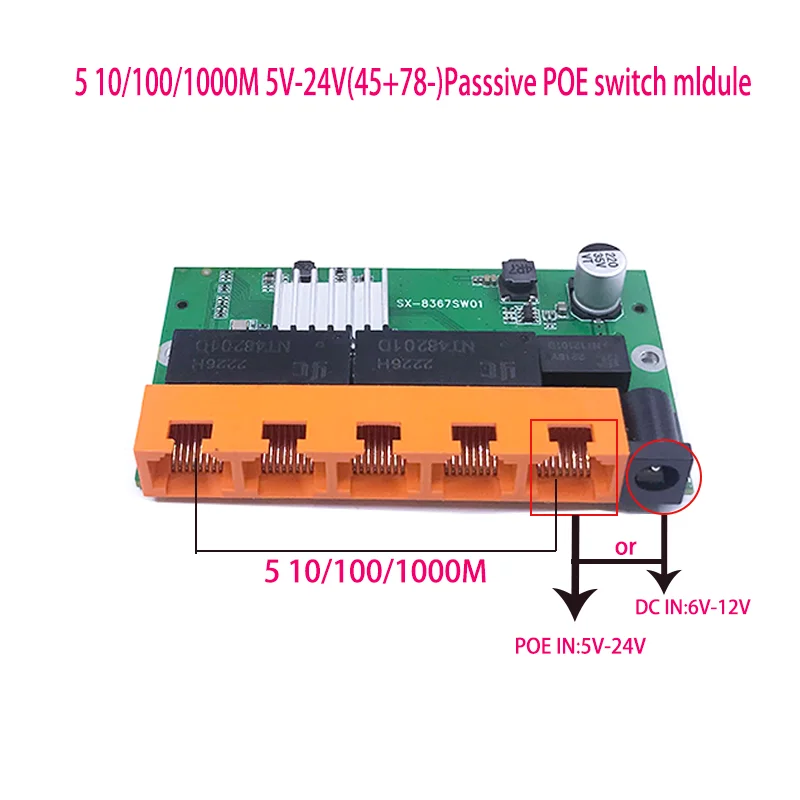

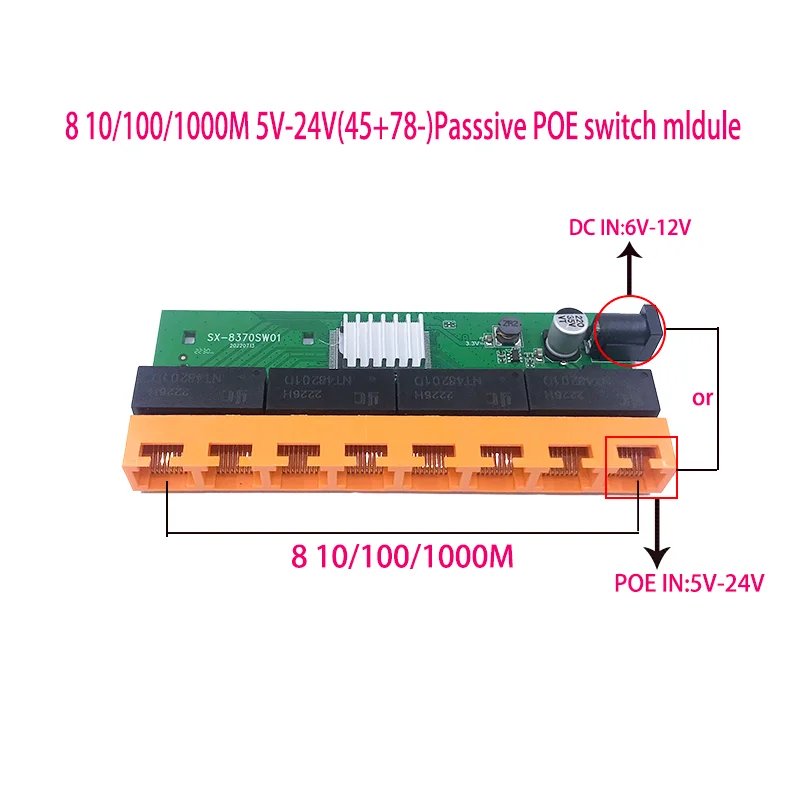

POE IN:5V-24V(45+78-) DC IN:6V-12V
Definition
PL-GS3008DR-A1 5/8 port gigabit switch 10/100 / 1000mbps ethernet network lan hub
Simple Features
1 5/8 port ethernet network gigabit switch
2 Desktop
3 Plug n Play
4 Metal case
5 5-24V1A power adapter
Applications
The 5/8 port ethernet network gigabit switch is widely used in companies, hotels, school, office, small Local area network and other places
Features
Complies with IEEE 802.3, IEEE 802.3u and IEEE 802.3ab standards
5/8port 10/100 / 1000Mbps Auto-Negotiation RJ-45 ports, supporting Auto-MDI / MDIX
Supports 8K-entry MAC address table with 4-way hash algorithm
Support IEEE 802.3x flow control for full duplex mode and backpressure for half duplex mode on all port
Non-blocking switching architecture that forward and filter packets at wire-speed for maximum throughput
Support MAC address auto-learning and auto-aging
LED indicators for monitoring power, link and activity
desktop metal case
External supply power DCIN:6-12v POE IN: 5V-24V
5/8port 10/100 / 1000M Gigabit switch
Specifications
Standards
IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE 802.3ab 1000Base-T Gigabit Ethernet ANSI / IEEE Std 802.3 Nway Auto-Negotiation
IEEE 802.3x flow control
protocol
CSMA / CD
Transmission Rate
Ethernet 10 Mbps (half duplex), 20 Mbps (full duplex); 10BASE-T: 14,880 pps / port
Fast Ethernet 100Mbps (half duplex), 200Mbps (full duplex); 100BASE-TX: 148800pps / port
Gigabit Ethernet 2000Mbps (full duplex), 1000BASE-T: 1488000pps / port
Topology
Star
Network Medium
10Base-T: Cat 3 or above Cat.3 UTP (≤100m)
100Base-TX: Cat 5 UTP (≤100m)
1000Base-T: Cat 6 or above Cat.5 UTP (≤100m)
Number of Ports
5/8 port 10/100 / 1000M RJ45 ports
UPLINK
Any pot (support Auto-MDI / MDIX function)
Transmits Method
Store-and-Forward
Temperature
Operating Temperature 0 C ~ 40 C (32 F ~ 104 F)
Storage Temperature -40 C ~ 70 C (-40 F ~ 158 F)
Humidity
Operating Humidity 10% ~ 90% non-condensing
Storage humidity 5% ~ 95% non-condensing
Switch capacity
16G
LED Indications
1 * power LED (Power: Red)
5/8 * port LEDs (Link / Act: Green)

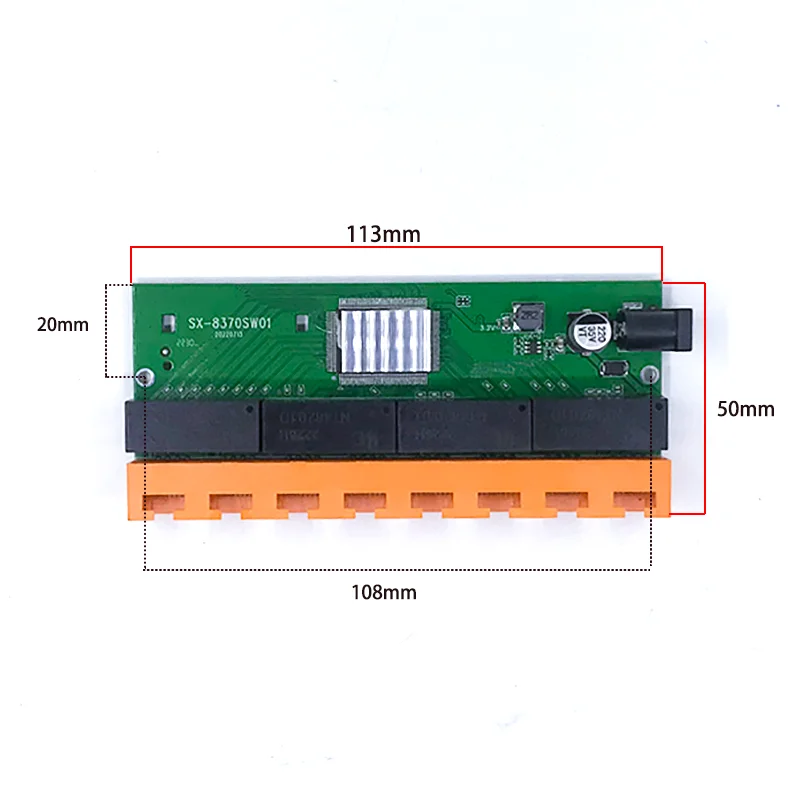

Dimension (W x H x D)
113* 50 *13mm
82*48*13mm
Power Supply
External power 5V-24V etc
Desktop plastic case Certificate
CE ROHS FCC
