Samwha-Dsp SEM-XXD Digital Multimeter, Contains 3 C.T, Three Phase Volt(L-L),(L-N), Ampere,Frequency, Phase Sequence Display
Return&refund policy
Eligible items are covered by return and refund support. If the item does not arrive or is not as described, the buyer can request help.
Security & Privacy
Safe payments: We do not share your personal details with any third parties without your consent.
Secure personal details: We protect your privacy and keep your personal details safe and secure.
AI offer for your market
A curated pick based on category, shipping route, delivery speed and popularity in your selected market.
Why this product fits your market
- • Estimated delivery: 7.
- • Strong customer signal: 4.8★ from 67 reviews.
- • Recommendations focus on this product category and your market availability.
Product specifications
Detailed product description
This product is shown with available options, market-specific pricing and verified specifications.
- Brand: samwhadsp
- Sales: 245
- Package size: 12 × 10 × 8 cm
- Package weight: 0.4 kg
- Rating: 4.8 / 5
Before adding to cart, choose an available option and check the quantity.
General
SEM-60D/100D/250D Multimeter are designed to display 3 phase current, voltage and frequency.
Usage and Working Principle
Make the connections according to the diagram. Connect the current transformers before electric charges to be connected to the system.

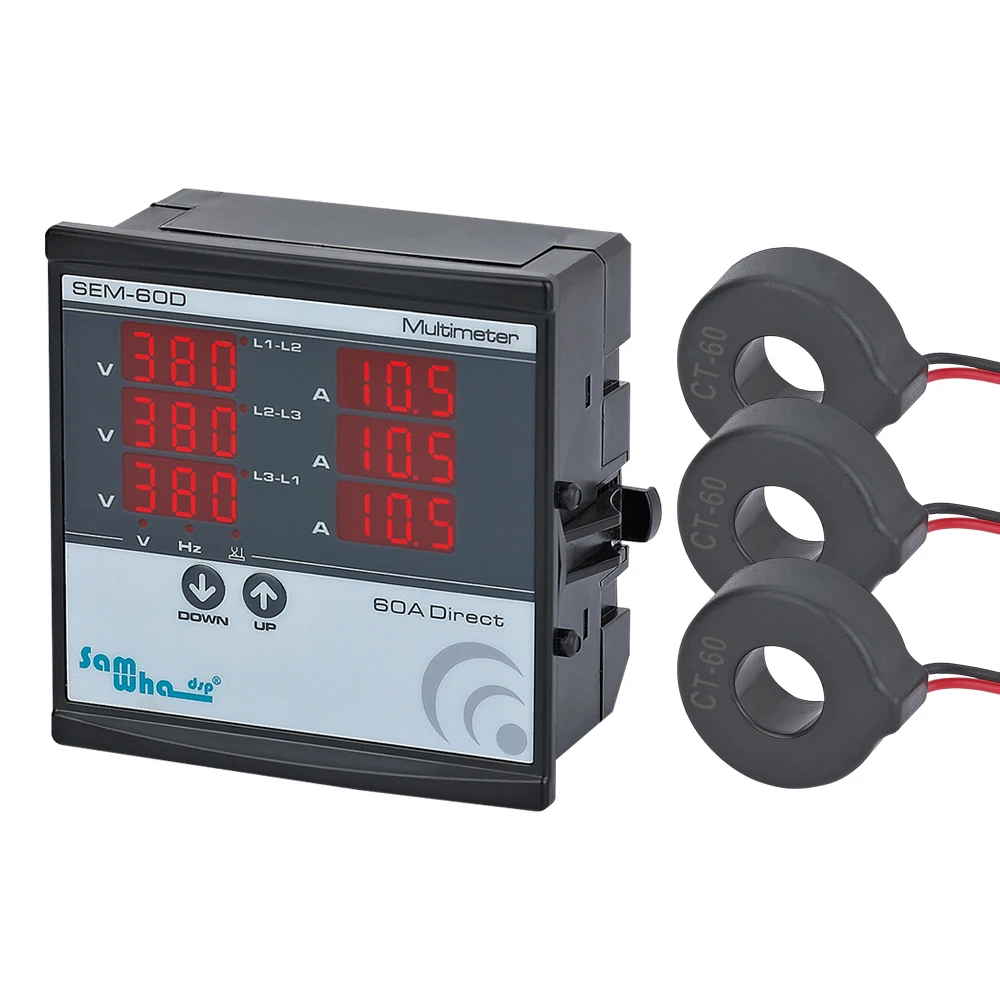

SEM-60D
Use the 3 pcs CT-60(1-63 A) current transformers provided with the device. Connect the current transformer lead wires to k-1
terminals of the device. The device automatically displays the current value without any setting. So, don't use current transformers of different brands and models. Wher the device is energized, it shows the phase-neutral, phase-phase voltages, frequency, phase sequence and current values on the displays

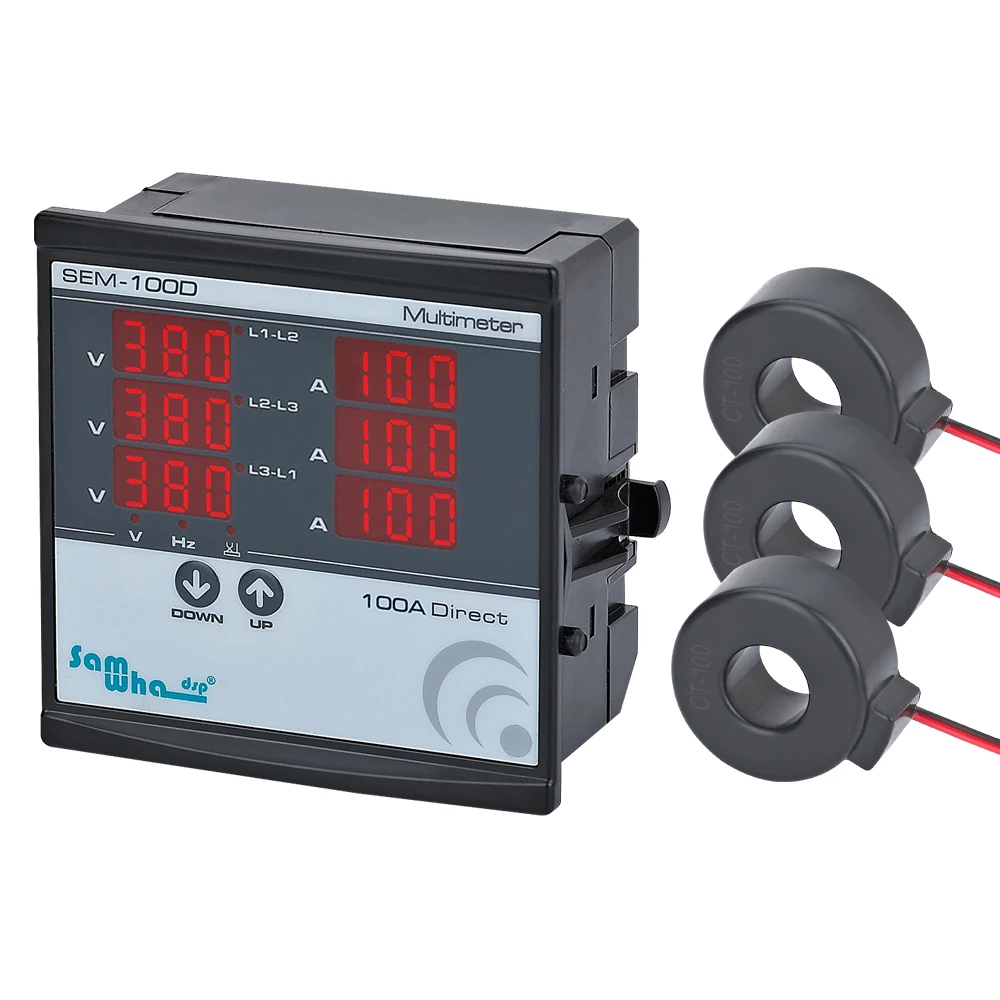

SEM-100D
Use the 3 pcs CT- A) current transformers provided with the device. Connect the current transformer lead wires to k-1
terminals of the device. The device automatically displays the current value without any setting. So, don't use current transformers of different brands and models. Wher the device is energized, it shows the phase-neutral, phase-phase voltages, frequency, phase sequence and current values on the displays.

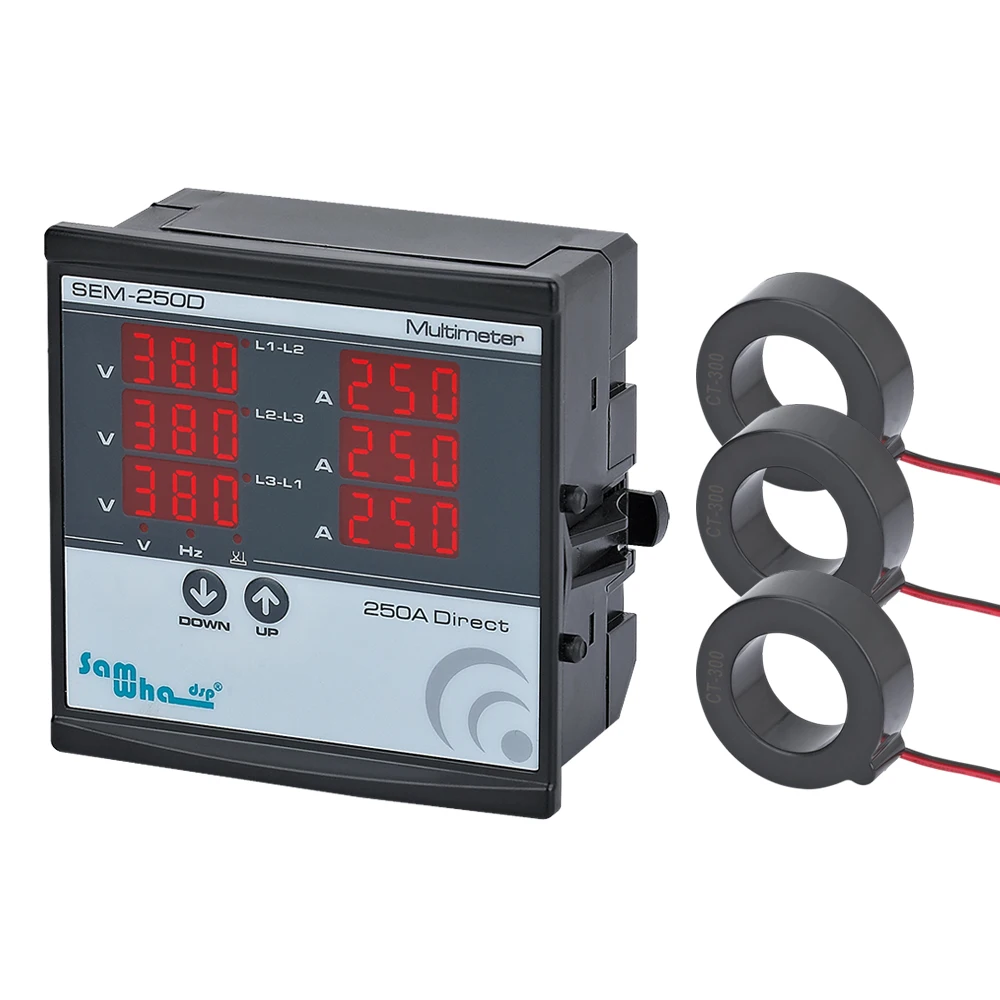

SEM-250D
You can see the frequency between phase and phase, phase and neutral at the first display group. When the voltage values is shown (V) led gets on. While pressing the up button,phase-phase range can be seen.When the phase-phase values is shown you can see the leds on phase – phase. While pressing theup buttons you can see the frequency value and Hz led gets on.
Phase Sequence: If the phase sequence is reverse you can see the (X) led gets on which take place in the 1st display group.
Maintenance
Switch off the device and release from connections. Clean the trunk of device with a swab. Don’t use any conductor or chemical might damage the device.
Make sure device works after cleaning.
Warnings
Please use the device according to the manual.
Don’t use the device in wet.
Include a switch and circuit breaker in the assembly.
Put the switch and circuit breaker nearby the device, operator can
reach easily.
Mark the switch and circuit breaker as releasing connection for device.
Specifications
Operating Voltage(Un).......: 140V - 270V AC
Operating Frequency..........: 50/60 Hz.
Operating Power..................
Operating Temperature.....: -20°C.....+55°C
Voltage Measuring Range.....: 1V - 500V AC
Measurement Range..........: 60D(1-63A), 100D(10-100A), 250D(10-250A)
Measurement Precision.....: ±%1
Display......................: (3 digit) 6x Displays + 9 Leds
Connection Type.................: Plug-in terminal
Cable Diameter....................: 1,5mm²
Weight...................................: Max. 325gr.
Panel Hole Sizes...................: 91x91mm
Mounting..............................: Panel front mounted
Operating Altitude.............
Dimensions
Construction

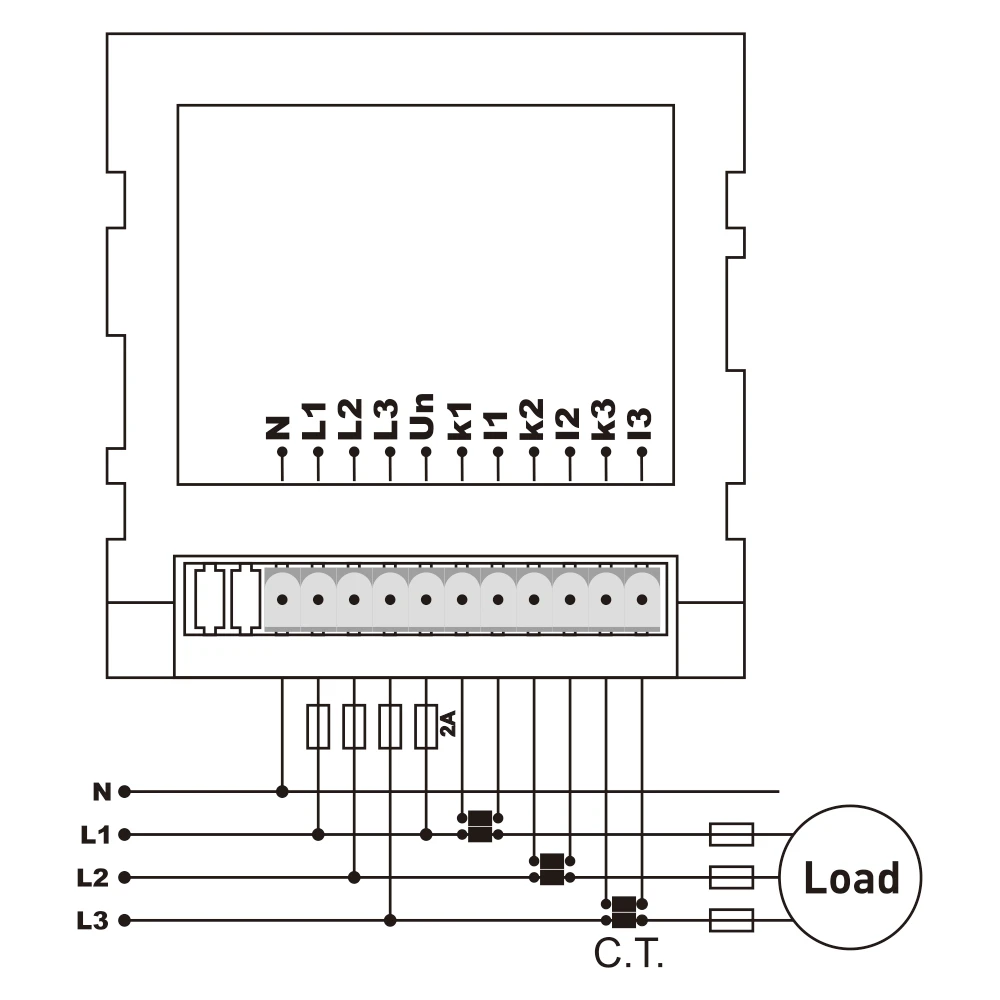

Connection Diagram
