XL830L VC830L DT858L Handheld Digital Multimeter LCD Backlight Portable AC/DC Ammeter Voltmeter Ohm Voltage Tester Meter Multimetro
Note: This link sells 3pcs shape multimeters with different functions, please click on the picture to purchase
High quality 100% brand new.

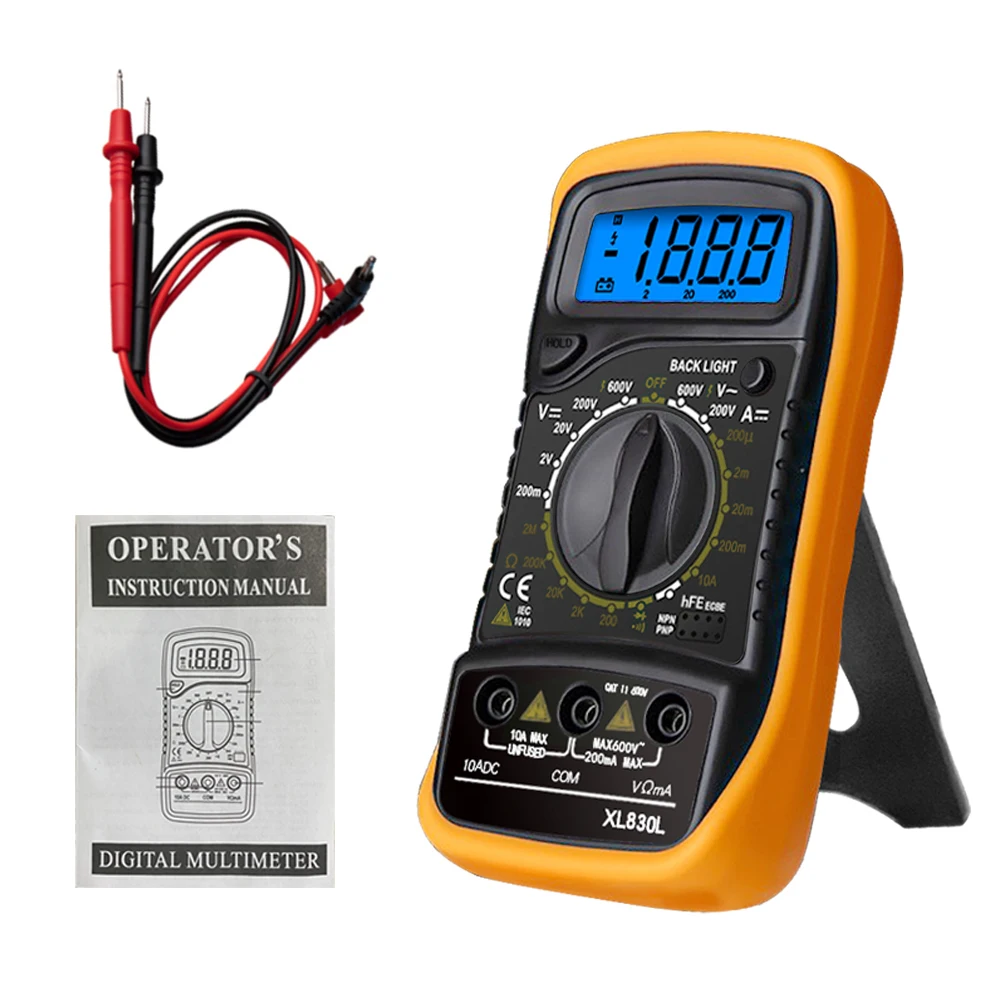

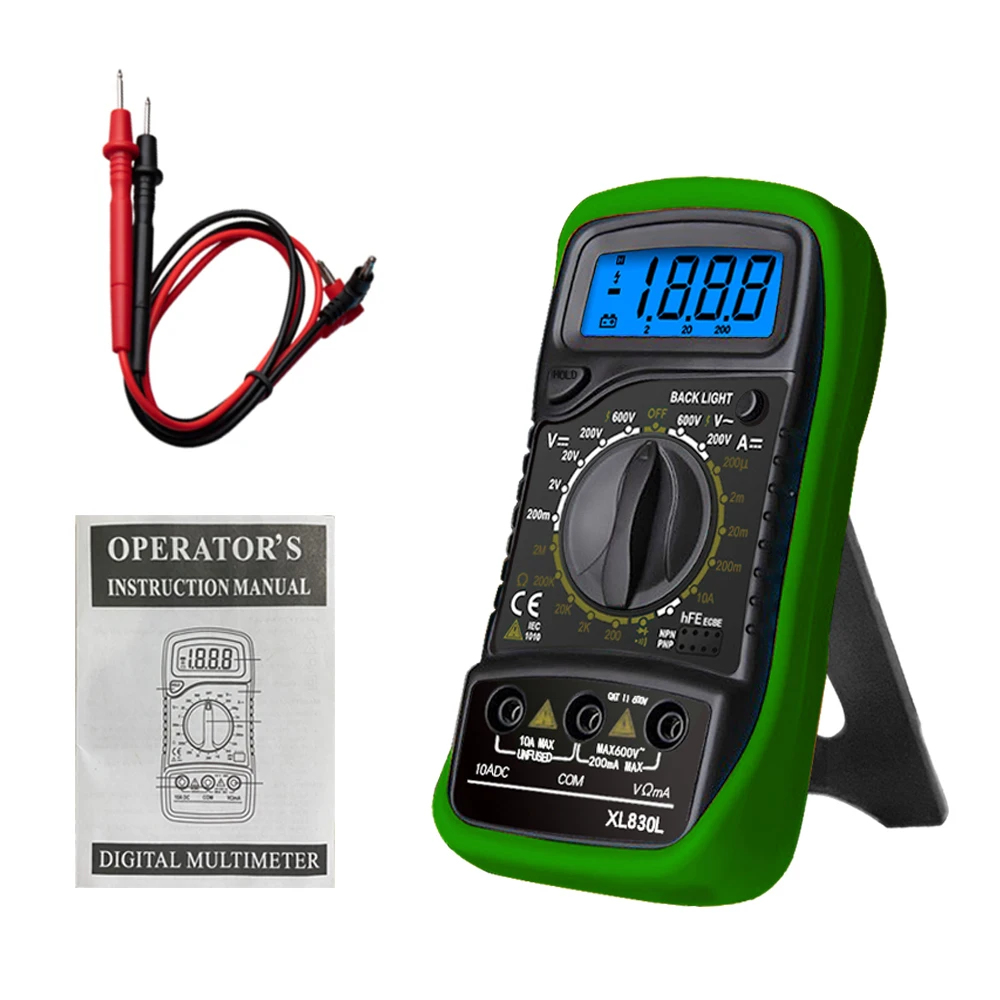

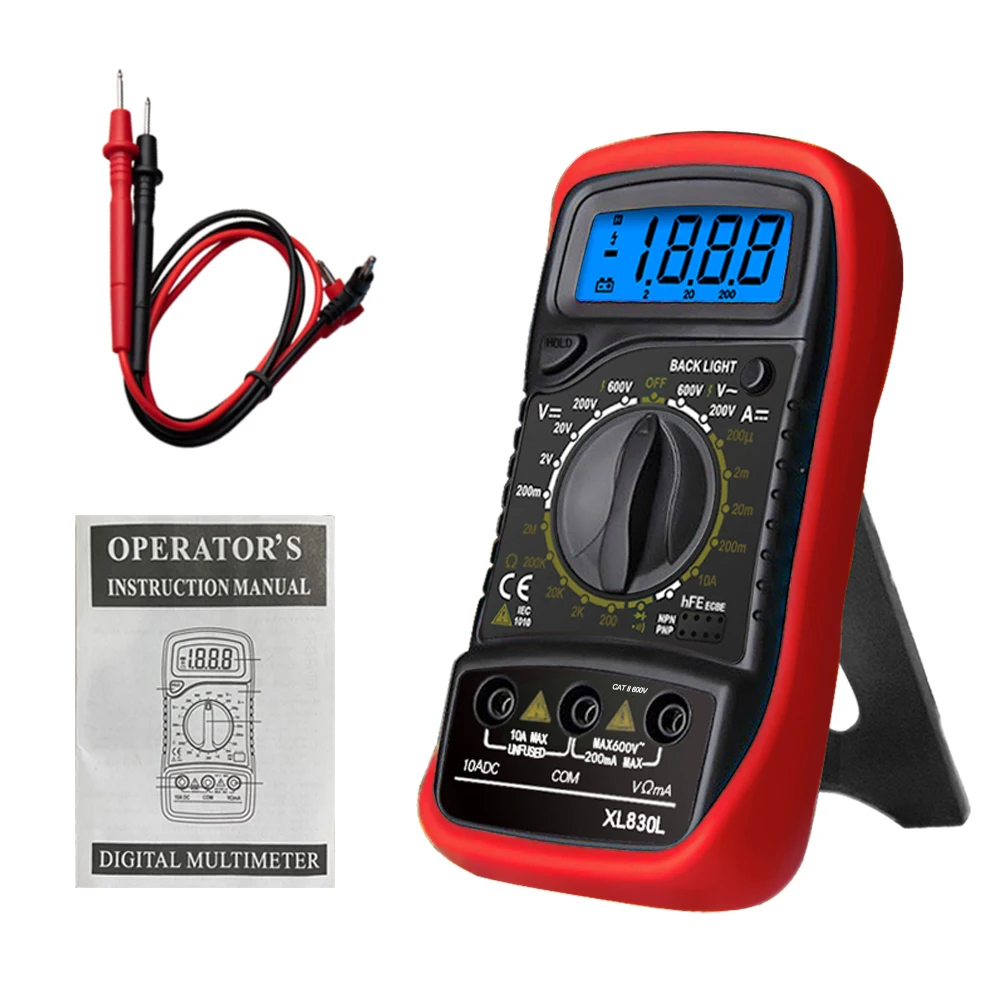

XL830LThe Digital Multimeter is a practical tool for electrician use. It is easy to operate and the readings indicated directly on the screen. It can be use to overhaul all kinds of circuit boards. It is also an ideal teaching instrument for students.
15mm high LCD Display.
Max display: 1999, Auto polarity display.
Portable and compact design, overload protection on all ranges.
Diode assembly test/Transistor P-N junction test/Transistor HFE test.
Continuity test with buzzer sound in circuit.
Low battery voltage indication.
DC Voltage: 200mV/2V/20V/200V ±0.5%, 600V ±0.8%.
AC Voltage: 200V/600V ±1.2%.
DC Current: 200μA/2mA/20mA ±1%, 200mA ±1.5%, 10A ±3%.
Resistance: 200ω/2Kω/20Kω/200Kω/2Mω ±0.8%.
Fuse protection: F-200mA/250V.
Operating Temperature: -0 to 40.
Overrange Indication: Only figure "1" on the display.
Polarity Indication: "-" displayed for negative polarity.
Low Battery Indication: - /+ display.
Battery: 9V (Battery not include).
Dimension: Approx 138mm x 69mm x 31mm.
# Battery won't be included in shipping becased of new air post regulation.
Package included
1 x LCD Digital Multimeter.
2 x Test Loads.
1 x Back Cover.
1 x English User Manual.

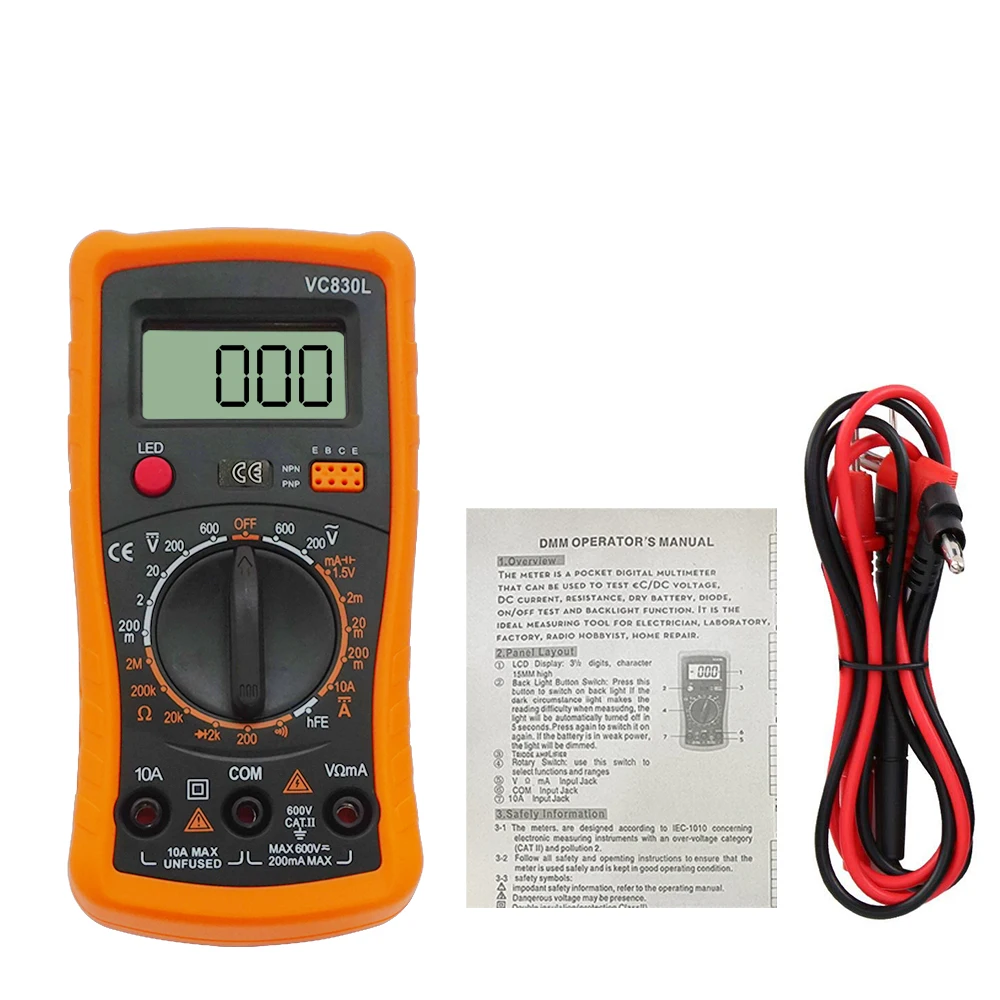

VC830L
DT858L Multimeter parameters
Please note: This product does not have a protective case and does not include a battery (transportation safety restrictions)
Max display: LCD 3 ½ digits (1999 count) 0.6” high
Polarity:Automatic, indicated minus, assumedplus.
Measure method: double integral A/D switch implement
Sampling speed: 2 times per second
Over-load indication: “1” is displayed
Operating Environment: 0℃~40℃, at
Storage Environment: -10℃~50℃, at
Power: 9V NEDA 1604 or 6F22
Low battery indication: “
Static electricity: about 4mA
Product Size: 135 x 67 x 33mm
Product net weight: 135g (not including battery)
