1.5kw ER11 water cooled spindle kit water cooling spindle & 1.5kw inverter & 65mm spindle bracket & 80w water pump for CNC Router
Package Included
1 x 1.5KW CNC Water Cooled Spindle
1 x 1.5KW VFD
1 x 3.5M 80w Water Pump
1 x 5M Water Pipe
1 x 65mm Spindle Clamp
13 x ER11 Collet (1mm/1.5mm/2mm/2.5mm/3mm/3.5mm/4mm/4.5mm/5mm/5.5mm/6mm/6.5mm/7mm)
Product Description

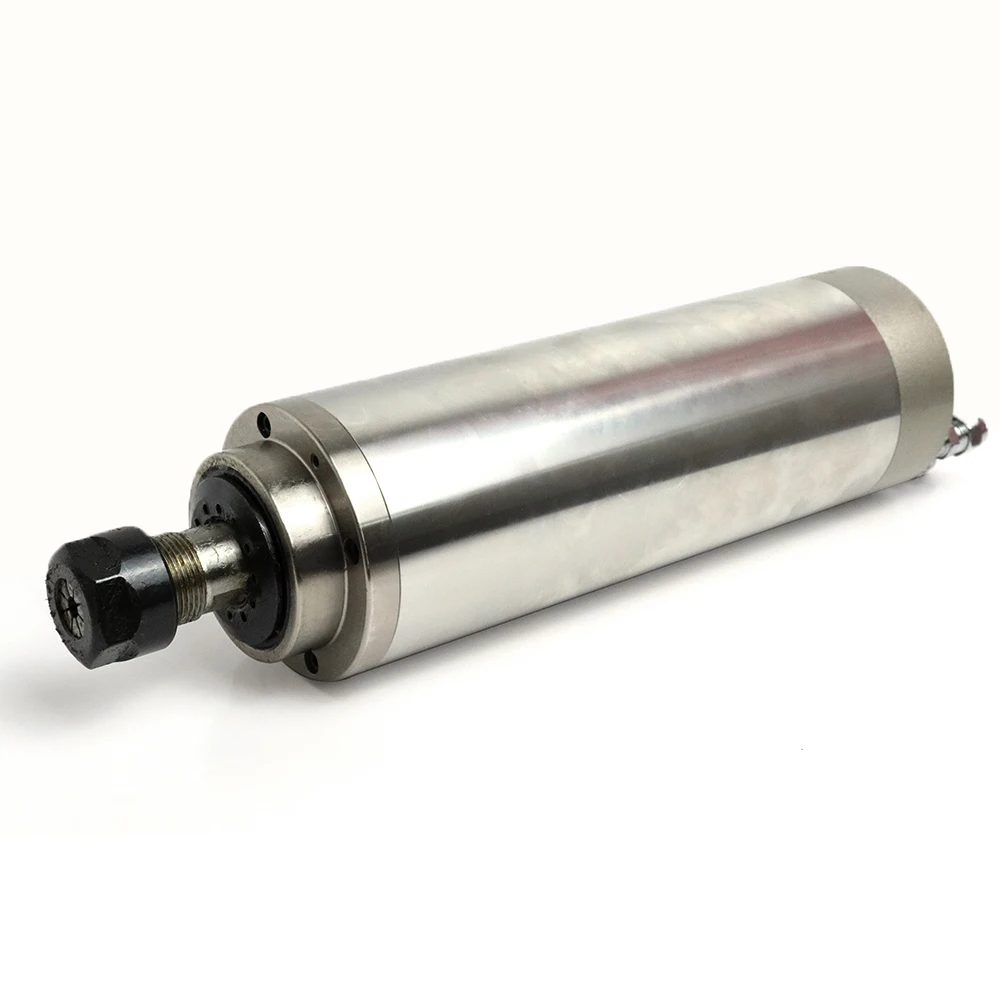

1. CNC Spindle Motor
65x195 ER11
Voltage: 220V (must be approved by the inverter output, can not be directly used ordinary household electric)
Current: 5A
Frequency: 400Hz
Torque: 0.61Nm
Diameter: 65mm*195mm
Speed:0-24000 rev / min
Clip knife diameter: 7mm, 6.35mm, 6mm, 5mm, 4mm, 3.175mm, 3mm, 2mm, 1mm (standard 6mm)
Cooling: water cooling
Spindle Weight: 3kg
Bearing: 4pcs bearing C7005X2 C7002X2

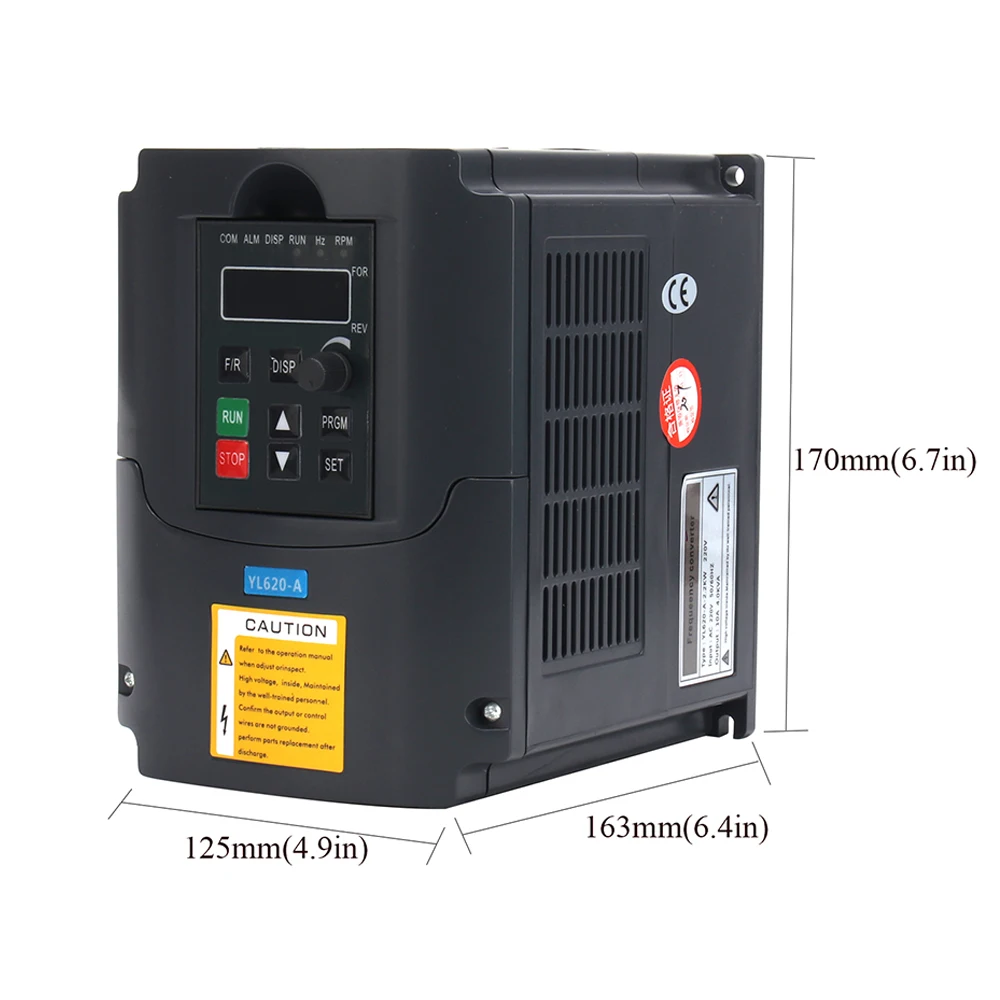

2.Inverter
Type:1.5KW/220V
Input:220VAC/50Hz
Output:0-220VAC 3-phase
Frequency:0-400Hz
the parameter of the inverter is
PD005=400
PD004=400
PD003=400
Note: If there is no problem, please do not change the parameters of the inverter.
3.water pump
AC Voltage: 220v-240v/50hz
Flow: 3500L / h
Power: 80w
Qmax:3500L/H
Structure:single-stage pump
Pressure:high pressure
Don't operata without water.
Caution:read the instrution carefully before using!
4. ER11 Collet 1 Set
13 pcs ER11 Spring Collet(1mm/1.5mm/2mm/2.5mm/3mm/3.5mm/4mm/4.5mm/5mm/5.5mm/6mm/6.5mm/7mm)
5. 5M Water Pipes
Size:5M 5mm (ID)*8mm (OD)
6. 65mm clamps with 3pcs screws
Diameter: 65mm
Material: Aluminum,Surface sandblasted
Application: Wood working industry rourter, such as wood door milling engraving and cutting, furniture producing
if you need 2.2kw water cooled spindle kits, pls click by this link
