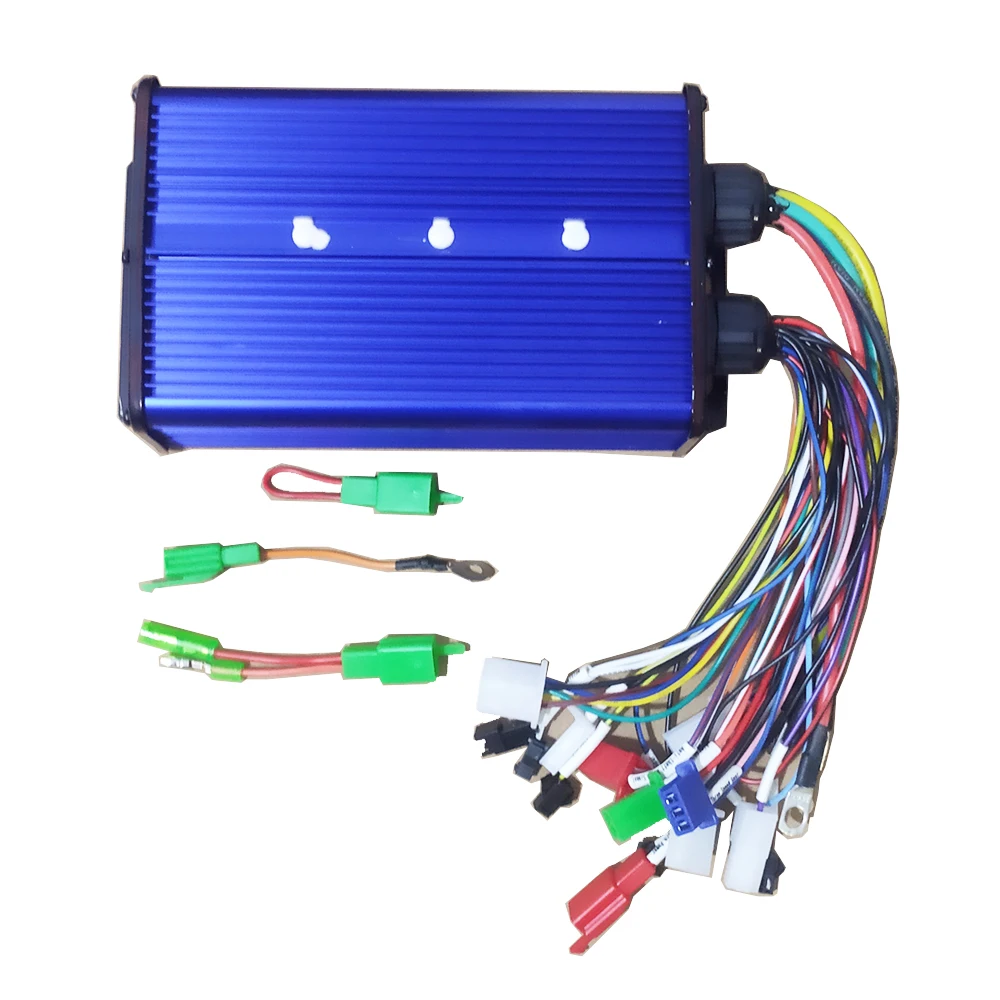

36V 48V 60V 72V 2000W Brushless Motor Controller 45A 60A for Electric Bike/Trycycle/E-Scooter/Dual Mode Hall/ Hallless Sensor
Return&refund policy
Eligible items are covered by return and refund support. If the item does not arrive or is not as described, the buyer can request help.
Security & Privacy
Safe payments: We do not share your personal details with any third parties without your consent.
Secure personal details: We protect your privacy and keep your personal details safe and secure.
AI offer for your market
A curated pick based on category, shipping route, delivery speed and popularity in your selected market.
Why this product fits your market
- • Estimated delivery: 7.
- • Strong customer signal: 5.0★ from 1 reviews.
- • Recommendations focus on this product category and your market availability.
Product specifications
Detailed product description
This product is shown with available options, market-specific pricing and verified specifications.
- Brand: NONE
- Sales: 25
- Package size: 25 × 15 × 10 cm
- Package weight: 1.5 kg
- Rating: 5.0 / 5
Before adding to cart, choose an available option and check the quantity.
36V-84V 2000W-3000W all can work brushless controller
Name: Intelligent dual-mode brushless controller
Rated Voltage: 36V-84V
Low Voltage: 32V
Rated Power: 2000W-3000W
Limit Current: 60A
Number of brushless controller tube：18
Weight：1000g

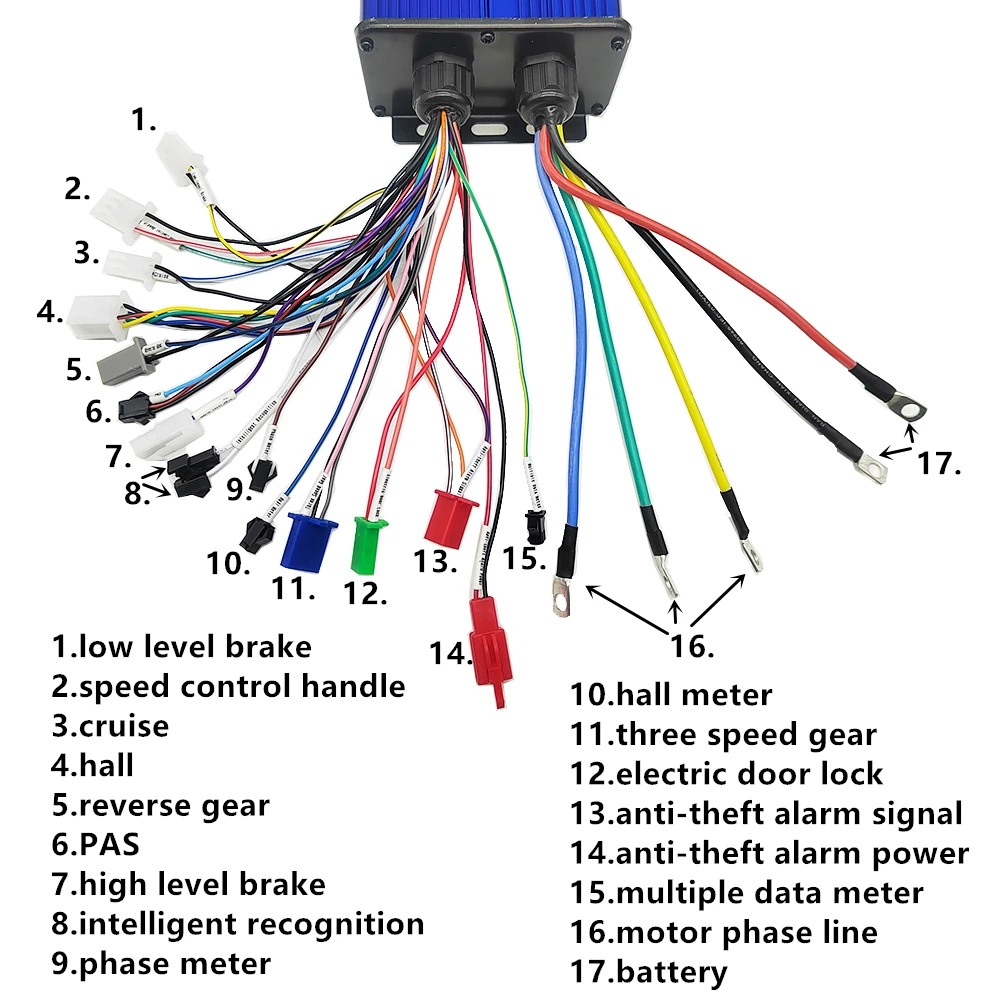

Brushless controller function：
1.low level brake
2.speed control handle（throttle）
3.cruise
4.hall
5.reverse gear
6.PAS
7.high level brake
8.intelligent recognition（self-learning）
9.phase meter
10.hall meter
11.three speed gear
12.electric door lock（must connect）
13.anti-theft alarm signal（is connect to alarm，if not have alarm，not need connect）
14.anti-theft alarm power（is connect to alarm，if not have alarm，not need connect）
15.multiple data meter
16.motor phase line
17.battery
How to connect controller？
1.connect the motor phase line(color to color）
2. connect the hall line,color to color connect.(if motor without hall line, don't need connect)
3. connect the battery line(red:battery+, black:battery-)
4.off power,let two intelligent recognition lines connect together,open power,then the wheel will forward or reverse.
(1.if wheel forward,Separate the intelligent recognition line.
2.if wheel reverse, Separate the intelligent recognition line. Let intelligent recognition line connect together again,if wheel forward,Separate the intelligent recognition line.)
This step needs to be effective within 2 minutes after the power is turned on. If the timeout occurs, please turn off the power and then turn it back on before proceeding with these steps.
5. connect the controller throttle to throttle and need color to color connect
connect controller electric door lock to throttle electric door lock
（if throttle not have electric door lock,let controller electric door lock short
so controller electric door must connect ）
NOTE:when use throttle control speed,two intelligent recognition line must separate.
6.other functions can be connected as needed.
The color of the controller is based on the received physical image, sometimes silver or blue. Please do not mind the color. However, the functions are the same.
48-64V 2000W controller can work with hall connect sensor or not connect hall sensor
Rated Voltage: 48V-64V
Low Voltage: 42V±0.5V
Rated Power: 2000W
Limit Current:45A
1.self-learning
2.cruise line
3.reverse line
4.high brake
5.low brake
6.3-speed (low/middle/high)
7.throttle
8.electric lock
9.hall line
10.LCD instrument line
11.Anti-theft power supply
12.Anti-theft signal
13.battery (red battery+, black battery-)
14.motor
15.pointer meter line
1.connect the motor line (color to color，if motor without hall line, don't need connect hall line）
2. connect the battery line(red:battery +, black:battery-)
3. connect the controller throttle line to throttle, controller electric lock connect to throttle electric lock
（if throttle not have electric lock,the electric lock 2 wires of the controller can be docked together）
4.docking the two self-learning lines, the wheel will forward or reverse.
(1.if wheel forward,Separate the self-learning line.
2.if wheel reverse, Separate the self-learning line. Docking the self-learning line again，
if wheel forward,Separate the self-learning line.) Self-learning is to adapt to the supply voltage
5.other functions can be connected as needed.
