2 3 4 Position Battery Mass Switch Cutter Single Dual For RV Boat Power Control Panel 12-48V 100-300A Isolator Disconnect Rotary
Return&refund policy
Eligible items are covered by return and refund support. If the item does not arrive or is not as described, the buyer can request help.
Security & Privacy
Safe payments: We do not share your personal details with any third parties without your consent.
Secure personal details: We protect your privacy and keep your personal details safe and secure.
AI offer for your market
A curated pick based on category, shipping route, delivery speed and popularity in your selected market.
Why this product fits your market
- • Estimated delivery: 7.
- • Strong customer signal: 4.9★ from 87 reviews.
- • Recommendations focus on this product category and your market availability.
Product specifications
Detailed product description
This product is shown with available options, market-specific pricing and verified specifications.
- Brand: CNSPEED
- Sales: 328
- Package size: 8 × 8 × 10 cm
- Package weight: 0.48 kg
- Rating: 4.9 / 5
Before adding to cart, choose an available option and check the quantity.

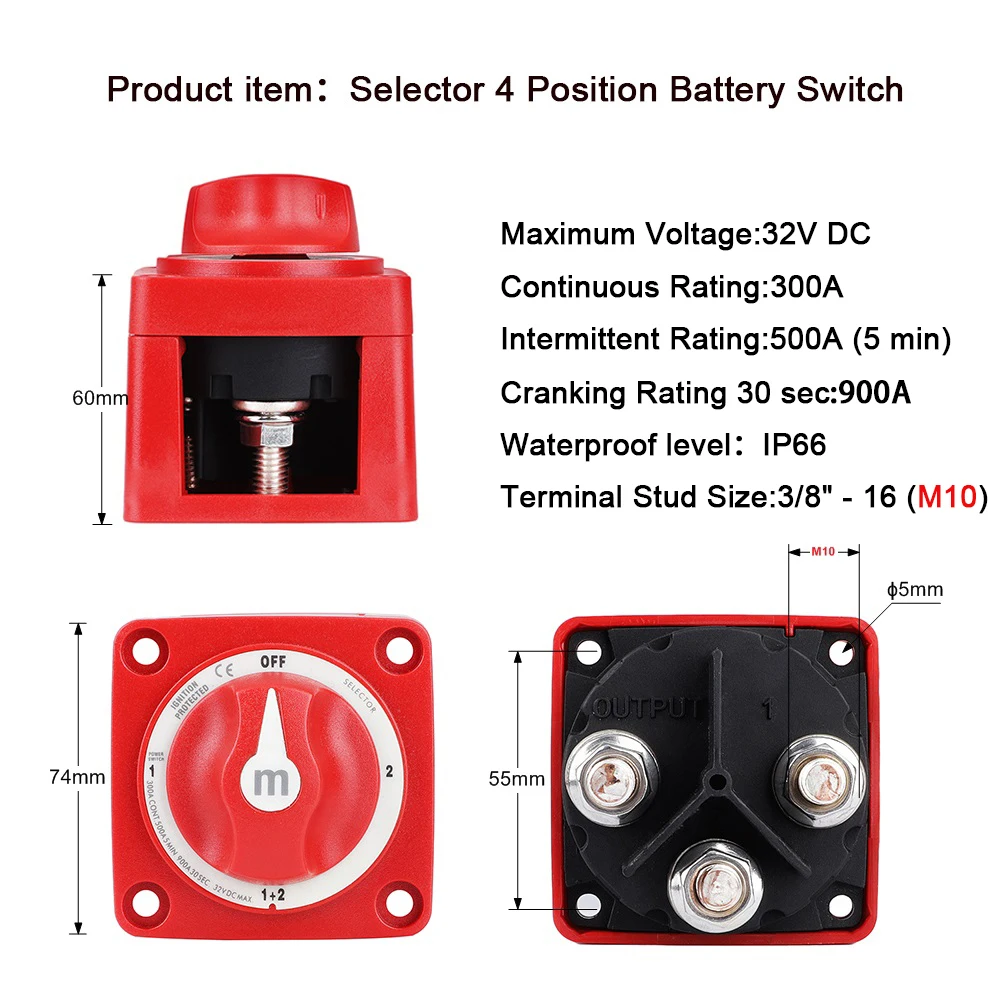

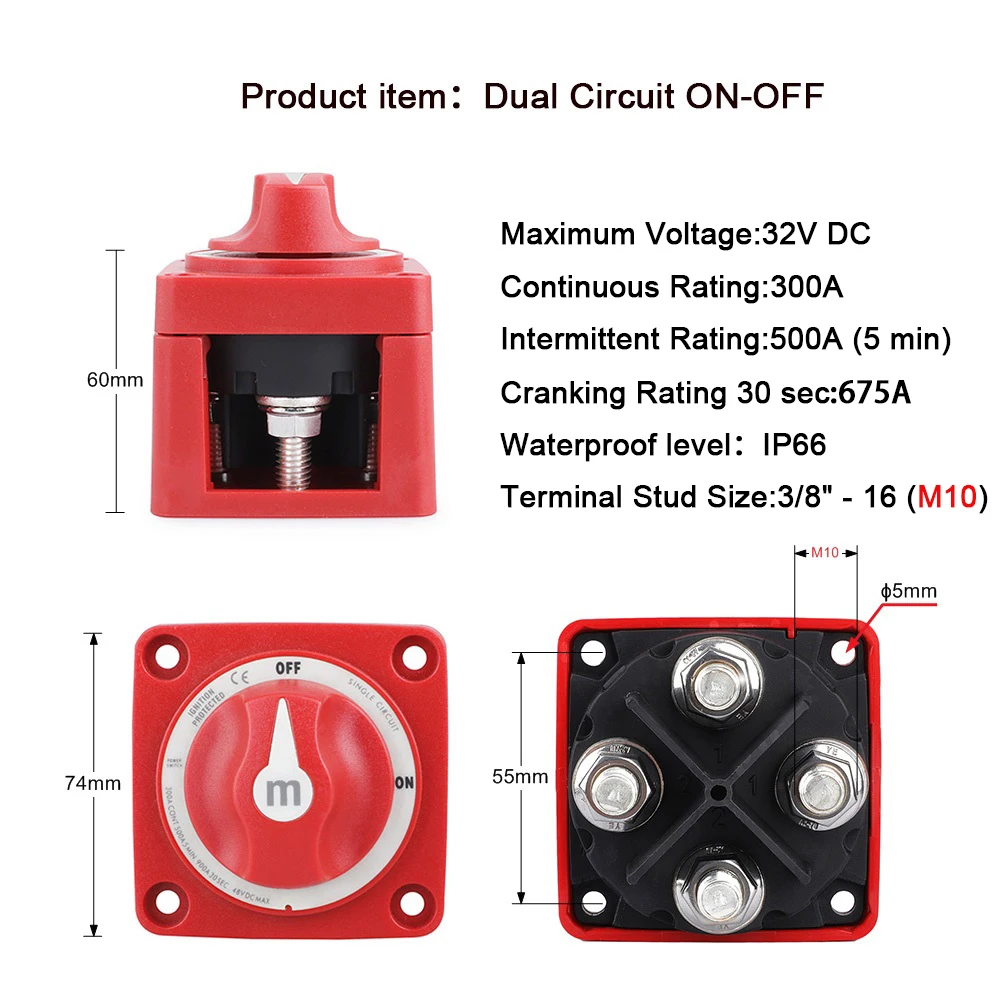

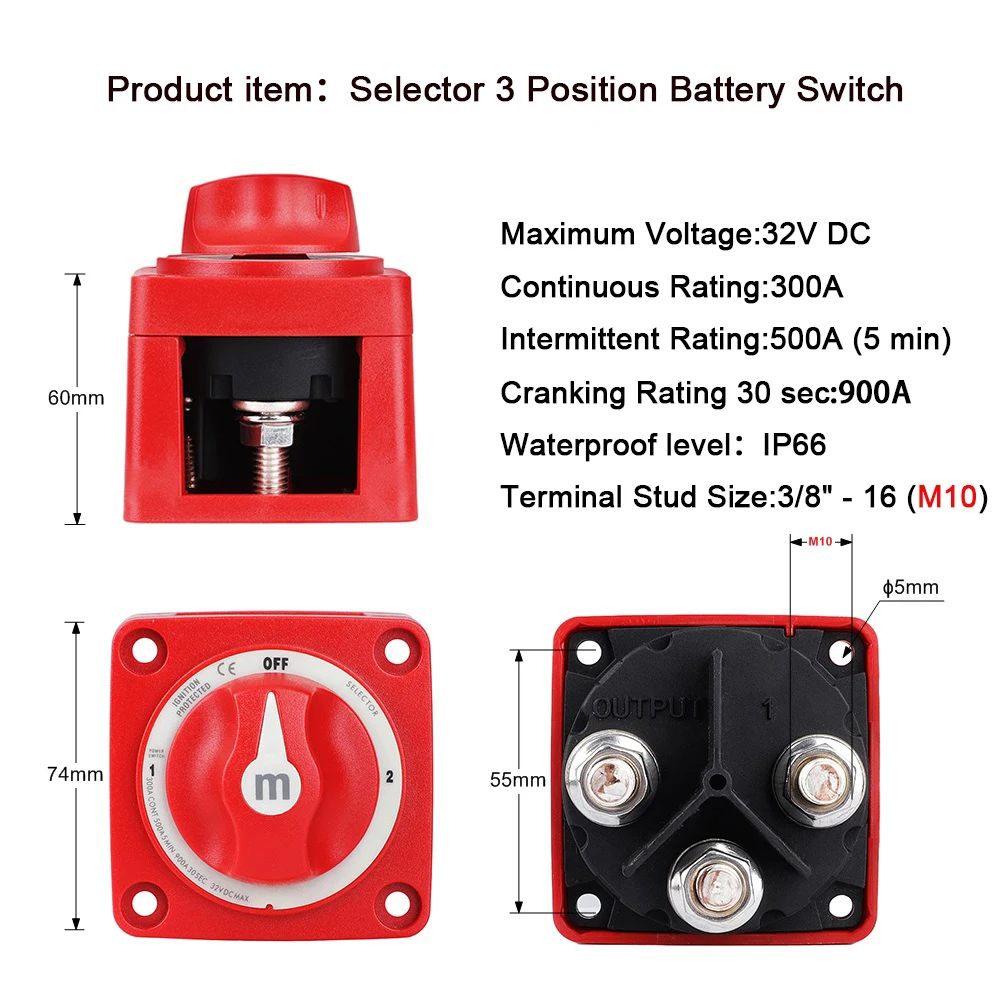

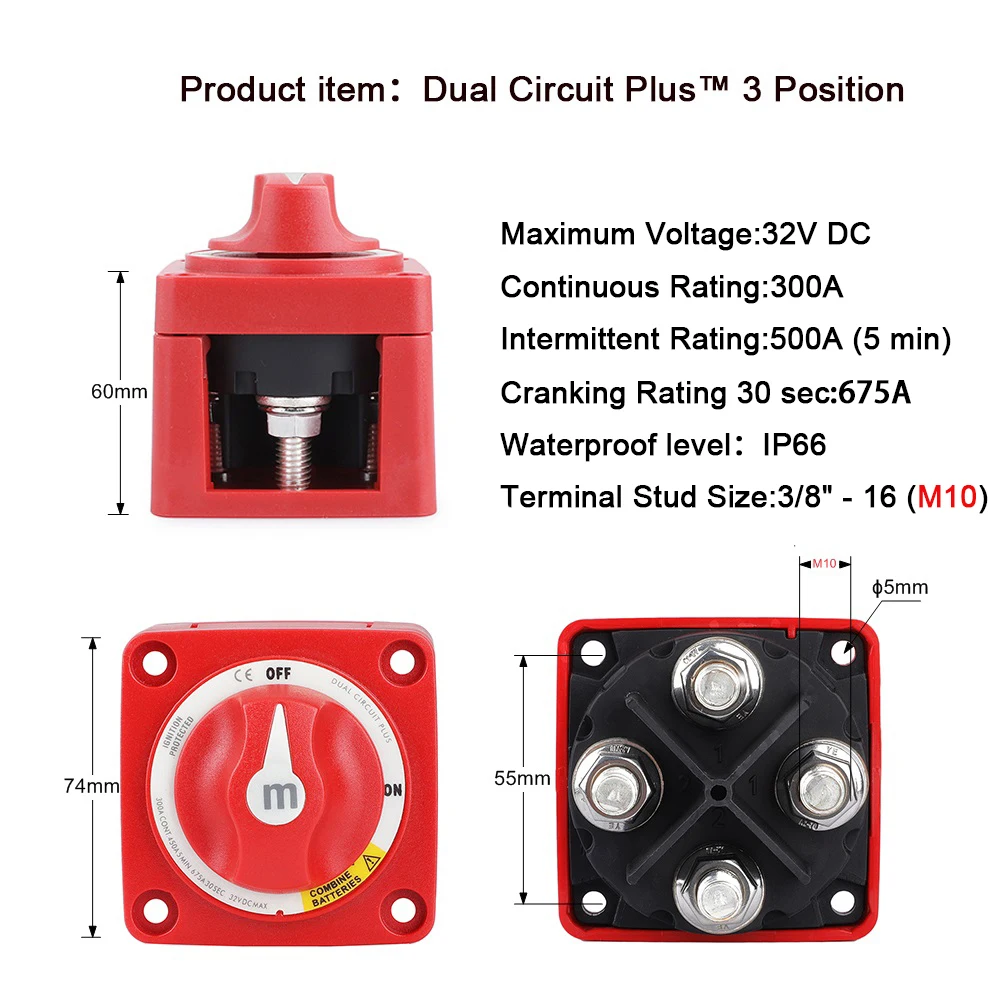

2/3/4 Position M-Series Switch Cut Single Dual Marine Boat 12-48V 100-300A Heavy Battery Switch Isolator Disconnect Rotary

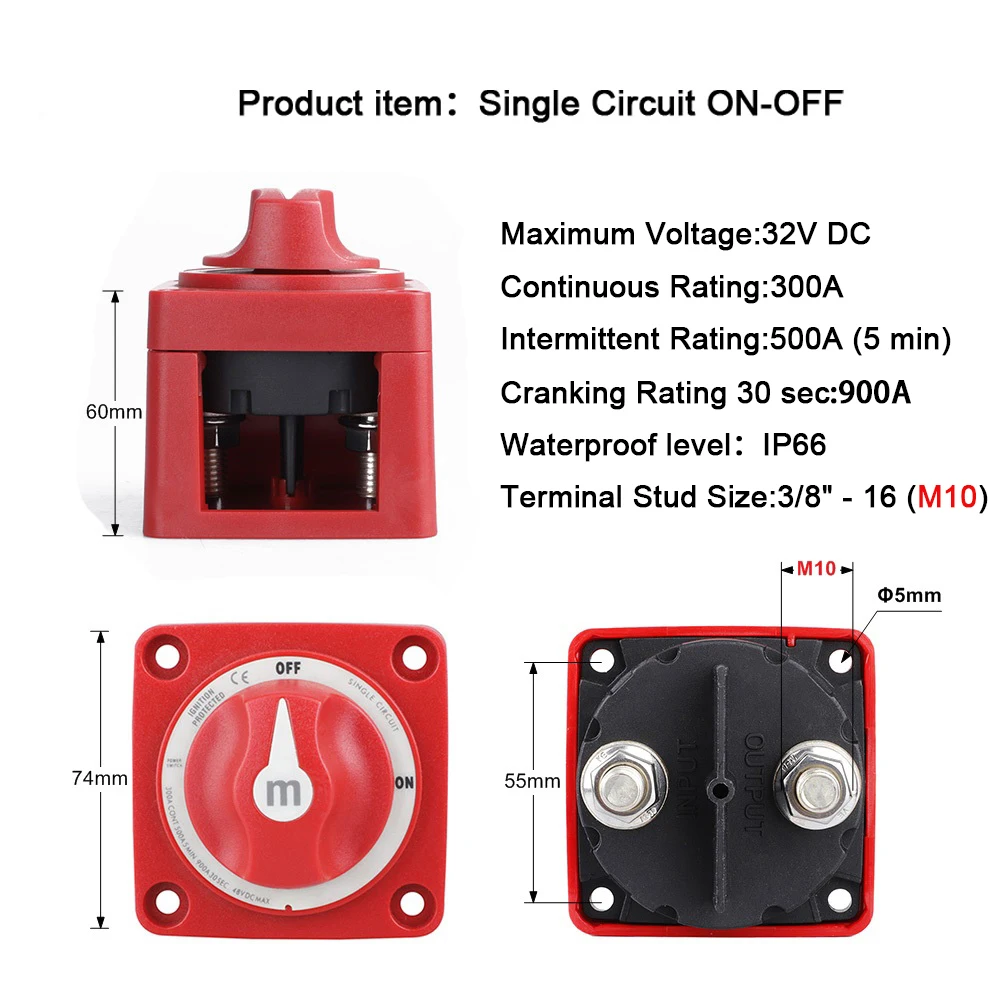

Switch Type:Single Circuit ON-OFF
Color:Red
Switch Positions:2/3/4
Battery Combine: No
Alternator Field Disconnect:No
Stud Size:3/8"
Terminal Stud Torque:120 in-lb (13.56 Nm)
Battery Inputs:12V-48V
Cable Clearance For 4/0 AWG Cables "1.12in (28.45 mm)
Cable Size to Meet Ratings:"4/0 AWG (120mm²)
Mounting Holes: "Accept #10 Screw
Stud Material:"Tinned Copper
Terminal Stud Torque:"120 in-lb (13.56 Nm)
Terminal Stud Size: "3/8"" - 16 (M10)
Description
This Mini Battery Switch is suitable for smaller boats such as center consoles or runabouts. The rating of the switch is almost as high as the e-Series switches but its compact size makes it more suitable for smaller boats. If you are installing this with large battery cables such as 2/0 awg and above you will find it easier to use the bigger switch if space is available.
Packaged：
Marine boat cut single switch
parameter
Detail
