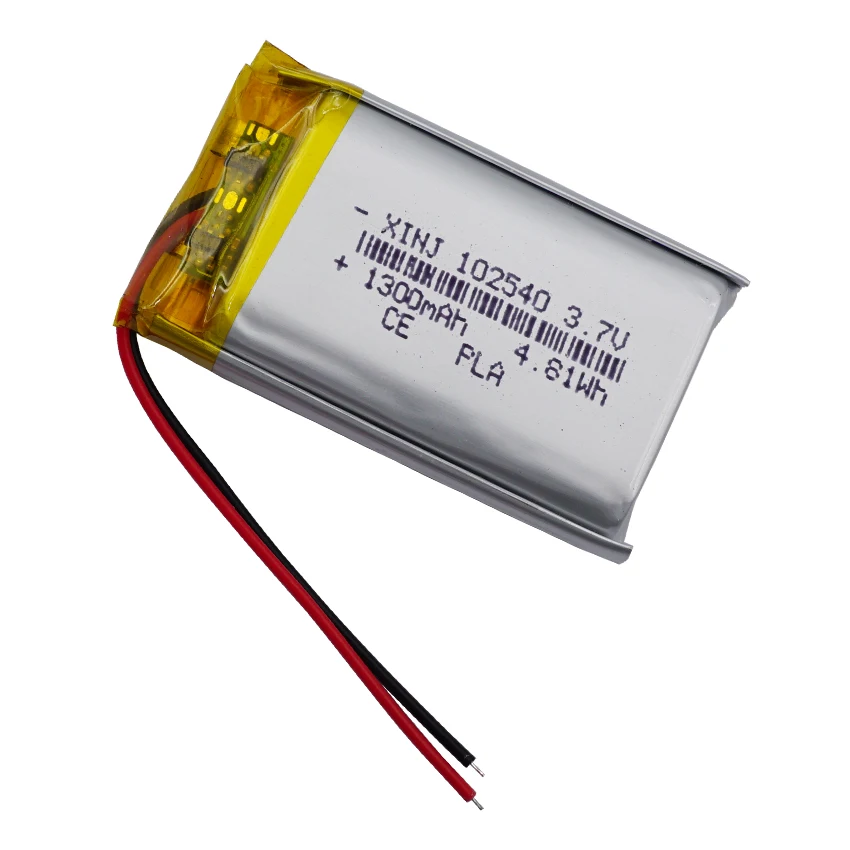

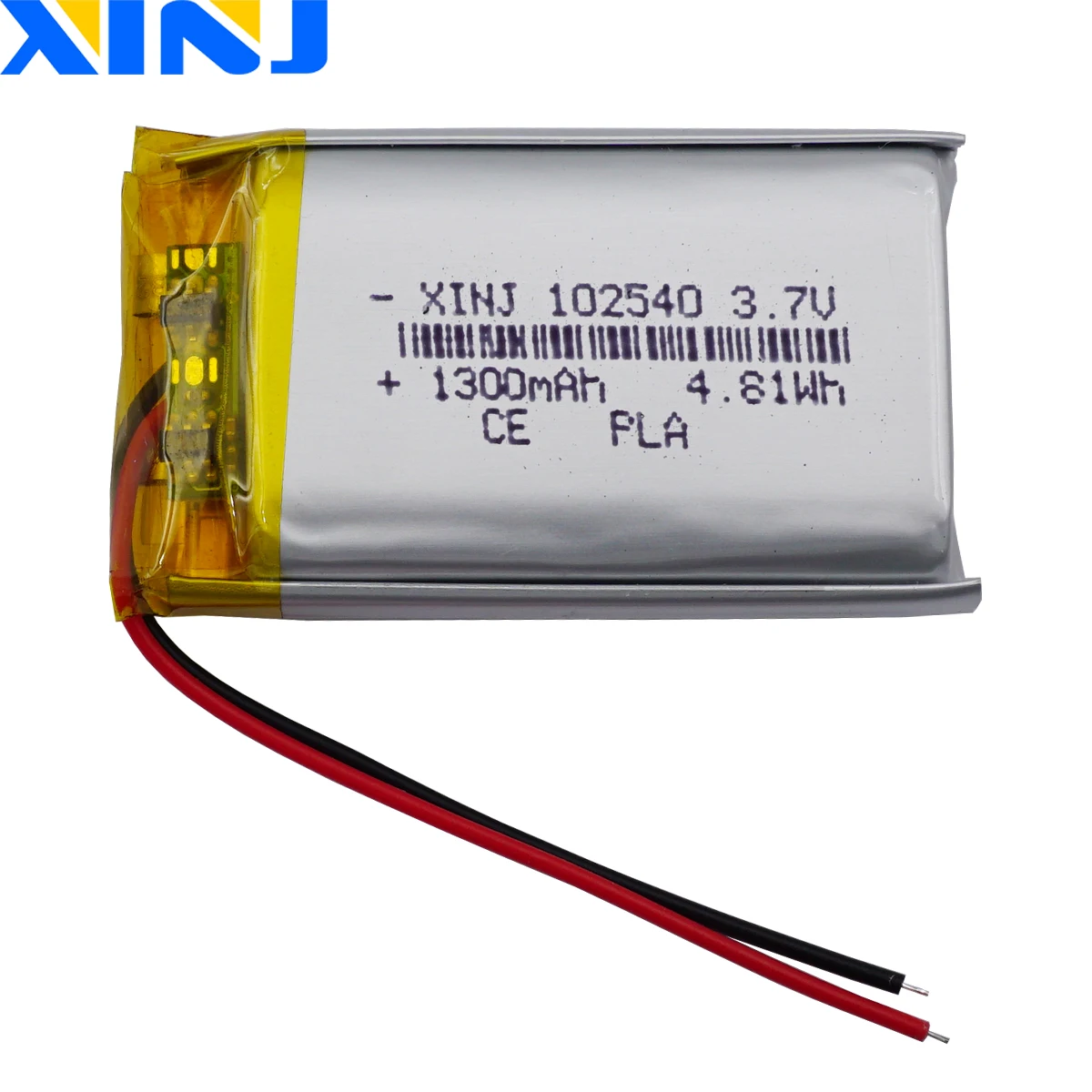

3.7V 1300mAh 4.81Wh 102540 Rechargeable Polymer Li Lithium Lipo Battery For GPS Bluetooth Speaker LED Light DashCam Car Camera

1. Model code: PL102540

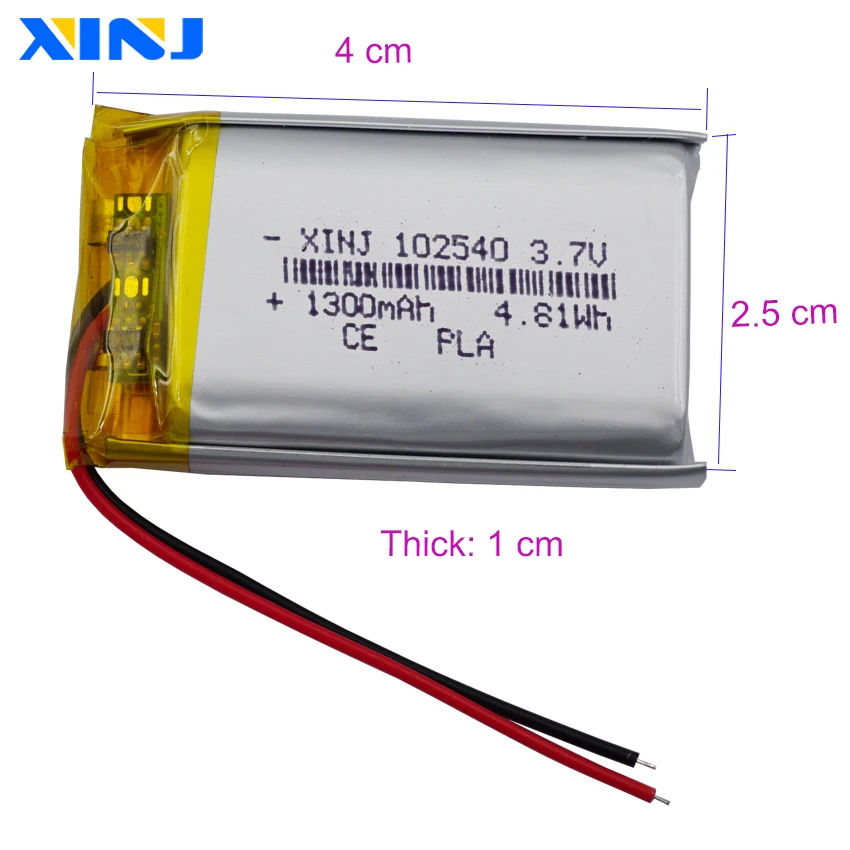

2. Cell size: 1.0cm (thick) x 2.5cm (width) x 4.0cm (length)

0.39 inchx0.98inchx1.57inch

3. Nominal capacity: 3.7v 1300mah 4.81Wh

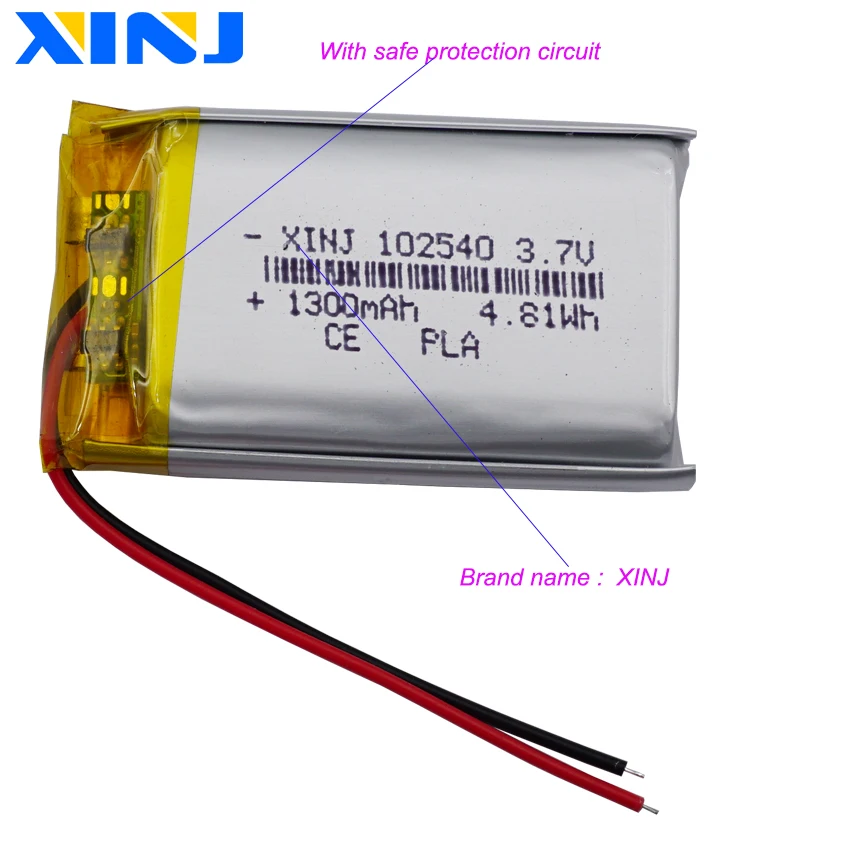

4. Built-in protection circuit PCB for prevent over charging or over discharging.

6. Each Cell weight: 19g

Package include

1pcs 3.7v 1300mah polymer rechargeable li battery 102540

Electrical characteristics：

1. if your device still have a PCM protector board lie on motherboard of your device. it will can't work well.

please remove off this PCM from our this li battery. so this battery can work well.

2. if your old one li battery have a PCM board on top of li battery. please instead this old pcm to our new li battery. maybe our PCM board don't fit your device. each device there are different requirements with PCM board.

3.Standard Charging method ：0.5C （constant current）charge to 4.2V,then CV(constant voltage 4.2V)charge till charge current decline to ≤0.05C

4. Rated Capacity ： The capacity means the discharge capacity of the cell, which is measured with discharge current of 0.2C with 3.0V cut-off voltage after standard charge.

5. Charging time ：Standard Charging：3.0 hours(Ref.) ，Rapid charge： 2.0 hours(Ref.)

6. Max. charge current ：1.0C

Max. discharge current ：1.0C

Discharge cut-off voltage ：3.0V

7. Operating temperature ：Charging： -20℃~60℃ Discharging：-20℃~60℃

8. Storage temperature ： -10℃~ +45℃

9. Cycle life: 600 cycles,Stable performance with 100% in house testing

10. Warranty: 18 Months

11. Test condition：

Charge:0.5C to 4.2V

Discharge:0.2C to 3.0V

70% or more of 1st cycle capacity at 0.2C discharge of Operation

Self-discharge ：Residual capacity >90%

After the standard charging, storied the cells under the condition for 30 days, then measured the capacity with 0.2C till 3.0V

12：Temperature characteristics ：

20℃: ≥65%

23℃: 100%

60℃: ≥96%

According to item at 23±5℃.

Capacity comparison at each temperature, measured with constant discharge current 0.2C with 3.0V cut-off. Percentage as an index of the capacity compared with 100% at 23℃

13 ： Mechanical characteristics

Vibration Test: No leakage / No fire

After standard charging, fixed the cell to vibration table and subjected to vibration cycling that the frequency is to be varied at the rate of 1Hz per minute between 10Hz an 55Hz,the excursion of the vibration is 1.6mm.The cell shall be vibrated for 30 minutes per axis of XYZ axes.

Drop Test: No fire/ no leakage.

The cell is to be dropped from a height of meter twice onto concrete ground.

We accept Escrow; We will ship to the default address in Escrow.

All Package will shipping out in 24 hours except holiday & weekend day.

we are unable to take any responsibility for any. custom delay or tax. because transit time is highly dependent and provided by Postal Service!

All items sold by us are being described to the best of our abilities, as accurate as possible, and withutmost conscientiousness on our part

If the item is defected by normal use, returns are available within 30 days after the buyers receivedthe items, money back after we received item!

Returned item has to be new, unworn and in its original condition

Warranty: 18 months
