Black Electric Waterproof Power 12v Led Light Momentary Push Button Switch 12/16mm Computer Pressure Switches Latching Buttons
Return&refund policy
Eligible items are covered by return and refund support. If the item does not arrive or is not as described, the buyer can request help.
Security & Privacy
Safe payments: We do not share your personal details with any third parties without your consent.
Secure personal details: We protect your privacy and keep your personal details safe and secure.
AI offer for your market
A curated pick based on category, shipping route, delivery speed and popularity in your selected market.
Why this product fits your market
- • Estimated delivery: 3.
- • Strong customer signal: 5.0★ from 2 reviews.
- • Recommendations focus on this product category and your market availability.
Product specifications
Detailed product description
This product is shown with available options, market-specific pricing and verified specifications.
- Brand: NONE
- Sales: 12
- Package size: 1 × 1 × 1 cm
- Package weight: 0.01 kg
- Rating: 5.0 / 5
Before adding to cart, choose an available option and check the quantity.
Notice: The welding must be completed within 3 seconds, otherwise the inside will be damaged easily
Specification

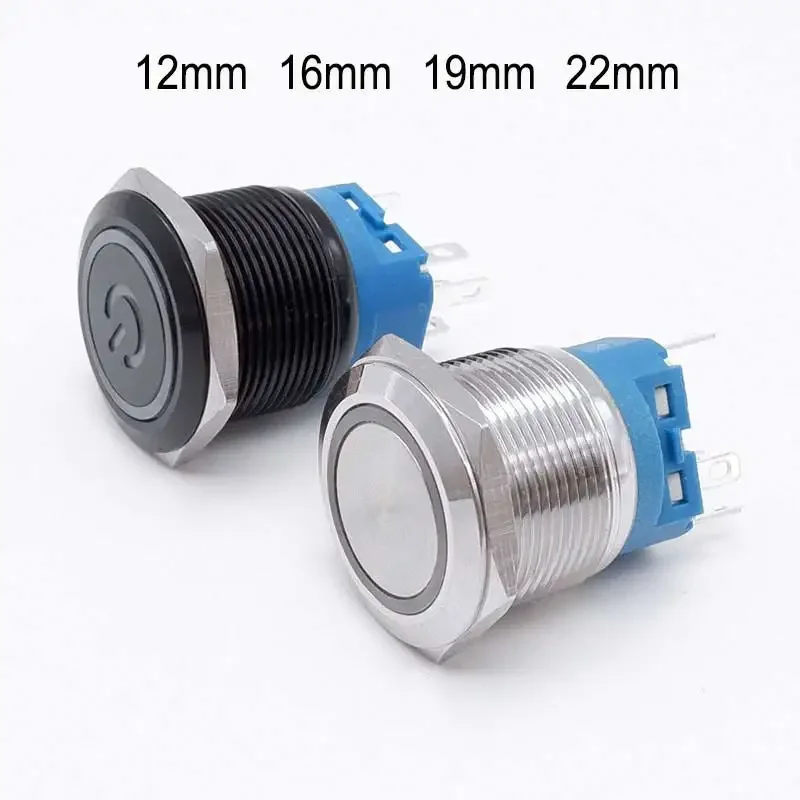

The default is no power symbol
Material: Nickel Brass
Color: Silver

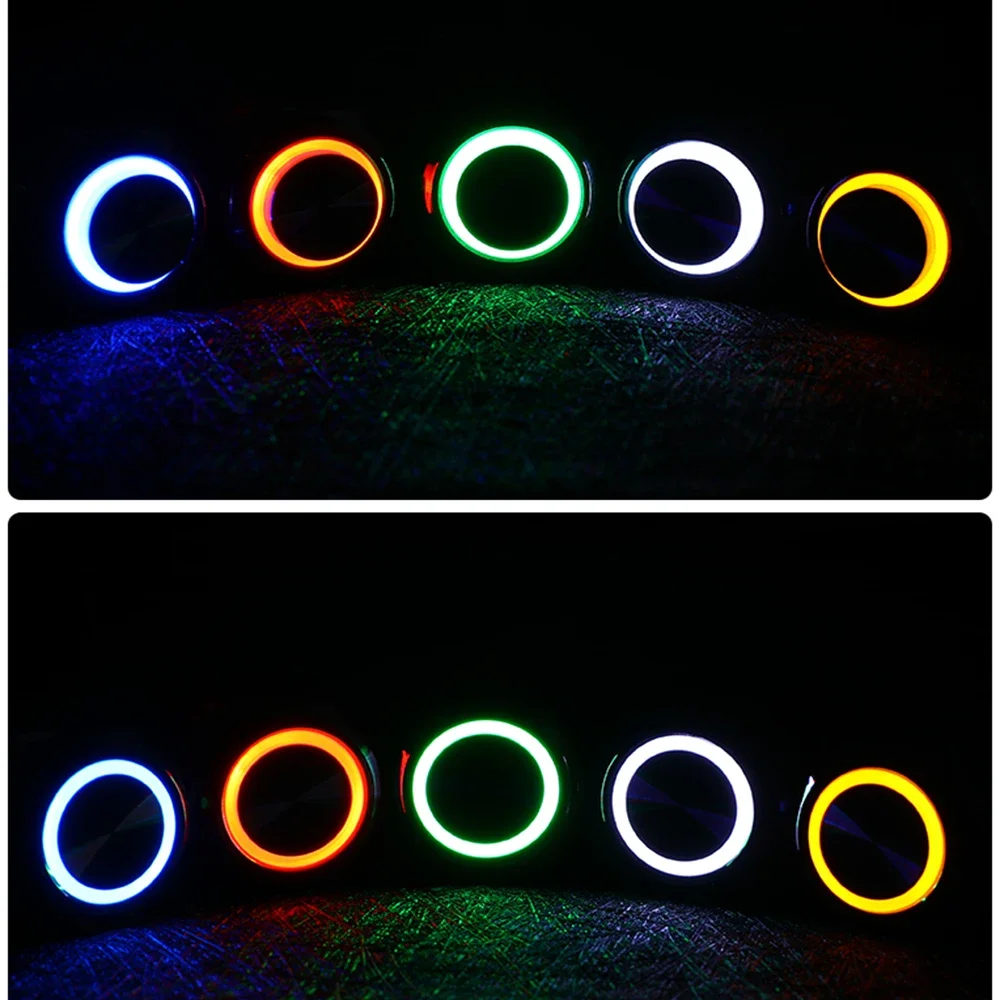

LED color: White Yellow Red Green Blue
Switch Rating: 3A /250VAC
Waterproof Grade: IP65
LED Voltage: 3-6V,12V,24V,220V
Operation Type: Momentary and Latching

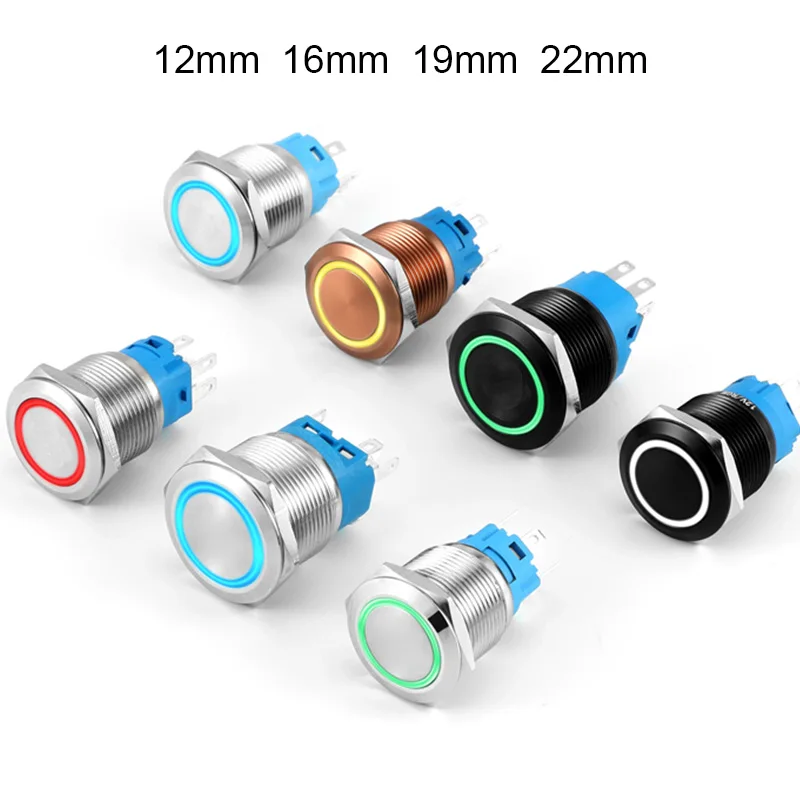

Hole size: 12/16/19/22mm
Voltage Selection
3V-6V:3V 5V 6V
12V-24V: 12V 24V
220V: 220V 230V
No led switch button can be applied to 2-250V.
Pin Terminal Introduction
"+": positive pole of the led
" - ": negative pole of the led
" NC ": Normal Close
" NO ": Normal Open
" C ": Common
Connect " NO " and " C ": The circuit is alway open unless press the button.
Connect " NC " and " C ": The circuit is alway close unless press the button.
Operation Type:Momentary
After pressing the button,press-key will return automatically If you don't continue to press the button。Self-reset.
Like Car Computer
Operation Type:Latching Fixing
After pressing the button,press-key stay in a position
until it is pressed again, then it return.
Like lamp
12mm Momentary Button
Please allow 0.1-0.3mm differs due to manual measurement
16mm Flat Head Button

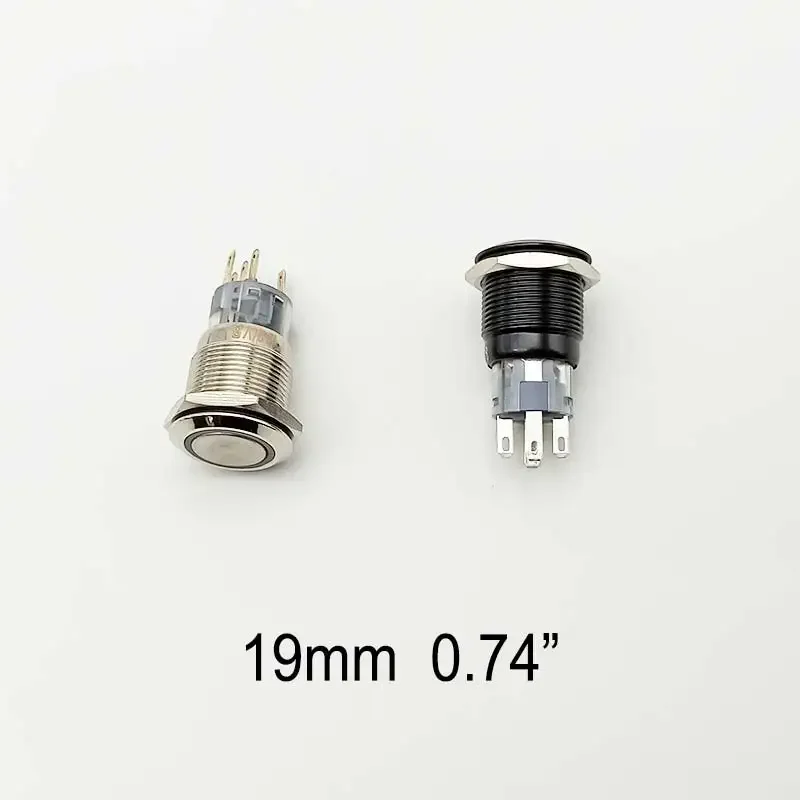

19mm Flat Head Button

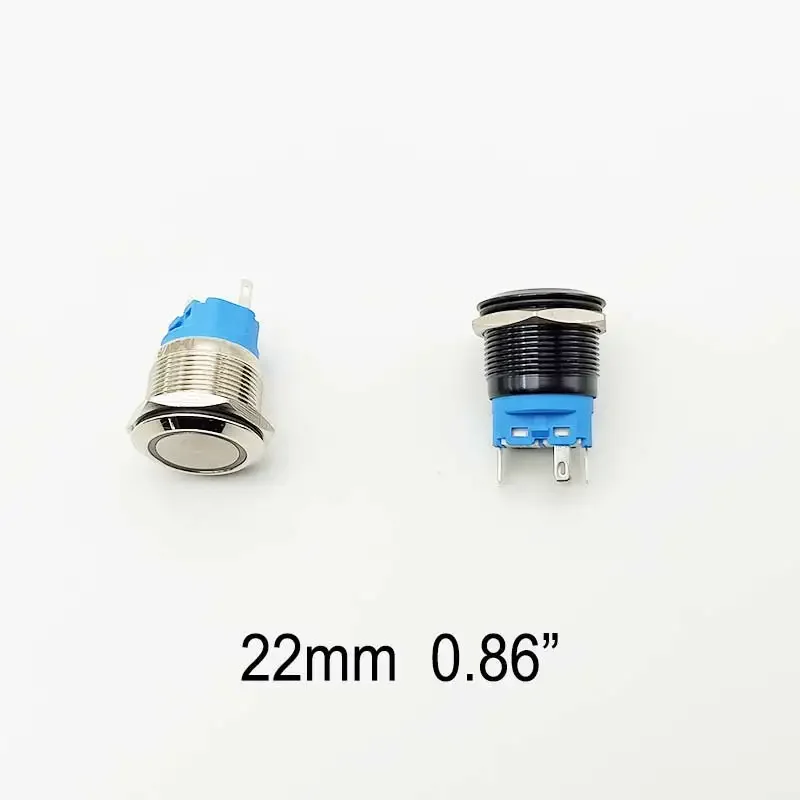

22mm Flat Head Button

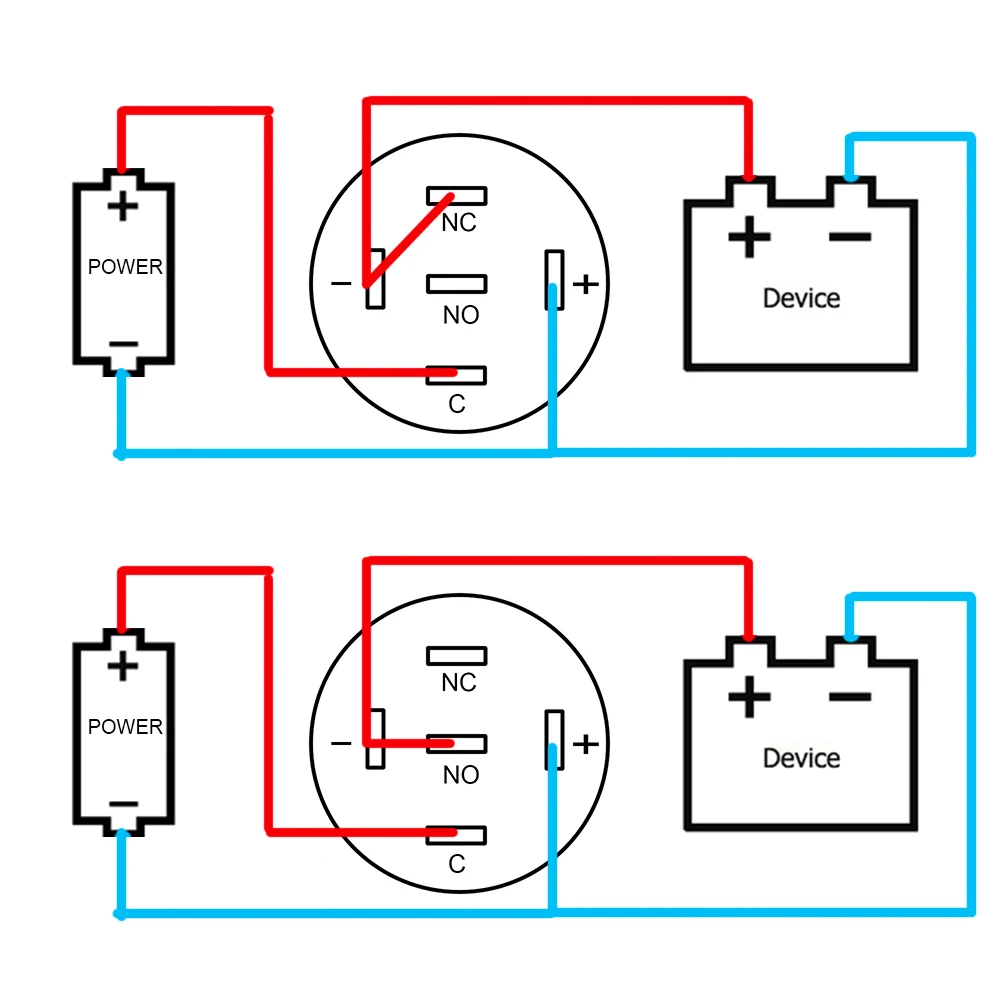

Wiring Diagram
There are many wiring method, the picture below is just for reference
Wiring Diagram of Normal Open
When the switch is pressed, the LED lights up and the load is energized. After press-key return, the load is de-energized, and the light is off.
Wiring Diagram of Normal Close
The load is energized.When the switch is pressed, the LED lights up and the load is de-energized. After press-key return, the load is energized, and the light is off.
Features
Made of metal material, strong and durable. High-grade appearance and nice touch feeling. Adopt rubber ring and hexagonal nut fixed, anti dust and waterproof, which make it great for outdoors use. Copper plating silver terminals for good conductive properties. Momentary type, push it-on, release it-off. Metal button head durable for longstanding press.
