DC12V 24V Led Time Delay Sensitive Distance Adjustable Door Lock Release Switch Sensor Infrared No Touch Exit Button
Return&refund policy
Eligible items are covered by return and refund support. If the item does not arrive or is not as described, the buyer can request help.
Security & Privacy
Safe payments: We do not share your personal details with any third parties without your consent.
Secure personal details: We protect your privacy and keep your personal details safe and secure.
AI offer for your market
A curated pick based on category, shipping route, delivery speed and popularity in your selected market.
Why this product fits your market
- • Estimated delivery: 7.
- • Strong customer signal: 5.0★ from 2 reviews.
- • Recommendations focus on this product category and your market availability.
Product specifications
Detailed product description
This product is shown with available options, market-specific pricing and verified specifications.
- Brand: gzpzdp
- Sales: 41
- Package size: 15 × 7 × 12 cm
- Package weight: 0.07 kg
- Rating: 5.0 / 5
Before adding to cart, choose an available option and check the quantity.
Question and Answer
Q: What is the difference for K8N,K8W-TD?
A: K8N is normal one
K8W-TD is waterproof Design, has time delay adjustable and sensor distance adjustable button.
A: NO,NC,COM
Q: Can it control 12V led light?
A: A: if your led light is 12V DC and the working current is less than 1A. it can control. 1, Connect Exit Button COM wire and Exit Button 12V+ wire together. 2, Connect Exit Button GND wire with 12V Led Light GND wire. 3, Connect Exit Button NO wire with 12V led light 12V+ wire (Connect Exit Button NC wire with 12V led light 12V+ wire. the led light will be on always).DC 12V Power will connect with exit button 12V+ and GND.

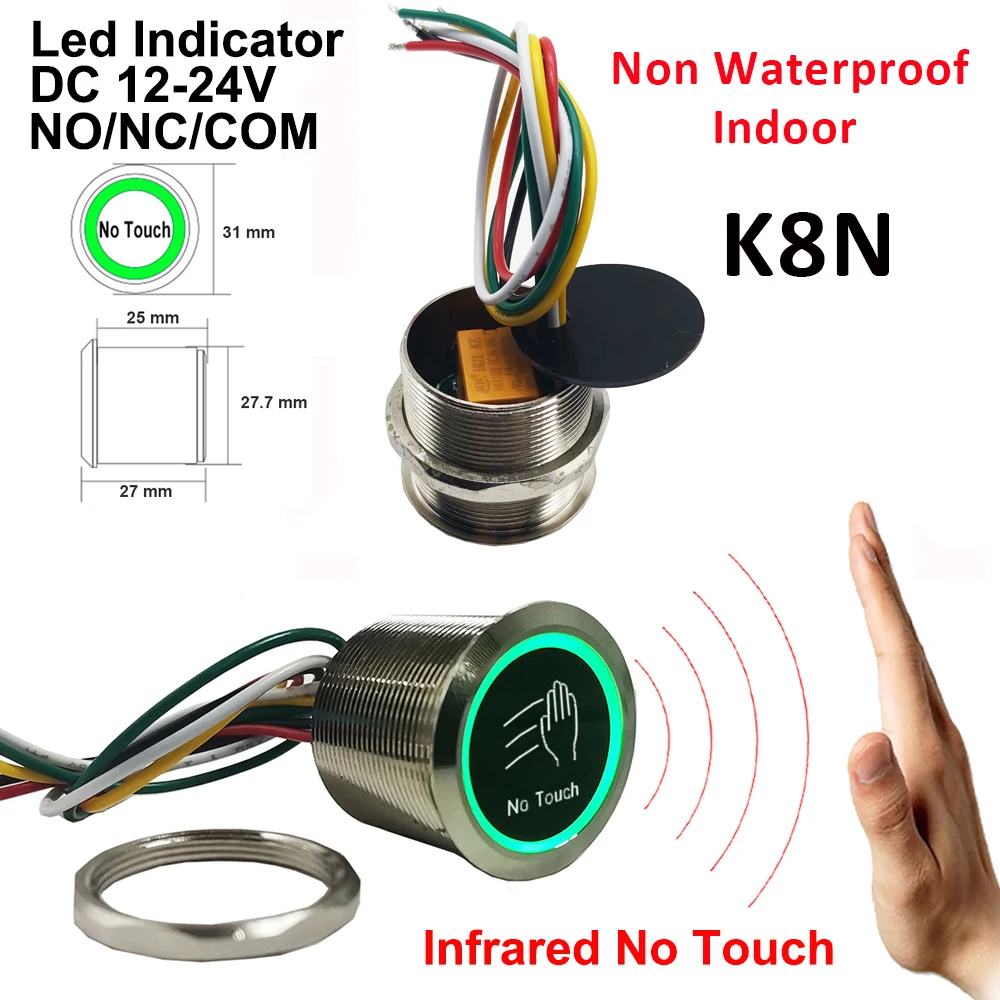

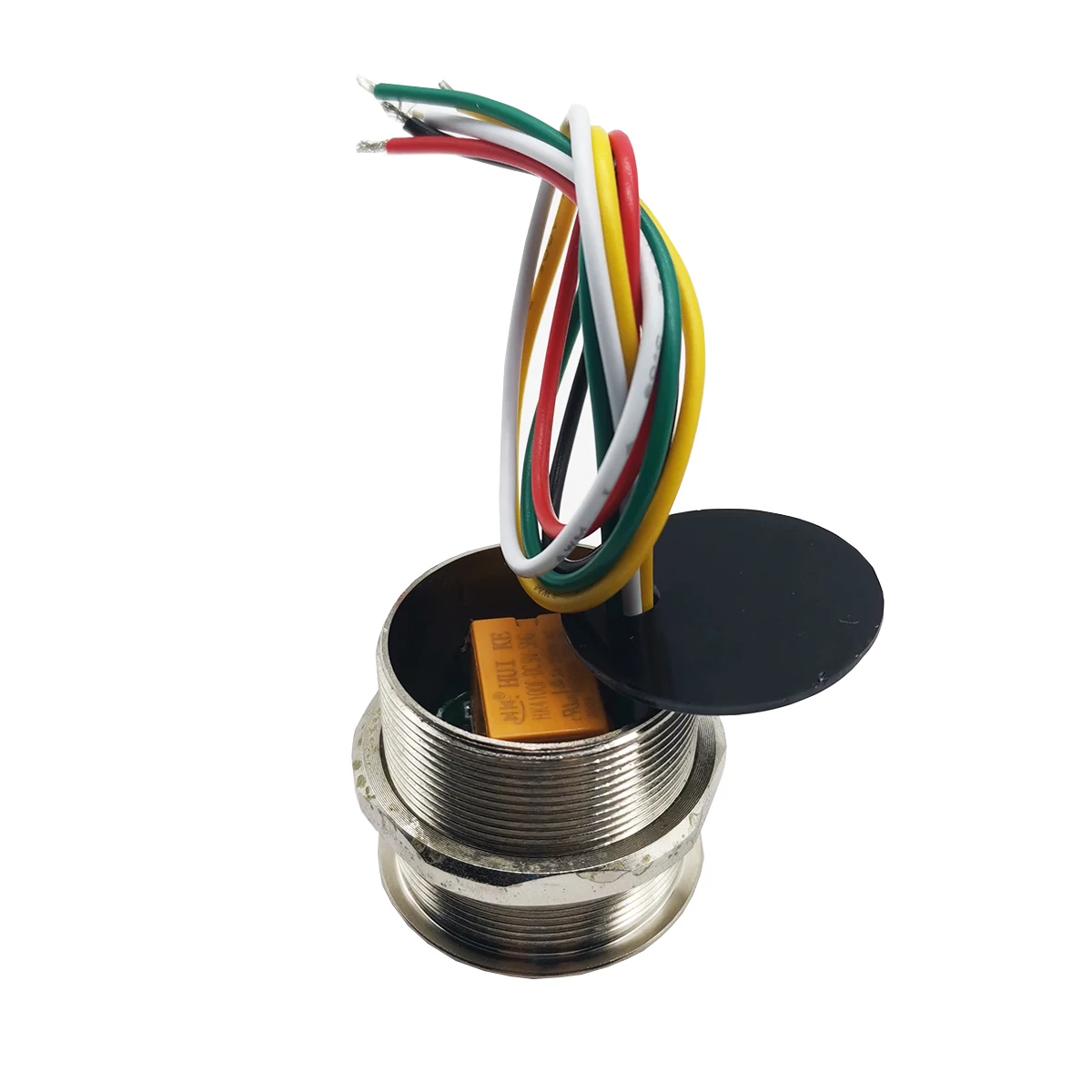

K8N (Normal Type)
Sensor Head Material: Metal
Waterproof: None
Input voltage: DC 12V
Working temperature(approx.): 0 to 50 ℃
Response range: Within 10cm
LED indication: Standby: Blue LED on, visitors approaching: Green LED on
K5 Size(approx.): 31 x 27 mm

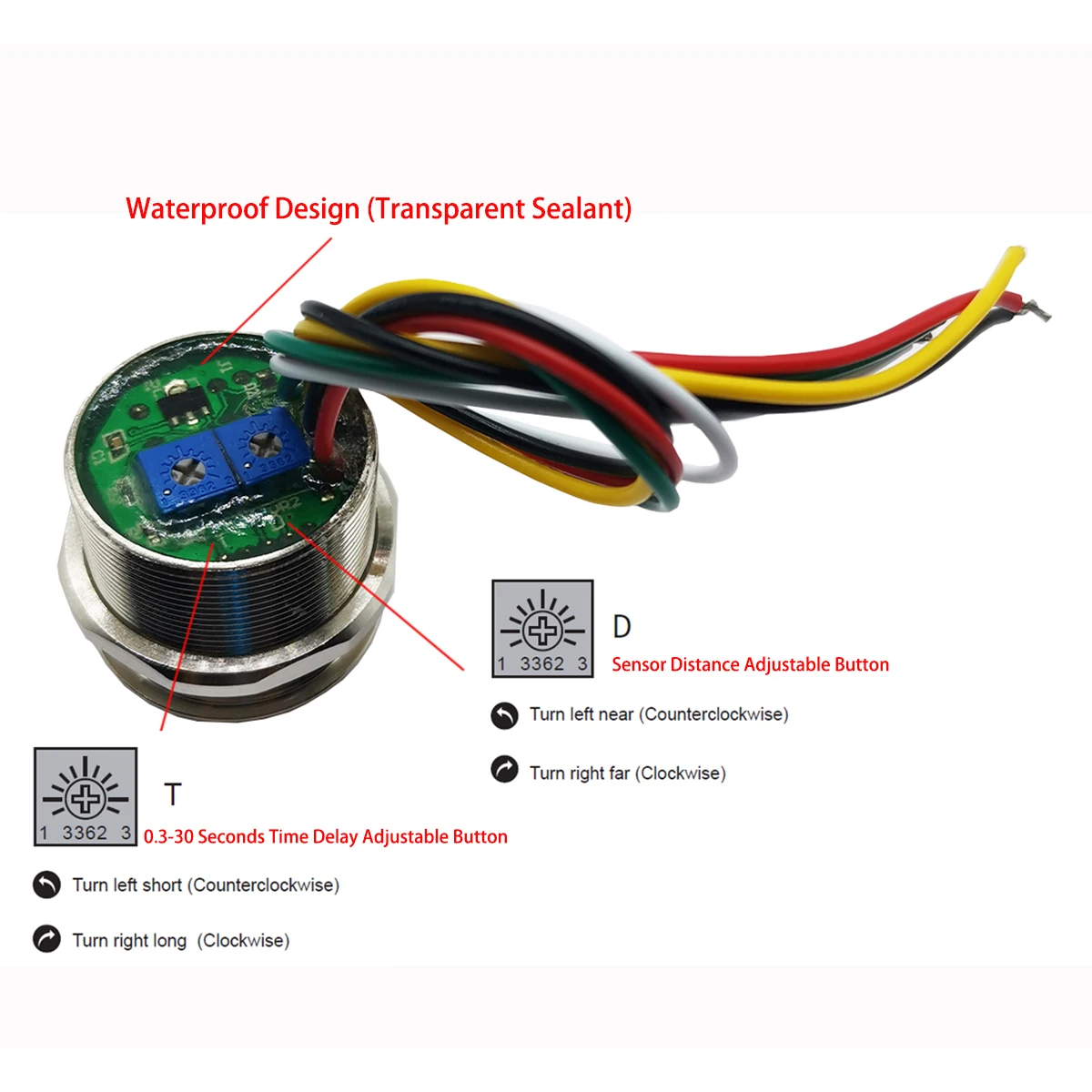

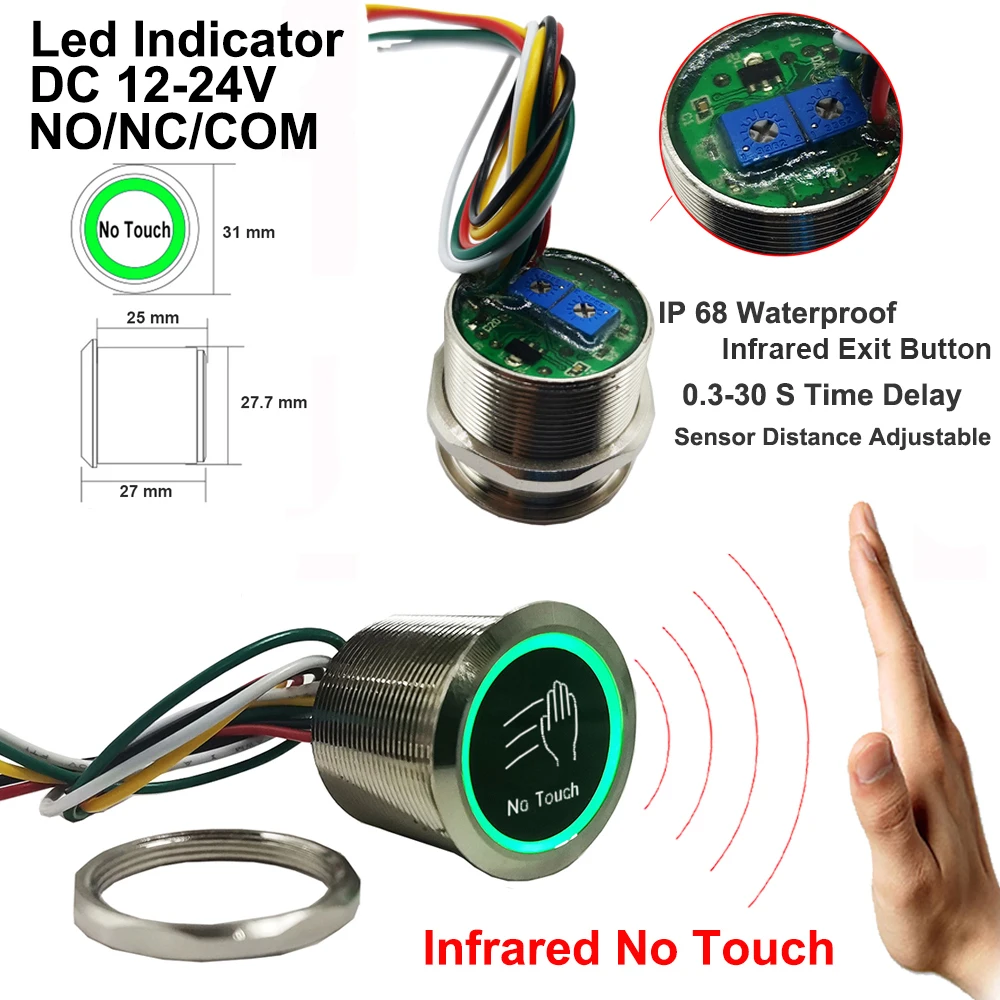

K8W-TD (Waterproof & Time Delay)
Time Delay Adjust: 0.3-30 seconds
Sensitive Distance Adjust:3-15 cm
Waterproof: IP68

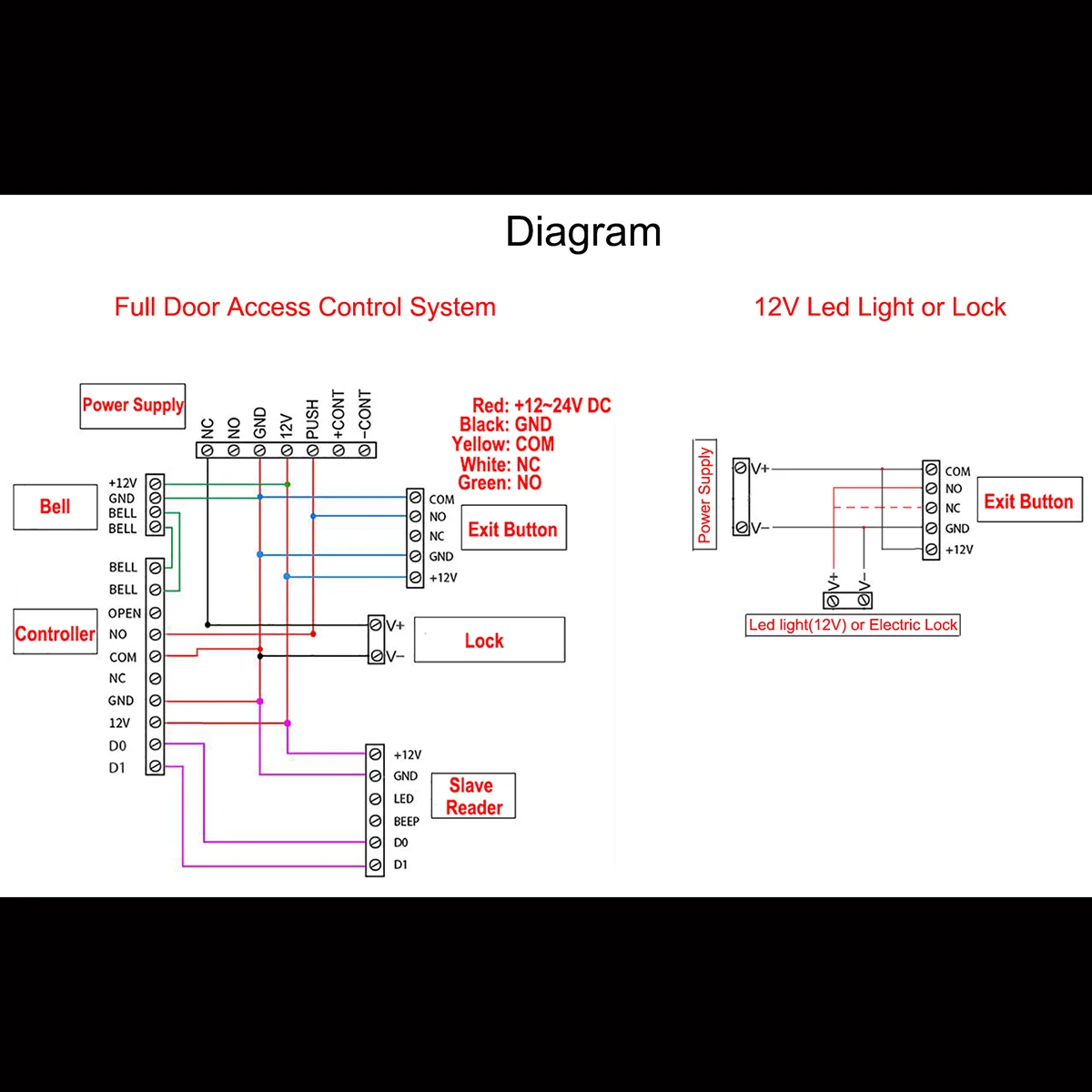

Diagrams
This is normal connection for Door Access Control system. More question, free to let us know.
