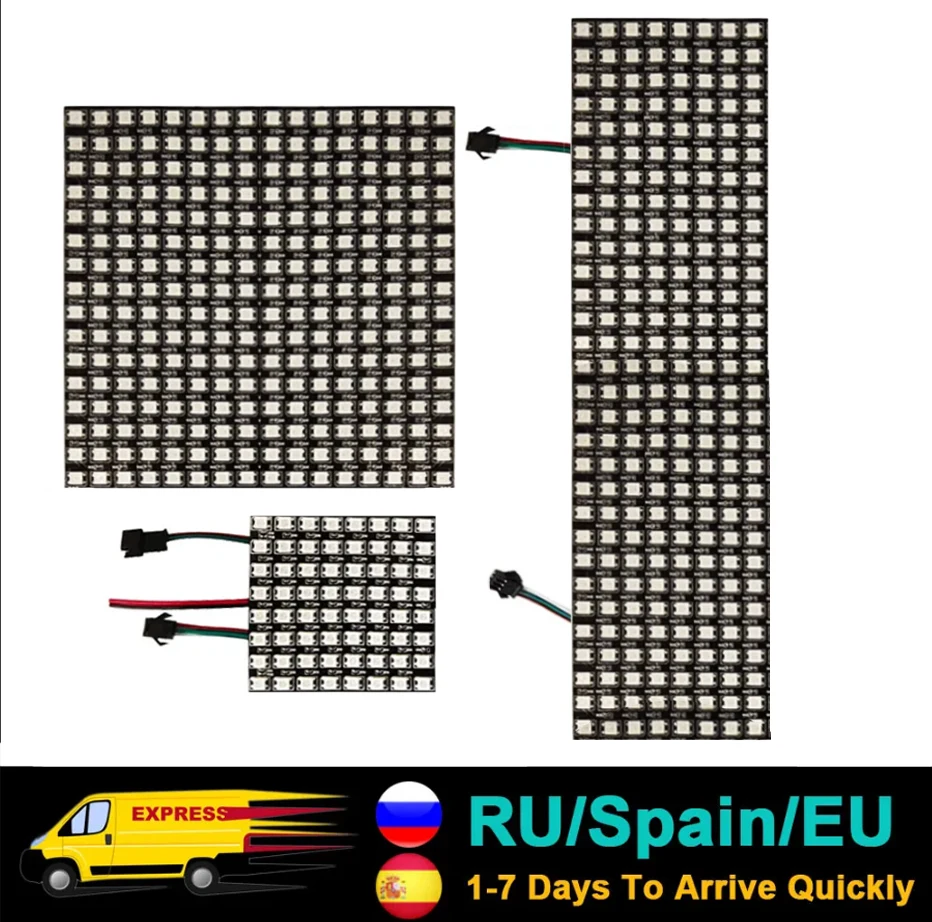

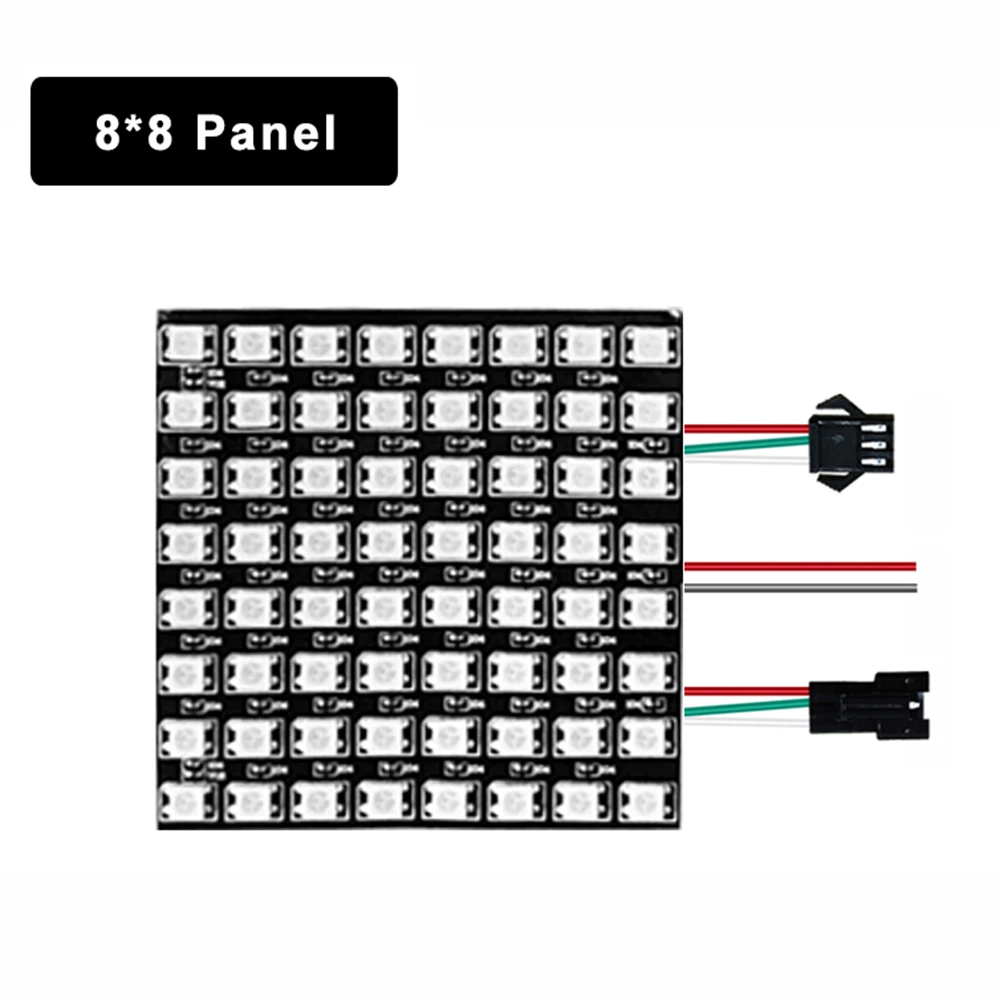

DC5V WS2812B 5050 RGB SMD Flexible 8x8 16x16 8x32 Luces Pixel Panel Matrix Screen WS2812 IC Led Module Individually Addressable
Return&refund policy
Eligible items are covered by return and refund support. If the item does not arrive or is not as described, the buyer can request help.
Security & Privacy
Safe payments: We do not share your personal details with any third parties without your consent.
Secure personal details: We protect your privacy and keep your personal details safe and secure.
AI offer for your market
A curated pick based on category, shipping route, delivery speed and popularity in your selected market.
Why this product fits your market
- • Estimated delivery: 7.
- • Strong customer signal: 4.9★ from 7 reviews.
- • Recommendations focus on this product category and your market availability.
Product specifications
Detailed product description
This product is shown with available options, market-specific pricing and verified specifications.
- Brand: FUNZENXIN
- Sales: 31
- Package size: 33 × 12 × 3 cm
- Package weight: 0.15 kg
- Rating: 4.9 / 5
Before adding to cart, choose an available option and check the quantity.
Description
voltage: DC 5V
FPCB colors: black
Light source: SMD 5050 RGB
Working Life: >50,000 hours
Beam Angle: 120 °

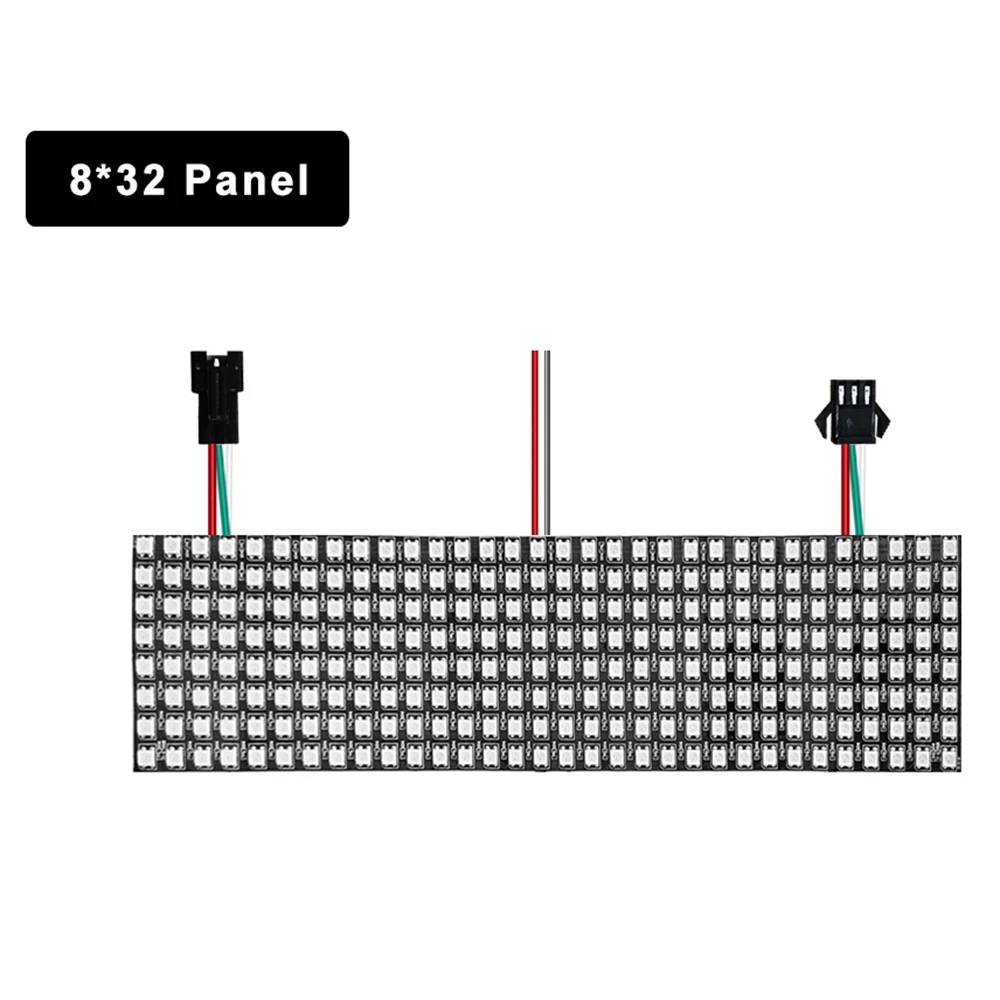

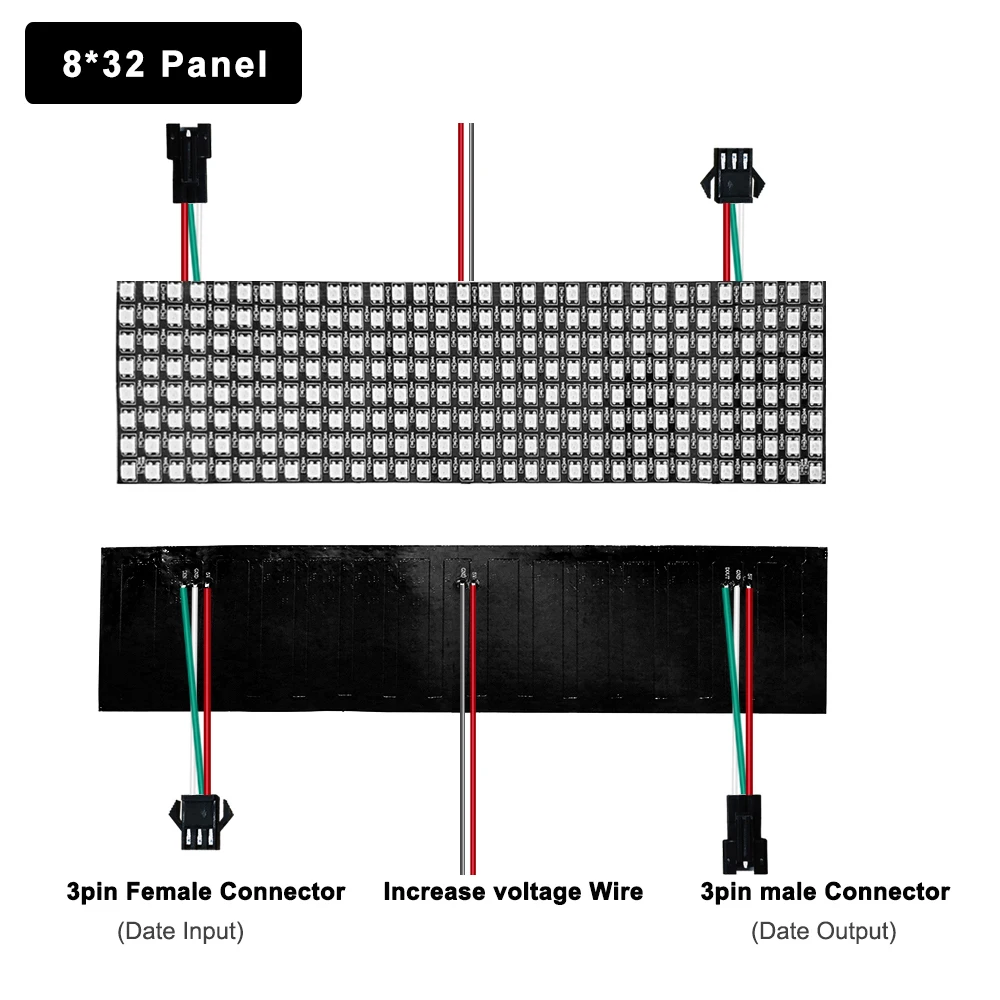

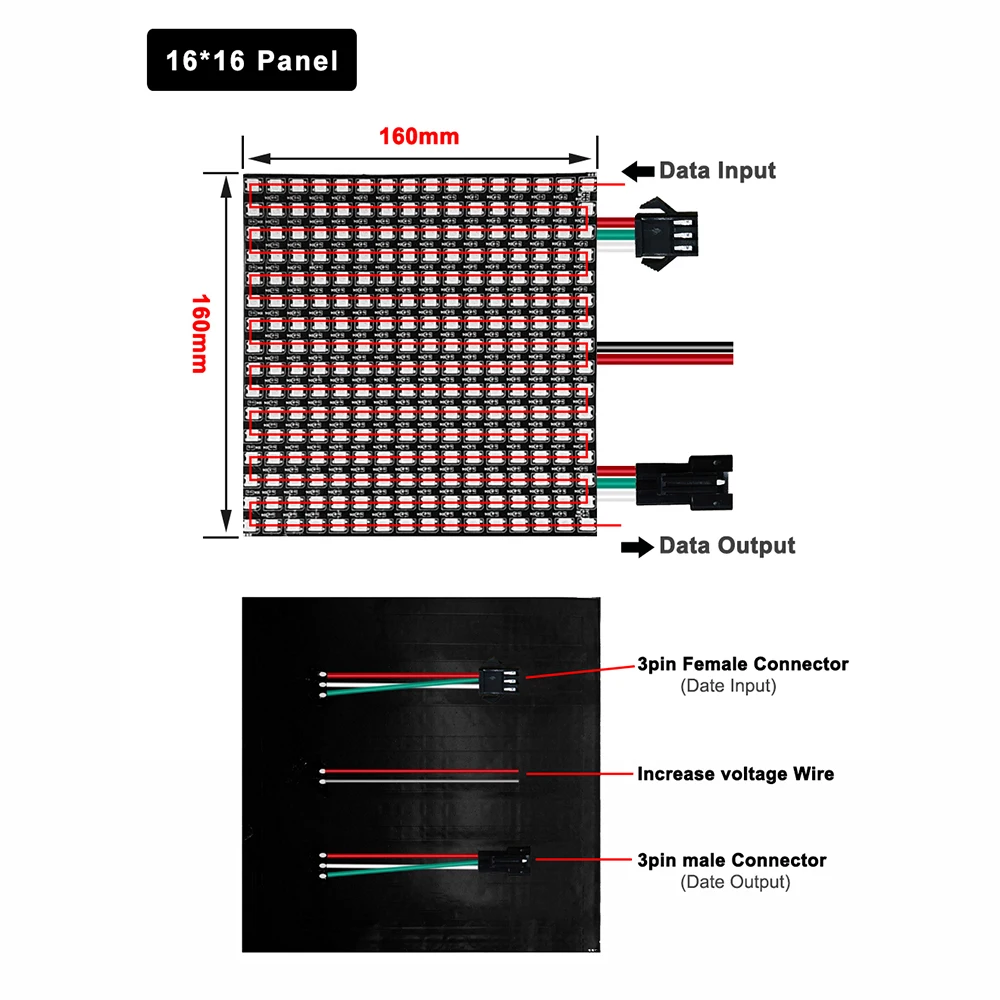

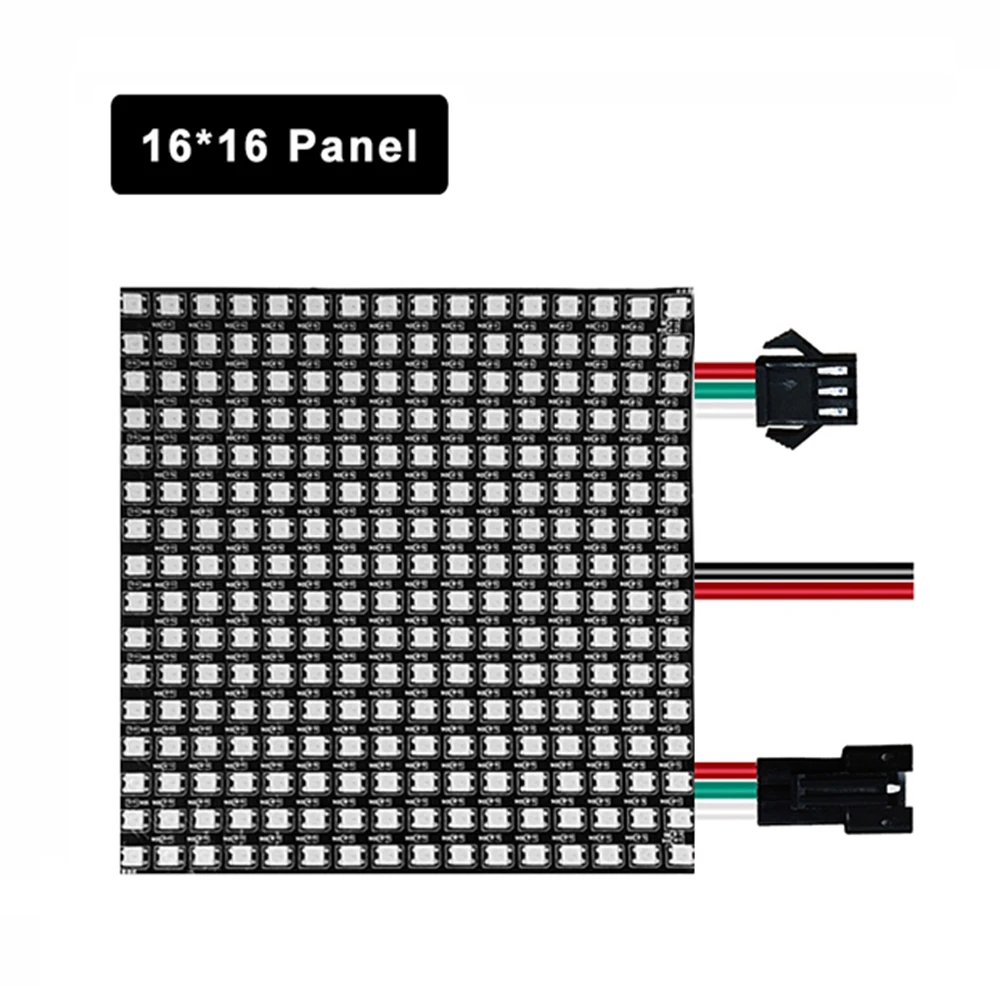

LED Quantity: 16*16 8*32 256 Pixels/8*8 64Pixels
Power: 64LEDs 19.2W/ 256LEDs 75W
Emitting Color: Full color (24-bit)
Gray level: 64/256
Plate: soft copper
Waterproof: IP30 non- waterproof
Working temperature:-20°C~40°C
IC: WS2812B (WS2811 IC built-in RGB chip)
Precautionsp
1.With 256 LEDs, you could use over 15A of current if you turn on all the LEDs on to white (which we really do not recommend because we don't think the flex PCB can handle that much current).
2.Using voltage 5V DC. higher than 5V DC will destroy it.
3.Do not bend strip sharply. Flexible PCBs are not designed for repeated flexing!
4.If you need better led strip performance, you can use a K-1000C controller or another programmable controller.
Features：
1.Individually Addressable
Using a programmable controller and you can program every led just you like. Every one led has its own IC chip.one IC controll one led.The chip buil in led.
2.DIY
If you have a programmable controller, you can DIY your own special effects
3.Bright
Brightness can be adjusted freely.Do not stare at it for a long time, otherwise you will be dazzled when the led Brightness is the brightest.
4.Colorful
Red,Green, Blue.Dream full color. curtain-up/ flow water/raindrop/jump flash and so on hundreds of lighting effect, you can also edit animation effect by Coreldraw/Flash/LedEdit software
